007 - Front Bonnet & Trims

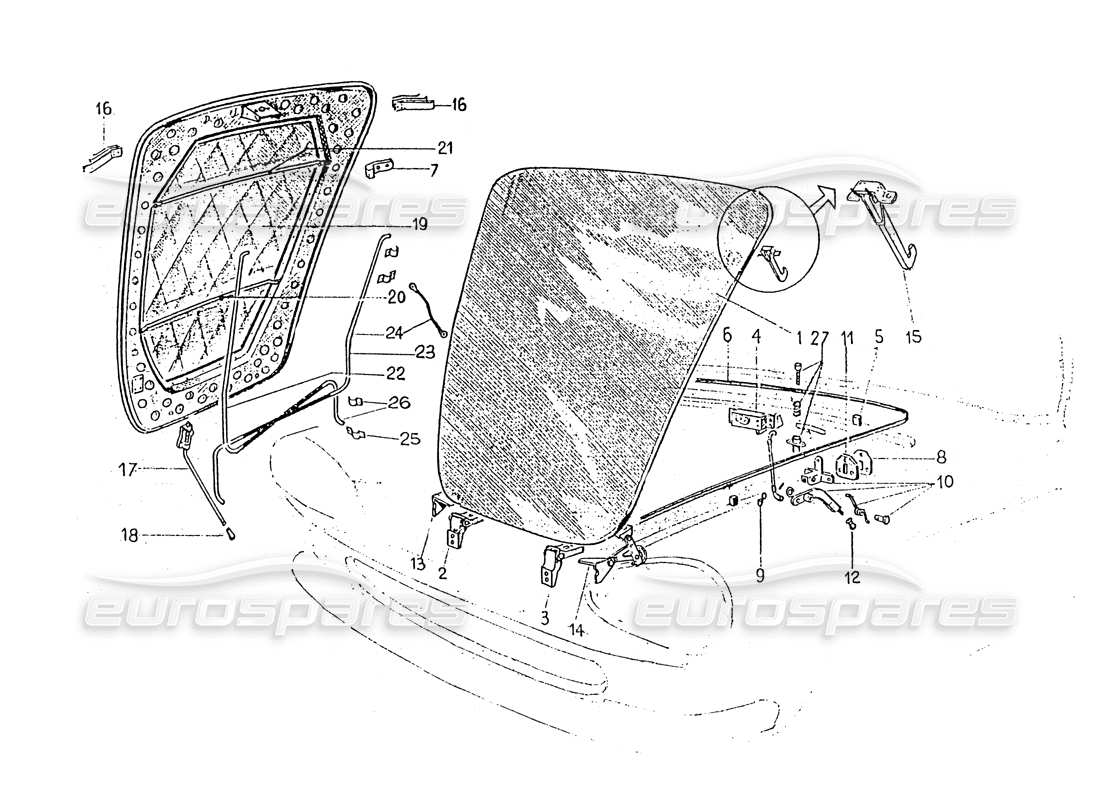

Ferrari 330 GT 2+2 (Coachwork) Front Bonnet & Trims Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit

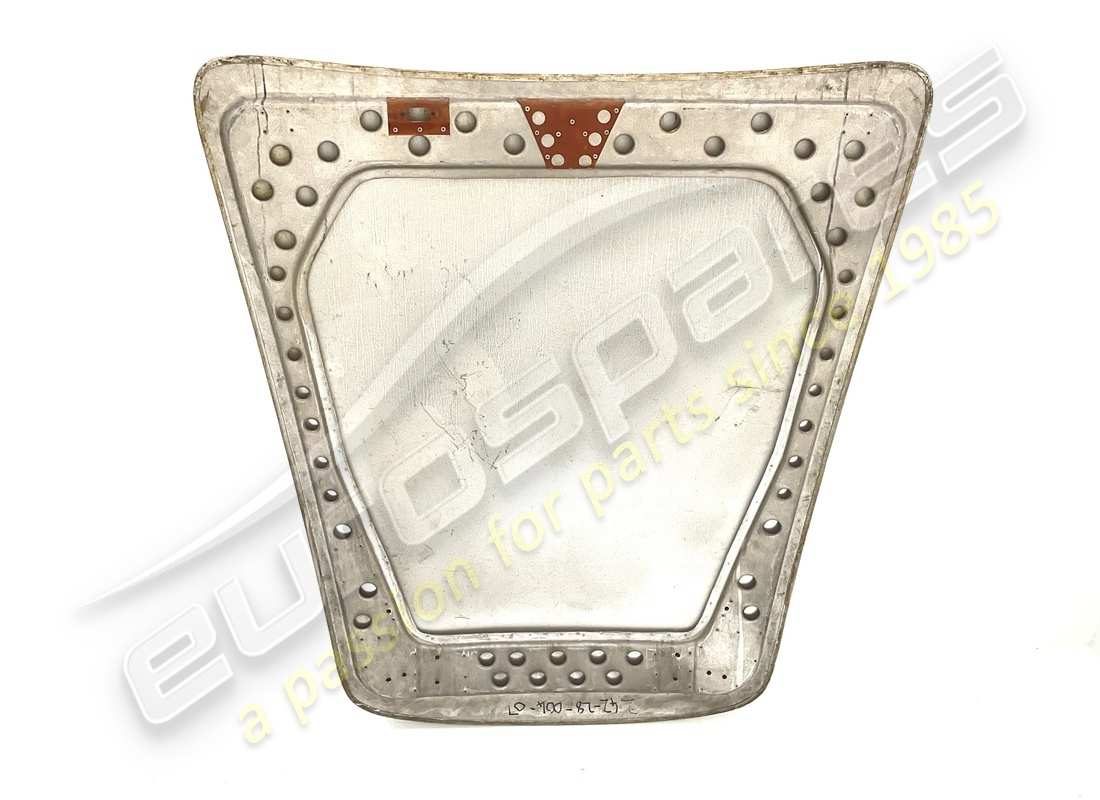

# 001
MPN: 242-28-004-00
COFANO COMPLETO DI OSSAT.E RIVEST.GREZZO
(series II)
# 001
MPN: 242-28-004-07
COFANO COMPLETO DI OSSATURA E RIVESTIMENTO - COMPLESSIVO - GREZZO
F.V.N.566 - 59
from £1,989.75
from £1,989.75

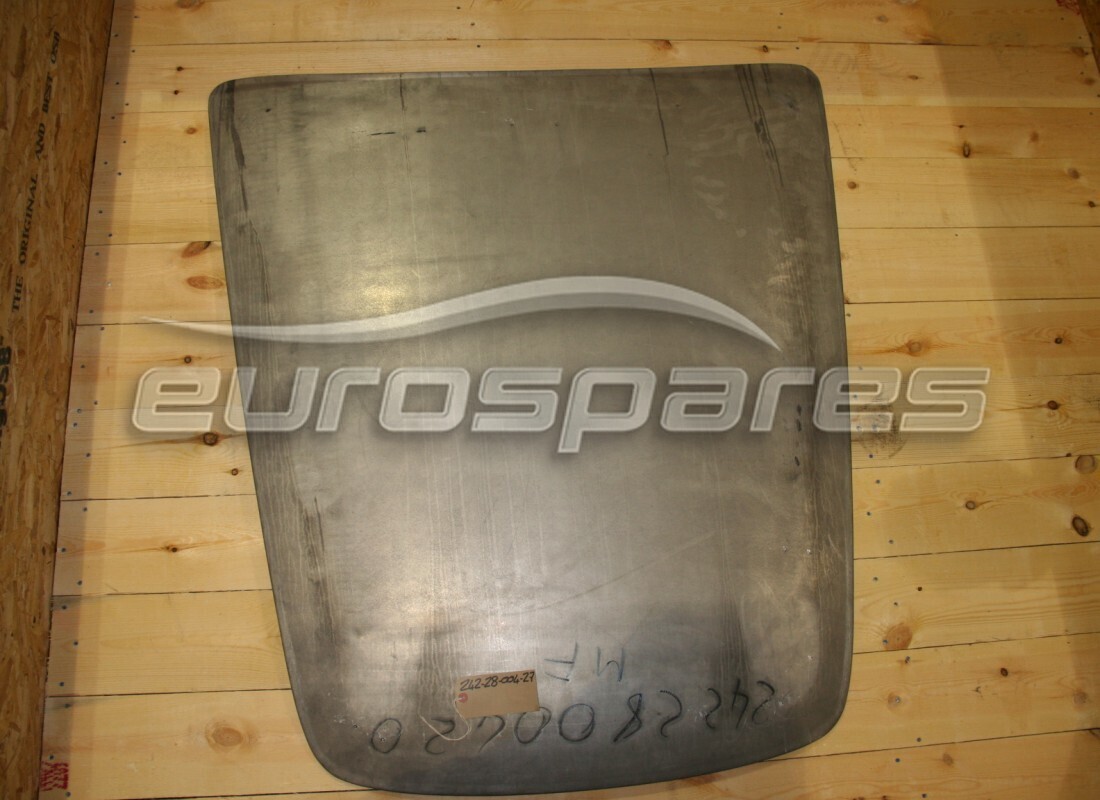

# 001
MPN: 242-28-004-27
COFANO COMPLETO DI OSSAT.E RIVEST.GREZZO
from £1,963.50
from £1,963.50
# 002
MPN: 241-28-070-07
CERNIERA COFANO COMPLETA D.
from £414.24
from £414.24
# 003
MPN: 241-28-071-07
CERNIERA COFANO COMPLETA S.
from £414.24
from £414.24
# 004
MPN: 241-28-170-01
SERRATURA COFANO
from £107.87
from £107.87
# 005
MPN: 20047106
TASSELLO BATTUTA SPORTELLO BAULE
(16305181)
from £13.65
from £13.65
This part replaces part number 20-22-19 - and 2 more. Click to view details
# 006
MPN: 242-28-198-00
GOMMA BATTUTA COFANO (MT.3,5)
Supersession
Supersession
# 007
MPN: 241-30-210-02
SCONTRINO PER SERRATURA COFANO
# 008
MPN: 242-28-326-07
PIASTRA FISSAGGIO COMANDO APERTURA COFANO
from £7.54
from £7.54
# 009
MPN: 242-28-415-01
PLATE
# 010
MPN: 242-28-400-01
COMANDO APERTURA COFANO - COMPLESSIVO
F.V.N.6 75-75
from £15.23
from £15.23
# 010
MPN: 242-28-400-11
COMANDO APERTURA COFANO CPL.
D.V.N.676-76
from £14.90
from £14.90
# 011
MPN: 242-28-412-00
GOMMA DI TENUTA-PER COMANDO APERTURA COFANO
# 012
MPN: 239-28-416-02
POMELLO PER COMANDO APERTURA COFANO
from £11.54
from £11.54
This part replaces part number 95403728
# 013
MPN: 241-28-428-07
COMPASSO DESTRO PER REGOLAZ.APERTURA COFANO
# 014
MPN: 241-28-429-07
COMPASSO SINISTROPER REGOLAZ.APERTURA COFANO
# 015
MPN: 239-28-500-01
GANCIO DI SICUREZZA COFANO
from £51.09
from £51.09
# 016
MPN: 241-28-538-04
SERIE 3 MOLLA APERTURA INIZIALE COFANO
F.V.N. 566-59
from £4.24
from £4.24
# 017
MPN: 242-28-550-01
ASTA SOSTEGNO APERTURA COFANO - COMPLESSIVO
F.V.N. 450-50
from £204.75
from £204.75
# 018
MPN: 241-28-554-00
POMELLO PER AS TO SOS TEI;NO COFANO
F.V.N. 450-50
from £6.83
from £6.83
# 019
MPN: 242-28-606-10
RIVEST.TRAPUNTATO SOTTO COFANO
D.V.N.567-60
from £2,187.92
from £2,187.92
# 020
MPN: 242-28-840-08
MOLURA ANTER.SOSTEGNO RIVESTIMENTO SOTTO COFANO
# 021
MPN: 242-28-842-08
MOLURA PONTER.SOSTEGNO RIVESTIMENTO SOTTO COFANO
# 022
MPN: 242-28-586-07
BARRA TORSIONE REGOLAZ.APERT.COFANO D
D.V.N.451-51
# 023
MPN: 242-28-587-07
BARRA TORSIONE REGOLAZ.APERT.COFANO S
D.V.N.451-51
# 024
MPN: 242-28-598-00
TIE ROD
D.V.N.451-51
# 025
MPN: 242-28-592-07
STAFFETTA INF.RITEGNO BARRA TOREIONE
D.V.N.451-51
# 026
MPN: 242-28-590-07
STAFFETTA SUP.RITEGNO BARRA TOREIONE
D.V.N.451-51
# 027
MPN: 242-28-538-02
DISPOSITIVO APERTURA INIZIALE COFANO
D.V.N.567-60
