028 - Inner lights

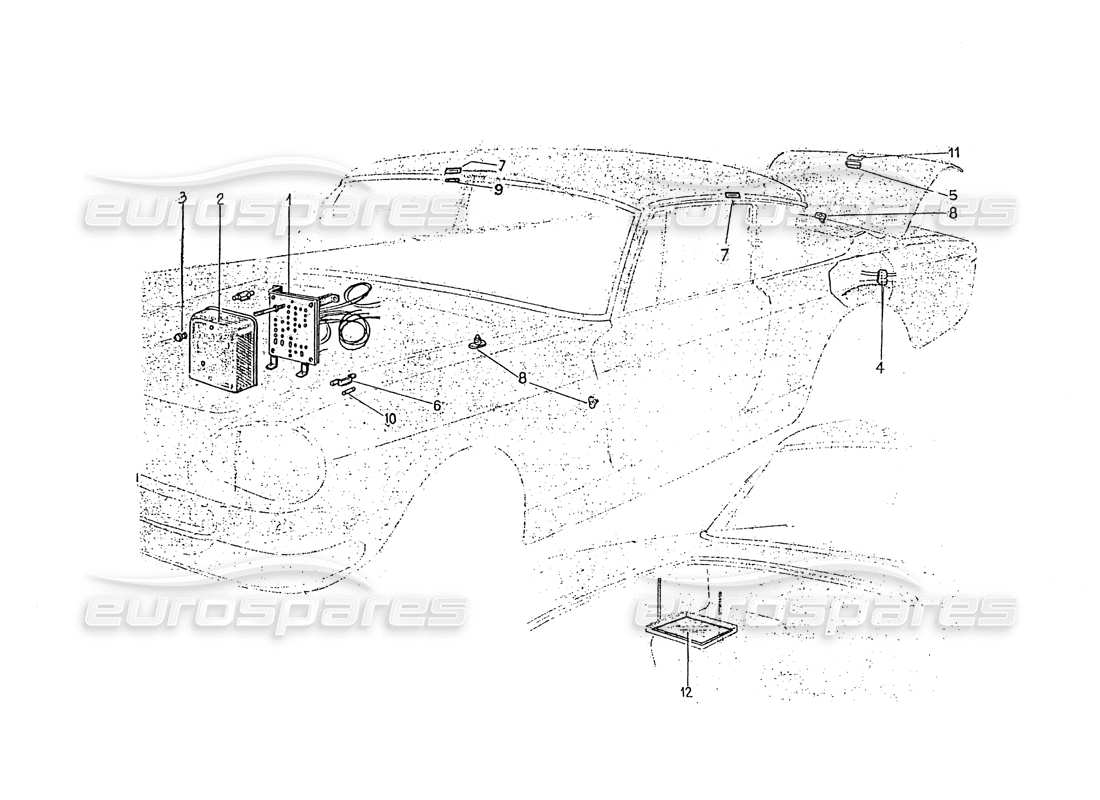

Ferrari 330 GT 2+2 (Coachwork) Inner lights Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 242-80-000-09
IMPIANTO ELETTRICO COMPLETO DI QUADRETTO
FORNIT.Ferrari F.V.N. 450 Per G.S. - Per F.V.N. 50 Per G.D.
# 001
MPN: 242-80-000-19
IMPIANTO ELETTRICO COMPLETO DI QUADRETTO
FORNIT.Ferrari Per G.S. DD.V.N. 451 - Per G.D. D.V.N. 51
# 002
MPN: 242-80-346-07
SOATOLA PROTEZIONE QUADRO COMANDI
F.V.N. 675 e 75 G.D.
# 002
MPN: 242-80-346-16
SCATOLA PROTEZIONE QUADRO COMANDI
D.V.N. 676 G.S. e 76 G.D.
# 003
MPN: 239-80-348-02
POMELLO ZIGRINATO FISSAGGIO ECATOLA PROTEZIONE QUADRO
from £12.77
from £12.77
# 004
MPN: 243-30-672-00
CONNESSIONI A 5 VIE PER VANO BAULE
# 005
MPN: 242-80-800-08
PLAFONIERA ILLUMINAZIONE VANO BAULE
from £283.61
from £283.61
# 006
MPN: 242-80-802-02
PLAFONIERA ILLUMINAZIONO VANO MOTORE
# 007
MPN: 242-80-830-02
PLAFONIERA ILLUMINAZIONE INTERNO VETTURA
from £350.70
from £350.70
# 008
MPN: 242-80-832-00
DOOR LIGHT SWITCH
from £65.49
from £65.49
# 009
MPN: 241-80-852-00
LAMPADINA SILURO 12V EW PER PLAFONIERA INTERNO VETTURA
# 010
MPN: 241-80-854-00
LAMPADINA SILURO 12V 5W PER PLAFONIERA VANO MOTORE, VANO BAULE, PLAF.PLANCIA E SPECCHIO RETROVISORE
# 011
MPN: 242-80-822-01
SOPPORTINO P.PLAFON.ILLUMINAZ.VANOBAULE
# 012
MPN: 239-80-960-07
FONDELLO ALLOGGIAMENTO BATTERIA
F.V.N. 64
# 012
MPN: 242-80-960-17
FONDELLO ALLOGGIAMENTO BATTERIA
D.V.N. 65
