005 - timing system - controls

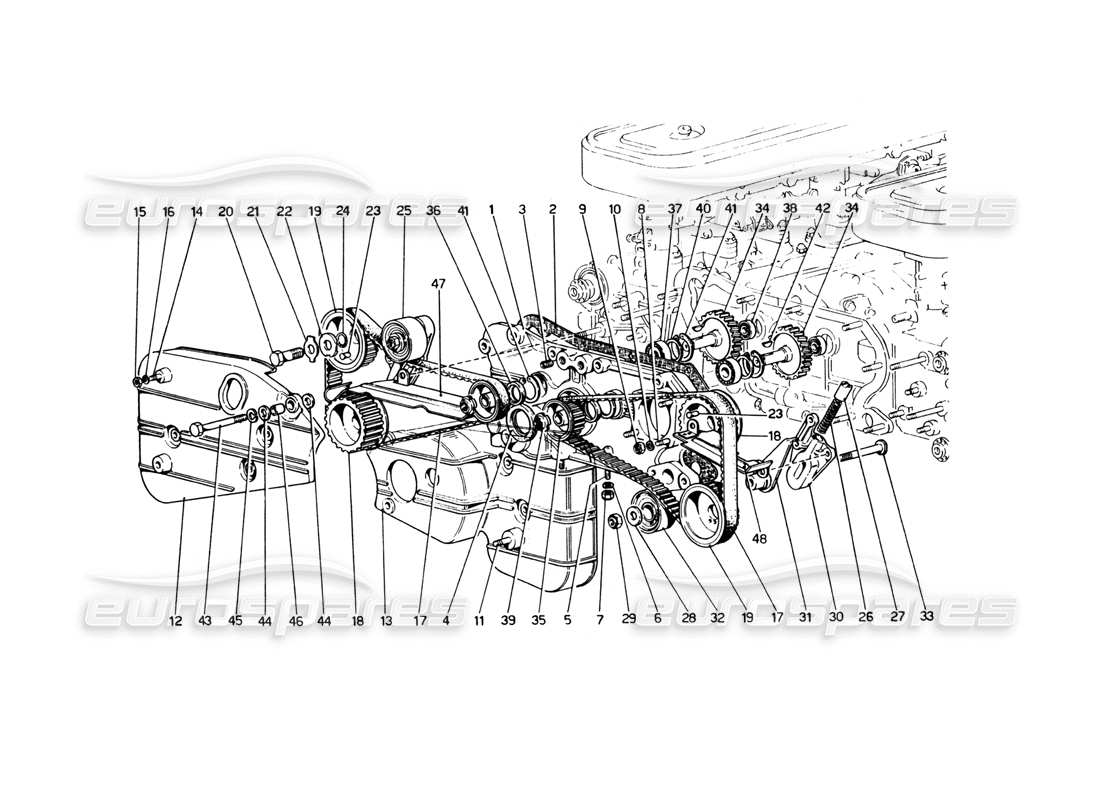

Ferrari 365 GT4 Berlinetta Boxer Timing System - Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 104504
COVER
Supersession
Supersession
# 001
MPN: 106212
COVER
This part replaces part number 104504
# 002
MPN: 147679
GASKET
from £17.00
from £17.00
This part replaces part number 104513
# 003
MPN: 104657
HELI - COIL PER FISSAGGIO SUPPORTO COMPRESSORE
Supersession
Supersession
# 004
MPN: 108224
SEALING RING
In alternativa con N.105231
from £19.58
from £19.58
This part replaces part number 105231
# 005
MPN: 13449721
STUD
from £1.14
from £1.14
# 006
MPN: 12601471
WASHER
Supersession
Supersession
# 007
MPN: 102742
NUT
from £0.53
from £0.53
This part replaces part number 12557621 - and 2 more. Click to view details
# 007
MPN: 107314
NUT
from £7.42
from £7.42
# 008
MPN: 13516924
STUD
from £1.25
from £1.25
This part replaces part number 13516921
# 009
MPN: 101139
NUT
from £0.53
from £0.53
This part replaces part number 16104425
# 010
MPN: 12601371
WASHER
Supersession
Supersession
# 011
MPN: 13449321
STUD
Vale dal N. 18265
Supersession
Supersession
# 011
MPN: 13449421
STUD
Vale fino N. 18263
# 012
MPN: 106547
CARTER DESTRO COMPLETO
from £307.87
from £307.87
# 013
MPN: 106548
CARTER SINISTRO COMPLETO
from £293.21
from £293.21
# 014
MPN: 13516621
STUD
from £0.47
from £0.47
# 015
MPN: 101139
NUT
from £0.54
from £0.54
This part replaces part number 16104425
# 016
MPN: 12646701
WASHER
from £0.54
from £0.54
# 017
MPN: 107833
TIMING BELT
from £10.50
from £10.50
This part replaces part number 102877
# 017
MPN: 107833
TIMING BELT
In alternativa con n. 102877
from £10.50
from £10.50
This part replaces part number 102877
# 017
MPN: FTBK010
TIMING BELT KIT
Includes 2x Timing Belt (107833) & 2x Tensioner bearing (105206)
# 018
MPN: 113097
DRIVEN GEAR
Vale fino esaurimento
from £286.35
from £286.35
This part replaces part number 110994
# 018
MPN: 113097
DRIVEN GEAR
from £286.35
from £286.35
This part replaces part number 110994
# 019
MPN: 102587
DRIVEN GEAR
Vale fino esaurimento
Supersession
Supersession
# 019
MPN: 113098
DRIVEN GEAR
from £286.35
from £286.35
This part replaces part number 102587 - and 1 more. Click to view details
# 020
MPN: 106606
SCREW
from £39.90
from £39.90
This part replaces part number 102776 - and 1 more. Click to view details
# 021
MPN: 102777
PLATE
from £6.50
from £6.50
This part replaces part number 4146781
# 022
MPN: 106606
WASHER
from £39.90
from £39.90
This part replaces part number 102776 - and 1 more. Click to view details
# 023
MPN: 106203
DOWEL
from £3.46
from £3.46
# 024
MPN: 101031
SEALING RING
Valid from NI 784 7
from £1.41
from £1.41
# 024
MPN: 103775
SEALING RING
Valid until NI 7845
from £1.63
from £1.63
# 025
MPN: 105206
TIMING BEARING
from £37.75
from £37.75
This part replaces part number 126720
# 026
MPN: 103846
SPRING
from £36.12
from £36.12
# 027
MPN: 102819
PLUNGER
from £153.57
from £153.57
# 028
MPN: 102824
WASHER
from £10.50
from £10.50
# 029
MPN: 102828
NUT
# 030
MPN: 105211
SUPPORT
from £127.77
from £127.77
# 031
MPN: 105202
PLATE
from £70.15
from £70.15
# 032
MPN: 105206
TIMING BEARING
from £37.75
from £37.75
This part replaces part number 126720
# 033
MPN: 105206
TIMING BEARING
from £37.75
from £37.75
This part replaces part number 126720
# 034
MPN: 104913
GEAR
from £147.00
from £147.00
# 035
MPN: 104914
PULLEY
from £378.50
from £378.50
# 036
MPN: 104916
RING
from £10.71
from £10.71
# 037
MPN: 104917
BEARING OPEN TRACK
from £7.30
from £7.30
This part replaces part number 101299
# 038
MPN: 104918
BEARING D32MM
from £7.78
from £7.78
This part replaces part number 114766
# 039
MPN: 104919
LOCKING RING NUT
from £3.03
from £3.03
# 040
MPN: 104916
WASHER
from £10.71
from £10.71
# 041
MPN: 11069975
SEEGER RING
# 042
MPN: 10206320
Key
from £0.83
from £0.83
# 043
MPN: 11360221
BOLT
from £3.24
from £3.24
# 044
MPN: 103024
WASHER
from £1.99
from £1.99
# 046
MPN: 102786
BUSH
from £17.63
from £17.63
# 046
MPN: 10517171
WASHER
from £0.49
from £0.49
# 047
MPN: 107534
RIGHT BELT TENSIONER GUARD
Valid from NI 7993
This part replaces part number 50199009
# 048
MPN: 107536
LEFT BELT TENSIONER GUARD
Valid from NI 7993
