009 - Weber Carburettors (40 IF 3C 1-2-3-4)

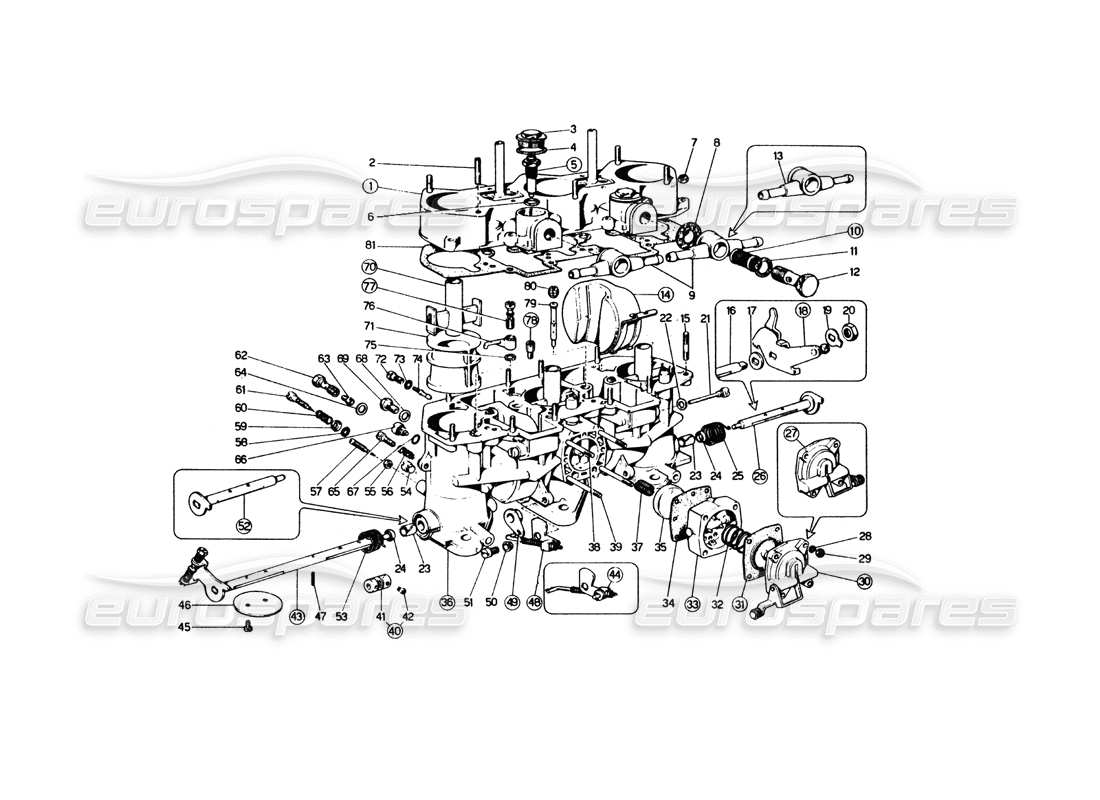

Ferrari 365 GT4 Berlinetta Boxer Weber Carburettors (40 IF 3C 1-2-3-4) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 31726.006
COVER
# 002
MPN: 64960.004
THREADED STUD
Supersession
Supersession
# 003
MPN: 61002.005
INSPECTION CAP
from £19.23
from £19.23
This part replaces part number 95180632
# 004
MPN: 41530.035
GASKET
from £16.60
from £16.60
# 005
MPN: 79508.175
VALVOLA A SPILLO ( 175)
from £27.57
from £27.57
This part replaces part number 64240.009 - and 1 more. Click to view details
# 006
MPN: 41530.005
GASKET OR SEAL
# 007
MPN: 34725.003
NUT
from £1.14
from £1.14
# 008
MPN: 41530.004
GASKET
from £2.28
from £2.28
This part replaces part number 95180568
# 009
MPN: 10356.005
RING
from £34.08
from £34.08
# 010
MPN: 37022.001
ELEMENTO FLLTRANTE
from £14.36
from £14.36
This part replaces part number 95180578
# 011
MPN: 41530.001
GASKET
from £1.24
from £1.24
This part replaces part number 10281285 - and 1 more. Click to view details
# 012
MPN: 12715.014
UNION
# 013
MPN: 10356.010
RING
Per carb.40 IF3C 2/4
from £27.17
from £27.17
# 014
MPN: 41015.007
GALLEGGIANTE
from £64.06
from £64.06
This part replaces part number 95180580
# 015
MPN: 64955.012
THREADED STUD
Supersession
Supersession
# 016
MPN: 10005.407
ALBERINO
Per carb.40 IF3C 2/3
from £22.75
from £22.75
# 017
MPN: 55555.016
WASHER
Per carb.40 IF3C 2/3
# 018
MPN: 45048.036
LEVER
Percarb,40IF3C2/3
# 019
MPN: 55520.008
WASHER
Per carb.40 IF3C 2/3
from £0.47
from £0.47
# 020
MPN: 34715.014
NUT
Per carb.40 IF3C 2/3
# 021
MPN: 64900.012
SCREW
from £11.92
from £11.92
# 022
MPN: 41630.017
GASKET OR SEAL
# 023
MPN: 52130.011
PLATE
from £2.33
from £2.33
# 025
MPN: 47610.072
SPRING
# 026
MPN: 10015.419
ALBERINO
Per carb.40 IF 3C 1/4
# 027
MPN: 32486.010
COVER
Per carb.40 IF 3C 2/3
# 028
MPN: 55525.007
WASHER
# 029
MPN: 34705.003
NUT
# 030
MPN: 32486.009
COVER
Per carb.40 1 F 3C 1/4
# 031
MPN: 47407.010
MEMBRANA POMPA
from £29.67
from £29.67
# 032
MPN: 47600.012
SPRING
# 033
MPN: 39174.002
FIANGTA POMPA
# 034
MPN: 47405.011
MEMBRANA
from £22.92
from £22.92
This part replaces part number 95180570
# 035
MPN: 64190.004
DELIVERY VALVE
# 036
MPN: non a ricambio
CORPO CARBURATORE
# 037
MPN: 47600.128
SPRING
from £0.93
from £0.93
# 038
MPN: 64955.020
THREADED STUD
from £3.84
from £3.84
# 039
MPN: 64955.011
THREADED STUD
# 040
MPN: 32272.001
CONGIUNZIONE ELASTICA COMPLETA DI:
# 041
MPN: 32270.002
CORIGIUNZIONE ELASTICA
# 042
MPN: 64600.002
SCREW
# 043
MPN: 10020.415
ALBERINO
Per carb.40 IF 3C 1/4
from £28.25
from £28.25
# 044
MPN: 61287.002
TIRANTINO
Per carb.40 IF 3C 2/3
from £10.99
from £10.99
# 045
MPN: 64520.027
BUTTERFLY SCREW
from £3.38
from £3.38
# 046
MPN: 64005.087
VALVOFA FARFALLA
from £14.88
from £14.88
# 047
MPN: 58445.001
PIN
from £3.92
from £3.92
# 048
MPN: 61287.001
TIRANTINO
Per carb.40 IF 3C 1/4
# 049
MPN: 45027.007
LEVER
# 050
MPN: 12775.017
BUSH
# 051
MPN: 64700.012
VITEFUICRO
from £1.48
from £1.48
# 052
MPN: 10015.415
ALBERINO
Per carb.40 IF 3C 2/3
from £17.11
from £17.11
# 053
MPN: 47610.071
SPRING
from £1.50
from £1.50
# 054
MPN: 61015.009
INSPECTION CAP
from £6.79
from £6.79
# 055
MPN: 34706.006
NUT
# 056
MPN: 47600.007
SPRING
Per carb.40 IF 3C 2/3
from £1.42
from £1.42
This part replaces part number 95180573
# 057
MPN: 64750.002
SCREW
from £7.43
from £7.43
# 058
MPN: 41566.002
GASKET
# 059
MPN: 580004
SCODEHINO
# 060
MPN: 47600.007
SPRING
from £1.42
from £1.42
This part replaces part number 95180573
# 061
MPN: 64750.018
VITEREQISTRO
from £2.05
from £2.05
This part replaces part number 95180572
# 062
MPN: 52590.001
PORTAGETTO PRINCIPALE
from £10.96
from £10.96
# 063
MPN: 41120.006
GETTOPRINCIPALE (155)
Supersession
Supersession
# 064
MPN: 41640.001
GASKET
# 066
MPN: 64686.006
SCREW
Per carb.40 IF 3C 2/3
# 066
MPN: 64836.606
SCREW
# 067
MPN: 41566.009
GASKET
# 068
MPN: 41530.008
GASKET
# 069
MPN: 61002.006
TAPPO SCARLCO
from £3.45
from £3.45
# 070
MPN: 31966.003
CENTRATORE (3,5)
Supersession
Supersession
# 071
MPN: 34894.002
DIFFUSER
Supersession
Supersession
# 072
MPN: 52570.006
IDLE JET HOLDER
from £6.59
from £6.59
# 073
MPN: 41565.002
WASHER
from £4.32
from £4.32
This part replaces part number 95180514
# 074
MPN: 41575.010
GASKET
from £8.86
from £8.86
# 074
MPN: 74403.050
IDLE JET (50)
from £6.04
from £6.04
# 075
MPN: 41530.012
WASHER
Supersession
Supersession
# 076
MPN: 41252.002
PUMP JET (40)
Supersession
Supersession
# 077
MPN: 64290.007
PUMP DELIVERY VALVE (50)
Supersession
Supersession
# 078
MPN: 64290.001
VALVOIA ASPIRAZIONE E SCARICO POMPA (40)
Supersession
Supersession
# 079
MPN: 61440.151
TUBETTO EMULSIONATORE (F26)
from £5.02
from £5.02
# 080
MPN: 41360.001
BRAKE AIR JET (160)
Supersession
Supersession
# 081
MPN: 41710.001
GASKET
from £15.96
from £15.96
This part replaces part number 95180569
