012 - Lubrication - Blow-By and Dipstick

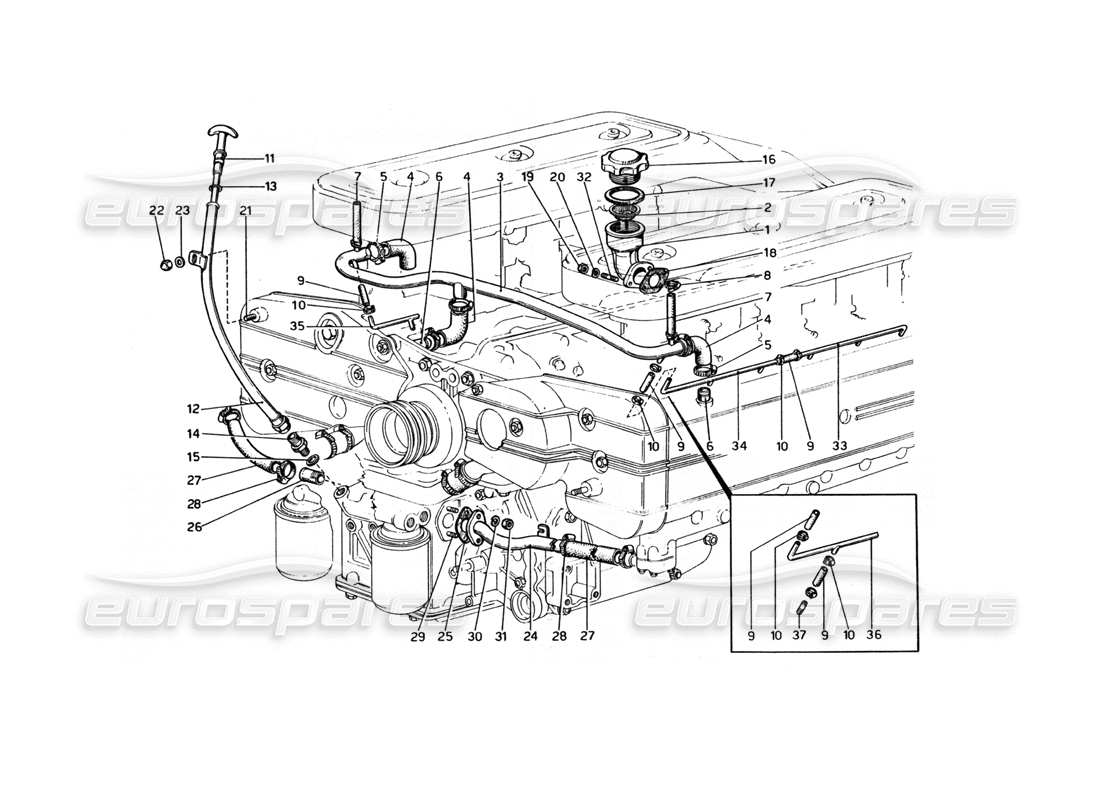

Ferrari 365 GT4 Berlinetta Boxer Lubrication - Blow-By and Dipstick Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 102876
OIL FILLER
from £59.46
from £59.46
# 002
MPN: 103479
PROTECTION FOR UNION
from £23.05
from £23.05
# 003
MPN: 105083
TUBO COMPLETO PER SFIATO BLOW-BY
from £111.65
from £111.65
# 004
MPN: 104873
SLEEVE
from £30.09
from £30.09
# 005
MPN: 105622
JUBILEE CLIP
Supersession
Supersession
# 006
MPN: 102705
UNION
from £79.26
from £79.26
# 007
MPN: 104875
SLEEVE
Vale fino N. 18259
from £9.36
from £9.36
# 007
MPN: 107170
SLEEVE
Vale dal N. 18265
from £4.50
from £4.50
# 008
MPN: 104879
JUBILEE CLIP
Supersession
Supersession
# 009
MPN: 100074
SLEEVE
FinoN. 17535 q = 14
from £7.50
from £7.50
# 010
MPN: 102721
JUBILEE CLIP
Fino N.I 7535 q = 28
Supersession
Supersession
# 011
MPN: 105655
ASTA LIVELLO OLIO
Vale dal N. 17535
from £47.26
from £47.26
This part replaces part number 105716
# 011
MPN: 105716
ASTA LIVELLO OLIO
Vale fino N. 17535
Supersession
Supersession
# 012
MPN: 104636
TUBO PER ASTA
from £87.98
from £87.98
# 013
MPN: 100317
SEALING RING
(minimum order quantity = 10)
from £0.70
from £0.70
# 014
MPN: 102668
UNION
from £34.35
from £34.35
# 015
MPN: 10259960
GASKET
from £0.47
from £0.47
This part replaces part number 95017
# 016
MPN: 102879
TAPPO INTRODUZIONE OLIO
from £169.19
from £169.19
This part replaces part number 4168812
# 017
MPN: 100322
GASKET
from £8.07
from £8.07
This part replaces part number 4168814
# 018
MPN: 150191
GASKET
from £1.34
from £1.34
This part replaces part number 102699 which we have in stock - and 1 more. Click to view details
# 019
MPN: 100044
NUT
from £0.30
from £0.30
This part replaces part number 151230 - and 1 more. Click to view details
# 020
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 021
MPN: 13516521
THREADED STUD
Supersession
Supersession
This part replaces part number 102682 - and 1 more. Click to view details
# 022
MPN: 101139
NUT
from £0.54
from £0.54
This part replaces part number 16104425
# 023
MPN: 12646701
WASHER
from £0.54
from £0.54
# 024
MPN: 104554
LEFT HEAD OIL DRAIN PIPE
Vale dal N. 17543
from £127.77
from £127.77
# 024
MPN: 104985
LEFT HEAD OIL DRAIN PIPE
Vale fino N. 17535
from £84.48
from £84.48
# 025
MPN: 150193
GASKET
from £0.47
from £0.47
This part replaces part number 104558 - and 1 more. Click to view details
# 026
MPN: 104561
UNION
from £7.92
from £7.92
# 027
MPN: 122828
TUBO GOMMA
from £26.40
from £26.40
This part replaces part number 104562
# 028
MPN: 105622
JUBILEE CLIP
Supersession
Supersession
# 029
MPN: 11500224
THREADED STUD
from £0.51
from £0.51
This part replaces part number 11500221 - and 1 more. Click to view details
# 030
MPN: 10516471
WASHER
Supersession
Supersession
# 031
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 032
MPN: 11500224
THREADED STUD
from £0.51
from £0.51
This part replaces part number 11500221 - and 1 more. Click to view details
# 033
MPN: 106161
TUBETTOPOSTERIORE PER BLOW-BY
Vale dal N. 17543
from £33.73
from £33.73
# 034
MPN: 106162
TUBETTO ANTER.SINISTRO PER BLOW-BY
Vale dal N. 17543
from £49.89
from £49.89
# 035
MPN: 106163
TUBETTO ANTER.DESTRO PER BLOW-BY
Vale dal N. 17543
from £44.30
from £44.30
# 036
MPN: 102712
TUBETTO SINISTRO PER BLOW-BY
Vale flnoN. 17535
from £42.54
from £42.54
# 036
MPN: 102713
TUBETTO DESTRO PER BLOW-BY
Vale fino N. 17535
# 037
MPN: 102710
CALIBRATED TUBE ON THE MANIFOLDS FOR VENT
Vale fino N. 17535
from £12.21
from £12.21
