014 - Cooling System (Up To Car No. 17845)

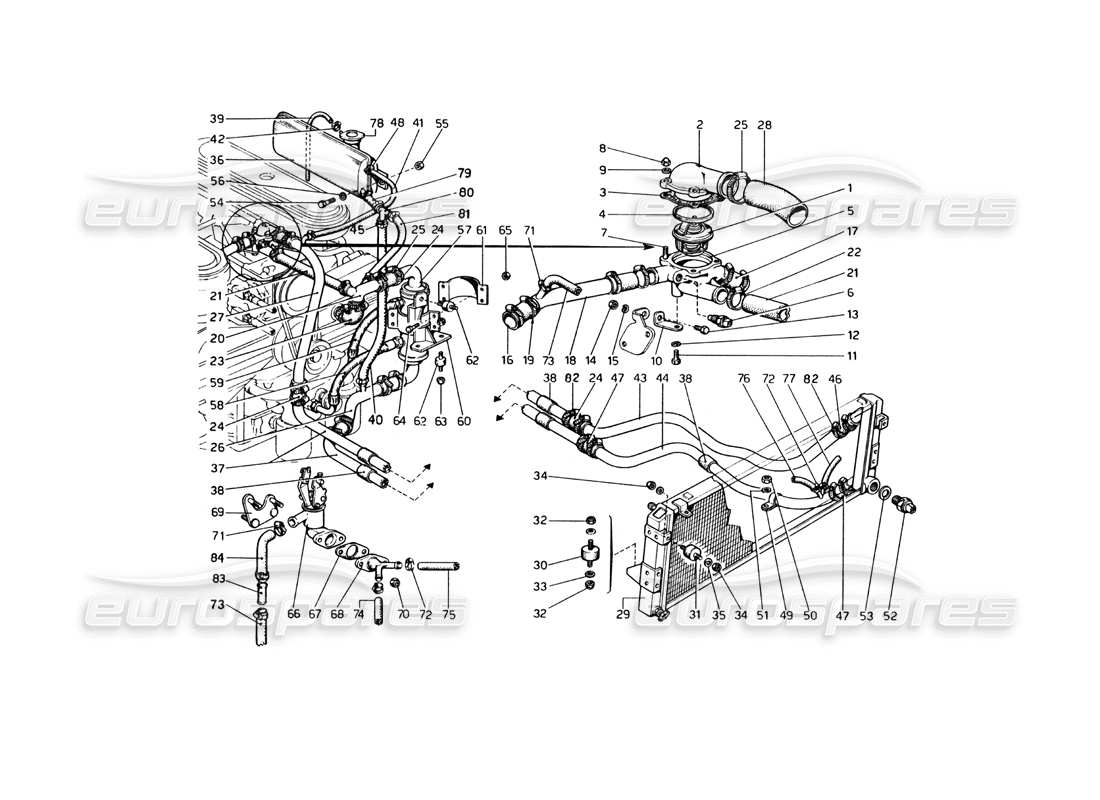

Ferrari 365 GT4 Berlinetta Boxer Cooling System (Up To Car No. 17845) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 108135
TERMOSTATO
from £72.45
from £72.45
This part replaces part number 102910 - and 2 more. Click to view details
# 001
MPN: 108135
TERMOSTATO
Dopo esaurim.N. 102910
from £72.45
from £72.45
This part replaces part number 102910 - and 2 more. Click to view details
# 002
MPN: 102911
UNION
from £405.42
from £405.42
This part replaces part number 220451 - and 1 more. Click to view details
# 003
MPN: 147638
GASKET
from £4.10
from £4.10
This part replaces part number 102912
# 004
MPN: 102913
RUBBER FOR THERMOSTAT
from £24.21
from £24.21
# 005
MPN: 105110
MIXER BODY
Supersession
Supersession
# 006
MPN: 104628
TEMPERATURE SENDER UNIT
from £32.70
from £32.70
This part replaces part number 4108672 - and 3 more. Click to view details
# 007
MPN: 11500321
PRIG ION IERO
Supersession
Supersession
# 008
MPN: 100044
NUT
from £0.30
from £0.30
This part replaces part number 151230 - and 1 more. Click to view details
# 009
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 010
MPN: 105139
BRACKET / SUPPORT
from £7.60
from £7.60
# 011
MPN: 16043321
BOLT
from £0.47
from £0.47
# 012
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 013
MPN: 10902121
BOLT
from £0.71
from £0.71
This part replaces part number 20146601
# 014
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 015
MPN: 10516471
WASHER
Supersession
Supersession
# 016
MPN: 105455
SLEEVE
Supersession
Supersession
# 017
MPN: 102791
SLEEVE
Supersession
Supersession
This part replaces part number 117307
# 018
MPN: 106456
PIPE / TUBE / HOSE
# 019
MPN: 12173090
JUBILEE CLIP
Supersession
Supersession
This part replaces part number 105672
# 020
MPN: 102954
UNION
from £59.12
from £59.12
# 021
MPN: 102955
PIPE / TUBE / HOSE
from £54.65
from £54.65
# 022
MPN: 106672
JUBILEE CLIP
from £7.07
from £7.07
# 023
MPN: 164417
SLEEVE
from £44.35
from £44.35
This part replaces part number 158165
# 024
MPN: 121258
SLEEVE
from £20.20
from £20.20
This part replaces part number 10147087 - and 5 more. Click to view details
# 025
MPN: 106303
JUBILEE CLIP
# 026
MPN: 102959
PIPE / TUBE / HOSE
from £69.50
from £69.50
# 027
MPN: 105301
PIPE / TUBE / HOSE
Supersession
Supersession
# 028
MPN: 106302
SLEEVE

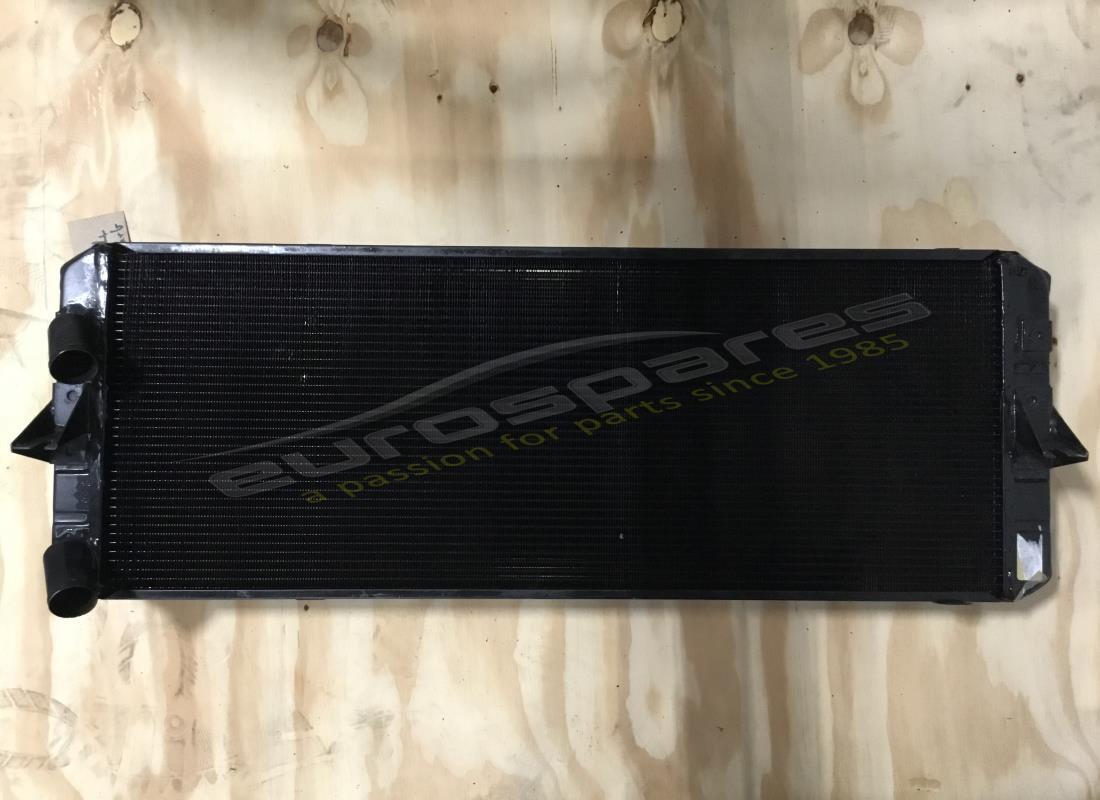

# 029
MPN: 103344
RADIATORE ACQUA
from £893.08
from £893.08
# 030
MPN: 101495
LOWER BUFFER
from £6.59
from £6.59
# 031
MPN: 102947
TAMPONE SUPERIORE
from £7.35
from £7.35
This part replaces part number 102007 - and 14 more. Click to view details
# 032
MPN: 104030
NUT
from £0.53
from £0.53
This part replaces part number 16104125
# 033
MPN: 10519601
WASHER
from £0.53
from £0.53
# 034
MPN: 12574211
SELF LOCKING NUT
from £0.71
from £0.71
# 035
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details

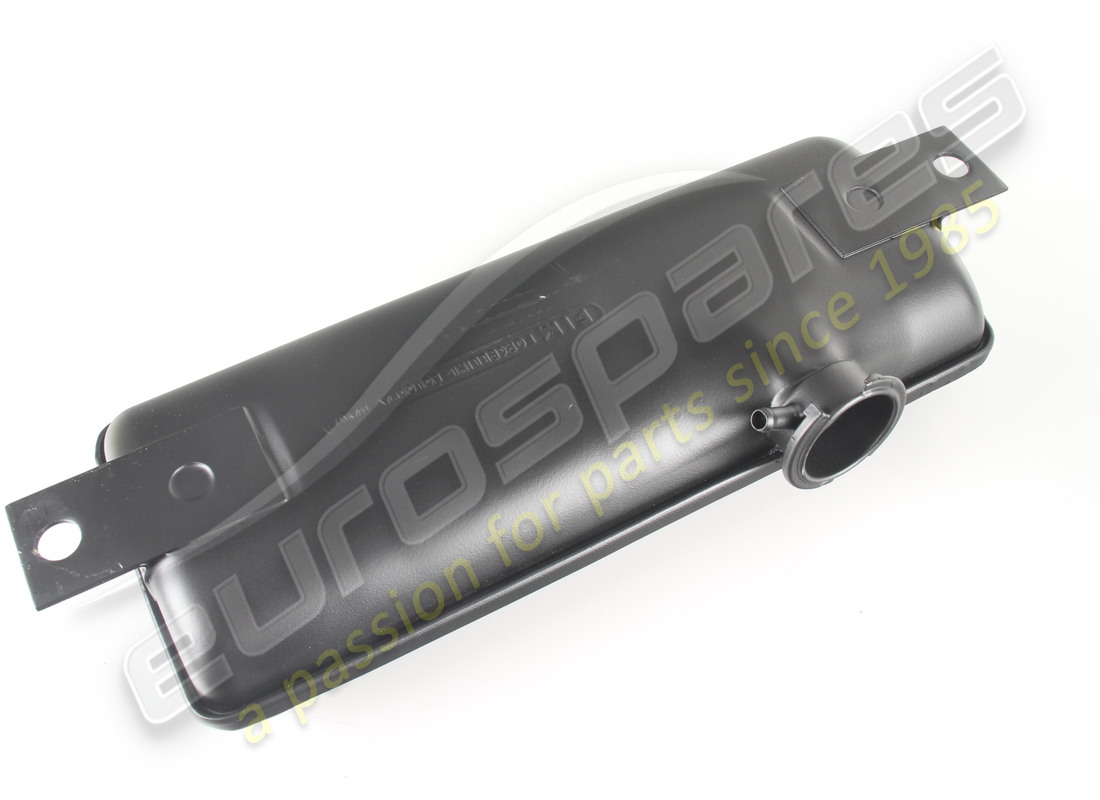

# 036
MPN: 105279
NOURICE PER RADIATORE
from £1,266.45
from £1,266.45
# 037
MPN: 105384
HOSE FOR DELIVERY AND OUTLET OF WATER FROM THE RADIATOR TO THE ENGINE
from £231.26
from £231.26
# 038
MPN: 105385
MANICOTTO PER ANT IVIBRAZ LONE
from £28.33
from £28.33
# 039
MPN: 103846
TUBO SFIATO
from £36.12
from £36.12
# 040
MPN: 107393
PIPE / TUBE / HOSE
Supersession
Supersession
# 040
MPN: 12170400
JUBILEE CLIP
# 041
MPN: 103471
PIPE / TUBE / HOSE
Supersession
Supersession
# 042
MPN: 102721
JUBILEE CLIP
Supersession
Supersession
# 043
MPN: 106306
DELIVERY PIPE
from £148.02
from £148.02
# 044
MPN: 106387
RETURN HOSE
# 046
MPN: 106303
SLEEVE
# 046
MPN: 106622
JUBILEE CLIP
# 047
MPN: 105190
SLEEVE
from £17.48
from £17.48
This part replaces part number 106364
# 047
MPN: 106190
SLEEVE
Dopo esaurim. N. 106364
from £127.27
from £127.27
This part replaces part number 103810
# 049
MPN: 104400
JUBILEE CLIP
from £16.44
from £16.44
# 052
MPN: 101007
TERMOCONTATTO
# 054
MPN: 16043821
SCREW
from £0.71
from £0.71
# 056
MPN: 12025201
WASHER
# 056
MPN: 16104411
NUT
from £0.53
from £0.53
# 057
MPN: 102944
WATER-OIL EXCHANGER
from £1,261.93
from £1,261.93
# 058
MPN: 102945
PIPE / TUBE / HOSE
from £393.90
from £393.90
# 059
MPN: 102040
PIPE / TUBE / HOSE
# 060
MPN: 104140
BRACKET / SUPPORT
# 060
MPN: 11000211
NUT
# 061
MPN: 10010471
WASHER
# 061
MPN: 104147
BRACKET
# 062
MPN: 102947
SUPPORT
from £7.25
from £7.25
This part replaces part number 102007 - and 14 more. Click to view details
# 063
MPN: 101500
GASKET
# 063
MPN: 12574211
NUT
from £0.71
from £0.71
# 064
MPN: 10002421
BOLT
# 065
MPN: 12674211
NUT
# 066
MPN: 105817
RUBINETTO PER RISCALDATORE
from £246.68
from £246.68
# 067
MPN: 10-42-01
GASKET
# 068
MPN: 1060722
FLANGIA PER RUBINETTO GS
(price each disc)
# 068
MPN: 106955
FLANGIA PER RUBINETTO GD
from £36.83
from £36.83
# 069
MPN: 106073
BRACKET / SUPPORT
# 069
MPN: 106956
BRACKET / SUPPORT
from £33.60
from £33.60
# 070
MPN: 12074221
NUT
# 071
MPN: 104022
JUBILEE CLIP
Supersession
Supersession
# 072
MPN: 100607
JUBILEE CLIP
# 073
MPN: 100003
TUBO DAL MOTORE AL RUBINETTO
# 074
MPN: 100347
TUBO DAL RUBINETTO IT RISCALDATOREDX
from £330.03
from £330.03
# 075
MPN: 106348
TUBO DAL RUBINETTO AT RISCA IDA TORE SX
# 076
MPN: 106349
TUBO AT RISCALDATORE DX. GS
Supersession
Supersession
# 076
MPN: 107963
TUBO AT RISCALDATORE DX. GD
from £26.20
from £26.20
# 077
MPN: 100200
TUBO AL RISCALDATORE SX. GS
from £451.58
from £451.58
This part replaces part number 220482
# 077
MPN: 107964
TUBO AL RISCALDATORE SX. GD
Supersession
Supersession
# 078
-
TAPPO NOURICE
# 079
MPN: 107302
PIPE / TUBE / HOSE
from £1,182.09
from £1,182.09
This part replaces part number 103802 - and 1 more. Click to view details
# 080
MPN: 107304
TRE VIE
Supersession
Supersession
# 081
MPN: 107395
PIPE / TUBE / HOSE
Supersession
Supersession
# 082
MPN: 102000
JUBILEE CLIP
# 083
MPN: 147688
GASKET
from £3.68
from £3.68
This part replaces part number 102763 - and 1 more. Click to view details
# 084
MPN: 100002
SLEEVE
