Ferrari 365 GT4 Berlinetta Boxer clutch release control Parts Diagram

017 - clutch release control

Ferrari 365 GT4 Berlinetta Boxer Clutch Release Control Parts Diagram

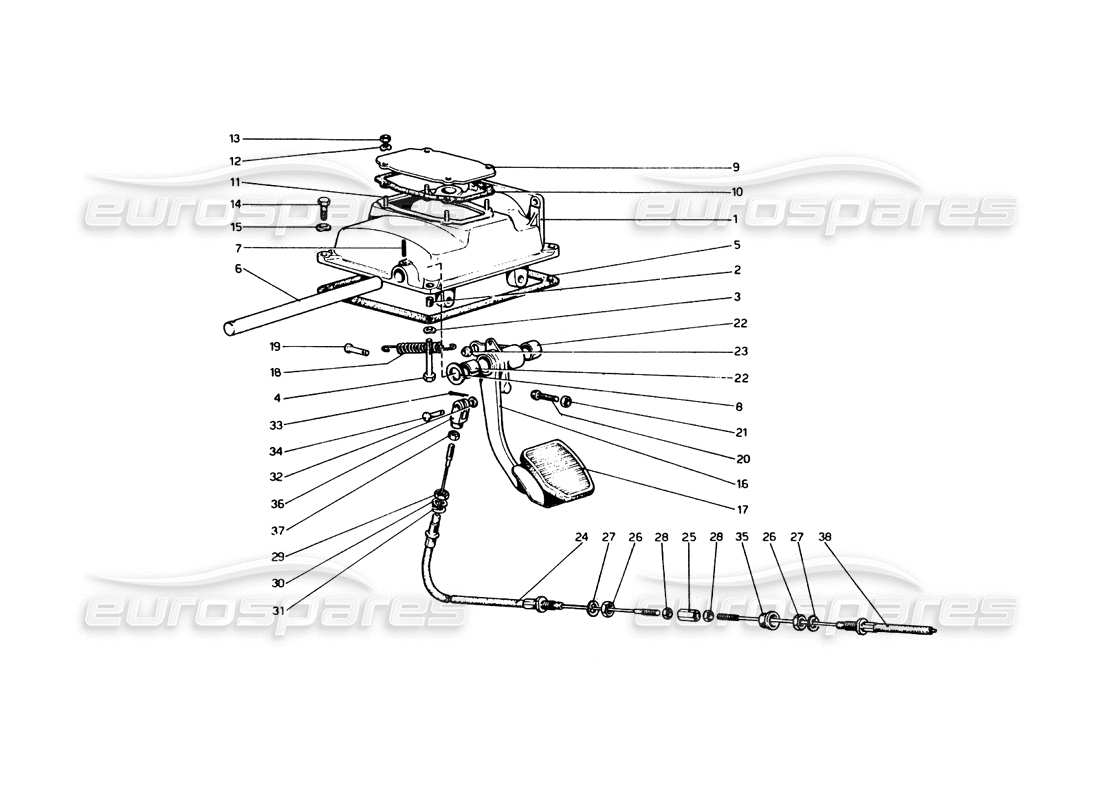

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price
                                                                  # 001
                                                                  MPN: 106187
                                                                  SUPPORT
                                                                  Supersession
                                                                  Supersession
                                                                  # 001
                                                                  MPN: 108022
                                                                  PEDAL BOX SUPPORT, COMPLETE
                                                                  LHD
                                                                  from £1,795.45
                                                                  from £1,795.45
                                                                  This part replaces part number 106187 - and 2 more. Click to view details
                                                                  # 002
                                                                  MPN: 106188
                                                                  BUSH
                                                                  from £33.92
                                                                  from £33.92
                                                                  # 003
                                                                  MPN: 127496
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 10516671 - and 2 more. Click to view details
                                                                  # 004
                                                                  MPN: 16044421
                                                                  BOLT
                                                                  from £1.35
                                                                  from £1.35
                                                                  # 005
                                                                  MPN: 104899
                                                                  GASKET
                                                                  Supersession
                                                                  Supersession
                                                                  # 006
                                                                  MPN: 104900
                                                                  PIVOT SUPPORT
                                                                  from £58.10
                                                                  from £58.10
                                                                  # 007
                                                                  MPN: 104901
                                                                  SPTNA
                                                                  from £0.97
                                                                  from £0.97
                                                                  # 008
                                                                  MPN: 106083
                                                                  WASHER
                                                                  from £0.71
                                                                  from £0.71
                                                                  # 009
                                                                  MPN: 104904
                                                                  COVER
                                                                  from £3.89
                                                                  from £3.89
                                                                  # 010
                                                                  MPN: 104905
                                                                  GASKET
                                                                  from £8.59
                                                                  from £8.59
                                                                  # 011
                                                                  MPN: 11500021
                                                                  THREADED STUD
                                                                  from £9.50
                                                                  from £9.50
                                                                  # 012
                                                                  MPN: 12601271
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 103372 - and 1 more. Click to view details
                                                                  # 013
                                                                  MPN: 15896211
                                                                  NUT
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 15896210
                                                                  # 014
                                                                  MPN: 16139021
                                                                  BOLT
                                                                  from £2.27
                                                                  from £2.27
                                                                  # 015
                                                                  MPN: 12601471
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  # 016
                                                                  MPN: 106254
                                                                  PEDALE FRIZIONE
                                                                  Vale fino ad esaurimento
                                                                  Supersession
                                                                  Supersession
                                                                  # 016
                                                                  MPN: 107248
                                                                  PEDALE FRIZIONE
                                                                  Dopo esaurimento n. 106254
                                                                  from £324.33
                                                                  from £324.33
                                                                  This part replaces part number 106254
                                                                  # 017
                                                                  MPN: 101307
                                                                  GOMMINO PRO TEZ TONE
                                                                  Until sold out N. 106254
                                                                  from £23.94
                                                                  from £23.94
                                                                  This part replaces part number 660736
                                                                  # 017
                                                                  MPN: 106949
                                                                  PROTECTIVE RUBBER
                                                                  Dopo esaurimento n. 106254
                                                                  from £18.25
                                                                  from £18.25
                                                                  # 019
                                                                  MPN: 104896
                                                                  PIVOT SPRING
                                                                  from £15.22
                                                                  from £15.22
                                                                  # 020
                                                                  MPN: 106409
                                                                  CLUTCH PEDAL ADJUSTMENT
                                                                  from £4.55
                                                                  from £4.55
                                                                  # 021
                                                                  MPN: 16100821
                                                                  'DADO
                                                                  from £0.71
                                                                  from £0.71
                                                                  This part replaces part number 16100825 which we have in stock
                                                                  # 022
                                                                  MPN: 103163
                                                                  BUSH
                                                                  from £2.93
                                                                  from £2.93
                                                                  # 023
                                                                  MPN: 100423
                                                                  SNODO SFERICO
                                                                  from £21.11
                                                                  from £21.11
                                                                  # 024
                                                                  MPN: 106266
                                                                  F LESSIBILE ANTERT'ORE COMANDO FRIZTONE
                                                                  (LHD)
                                                                  from £71.94
                                                                  from £71.94
                                                                  # 024
                                                                  MPN: 106267
                                                                  CABLE
                                                                  (Vaild for RHD)
                                                                  from £114.93
                                                                  from £114.93
                                                                  # 026
                                                                  MPN: 105514
                                                                  SLEEVE
                                                                  from £18.46
                                                                  from £18.46
                                                                  # 026
                                                                  MPN: 10791311
                                                                  NUT
                                                                  from £0.95
                                                                  from £0.95
                                                                  # 027
                                                                  MPN: 12601671
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 028
                                                                  MPN: 15896214
                                                                  LOCKNUT
                                                                  from £0.54
                                                                  from £0.54
                                                                  This part replaces part number 15896211
                                                                  # 029
                                                                  MPN: 16103611
                                                                  NUT
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 030
                                                                  MPN: 12601571
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 12601574
                                                                  # 031
                                                                  MPN: 13550521
                                                                  WASHER
                                                                  from £0.54
                                                                  from £0.54
                                                                  This part replaces part number 107027
                                                                  # 032
                                                                  MPN: 12639701
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 12639704
                                                                  # 033
                                                                  MPN: 10734201
                                                                  SPLIT PIN
                                                                  Supersession
                                                                  Supersession
                                                                  # 034
                                                                  MPN: 103218
                                                                  PIVOT
                                                                  from £16.94
                                                                  from £16.94
                                                                  This part replaces part number 100857 - and 1 more. Click to view details
                                                                  # 035
                                                                  MPN: 105369
                                                                  CABLE GROMMET
                                                                  from £19.10
                                                                  from £19.10
                                                                  # 036
                                                                  MPN: 108575
                                                                  FORK
                                                                  from £33.34
                                                                  from £33.34
                                                                  # 037
                                                                  MPN: 100861
                                                                  LOCKNUT
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 100862 which we have in stock
                                                                  # 038
                                                                  MPN: 106268
                                                                  Rear clutch control hose.
                                                                  Valid up to N.17535
                                                                  from £91.47
                                                                  from £91.47
                                                                  # 038
                                                                  MPN: 106578
                                                                  Rear clutch control hose.
                                                                  Vale dal N. 17543
                                                                  from £149.56
                                                                  from £149.56
