018 - Gearbox Transmission

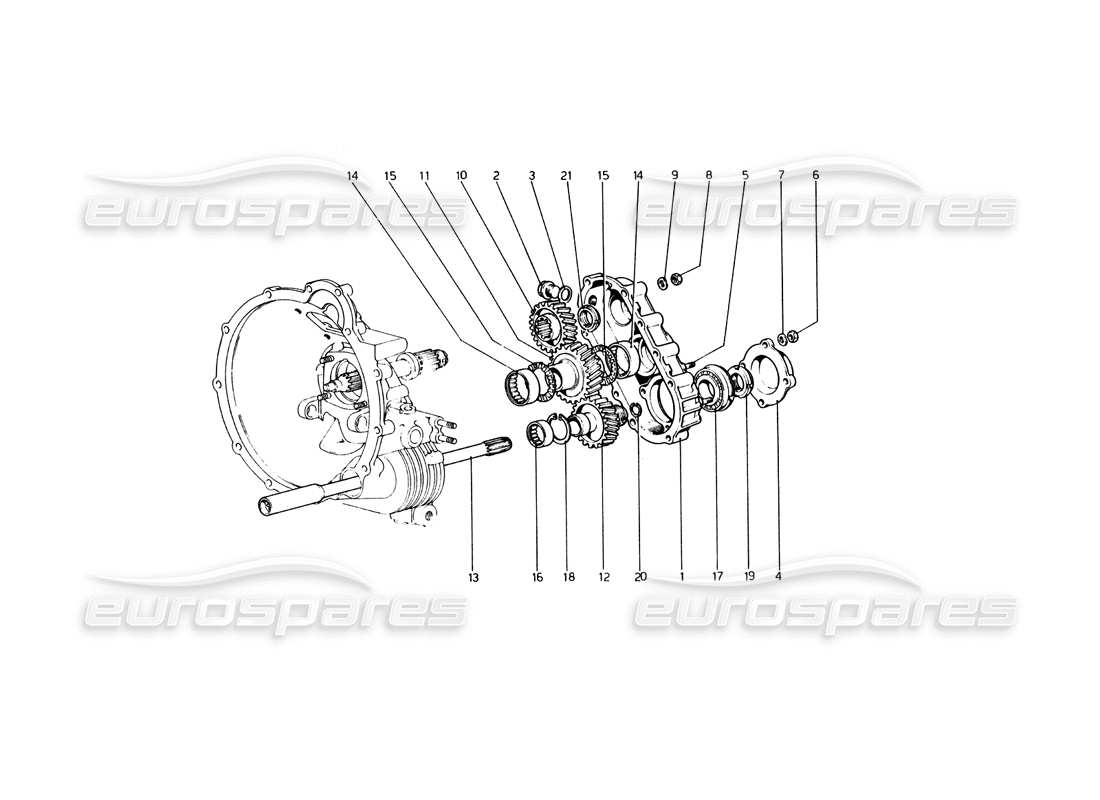

Ferrari 365 GT4 Berlinetta Boxer Gearbox Transmission Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 102807
COVER
# 001
MPN: 106908
COVER
from £619.04
from £619.04
# 002
MPN: 10275011
OIL CAP
Dopo esaurim. N. 10305171
from £1.13
from £1.13
This part replaces part number 10275001 - and 3 more. Click to view details
# 002
MPN: 10305171
OIL CAP
Vale fino ad esaurimento
Supersession
Supersession
# 003
MPN: 10263460
GASKET
from £0.53
from £0.53
This part replaces part number 95119
# 004
MPN: 102808
COPERCHIETTO
Supersession
Supersession
# 005
MPN: 16100814
THREADED STUD
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 006
MPN: 16100821
NUT
from £0.71
from £0.71
This part replaces part number 16100825 which we have in stock
# 007
MPN: 12601371
WASHER
Supersession
Supersession
# 008
MPN: 16100824
NUT
from £0.47
from £0.47
This part replaces part number 16100814 - and 1 more. Click to view details
# 009
MPN: 12601371
WASHER
Supersession
Supersession
# 010
MPN: 105447
DRIVE GEAR ON THE CLUTCH SHAFT
from £206.62
from £206.62
# 011
MPN: 105448
INGRANAGGIO INTERMEDIO
from £318.57
from £318.57
# 012
MPN: 105449
DRIVEN GEAR
from £389.39
from £389.39
# 013
MPN: 103090
ALBERO DI TRASMISSIONE
Vale fino N. 17535
from £604.76
from £604.76
# 013
MPN: 106763
ALBERO DI TRASMISSIONE
Valid from N. 17543 and up to e.g.
Supersession
Supersession
# 013
MPN: 109425
ALBERO DI TRASMISSIONE
Dopo esaurim. N. 105763
from £563.06
from £563.06
This part replaces part number 105763
# 014
MPN: 104840
CUSCINETTO A RULLINI
from £41.13
from £41.13
# 015
MPN: 104841
CUSCINETTO ASSIALE A RULLINI
from £6.95
from £6.95
# 016
MPN: 103096
CUSCINETTO A RULLINI
from £2.18
from £2.18
This part replaces part number 104835
# 016
MPN: 103096
SEEGER RING
from £2.18
from £2.18
This part replaces part number 104835
# 017
MPN: 126223
BEARING
from £260.07
from £260.07
This part replaces part number 116063 - and 5 more. Click to view details
# 019
MPN: 153068
RING NUT
from £70.35
from £70.35
This part replaces part number 100729 - and 1 more. Click to view details
# 020
MPN: 11068276
SEEGER RING
# 021
MPN: 106095
RING NUT
Vale fino ad esaurimento
from £43.30
from £43.30
This part replaces part number 103091 - and 1 more. Click to view details
# 021
MPN: 106096
RING NUT
Dopo esaurim. N. 103091
