022 - Lay Shaft Gears (Up To Car No. 17535)

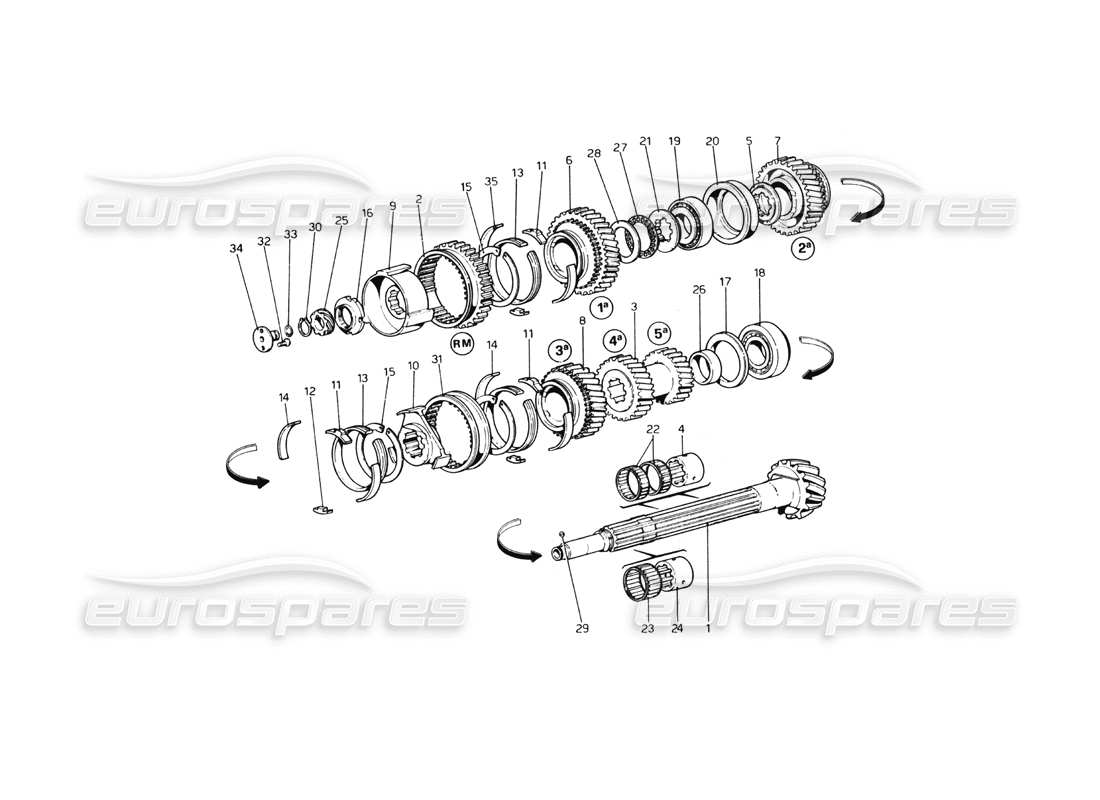

Ferrari 365 GT4 Berlinetta Boxer Lay Shaft Gears (Up To Car No. 17535) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 106915
ALBERO SECONDARIO
from £3,359.35
from £3,359.35
This part replaces part number 103448 - and 1 more. Click to view details
# 002
MPN: 102971
RM GEAR AND CONTROL SLEEVE 1ª SPEED. And RM
from £207.75
from £207.75
# 003
MPN: 106403
INGRANAGGIO 4ª E 5ª VEL.
# 004
MPN: 102974
PISTA A RULLINJ PER INGRANAGGI 2ª E 3ª VEL
from £96.44
from £96.44
# 005
MPN: 102977
DISTANZIALE FRA INGRANAGGIO 2ª VEI. E CUSCINETTO - SPESSORE MM. 6
Supersession
Supersession
# 005
MPN: 102978
IDEM SPESSORE MM.6, 25
Supersession
Supersession
# 005
MPN: 102979
IDEM SPESSORE MM.6,50
Supersession
Supersession
# 005
MPN: 102980
IDEM SPESSORE MM. 6, 75
Supersession
Supersession
# 005
MPN: 102981
IDEM SPESSORE MM. 7
Supersession
Supersession
# 006
MPN: 106407
INGRANAGGIO 1ª VELOCITY
Supersession
Supersession
# 007
MPN: 106408
Ingranaggio 2ª velocita
# 008
MPN: 106409
Ingranaggio 3ª velocita
from £4.55
from £4.55
# 009
MPN: 102986
NUCLEO DI GUIDA Lª VEL. E R.M.
from £409.96
from £409.96
# 010
MPN: 102987
NUCLEO DI GUIDA 2ª E 3ª VELOCITA
from £480.75
from £480.75
# 011
MPN: 100718
SYNCHRO KEY
from £69.10
from £69.10
This part replaces part number 523554
# 012
MPN: 100719
SYNCHRO LOCK OE
from £32.90
from £32.90
This part replaces part number 523555
# 013
MPN: 100720
RING
94.5 mm
from £277.59
from £277.59
This part replaces part number 523548
# 014
MPN: 100721
ANELIO DI ARRESTO PER 2ª E 3ª VEL.
from £91.66
from £91.66
This part replaces part number 523896
# 015
MPN: 100722
RING
from £124.62
from £124.62
This part replaces part number 523557
# 016
MPN: 153068
LOCKING RING NUT
from £70.35
from £70.35
This part replaces part number 100729 - and 1 more. Click to view details
# 017
MPN: 102990
SPACER FOR PIG NONE BEARING THICKNESS MM.4,457
from £101.76
from £101.76
This part replaces part number 580409/1
# 017
MPN: 102991
IDEM SPESSORE MM .4
from £101.76
from £101.76
# 017
MPN: 102992
IDEM SPESSORE MM.4,25
from £101.76
from £101.76
# 017
MPN: 102993
IDEM SPESSORE MM .4,5
from £101.76
from £101.76
This part replaces part number 580409/2
# 017
MPN: 102994
IDEM SPESSORE MM.4,75
from £101.76
from £101.76
This part replaces part number 580409/3
# 017
MPN: 102995
IDEM SPESSORE MM. 5
from £101.76
from £101.76
This part replaces part number 580409/4
# 018
MPN: 101636
REAR BEARING
from £94.79
from £94.79
# 019
MPN: 103031
CUSCINETTO ANTERIORE
from £168.43
from £168.43
# 020
MPN: 102996
BEARING HOLDER
from £152.32
from £152.32
# 021
MPN: 104860
Distanziale fra 1ª vel.e cuscinetto
# 022
MPN: 103032
CAGED NEEDLE BEARING
from £39.01
from £39.01
# 023
MPN: 104712
GABBIA A RULLINI PER INQRANAGGIO 1ª VEL
from £21.92
from £21.92
# 024
MPN: 104849
PISTA PER GABBLA A RUTTNI IIGRANAGGIO 1ª VEL
from £133.70
from £133.70
# 026
MPN: 106833
SCREW
# 027
MPN: 106299
GABBIA A RULLINI ASSIAE
# 028
MPN: 106111
SPACER
# 028
MPN: 106300
WASHER
# 029
MPN: 106326
DRIVE BALL
# 030
MPN: 11067076
SEEGER RING
from £0.99
from £0.99
This part replaces part number 11067075
# 031
MPN: 104973
SYNCHRO SLEEVE (FORK 12MM WIDE)
from £808.50
from £808.50
This part replaces part number 104972 - and 1 more. Click to view details
# 032
MPN: 13312911
SCREW
from £0.71
from £0.71
# 033
MPN: 100317
SEALING RING
(minimum order quantity = 10)
from £0.61
from £0.61
# 034
MPN: 106322
FLANGE ON THE OIL DUCT ON THE FRONT COVER
Supersession
Supersession
# 035
MPN: 103693
SEEGER RING
