ferrari 365 gt4 berlinetta boxer gearbox controls (up to car no. 17535) parts diagram

023 - Gearbox Controls (Up To Car No. 17535)

Ferrari 365 GT4 Berlinetta Boxer Gearbox Controls (Up To Car No. 17535) Parts Diagram

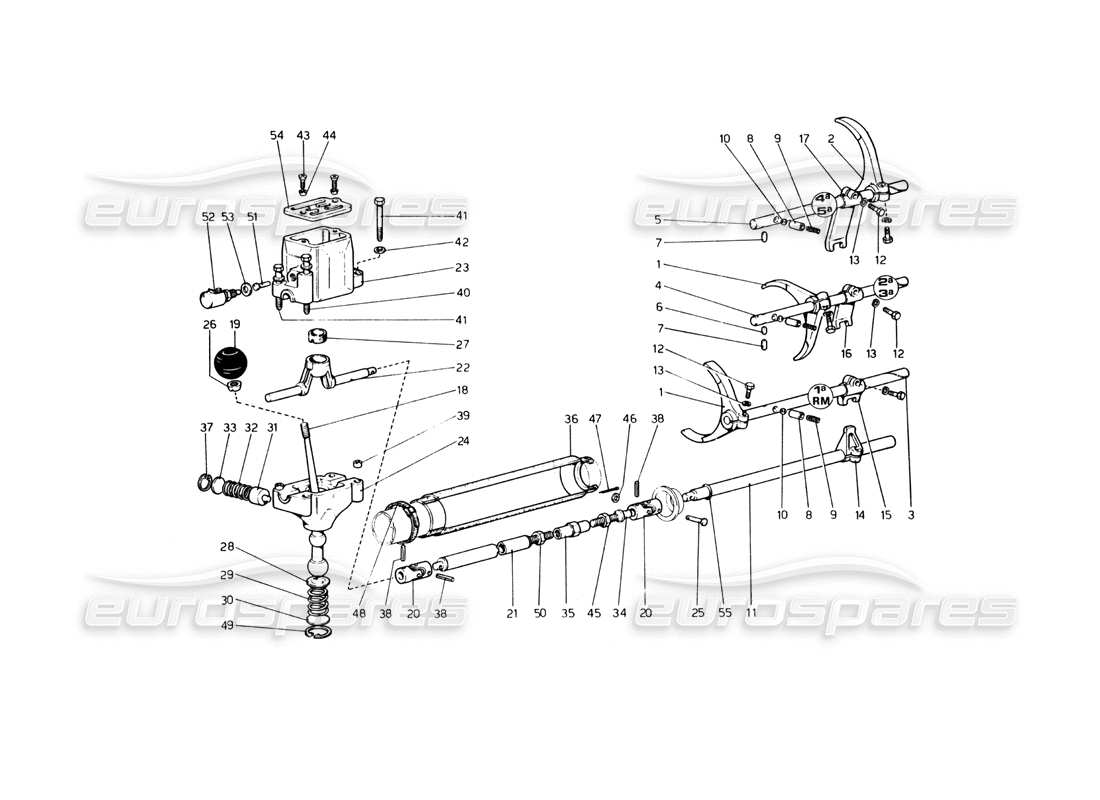

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                        #
                                                                                                        Part number
                                                                                                        Description
                                                                                                        Key
                                                                                                        Price
                                                                                                        # 001
                                                                                                        MPN: 10-28-01
                                                                                                        SELECTOR FORK 1ª Reverse - 2ª and 3ª SPEED.
                                                                                                        from £435.89
                                                                                                        from £435.89
                                                                                                        SELECTOR FORK 1ST & RM & 2ND & 3RD Genuine Ferrari Part - New (to order)
                                                                                                        # 002
                                                                                                        MPN: 10-28-02
                                                                                                        SELECTOR FORK 4ª - 5ª SPEED
                                                                                                        from £342.06
                                                                                                        from £342.06
                                                                                                        SELECTOR FORK 4TH & 5TH Genuine Ferrari Part - New (to order)
                                                                                                        # 003
                                                                                                        MPN: 10-30-07
                                                                                                        ASTA COMANDO 1ª E R.M.
                                                                                                        from £364.29
                                                                                                        from £364.29
                                                                                                        SELECTOR SHAFT 1ST & RM Genuine Ferrari Part - New (to order)
                                                                                                        # 004
                                                                                                        MPN: 10-30-08
                                                                                                        ASTA COMANDO 2ª E 3ª VEL.
                                                                                                        from £392.69
                                                                                                        from £392.69
                                                                                                        SELECTOR SHAFT 2ND & 3RD Genuine Ferrari Part - New (to order)
                                                                                                        # 005
                                                                                                        MPN: 10-30-09
                                                                                                        ASTA COMANDO 4ª E 5ª VEL.
                                                                                                        from £249.47
                                                                                                        from £249.47
                                                                                                        SELECTOR SHAFT 4TH & 5TH Genuine Ferrari Part - New (to order)
                                                                                                        # 006
                                                                                                        MPN: 10-30-10
                                                                                                        RULLINO ARRESTO ASTA CENTRALE
                                                                                                        from £15.84
                                                                                                        from £15.84
                                                                                                        SELECTOR PIN Genuine Ferrari Part - New (to order)
                                                                                                        # 007
                                                                                                        MPN: 10-30-11
                                                                                                        RULLINO ARRESTO ASTE LATERALI
                                                                                                        from £75.89
                                                                                                        from £75.89
                                                                                                        SELECTOR PIN Genuine Ferrari Part - New In stock
                                                                                                        # 008
                                                                                                        MPN: 100749
                                                                                                        BUSH
                                                                                                        from £52.78
                                                                                                        from £52.78
                                                                                                        BUSH OE Genuine Ferrari Part - New In stock
                                                                                                        # 009
                                                                                                        MPN: 100750
                                                                                                        SPRING
                                                                                                        from £1.00
                                                                                                        from £1.00
                                                                                                        This part replaces part number 523899
                                                                                                        SPRING Genuine Ferrari Part - New In stock
                                                                                                        SPRING Genuine Maserati Part - New (to order)
                                                                                                        # 010
                                                                                                        MPN: 101612
                                                                                                        SFERA
                                                                                                        from £0.73
                                                                                                        from £0.73
                                                                                                        This part replaces part number 93309
                                                                                                        BALL Genuine Ferrari Part - New (to order)
                                                                                                        BALL Genuine Maserati Part - New (to order)
                                                                                                        # 011
                                                                                                        MPN: 103012
                                                                                                        ASTA COMANDO CAMBIO
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                        # 012
                                                                                                        MPN: 16043521
                                                                                                        SCREW
                                                                                                        from £0.51
                                                                                                        from £0.51
                                                                                                        BOLT Genuine Ferrari Part - New In stock
                                                                                                        # 013
                                                                                                        MPN: 127496
                                                                                                        WASHER
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                        WASHER Genuine Ferrari Part - New In stock
                                                                                                        WASHER Genuine Maserati Part - New In stock
                                                                                                        # 014
                                                                                                        MPN: 106217
                                                                                                        LEVETTA COMANDO FORCELLINI
                                                                                                        from £78.45
                                                                                                        from £78.45
                                                                                                        CONTROL FORK LEVER Genuine Ferrari Part - New (to order)
                                                                                                        CONTROL FORK LEVER Genuine Ferrari Part - Used In stock
                                                                                                        # 015
                                                                                                        MPN: 106218
                                                                                                        SELECTOR FORK 1ª AND REVERSE.
                                                                                                        from £137.98
                                                                                                        from £137.98
                                                                                                        This part replaces part number 102805
                                                                                                        FORK Genuine Ferrari Part - New (to order)
                                                                                                        # 016
                                                                                                        MPN: 106219
                                                                                                        SELECTOR FORK 2ª and 3ª SPEED
                                                                                                        from £80.43
                                                                                                        from £80.43
                                                                                                        FORK Genuine Ferrari Part - New In stock
                                                                                                        # 017
                                                                                                        MPN: 106220
                                                                                                        SELECTOR FORK 4ª and 5ª SPEED
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                        # 018
                                                                                                        MPN: 103300
                                                                                                        LEVER
                                                                                                        from £197.07
                                                                                                        from £197.07
                                                                                                        This part replaces part number 523150
                                                                                                        LEVER Genuine Ferrari Part - New (to order)
                                                                                                        # 019
                                                                                                        MPN: 103301
                                                                                                        GEAR KNOB
                                                                                                        from £40.00
                                                                                                        from £40.00
                                                                                                        This part replaces part number 523148
                                                                                                        Gear Lever Knob Genuine Ferrari Part - New (to order)
                                                                                                        GEAR KNOB Eurospares Approved Part - New (to order)
                                                                                                        GEAR KNOB Eurospares Approved Part - Used In stock
                                                                                                        GEAR KNOB Eurospares Approved Part - New (other) In stock
                                                                                                        In Plastic as per Original, Fits all 308''s,246,Mondial
                                                                                                        # 020
                                                                                                        MPN: 103189
                                                                                                        JOINT FOR GEARBOX CONTROL BAR
                                                                                                        from £91.02
                                                                                                        from £91.02
                                                                                                        This part replaces part number 524508 - and 1 more. Click to view details
                                                                                                        GEAR LINKAGE UNIVERSAL JOINT Genuine Ferrari Part - New (to order)
                                                                                                        GEAR LINKAGE UNIVERSAL JOINT Genuine Ferrari Part - Used In stock
                                                                                                        # 021
                                                                                                        MPN: 103302
                                                                                                        BARRA COMANDO CAMBIO
                                                                                                        GEARCHANGE ROD & LINKAGE Genuine Ferrari Part - New (to order)
                                                                                                        # 022
                                                                                                        MPN: 103304
                                                                                                        PIVOT JOINT
                                                                                                        from £120.47
                                                                                                        from £120.47
                                                                                                        This part replaces part number 522469 - and 1 more. Click to view details
                                                                                                        PIN Genuine Ferrari Part - New In stock
                                                                                                        # 023
                                                                                                        MPN: 103307
                                                                                                        SCATOLA COMANDO CAMBIO
                                                                                                        from £289.77
                                                                                                        from £289.77
                                                                                                        This part replaces part number 103311
                                                                                                        GEAR LEVER CASING Genuine Ferrari Part - New (to order)
                                                                                                        # 023
                                                                                                        MPN: 106913
                                                                                                        SEA TOLA COMANDO CAMBIO COMPLETA
                                                                                                        GEAR LEVER CASING COMPLETE Genuine Ferrari Part - New (to order)
                                                                                                        # 024
                                                                                                        MPN: 103311
                                                                                                        COVER
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                        # 025
                                                                                                        MPN: 103309
                                                                                                        PIVOT
                                                                                                        from £28.99
                                                                                                        from £28.99
                                                                                                        This part replaces part number 523712 - and 1 more. Click to view details
                                                                                                        CLEVIS PIN Genuine Ferrari Part - New (to order)
                                                                                                        # 026
                                                                                                        MPN: 103312
                                                                                                        CONTRODADO PER POMELLO
                                                                                                        Vale fino ad esaurimento
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        This part replaces part number 523214
                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                        # 026
                                                                                                        MPN: 108010
                                                                                                        CONTRODADO PER POMELLO
                                                                                                        Dopo esaurim.N.103312
                                                                                                        from £5.46
                                                                                                        from £5.46
                                                                                                        This part replaces part number 103312 - and 1 more. Click to view details
                                                                                                        NUT Genuine Ferrari Part - New (to order)
                                                                                                        NUT Genuine Ferrari Part - New (other) In stock
                                                                                                        Lock nut under Gear knob
                                                                                                        # 027
                                                                                                        MPN: 103313
                                                                                                        SEDE SFERICA
                                                                                                        from £24.73
                                                                                                        from £24.73
                                                                                                        BUSH Genuine Ferrari Part - New (to order)
                                                                                                        # 028
                                                                                                        MPN: 103314
                                                                                                        LOWER BACKPACK
                                                                                                        from £25.39
                                                                                                        from £25.39
                                                                                                        This part replaces part number 522517
                                                                                                        PLATE Genuine Ferrari Part - New (to order)
                                                                                                        # 029
                                                                                                        MPN: 103315
                                                                                                        SPRING
                                                                                                        from £40.52
                                                                                                        from £40.52
                                                                                                        This part replaces part number 522482
                                                                                                        SPRING Genuine Ferrari Part - New (to order)
                                                                                                        # 030
                                                                                                        MPN: 103316
                                                                                                        LOWER SPRING RETAINING DISC
                                                                                                        from £0.99
                                                                                                        from £0.99
                                                                                                        This part replaces part number 522516
                                                                                                        PLATE Genuine Ferrari Part - New (to order)
                                                                                                        # 031
                                                                                                        MPN: 103317
                                                                                                        PUNTALINO RICHIAMO LEVA
                                                                                                        from £11.20
                                                                                                        from £11.20
                                                                                                        This part replaces part number 522514
                                                                                                        LEVER RETURN PIN RHD Genuine Ferrari Part - New (to order)
                                                                                                        # 032
                                                                                                        MPN: 103318
                                                                                                        SPRING
                                                                                                        from £2.81
                                                                                                        from £2.81
                                                                                                        This part replaces part number 522483
                                                                                                        SPRING Genuine Ferrari Part - New In stock
                                                                                                        # 033
                                                                                                        MPN: 103319
                                                                                                        SIDE SPRING RETAINING DISC
                                                                                                        from £9.84
                                                                                                        from £9.84
                                                                                                        This part replaces part number 522515
                                                                                                        PLATE Genuine Ferrari Part - New (to order)
                                                                                                        # 034
                                                                                                        MPN: 103320
                                                                                                        PIVOT
                                                                                                        from £72.06
                                                                                                        from £72.06
                                                                                                        GEAR LINKAGE Genuine Ferrari Part - New (to order)
                                                                                                        # 035
                                                                                                        MPN: 103321
                                                                                                        TIE ROD
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        This part replaces part number 521362
                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                        # 036
                                                                                                        MPN: 103322
                                                                                                        BAR PROTECTION SLEEVE
                                                                                                        from £223.02
                                                                                                        from £223.02
                                                                                                        GAITER Genuine Ferrari Part - New (to order)
                                                                                                        # 037
                                                                                                        MPN: 103326
                                                                                                        SEALING RING
                                                                                                        from £0.30
                                                                                                        from £0.30
                                                                                                        SNAP RING Genuine Ferrari Part - New In stock
                                                                                                        SNAP RING Genuine Ferrari Part - Used In stock
                                                                                                        # 038
                                                                                                        MPN: 103327
                                                                                                        PIN
                                                                                                        from £1.94
                                                                                                        from £1.94
                                                                                                        This part replaces part number 14166170
                                                                                                        ROLL PIN Genuine Ferrari Part - New (to order)
                                                                                                        # 039
                                                                                                        MPN: 16137121
                                                                                                        CENTERING DOWEL
                                                                                                        from £0.98
                                                                                                        from £0.98
                                                                                                        BOLT Genuine Ferrari Part - New (to order)
                                                                                                        # 040
                                                                                                        MPN: 16136621
                                                                                                        VITEF ISSAGGIO SEA TOLA AL TELATO
                                                                                                        from £0.79
                                                                                                        from £0.79
                                                                                                        BOLT Genuine Ferrari Part - New In stock
                                                                                                        BOLT Genuine Ferrari Part - Used In stock
                                                                                                        # 041
                                                                                                        MPN: 12801371
                                                                                                        SCREW
                                                                                                        WISHER Genuine Ferrari Part - New (to order)
                                                                                                        # 042
                                                                                                        MPN: 13310805
                                                                                                        WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        SCREW Genuine Ferrari Part - New (to order)
                                                                                                        # 043
                                                                                                        MPN: 12606771
                                                                                                        SCREW
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        WASHER Genuine Ferrari Part - New (to order)
                                                                                                        # 044
                                                                                                        MPN: 10791921
                                                                                                        WASHER
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                        # 045
                                                                                                        MPN: 10619301
                                                                                                        CONTRODADO PER REGISTRO (LH THREAD)
                                                                                                        Filetto Sx
                                                                                                        WASHER Genuine Ferrari Part - New (to order)
                                                                                                        # 047
                                                                                                        MPN: 10291490
                                                                                                        SPLIT PIN
                                                                                                        from £1.77
                                                                                                        from £1.77
                                                                                                        CLIP Genuine Ferrari Part - New (to order)
                                                                                                        # 048
                                                                                                        MPN: 10734201
                                                                                                        WASHER
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                        # 048
                                                                                                        MPN: 11059075
                                                                                                        JUBILEE CLIP
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                        # 049
                                                                                                        MPN: 10791221
                                                                                                        SEEGER RING
                                                                                                        from £2.11
                                                                                                        from £2.11
                                                                                                        NUT Genuine Ferrari Part - New In stock
                                                                                                        # 050
                                                                                                        MPN: 103323
                                                                                                        CONTRODADO PER REGISTRO (RH THREAD)
                                                                                                        Right thread
                                                                                                        from £19.90
                                                                                                        from £19.90
                                                                                                        This part replaces part number 522497
                                                                                                        PIN Genuine Ferrari Part - New (to order)
                                                                                                        # 051
                                                                                                        MPN: 103324
                                                                                                        PIVOT
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                        # 052
                                                                                                        MPN: 12601471
                                                                                                        SWITCH FOR RM LIGHT
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                        # 053
                                                                                                        MPN: 103310
                                                                                                        WASHER
                                                                                                        from £109.15
                                                                                                        from £109.15
                                                                                                        GATE Genuine Ferrari Part - New (to order)
                                                                                                        # 054
                                                                                                        MPN: 103310
                                                                                                        SELETTORE MARCE
                                                                                                        from £109.15
                                                                                                        from £109.15
                                                                                                        GATE Genuine Ferrari Part - New (to order)
                                                                                                        # 055
                                                                                                        MPN: 10-30-22
                                                                                                        SEALING RING
                                                                                                        from £4.20
                                                                                                        from £4.20
                                                                                                        SEALING RING Genuine Ferrari Part - New (to order)
