023A - Gearbox Controls (From Car No. 17543 Up To Car No. 18221)

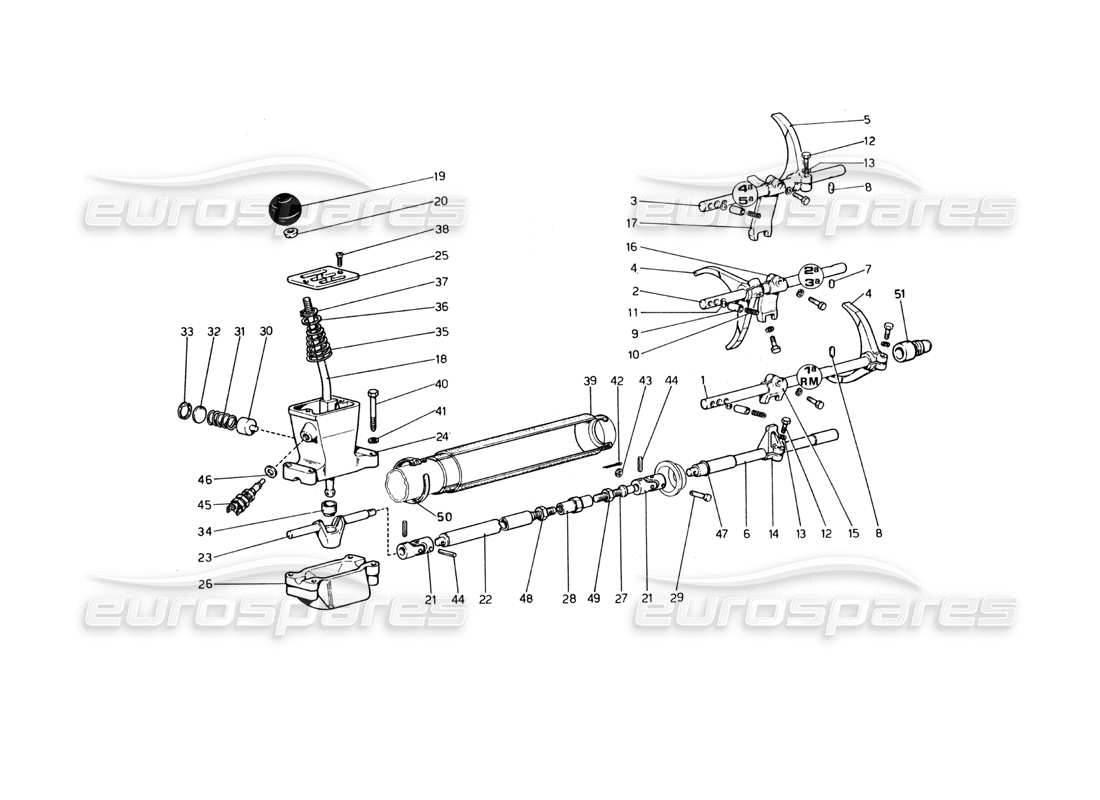

Ferrari 365 GT4 Berlinetta Boxer Gearbox Controls (From Car No. 17543 Up To Car No. 18221) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 107445
CONTROL ROD, FORK, LAVEL. AND RM
Vale fino N. 18057
from £152.95
from £152.95
# 001
MPN: 107451
ASTA COMANDO FORCEILA LAVEL.E R.M
Vale dal N. 18059
from £34.93
from £34.93
# 002
MPN: 104665
ASTA COMANDO FORCELLA 2ª E 3ª VEL.
Vale fino N. 18057
from £228.04
from £228.04
# 002
MPN: 107452
ASTA COMANDO FORCELLA 2ª E 3ª VEL.
Vale dal N. 18059
from £33.52
from £33.52
# 003
MPN: 104666
ASTA COMANDO FORCELLA 4ª E 5ªVEL.
Vale fino N. 18057
from £209.09
from £209.09
# 003
MPN: 107453
ASTA COMANDO FORCELLA 4ª E 5ª VEL.
Vale dal N. 18059
from £93.15
from £93.15
# 004
MPN: 106066

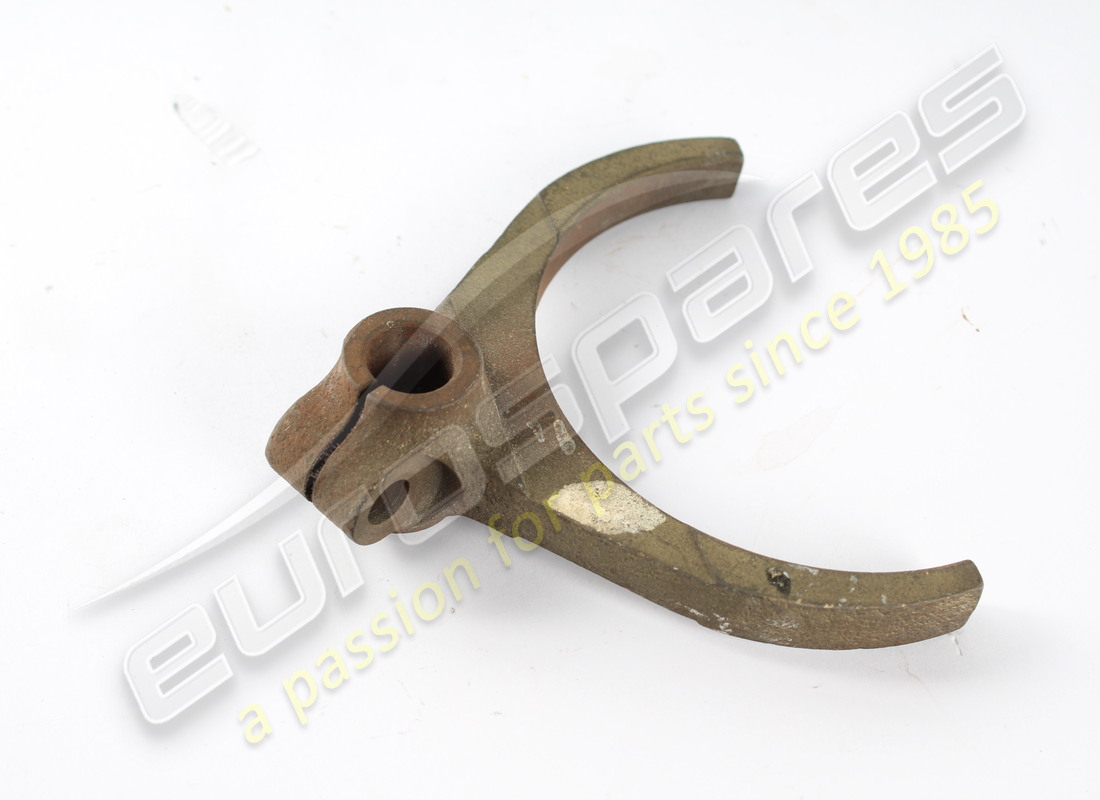

SELECTOR FORK 1ª 2ª 3ª SPEED AND REVERSE.
Vale fino ad esaurimento
Supersession
Supersession
# 004
MPN: 107374
SELECTOR FORK 1ª 2ª 3ª SPEED AND REVERSE.
Dope esaurimento N. 106066
from £105.66
from £105.66
This part replaces part number 106066 - and 1 more. Click to view details
# 005
MPN: 106067
SELECTOR FORK 4ª and 5ª SPEED
Vale fino ad esaurimento
from £293.06
from £293.06
# 005
MPN: 107375
SELECTOR FORK 4ª and 5ª SPEED
After exhaustion N .106067
from £712.12
from £712.12
# 006
MPN: 104742
ASTA COMANDO CAMBIO
from £172.89
from £172.89
# 007
MPN: 10-30-10
RULLINO ARRESTO ASTA CENTRALE
Vale fino N. 18057
from £15.84
from £15.84
# 007
MPN: 107454
RULLINO ARRESTO ASTA CENTRALE
Vale dal N. 18059
from £0.71
from £0.71
# 008
MPN: 10-30-11
RULLINO ARRESTO ASTE LATERALI
from £75.89
from £75.89
# 009
MPN: 100749
SPRING BUSH
from £52.78
from £52.78
# 010
MPN: 100750
SPRING
from £0.91
from £0.91
This part replaces part number 523899
# 011
MPN: 101612
ROD STOP BALL
from £0.70
from £0.70
This part replaces part number 93309
# 012
MPN: 16443521
BULL ONE .
# 013
MPN: 10616671
WASHER
# 014
MPN: 106217
LEVETTA COMANDO FORCELLINI
from £78.45
from £78.45
# 015
MPN: 106221
SELECTOR FORK 1ST SPEED AND REVERSE
from £70.31
from £70.31
# 016
MPN: 106222
SELECTOR FORK 2ª and 3ª SPEED
from £16.38
from £16.38
# 017
MPN: 106223
SELECTOR FORK 4ª and 5ª SPEED
from £76.75
from £76.75
This part replaces part number 106220 - and 1 more. Click to view details
# 018
MPN: 106495
LEVER
from £267.96
from £267.96
# 019
MPN: 103301
GEAR KNOB
from £40.00
from £40.00
This part replaces part number 523148
GEAR KNOB (103301) Eurospares Approved Part - New (other) In stock
In Plastic as per Original, Fits all 308''s,246,Mondial
In Plastic as per Original, Fits all 308''s,246,Mondial
# 020
MPN: 103312
LOCKNUT
Vale fino ad esaurimento
Supersession
Supersession
This part replaces part number 523214
# 020
MPN: 108010
LOCKNUT
Dopo esaurim.N 103312
from £5.46
from £5.46
This part replaces part number 103312 - and 1 more. Click to view details
# 021
MPN: 103189
JOINT FOR GEARBOX CONTROL BAR
from £91.02
from £91.02
This part replaces part number 524508 - and 1 more. Click to view details
# 022
MPN: 104770
BARRA COMANDO CAMBIO
from £167.94
from £167.94
# 023
MPN: 107023
PIVOT JOINT
from £117.28
from £117.28
# 024
MPN: 105438
GEARBOX CASING
from £800.00
from £800.00
# 024
MPN: 108848
COMPLESSIVO SCITOLI COMANDO CAMBIO
from £294.00
from £294.00
This part replaces part number 122155 - and 1 more. Click to view details
# 025
MPN: 148452
SELETTORE MARCE
from £361.19
from £361.19
This part replaces part number 127444 which we have in stock - and 2 more. Click to view details
# 026
MPN: 104315
LOWER COVER
from £450.00
from £450.00
# 027
MPN: 103320
PIVOT
from £48.04
from £48.04
# 028
MPN: 103321
TIE ROD
Supersession
Supersession
This part replaces part number 521362
# 029
MPN: 103309
PIVOT
from £28.99
from £28.99
This part replaces part number 523712 - and 1 more. Click to view details
# 030
MPN: 103317
PUNTALINO RICH LA MO LEVA
from £6.16
from £6.16
This part replaces part number 522514 - and 1 more. Click to view details
# 031
MPN: 103318
MOLIA RICHIAMO LEVA
from £2.88
from £2.88
This part replaces part number 522483
# 032
MPN: 103319
DLSCHETTO RITEGNO MOLLA
from £5.51
from £5.51
This part replaces part number 522515 - and 2 more. Click to view details
# 033
MPN: 103326
SEEGER RING
from £0.26
from £0.26
# 034
MPN: 127446
SEDE SFERLCA PER LEVA
from £8.19
from £8.19
This part replaces part number 104316 - and 3 more. Click to view details
# 035
MPN: 104317
SPRING
from £21.14
from £21.14
This part replaces part number 520568 - and 1 more. Click to view details
# 036
MPN: 104318
WASHER
from £1.54
from £1.54
This part replaces part number 95123 - and 1 more. Click to view details
# 037
MPN: 11066676
SEAL
from £0.51
from £0.51
This part replaces part number 11066675
# 038
MPN: 101619
SCREW
from £9.27
from £9.27
This part replaces part number 95940228
# 039
MPN: 103322
GEARBOX COVER BELLOW
from £223.02
from £223.02
# 040
MPN: 18136621
SCREW
# 041
MPN: 12801371
WASHER
# 042
MPN: 10734201
SPLIT PIN
Supersession
Supersession
# 043
MPN: 10619301
WASHER
# 044
MPN: 103327
PIN
from £1.94
from £1.94
This part replaces part number 14166170
# 045
MPN: 115980
PUSH-BUTTON SWITCH
Supersession
Supersession
This part replaces part number 104320
# 046
MPN: 12801571
WASHER
# 047
MPN: 106140
SEALING RING
# 048
MPN: 10791221
LOCKNUT
Filetto destro
from £1.89
from £1.89
# 049
MPN: 10791921
LOCKNUT
Filetto sinistro
Supersession
Supersession
# 050
MPN: 10291490
JUBILEE CLIP
from £1.77
from £1.77
# 051
MPN: 107444
BUSH
Vale fino N. 18057
from £66.36
from £66.36
