023B - Gearbox Controls (From Car No. 18225)

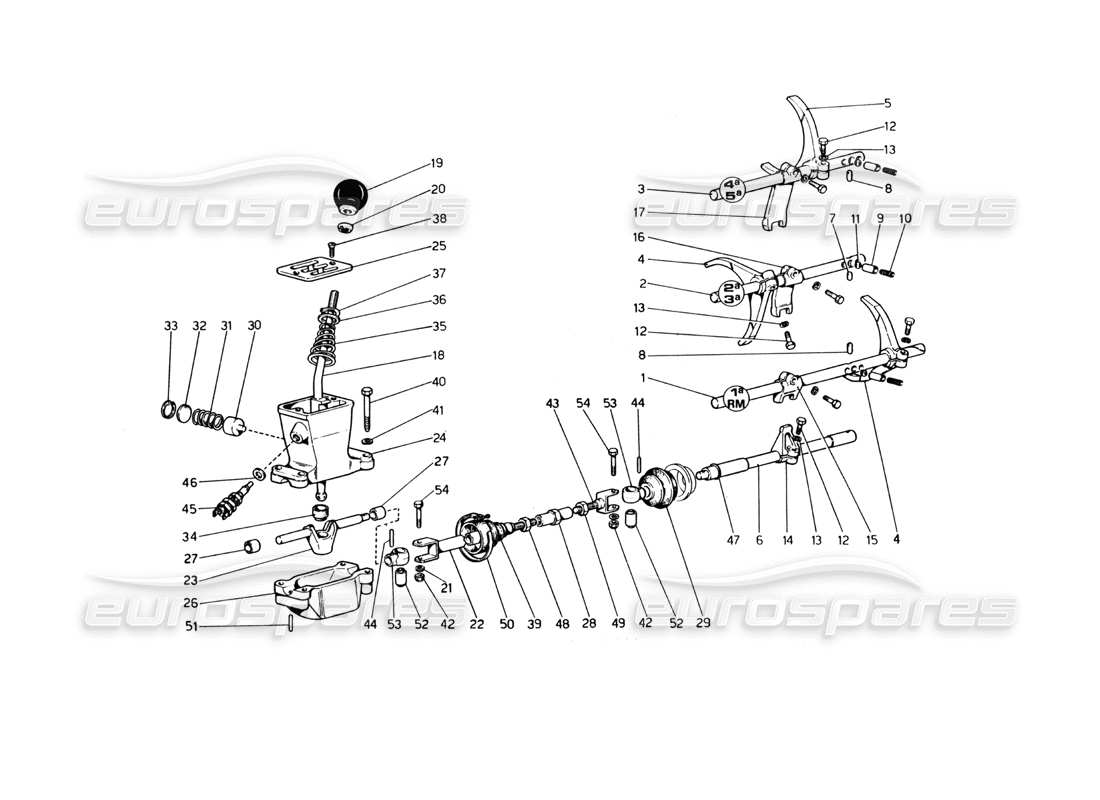

Ferrari 365 GT4 Berlinetta Boxer Gearbox Controls (From Car No. 18225) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 107451
ASTA COMANDO FORCELLA 1ª VEL.E R.M.
from £34.93
from £34.93
# 002
MPN: 107452
ASTA COMANDO FORCELLA 2ª E 3ª VEL.
from £33.52
from £33.52
# 003
MPN: 107453
ASTA COMANDO FORCELLA 4ª E 5ª VEL.
from £93.15
from £93.15
# 004
MPN: 107374
SELECTOR FORK 1ª - 2ª -3ª SPEED AND REVERSE.
from £105.66
from £105.66
This part replaces part number 106066 - and 1 more. Click to view details
# 005
MPN: 107375
SELECTOR FORK 4ª AND 5ª SPEED.
from £712.12
from £712.12
# 006
MPN: 107377
ASTA COMANDO CAMBIO
Supersession
Supersession
# 007
MPN: 107454
RULLINO ARRESTOA STA CENTRALE
from £0.71
from £0.71
# 008
MPN: 10-30-11
RULLINO ARRESTO ASTA LATERALI
from £75.89
from £75.89
# 009
MPN: 100749
SPRING BUSH
from £52.78
from £52.78
# 010
MPN: 100750
SPRING
from £0.91
from £0.91
This part replaces part number 523899
# 011
MPN: 101612
ROD STOP BALL
from £0.70
from £0.70
This part replaces part number 93309
# 012
MPN: 16443521
BOLT
# 013
MPN: 127496
WASHER
from £0.53
from £0.53
This part replaces part number 10516671 - and 2 more. Click to view details
# 014
MPN: 106217
LEVETTA COMANDO FORCELLINI
from £78.45
from £78.45
# 015
MPN: 106221
SELECTOR FORK 1ST SPEED AND REVERSE
from £70.31
from £70.31
# 016
MPN: 106222
SELECTOR FORK 2ª and 3ª SPEED
from £16.38
from £16.38
# 017
MPN: 106223
SELECTOR FORK 4ª and 5ª SPEED
from £76.75
from £76.75
This part replaces part number 106220 - and 1 more. Click to view details
# 018
MPN: 106495
LEVER
from £267.96
from £267.96
# 019
MPN: 103301
GEAR KNOB
from £40.00
from £40.00
This part replaces part number 523148
GEAR KNOB (103301) Eurospares Approved Part - New (other) In stock
In Plastic as per Original, Fits all 308''s,246,Mondial
In Plastic as per Original, Fits all 308''s,246,Mondial
# 020
MPN: 108010
LOCKNUT
from £5.46
from £5.46
This part replaces part number 103312 - and 1 more. Click to view details
# 021
MPN: 10519601
WASHER
from £0.53
from £0.53
# 022
MPN: 107378
BARRA COMANDO CAMBIO
from £152.32
from £152.32
# 023
MPN: 107023
PIVOT JOINT
from £117.28
from £117.28
# 024
MPN: 106843
SCATOLA COMANDO CAMBIO
from £204.75
from £204.75
# 024
MPN: 107876
GEARBOX ASSEMBLY
from £474.99
from £474.99
This part replaces part number 108020 which we have in stock
# 024
MPN: 108020
GEARBOX ASSEMBLY
See also 107876
from £317.26
from £317.26
This part replaces part number 106843 which we have in stock - and 3 more. Click to view details
# 025
MPN: 148452
SELETTORE MARCE
from £361.19
from £361.19
This part replaces part number 127444 which we have in stock - and 2 more. Click to view details
# 026
MPN: 106844
COVER
from £204.75
from £204.75
# 027
MPN: 106846
BUSH
# 028
MPN: 103321
TIE ROD
Supersession
Supersession
This part replaces part number 521362
# 029
MPN: 102843
TAPPET PAD 4.00MM
from £9.25
from £9.25
This part replaces part number 108687 - and 2 more. Click to view details
# 030
MPN: 103317
PUNTALLNO RICHIAMO LEVA
from £6.16
from £6.16
This part replaces part number 522514 - and 2 more. Click to view details
# 031
MPN: 103318
SPRING
from £2.88
from £2.88
This part replaces part number 522483
# 032
MPN: 103319
DISCHETTO RITEGNO MOLLA
from £5.51
from £5.51
This part replaces part number 522515 - and 2 more. Click to view details
# 033
MPN: 103326
SEEGER RING
from £0.26
from £0.26
# 034
MPN: 127446
SPHERICAL SEAT FOR LEVER
from £8.19
from £8.19
This part replaces part number 104316 - and 3 more. Click to view details
# 035
MPN: 104317
SPRING
from £21.14
from £21.14
This part replaces part number 520568 - and 1 more. Click to view details
# 036
MPN: 104318
WASHER
from £1.54
from £1.54
This part replaces part number 95123 - and 1 more. Click to view details
# 037
MPN: 11066676
SEAL
from £0.51
from £0.51
This part replaces part number 11066675
# 038
MPN: 101619
SCREW
from £9.27
from £9.27
This part replaces part number 95940228
# 039
MPN: 106168
SOFF IETTO RIPARO BARRA COMANDO CAMBIO
from £19.90
from £19.90
# 040
MPN: 16136621
SCREW
from £0.79
from £0.79
# 041
MPN: 12601371
WASHER
Supersession
Supersession
# 042
MPN: 101039
NUT
from £1.78
from £1.78
This part replaces part number 107025 - and 1 more. Click to view details
# 043
MPN: 106820
FORK
# 044
MPN: 103327
PIN
from £1.94
from £1.94
This part replaces part number 14166170
# 045
MPN: 115980
PUSH-BUTTON SWITCH
Supersession
Supersession
This part replaces part number 104320
# 046
MPN: 12601571
WASHER
from £0.47
from £0.47
This part replaces part number 12601574
# 047
MPN: 105140
SEALING RING
from £2.88
from £2.88
# 048
MPN: 10791221
LOCKNUT
Filetto destro
from £1.89
from £1.89
# 049
MPN: 10791921
LOCKNUT
FiIletto sinlstro
Supersession
Supersession
# 050
MPN: 10291490
JUBILEE CLIP
from £1.77
from £1.77
# 051
MPN: 10335010
PIN
from £0.47
from £0.47
# 052
MPN: 139555
SILENTBLOC
from £42.96
from £42.96
This part replaces part number 106814
# 053
MPN: 106882
OCCHIELLO PER GIUNTO
Vale fino esaurimento
Supersession
Supersession
# 053
MPN: 109562
OCCHI'ELLO PER GIUNTO
Dopo esaurim.N 109562
from £25.01
from £25.01
# 054
MPN: 106821
SCREW
Vale fino ad esaurimento
from £9.73
from £9.73
# 054
MPN: 107830
SCREW
Dopo esaurim.N. 106821
from £2.41
from £2.41
