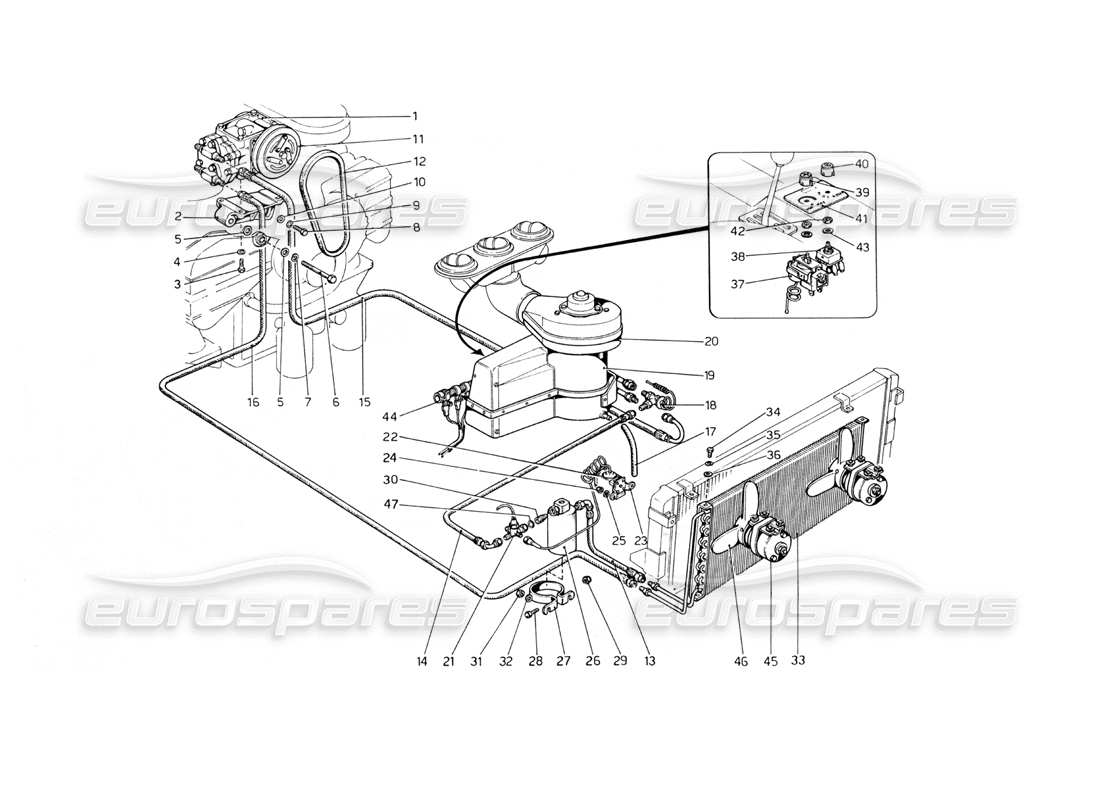

Ferrari 365 GT4 Berlinetta Boxer Air Conditioning System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 111222
COMPRESSOR WITH PULLEY
from £995.00
from £995.00
This part replaces part number 080.2112.000 - 209. U - and 5 more. Click to view details
# 002
MPN: 104529
SUPPORT
from £319.37
from £319.37
# 003
MPN: 102916
BOLT
from £10.05
from £10.05
# 004
MPN: 11198371
WASHER
from £0.47
from £0.47
# 005
MPN: 103024
WASHER
from £1.99
from £1.99
# 006
MPN: 11360221
BOLT
from £3.24
from £3.24
# 007
MPN: 10517171
WASHER
from £0.49
from £0.49
# 008
MPN: 15970921
BOLT
from £0.47
from £0.47
# 009
MPN: 127497
WASHER
from £0.54
from £0.54
This part replaces part number 10516871 - and 2 more. Click to view details
# 010
MPN: 12646821
WASHER
(minimum order quantity = 30)
from £0.47
from £0.47
# 011
MPN: 105246
PULEGGIA CON FRIZIONE COMANDO COMPRESSORE
from £200.33
from £200.33
# 012
MPN: 105317
CINGHIA COMANDO COMPRESSORE
from £46.79
from £46.79
# 013
MPN: 105894
TUBO PER FREON DAL DEPURATORE AL CONDENSATORE
Vale fino N. 17743
from £58.28
from £58.28
# 013
MPN: 106640
TUBO PER FREON DAL DEPURATORE AL CONDENSATORE
Vale dal N. 17745
from £73.28
from £73.28
# 014
MPN: 105895
PIPE FROM THE EVAPORATOR TO THE PURIFIER
Vale fino N. 17743
from £66.36
from £66.36
# 014
MPN: 106641
PIPE FROM THE EVAPORATOR TO THE PURIFIER
Vale dal N. 17745
from £73.28
from £73.28
# 015
MPN: 105896
PIPE FROM COMPRESSOR TO EVAPORATOR
Vale fino N. 17743
from £148.67
from £148.67
# 015
MPN: 106642
PIPE FROM COMPRESSOR TO EVAPORATOR
Vale dal N. 17745
from £176.99
from £176.99
This part replaces part number 50189307
# 016
MPN: 105897
PIPE FROM CONDENSER TO COMPRESSOR
Vale fino N. 17743
from £535.52
from £535.52
# 016
MPN: 106643
PIPE FROM CONDENSER TO COMPRESSOR
Vale dal N. 17745
This part replaces part number 50189406
# 017
MPN: 105904
TUBO SCARICO CONDENSA
from £8.32
from £8.32
# 018
MPN: 105906

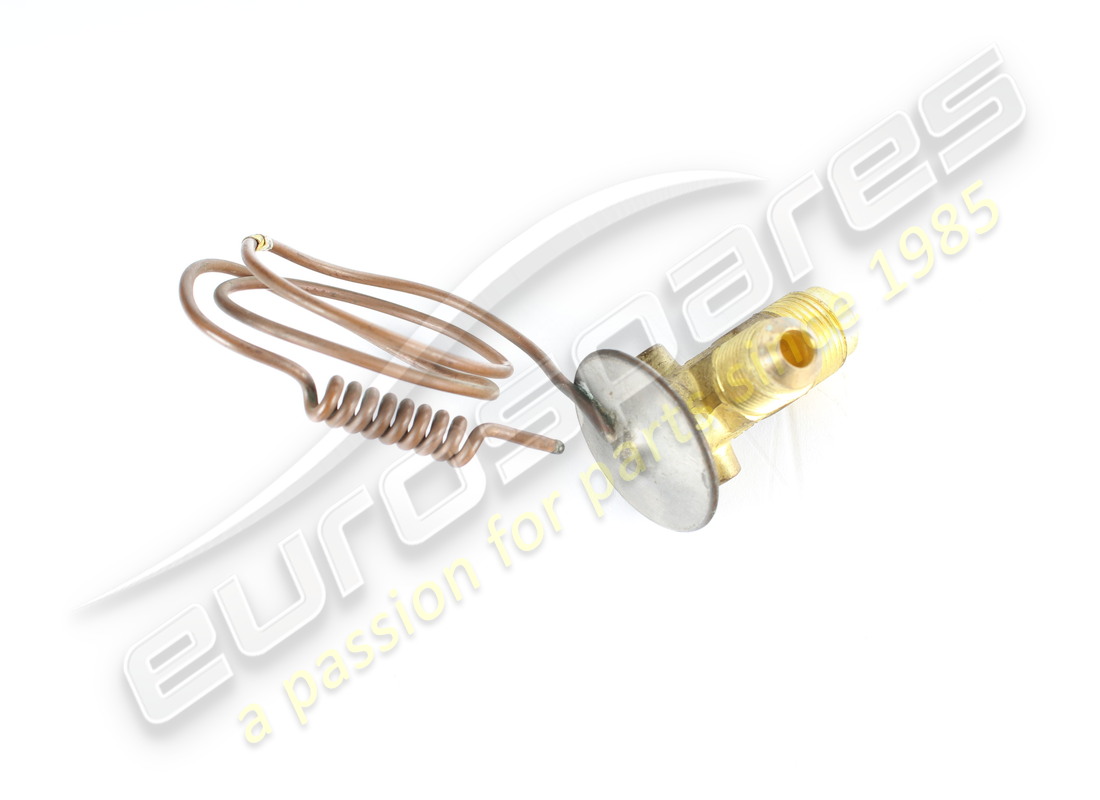

VALVOLA DI ESPANSIONE
from £137.80
from £137.80
# 019
MPN: 105725
COIL AND EVAPORATOR BOX
Vale fino N. 17743
from £72.03
from £72.03
# 019
MPN: 106305
SERPENTINA E SCATOLA GD
Vale fino N. 17743
# 019
MPN: 106645
EVAPORATORE
Vale dal N. 17745
# 019
MPN: 107212
EVAPORATORE COMPLETO
Vale dal N. 17745
from £856.89
from £856.89
# 019
MPN: 107251
EVAPORATORE COMPLETO GD
Vale dal N. 17745
from £960.64
from £960.64
# 019
MPN: 107252
SERPENTINA GD
Vale dal N. 17745
from £468.25
from £468.25
# 020
MPN: 105517
ELETTROVENTILATORE CENTRIFUGO GD
Supersession
Supersession
# 020
MPN: 60091600
RH HEATER BLOWER
from £295.00
from £295.00
This part replaces part number 20094504 - and 1 more. Click to view details
# 021
MPN: 101593
UNION
Vale fino N. 17743
from £204.54
from £204.54
# 021
MPN: 106646
UNION
Vale dal N. 17745
from £500.00
from £500.00
# 022
MPN: 100460
PRESSOSTATO DI MASSIMA
# 023
MPN: 106498
SUPPORT
from £11.04
from £11.04
# 024
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 025
MPN: 12601278
WASHER
# 026
MPN: 105898
PURIFIER
Vale fino N. 17743
from £130.98
from £130.98
# 026
MPN: 106647
PURIFIER
(adapter required)
from £102.82
from £102.82
# 027
MPN: 105899
BRACKET / SUPPORT
from £21.47
from £21.47
# 027
MPN: 107214
DEPURATURE COMPLETO
Vale dal N. 17745
from £190.99
from £190.99
# 028
MPN: 10903231
BOLT
# 029
MPN: 12574211
NUT
from £0.71
from £0.71
# 030
MPN: 107402
UNION
Vale dal N. 17745
from £30.96
from £30.96
# 031
MPN: 16104411
NUT
from £0.47
from £0.47
# 032
MPN: 10519621
WASHER
Supersession
Supersession
# 033
MPN: 105653
CONDENSOR
Valid up to N.17743
from £758.72
from £758.72
# 033
MPN: 106648
CONDENSOR
Vale dal N. 17745
Supersession
Supersession
# 034
MPN: 10902121
SCREW
from £0.71
from £0.71
This part replaces part number 20146601
# 035
MPN: 11197773
WASHER
Supersession
Supersession
# 036
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 037
MPN: 109819
TERMOSTATO TARATO
Supersession
Supersession
# 038
MPN: 101990
COMMUTATORE
from £118.75
from £118.75
This part replaces part number 105913 - and 5 more. Click to view details
# 039
MPN: 60928300
THERMOSTAT REGULATOR KNOB
from £246.15
from £246.15
This part replaces part number 105907
# 040
MPN: 60928200
FAN SPEED KNOB
This part replaces part number 105908
# 041
MPN: 105909
PLATE
from £40.95
from £40.95
# 042
MPN: 105911
NUT
from £3.31
from £3.31
This part replaces part number 320418
# 043
MPN: 105912
WASHER
Valid up to N.17743
from £1.82
from £1.82
This part replaces part number 320467
# 043
MPN: 107144
WASHER
Vale dal N. 17745
from £13.37
from £13.37
# 044
MPN: 105917
RESISTENZA PER COMMUTATORE
from £72.44
from £72.44
This part replaces part number 50092808
# 045
MPN: 107430
FAN MOTOR SUPPORT BRACKET
from £68.25
from £68.25
This part replaces part number 111871 - and 5 more. Click to view details
# 045
MPN: 109826
FAN MOTOR
from £106.89
from £106.89
This part replaces part number 102029 - and 4 more. Click to view details
# 046
MPN: 105820
MOTOR FAN
Vale fino ad esaurimento
Supersession
Supersession
# 046
MPN: 107175/a
Fan Motor & Blade
from £145.00
from £145.00
# 047
MPN: 103039
SEALING RING
(minimum order quantity = 10)
from £1.62
from £1.62
This part replaces part number 95860041
