040 - Throttle Controll (Variants for RHD Versions)

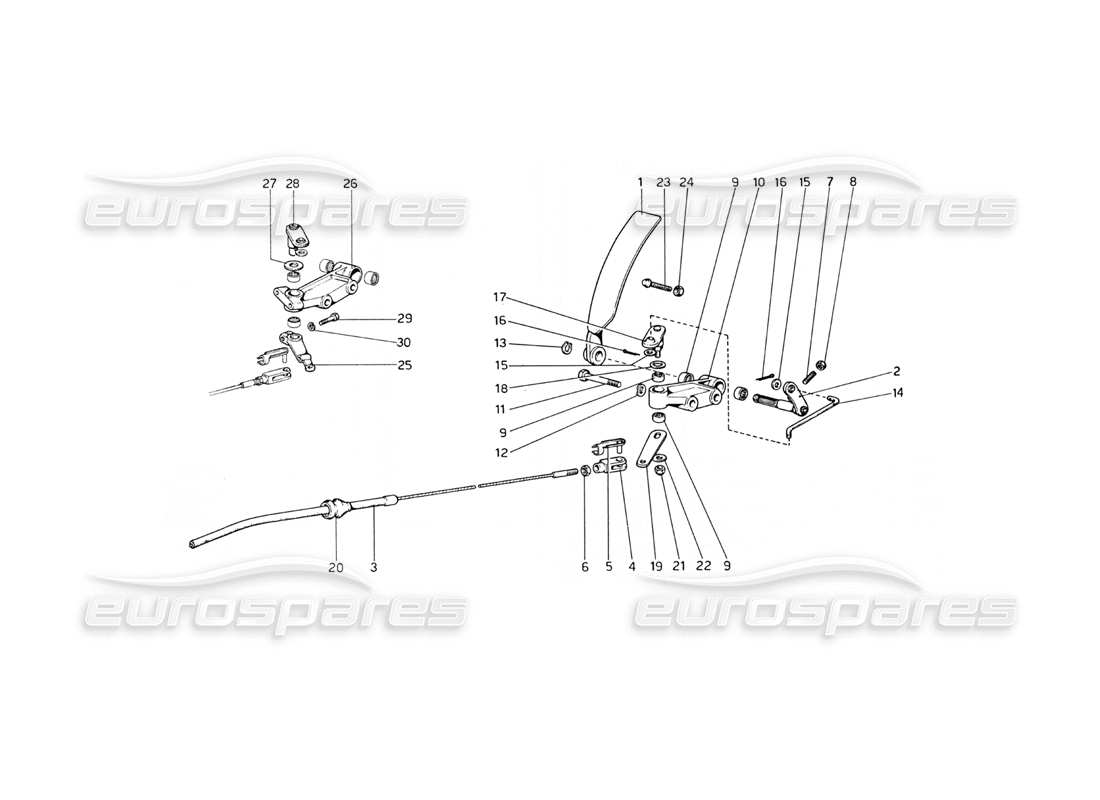

Ferrari 365 GT4 Berlinetta Boxer Throttle Controll (Variants for RHD Versions) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 105562
PEDALE ACCELERATORE
# 002
MPN: 106315
PIN AND TRANSFER LEVER ASSEMBLY
from £107.86
from £107.86
# 003
MPN: 106317
THROTTLE CABLE (RHD)
from £85.92
from £85.92
# 004
MPN: 100655
FORK
from £56.31
from £56.31
This part replaces part number 550015 - and 3 more. Click to view details
# 005
MPN: 100656
PIVOT
from £2.25
from £2.25
# 006
MPN: 10725911
LOCKNUT
Supersession
Supersession
This part replaces part number 95900403
# 007
MPN: 13708910
SCREW
from £0.47
from £0.47
# 008
MPN: 15896411
LOCKNUT
Supersession
Supersession
This part replaces part number 15896401
# 009
MPN: 101677
ROLLER BEARING
from £2.06
from £2.06
# 010
MPN: 106293
SUPPORT
Vale fino ad esaurimento
Supersession
Supersession
# 011
MPN: 16136321
BOLT
from £0.81
from £0.81
# 012
MPN: 12601371
WASHER
Supersession
Supersession
# 013
MPN: 11066075
SEEGER RING
Supersession
Supersession
# 014
MPN: 106297
TIE ROD
from £7.16
from £7.16
# 015
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 016
MPN: 10734201
SPLIT PIN
Supersession
Supersession
# 017
MPN: 106298
PIN AND TRANSFER LEVER ASSEMBLY
Serve con leva N. 106301
from £74.04
from £74.04
# 018
MPN: 105930
WASHER
Serve con leva N. 106301
from £1.69
from £1.69
# 019
MPN: 106301
LEVER
Vale fino ad esaurimento
from £73.11
from £73.11
# 020
MPN: 106313
PROTECTIVE BELLOWS
from £7.98
from £7.98
# 021
MPN: 12575411
NUT
Serve con leva N. 106301
Supersession
Supersession
# 022
MPN: 12643701
WASHER
Serve con leva N. 106301
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 023
MPN: 100640
SCREW
from £3.15
from £3.15
This part replaces part number 9181141 - and 1 more. Click to view details
# 024
MPN: 16102311
LOCKNUT
from £0.43
from £0.43
This part replaces part number 16102315
# 025
MPN: 107143
LEVER
Dopo esaurim.N. 106301
Supersession
Supersession
# 026
MPN: 107154
SUPPORT
Dopo esaurim.N. 106293
Supersession
Supersession
# 027
MPN: 107826
WASHER
Serve con leva N. 107143
from £3.15
from £3.15
# 028
MPN: 107158
PIN AND TRANSFER LEVER ASSEMBLY
Serve con leva N. 107143
from £73.80
from £73.80
# 029
MPN: 16043021
SCREW
Serve con leva N. 107143
from £0.53
from £0.53
# 030
MPN: 106858
WASHER
Serve con leva N. 107143
