111 - Tunnel and Roof

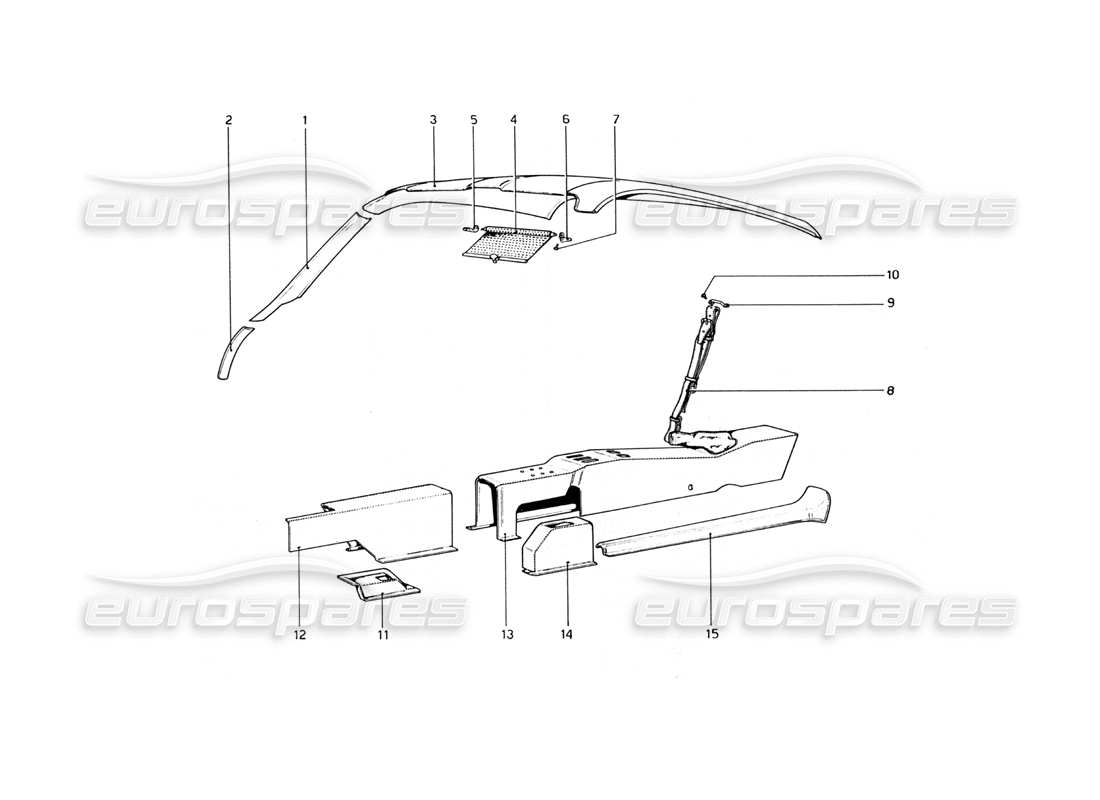

Ferrari 365 GT4 Berlinetta Boxer Tunnel and Roof Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 501243
RIGHT UPRIGHT FRAME
Non vale per GD
# 001
MPN: 501244
OSSATURA MONTANTE SX
Non vale per GD
# 001
MPN: 501261
RIGHT FRAME COVERING
Non vale per GD
# 001
MPN: 501262
Rivestimento ossatura Sx
Non vale per GD
# 001
MPN: 501770
RIGHT UPRIGHT FRAME
Vale per GD
# 001
MPN: 501771
OSSATURA MONTANTE SX
Vale per GD
# 001
MPN: 501782
RIGHT FRAME COVERING
Vale per GD
# 001
MPN: 501783
Rivestimento ossatura Sx
Vale per GD
# 002
MPN: 501247
LOWER FRAME OF THE RIGHT UPRIGHT
Non vale per GD
# 002
MPN: 501248
OSSATURA INFERIORE MONTANTE SX
Non vale per GD
# 002
MPN: 501263
RIGHT LOWER FRAME COVERING
Non vale per GD
# 002
MPN: 501264
RIVESTIMENTO OSSATURA INFERIORE SX
Non vale per GD
# 002
MPN: 501776
LOWER FRAME OF THE RIGHT UPRIGHT
Vale per GD
# 002
MPN: 501777
OSSATURA INFERIORE MONTANTE SX
Vale per GD
# 002
MPN: 501784
RIGHT LOWER FRAME COVERING
Vale per GD
# 002
MPN: 501785
RIVESTIMENTO OSSATURA INFERIORE SX
Vale per GD
# 003
MPN: 502122
PADIGLIONE
Vale per AUS
# 003
MPN: 601227
PADIGLIONE
Non vale per AUS
# 004
MPN: 201284
SUNBLIND
Non vale per AUS
from £199.79
from £199.79
# 004
MPN: 40170102
SUN VISOR
# 005
MPN: 201711
BRACKET / SUPPORT
Non vale per AUS
# 006
MPN: 201712
BRACKET / SUPPORT
Non vale per AUS
from £453.54
from £453.54
# 007
MPN: 15611105
SCREW
Non vale per AUS
# 008
MPN: 500811
CINGHIA FERMAVALIGIE
# 009
MPN: 30029904
CLIP
Supersession
Supersession
# 010
MPN: 1502060
SCREW
# 011
MPN: 501107
Accelerator pedal frame
Does not apply to GO
# 011
MPN: 501109
PEDAL FRAME COVERING
Non vale per GD
# 012
MPN: 500680
TUNNEL ANTERIORE
Non vale per GD
# 012
MPN: 500685
R ivestimento tunnel ant.
Non vale per GD
# 012
MPN: 501788
TUNNEL ANTERIORE
Vale per GD
# 012
MPN: 501790
RIVESTIMENTO TUNNEL ANT.
Vale per GD
# 013
MPN: 500688
CENTRAL TUNNEL COVERING
Vale fino aIN. 247
# 013
MPN: 501320
TUNNEL CENTRALE
Vale fino al n. 247
# 013
MPN: 502024
TUNNEL CENTRALE
Vale dal N. 248
# 013
MPN: 502027
CENTRAL TUNNEL COVERING
Vale dalN. 248
# 014
MPN: 500682
FRAME FOR GEARBOX TURRET
# 014
MPN: 500690
TURRET FRAME CLADDING
# 015
MPN: 501321
Gear shift rod protection frame
Vale fino al n. 247
# 015
MPN: 502028
Gear shift rod protection frame
Vale dal N. 248
# 015
MPN: 502029
Protective frame covering
Vale dal N. 248
# 015
MPN: 601322
Protective frame covering
Vale fino al n. 247
