119 - Windshield Wiper, Washer and Horns

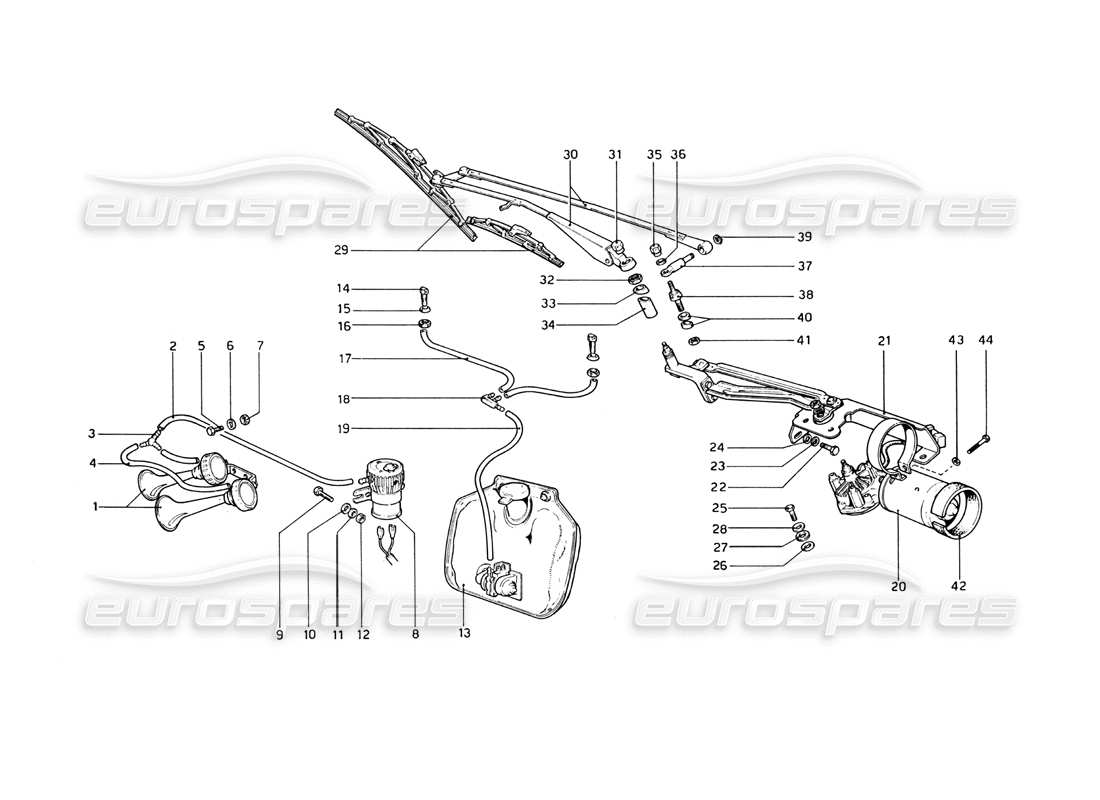

Ferrari 365 GT4 Berlinetta Boxer Windshield Wiper, Washer and Horns Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 50089507
HORN
Supersession
Supersession
# 001
MPN: 500898
COMPLESSIVO TROMBE E COMPRESSORS
Non vale per CH
# 001
MPN: 501073
COMPLESSIVO TROMBE E COMPRESSORS
Vale per CH
# 001
MPN: 50186907
HORN
Vale per CH
# 002
MPN: 600894
CONDOTTO
# 003
MPN: 50089705
UNION 3-WAY
# 004
MPN: 50089606
RED AIR HORN PIPE PER METRE
# 005
MPN: 16043211
SCREW
from £0.47
from £0.47
# 006
MPN: 10615670
WASHER
from £0.47
from £0.47
# 007
MPN: 16100824
NUT
from £0.53
from £0.53
This part replaces part number 16100814 - and 1 more. Click to view details
# 008
MPN: 50089309
HORN COMPRESSER
Supersession
Supersession
# 008
MPN: 50107309
HORN COMPRESSOR ASSY
from £110.10
from £110.10
This part replaces part number 106805
# 009
MPN: 16043211
SCREW
from £0.47
from £0.47
# 010
MPN: 12642001
WASHER
from £0.54
from £0.54
# 011
MPN: 10615670
WASHER
from £0.47
from £0.47
# 012
MPN: 16100824
NUT
from £0.53
from £0.53
This part replaces part number 16100814 - and 1 more. Click to view details
# 013
MPN: 60375706
WASHER BOTTLE
Supersession
Supersession
# 014
MPN: 501033
SPRUZZATORE
# 015
MPN: 10615470
WASHER
Supersession
Supersession
# 016
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 017
MPN: 501029
WIPER PIPE ASSEMBLY
Non vale per GD
# 017
MPN: 501030
CONDOTTO
# 017
MPN: 601697
WIPER PIPE ASSEMBLY
Vale per GD
# 018
MPN: 50103100
3-WAY UNION
from £8.93
from £8.93
This part replaces part number 40103100 which we have in stock
# 019
MPN: 500979
COMPLETE LEVERAGE ASSEMBLY
Non vale per GD
# 019
MPN: 50103209
CONDOTTO
Non vale per GD
from £7.94
from £7.94
# 019
MPN: 501069
COMPLETE LEVERAGE ASSEMBLY
This applies to GO
# 019
MPN: 501698
CONDOTTO
Vale per GD
# 020
MPN: 502156
MOTORINO TERGI
# 021
MPN: 502157
LEVER AGGIO TERGI
Non vale per GD
# 021
MPN: 502158
LEVERAGGIO TERGI
Vale per GD
# 022
MPN: 16043411
SCREW
Supersession
Supersession
# 023
MPN: 12642001
WASHER
from £0.53
from £0.53
# 024
MPN: 10615670
WASHER
from £0.47
from £0.47
# 025
MPN: 10902311
SCREW
Supersession
Supersession
# 026
MPN: 1502088
WASHER
# 027
MPN: 40222403
RUBBER GROMMET
# 028
MPN: 40222705
WASHER
from £11.44
from £11.44
# 029
MPN: 107083/A
WIPER BLADE
from £25.17
from £25.17
# 029
MPN: 107084/A
Wiper blade (small)
from £26.26
from £26.26
# 030
MPN: 502161
WIPER PANTOGRAPH
Non vale per GD
# 030
MPN: 502162
WIPER PANTOGRAPH
Vale per GD
# 031
MPN: 500981
NUT
# 032
MPN: 50098903
RING NUT
# 033
MPN: 500988
DISTANZIALE ESTERNO
# 034
MPN: 500987
OISTANZIALE INTERNE
# 035
MPN: 500982
CAP NUT
# 036
MPN: 500983
SPACER
# 037
MPN: 500984
LEVER
# 038
MPN: 500985
PIVOT
# 039
MPN: 11065474
SEEGER RING
Supersession
Supersession
This part replaces part number 11065476
# 040
MPN: 500986
SERIE DISTANZIALF
# 041
MPN: 104030
SELF LOCKING NUT
from £0.54
from £0.54
This part replaces part number 16104125
# 042
MPN: 502163
GUARNIZLONE
# 043
MPN: 10519401
WASHER
from £0.71
from £0.71
# 044
MPN: 10902611
SCREW
from £0.53
from £0.53
