006A - Timing chest cover - Revision

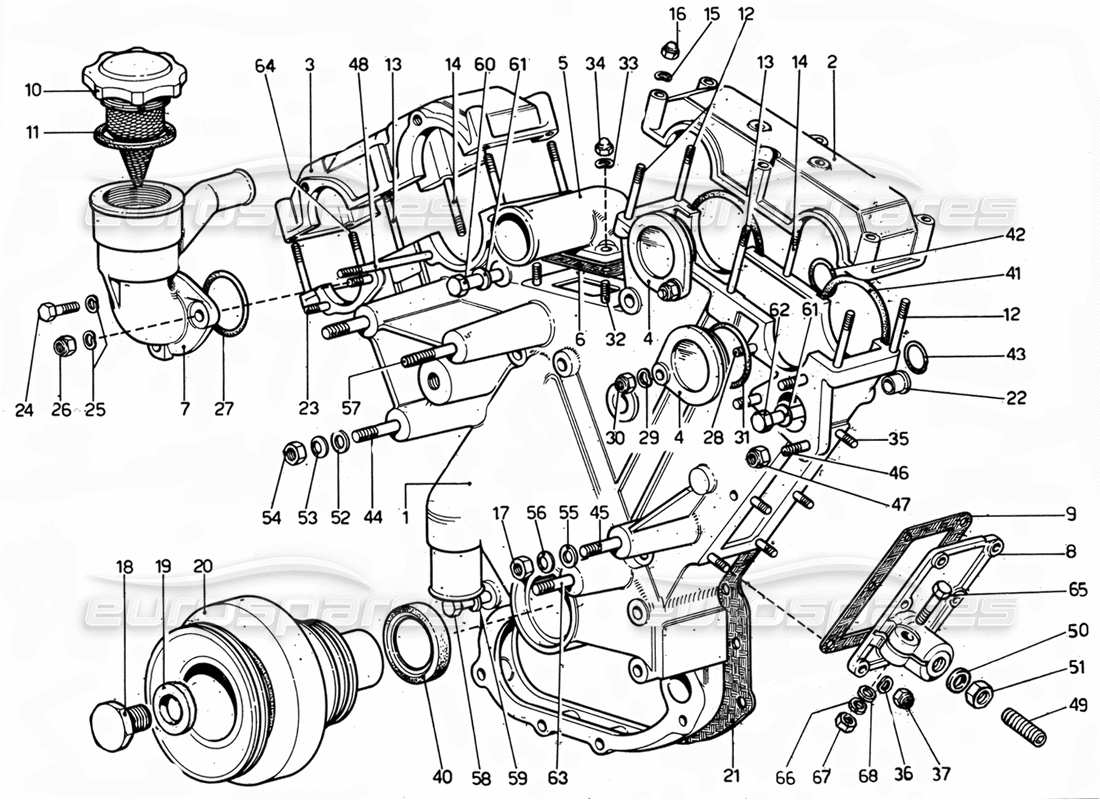

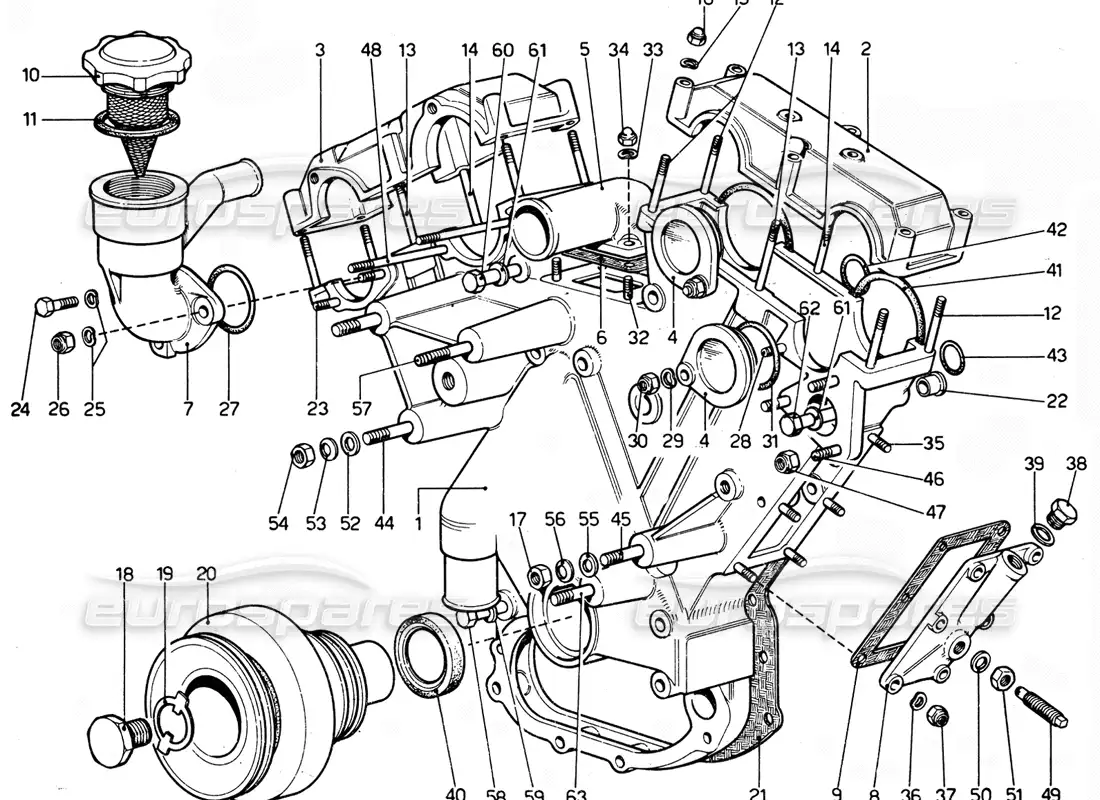

Ferrari 365 GTC4 (Mechanical) Timing chest cover - Revision Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 220728
SCATOLA DISTRIBUZIONE (VALE DAL N. 15259 - *15181)
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
# 002
MPN: 220485
LEFT TIMING CAP
# 003
MPN: 220565
RIGHT DISTRIBUTION CAP
# 004
MPN: 220481
COVER
Supersession
Supersession
# 005
MPN: 100442
UNION
from £64.60
from £64.60
This part replaces part number 220476
# 006
MPN: 220480
GASKET OR SEAL
Supersession
Supersession
# 007
MPN: 220483
LOADED BODY AND ENGINE VENT
Supersession
Supersession
# 008
MPN: 220717
COVER
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
# 008
MPN: 220752
COVER
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
Supersession
Supersession
# 009
MPN: 220479
GASKET
Supersession
Supersession
# 010
MPN: 220507
TAPPO INTRUDUZIONE OLIO
Supersession
Supersession
# 011
MPN: 220229
GASKET
# 012
MPN: P1
SHORT THREADED STUD
Supersession
Supersession
# 013
MPN: 9220561
STUD
# 014
MPN: 9220562
STUD
not as spare part - use part number 100043
Supersession
Supersession
# 015
MPN: 10414170
WASHER
# 016
MPN: 100044
NUT
from £0.26
from £0.26
This part replaces part number 151230 - and 1 more. Click to view details
# 017
MPN: 12574521
NUT
from £0.50
from £0.50
This part replaces part number 104114 - and 1 more. Click to view details
# 018
MPN: 4229641
SCREW
Supersession
Supersession
# 019
MPN: 4229642
PLATE
Supersession
Supersession
# 020
MPN: 220487
SMORZATORE TORSIONALE
# 021
MPN: 220566
GASKET
# 022
MPN: 220206
BUSH
from £1,986.50
from £1,986.50
# 023
MPN: 13541124
STUD
from £11.60
from £11.60
This part replaces part number 13541121
# 024
MPN: 10902421
BOLT
from £0.47
from £0.47
# 025
MPN: 95930508
WASHER
# 026
MPN: 12574211
NUT
from £0.71
from £0.71
# 027
-
SEALING RING
# 028
MPN: 11500224
THREADED STUD
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
from £0.47
from £0.47
This part replaces part number 11500221 - and 1 more. Click to view details
# 029
MPN: 95930508
WASHER
# 030
MPN: 12574211
NUT
from £0.71
from £0.71
# 031
-
SEALING RING
# 032
MPN: 11500321
THREADED STUD
Supersession
Supersession
# 033
MPN: 103044
WASHER
from £5.19
from £5.19
# 034
MPN: 100044
NUT
from £0.26
from £0.26
This part replaces part number 151230 - and 1 more. Click to view details
# 035
MPN: 11500521
THREADED STUD
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
Supersession
Supersession
# 036
MPN: 95930508
WASHER
# 037
MPN: 12574211
NUT
from £0.71
from £0.71
# 038
MPN: 10300640
TAPPO (VALE FINO N. 15257 -*14837)
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
Supersession
Supersession
# 039
MPN: 10282460
GASKET OR SEAL
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
from £0.47
from £0.47
# 041
MPN: 101028
SEALING RING
from £3.52
from £3.52
# 042
MPN: 101027
SEALING RING
from £3.61
from £3.61
# 043
MPN: 105558
SEALING RING
from £1.12
from £1.12
This part replaces part number 101026
# 044
MPN: 13450021
STUD
from £0.47
from £0.47
This part replaces part number 13450020 which we have in stock
# 045
MPN: 13449821
THREADED STUD
from £0.77
from £0.77
# 046
MPN: 16100814
THREADED STUD
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 047
MPN: 104030
SELF LOCKING NUT
from £0.47
from £0.47
This part replaces part number 16104125
# 048
MPN: 220560
THREADED STUD
Supersession
Supersession
# 049
MPN: 220750
PUNTALINO PER REGISTRO TENDICATENA (VALE DAL N.16073 - *15347)
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
from £311.79
from £311.79
# 049
MPN: M16x50 UNI 5930-67
PUNTALINO PER REGISTRO TENDICATENA (VALE DAL 15259 -*15181 AL 16071 - *15345)
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
# 050
MPN: 12601771
WASHER
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
from £0.73
from £0.73
This part replaces part number 12601711
# 051
MPN: 101413
NUT
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
from £18.56
from £18.56
This part replaces part number 94630
# 052
MPN: 10R1
WASHER
Supersession
Supersession
# 053
MPN: 10413770
WASHER
from £0.47
from £0.47
# 054
MPN: 12574521
NUT
from £0.50
from £0.50
This part replaces part number 104114 - and 1 more. Click to view details
# 055
MPN: 1O R 1
WASHER
Supersession
Supersession
# 056
MPN: 10413770
WASHER
from £0.47
from £0.47
# 057
MPN: 13450121
THREADED STUD
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
Supersession
Supersession
This part replaces part number 13450120
# 058
MPN: 16044121
BOLT
from £0.71
from £0.71
This part replaces part number 11101220
# 059
MPN: 11198074
WASHER
from £0.47
from £0.47
This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
# 060
MPN: 16044721
BOLT
from £0.83
from £0.83
# 061
MPN: 11198074
WASHER
from £0.47
from £0.47
This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
# 062
MPN: 16044424
BOLT
from £1.02
from £1.02
This part replaces part number 16044421 - and 1 more. Click to view details
# 063
MPN: 13449920
THREADED STUD
# 064
MPN: 4161959
THREADED STUD
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
Supersession
Supersession
# 065
MPN: 11307021
BOLT
(minimum order quantity = 5)
from £3.29
from £3.29
# 066
MPN: 127497
WASHER
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
from £0.47
from £0.47
This part replaces part number 10516871 - and 2 more. Click to view details
# 067
MPN: 10791021
NUT
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
from £0.47
from £0.47
# 068
MPN: 12638621
WASHER
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
from £0.50
from £0.50
This part replaces part number 12638620 - and 1 more. Click to view details
