035 - Steering Colume

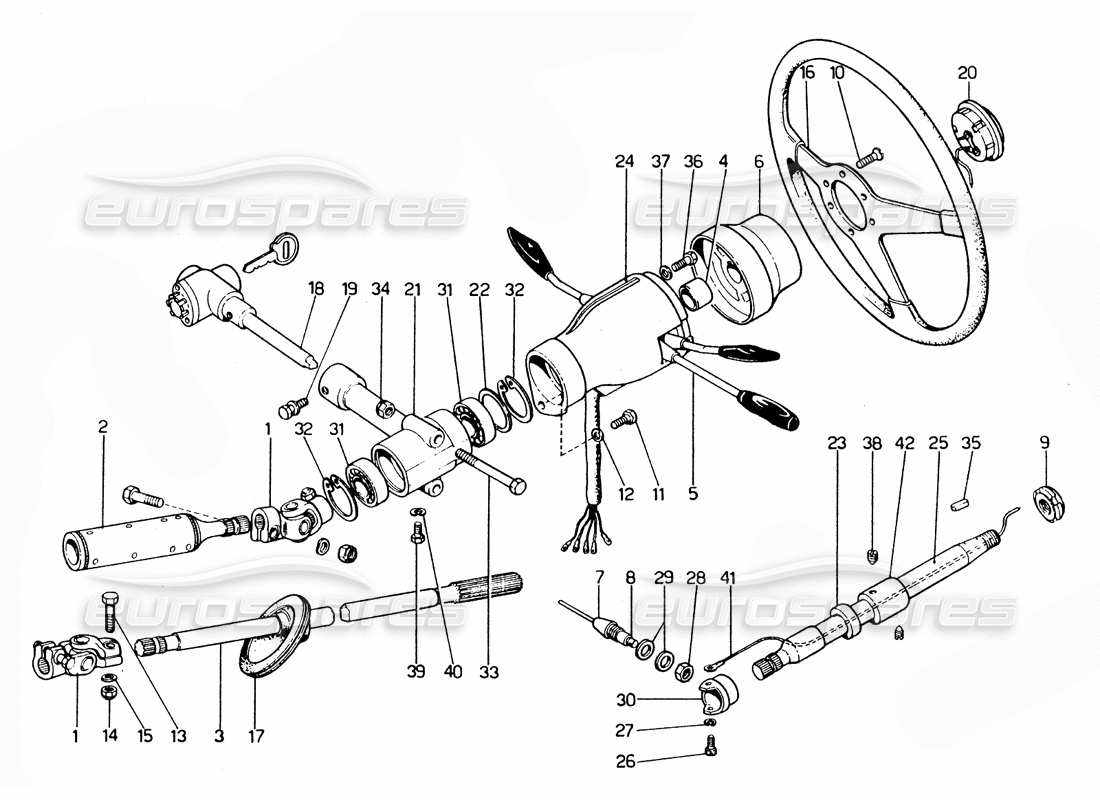

Ferrari 365 GTC4 (Mechanical) Steering Colume Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 101062
GIUNTO PER ESTREMITA TUBO
from £695.00
from £695.00
# 002
MPN: 740410
TUBO GUIDA
# 003
MPN: 740418
ALBERO GUIDA
# 004
MPN: 740077
BUSH
Supersession
Supersession
# 005
MPN: 740457
DEVIOSGANCIO
# 006
MPN: 740518
MOZZO VOLANTE GUIDA
# 007
MPN: 101068
CONTATTO PER AVVISATORE
from £165.40
from £165.40
This part replaces part number 740001
# 008
MPN: 740543
CHARCOAL AND SPRING FOR CONTACT
Supersession
Supersession
# 009
MPN: GUA 22 MC
RING NUT
# 010
MPN: M5x104JNl 5535
SCREW
# 011
MPN: M6x20UNl 5739
BOLT
# 012
MPN: 6 R 4
WASHER
Supersession
Supersession
# 013
MPN: M8x354 UNI 5737
BOLT
# 014
MPN: 16100824
NUT
from £0.51
from £0.51
This part replaces part number 16100814 - and 1 more. Click to view details
# 015
MPN: 127496
WASHER
from £0.53
from £0.53
This part replaces part number 10516671 - and 2 more. Click to view details
# 016
MPN: 740520
ASSIEME VOLANTE GUIDA
Supersession
Supersession
# 016
MPN: 740616
DRIVER'S STEERING WHEEL
# 017
MPN: 101100
GASKET
from £22.39
from £22.39
This part replaces part number 740419
# 018
MPN: 168785
STEERING LOCK ASSY
from £1,751.06
from £1,751.06
This part replaces part number 106614 - and 11 more. Click to view details
# 019
MPN: A-0649
BOLT
# 020
MPN: 130899/A
HORN PUSH BUTTON
from £49.19
from £49.19
# 021
MPN: 740231
SUPPORT
Supersession
Supersession
# 022
MPN: 740333
WASHER
Supersession
Supersession
# 023
MPN: 740326
SPACER
Supersession
Supersession
# 024
MPN: 400327
SWITCH HOLDER
from £67.97
from £67.97
# 025
MPN: 740483
ESTREMITA TUBO GUIDA
# 026
MPN: 4VR-4x12
SCREW
# 027
MPN: 4 V R
WASHER
# 028
MPN: 94829
NUT
# 029
MPN: 94828
WASHER
# 030
MPN: 74825
CONTATTO PER AVVISATORE
# 031
MPN: 2 APPL 25
CUSCINETTO A SFERE
# 032
MPN: AA 52i
SEEGER RING
# 033
MPN: M8x80-UNI 5738
BOLT
# 034
MPN: 101240
NUT
from £1.36
from £1.36
# 035
MPN: 94628
Key
Supersession
Supersession
# 036
MPN: 3 VR-5x22
SCREW
# 037
MPN: 10571571
WASHER
Supersession
Supersession
# 038
MPN: 94835
WHEAT FOR DOWNLOAD
# 039
MPN: M6x10UNI 5739
BOLT
# 040
MPN: REO6
WASHER
Supersession
Supersession
# 041
-
CURRENT CABLE
# 042
MPN: 740197
SEAT ON GUIDE TUBE
Supersession
Supersession
