044A - Air condition system - Revision

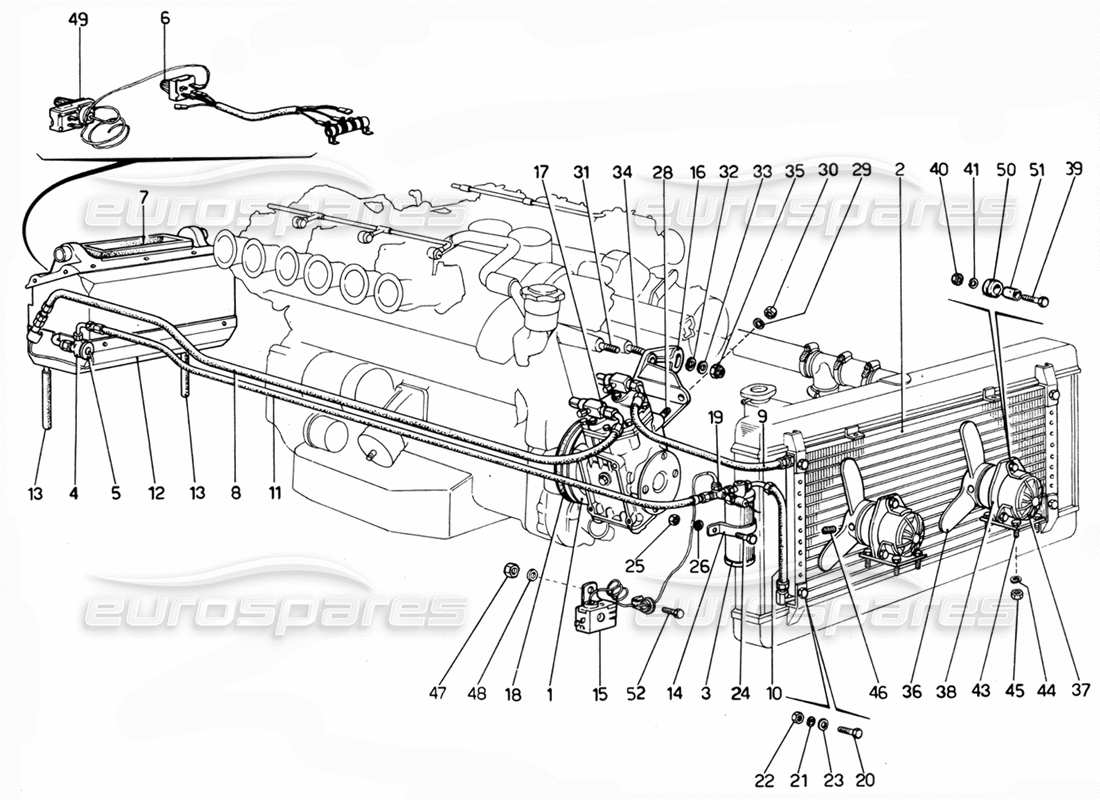

Ferrari 365 GTC4 (Mechanical) Air condition system - Revision Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 100473
JOINT WITH COUNTERCLOCKWISE ROTATION
from £793.49
from £793.49
This part replaces part number 320368
# 002
MPN: 101988
CONDENSOR
from £700.97
from £700.97
This part replaces part number 105156 - and 1 more. Click to view details
# 003
MPN: 320369 / 080.3122.008
PURIFIER
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
# 004
MPN: FLICA TMS3,5
VALVOLA ESPANSIONE
# 005
MPN: RANCO A 10
TERMOSTATO
# 006
MPN: 320395 / INDAX
COMMUTATORE
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
# 007
-
GRUPPO VENTOLE IMPERIAL
# 008
MPN: 100462
TUBE
from £162.15
from £162.15
# 008
MPN: 320356
TUBO PER FREON + 5/8 I= 2450
not as spare part - use part number 100462
# 009
MPN: 320357 / 80.1300.863.0
TUBO PER FREON + 1/2 1 = 430
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
# 010
MPN: 320359 / 80.1300.861.0
TUBO PER FREON + 3/8 I = 445
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
# 011
MPN: 320358 / 80.1300.930.0
TUBO PER FREON + 3/8 I= 2000
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
# 012
MPN: 80.1300.930.0 / 320355
EVAPORATOR GROUP ASSEMBLY
# 013
MPN: 320370 / 80.1300.122.0
TUBO SCARICO CONDENSA
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
# 014
MPN: 320371 / 080.6212.001
BRACKET
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
# 015
MPN: 320372
PRESSOSTAT
# 016
MPN: 32341
SUPPORT
Supersession
Supersession
# 017
MPN: 320373 / HG 700 A
COMPRESSORE
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
# 018
MPN: 320374 / SEZ. A 28
CINGHIA COMPRESSORE (13X8X710 INT.)
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
# 019
MPN: 320376 / 80.1300.935.0
MINIMUM PRESSURE SWITCH WITH FITTING
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
# 020
MPN: 10903031
BOLT
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
from £0.87
from £0.87
# 021
MPN: 11197773
WASHER
Supersession
Supersession
# 022
MPN: 15898211
NUT
# 023
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 024
MPN: 10903021
BOLT
Supersession
Supersession
# 025
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210
# 026
MPN: 11197773
WASHER
Supersession
Supersession
# 027
-
WASHER
# 028
MPN: 95504
THREADED STUD
Supersession
Supersession
# 029
MPN: 12638601
WASHER
from £0.47
from £0.47
This part replaces part number 20232104
# 030
MPN: 12574521
NUT
from £0.50
from £0.50
This part replaces part number 104114 - and 1 more. Click to view details
# 031
MPN: 13450021
STUD
from £0.47
from £0.47
This part replaces part number 13450020 which we have in stock
# 032
MPN: 10R1
WASHER
Supersession
Supersession
# 033
MPN: 10413770
WASHER
from £0.47
from £0.47
# 034
MPN: 13450121
THREADED STUD
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
Supersession
Supersession
This part replaces part number 13450120
# 035
MPN: 12574521
SELF LOCKING NUT
from £0.50
from £0.50
This part replaces part number 104114 - and 1 more. Click to view details
# 036
MPN: 36138
VENTOLA A TRE PALE (MARELLI)
# 037
MPN: 109826
FAN MOTOR
from £106.89
from £106.89
This part replaces part number 102029 - and 4 more. Click to view details
# 038
MPN: 36155
SUPPORT
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
# 039
MPN: 10902621
BOLT
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
Supersession
Supersession
This part replaces part number 10902611
# 040
MPN: 12574211
NUT
from £0.71
from £0.71
# 041
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 042
-
SPACER
# 043
MPN: M8x18UNI 5739
BOLT
# 044
MPN: 13550301
WASHER
from £0.47
from £0.47
# 045
MPN: 104030
NUT
from £0.47
from £0.47
This part replaces part number 16104125
# 046
MPN: 95134
DOWEL
Supersession
Supersession
# 047
MPN: 16100824
NUT
from £0.47
from £0.47
This part replaces part number 16100814 - and 1 more. Click to view details
# 048
MPN: 11198074
WASHER
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
from £0.47
from £0.47
This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
# 049
MPN: 109819
AIR TEMPERATURE REGULATOR
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
from £163.13
from £163.13
# 050
MPN: 36156
BUSH
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
Supersession
Supersession
This part replaces part number 36156
# 051
MPN: 36157
DISTANZIALE PER BOCCOLA
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
# 052
MPN: 16043121
SCREW
Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
from £0.47
from £0.47
