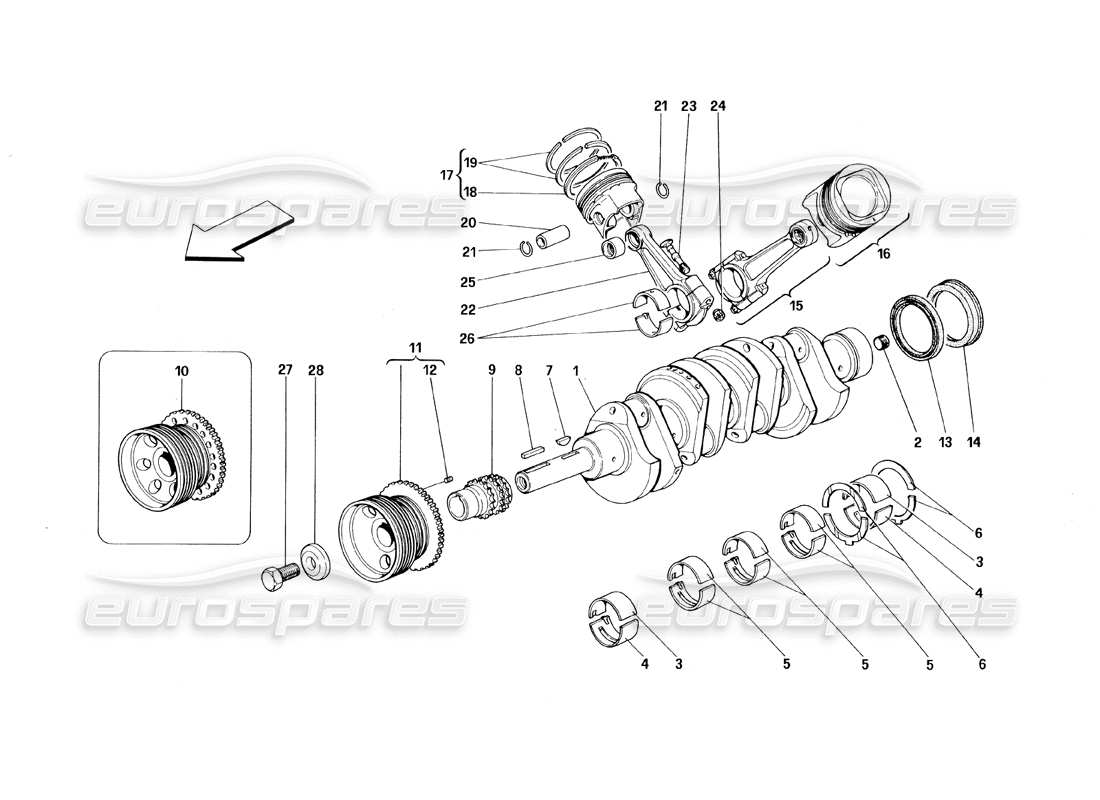

002 - crankshaft, conrods and pistons
Ferrari 348 (1993) TB / TS Crankshaft, Conrods And Pistons Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 138193
crankshaft
from £832.53
from £832.53
# 002
MPN: 163528
THREADED PLUG
from £2.45
from £2.45
This part replaces part number 10268450 - and 1 more. Click to view details
# 003
MPN: 100118
UPPER MAIN HALF BEARING SHELL STANDARD
from £42.25
from £42.25
This part replaces part number 9100035
# 003
MPN: 100124
LOWER MAIN HALF BEARING SHELL 2ND UNDERSIZE 0.508MM
from £34.49
from £34.49
# 004
MPN: 100119
UPPER HALF BEARINGUPPER MAIN HALF BEARING SHELL 1ST UNDERSIZE 0.254MM
from £75.69
from £75.69
# 004
MPN: 100120
UPPER MAIN HALF BEARING SHELL 2ND UNDERSIZE 0.508MM
from £26.93
from £26.93
# 004
MPN: 100122
LOWER MAIN HALF BEARING SHELL STANDARD
from £34.08
from £34.08
This part replaces part number 9100602
# 005
MPN: 104023
MAIN HALF BEARING SHELL STANDARD
from £29.30
from £29.30
This part replaces part number 108876 - and 2 more. Click to view details
# 005
MPN: 104024
MAIN HALF BEARING SHELL 1ST UNDERSIZE 0.254MM
from £33.48
from £33.48
# 005
MPN: 104025
MAIN HALF BEARING SHELL 2ND UNDERSIZE 0.508MM
from £32.83
from £32.83
# 006
MPN: 100146
THRUST WASHERS SET
sold in pairs -
from £22.19
from £22.19
This part replaces part number 10345 - and 1 more. Click to view details
# 006
MPN: 100147
THRUST WASHERS (2ND OVERSIZE)
from £17.78
from £17.78
This part replaces part number 4153187/C
# 006
MPN: 113984
SHIM
1st OVERSIZE mm. 0,127
from £48.31
from £48.31
# 007
MPN: 10206020
Key
from £1.52
from £1.52
# 008
MPN: 14723320
Key
from £1.43
from £1.43
# 009
MPN: 132807
TIMING GEAR
from £60.27
from £60.27
# 010
MPN: 138524
TOOTHED WHEEL AND PULLEY
Valid till stock exhaustion
from £326.91
from £326.91
# 011
MPN: 153030
TOOTHED WHEEL AND PULLEY
Valid after stock exhaustion of 138524
from £467.04
from £467.04
This part replaces part number 138524 which we have in stock
# 012
MPN: 10841010
DOWEL
from £1.04
from £1.04
# 013
MPN: 183581
REAR MAIN OIL SEAL
from £85.89
from £85.89
This part replaces part number 148671 - and 1 more. Click to view details
# 013
MPN: OILK348
ENGINE OIL SEAL KIT
Original Oil seal kit consists of: x1 183581 / x1 133628 / x4 134714 / x4 117275 / x1 149917
# 014
MPN: 183581
REAR MAIN OIL SEAL
from £85.89
from £85.89
This part replaces part number 148671 - and 1 more. Click to view details
# 015
MPN: 109738/U
CON ROD
from £230.00
from £230.00
# 016
MPN: 137980
PISTON WITH RINGS
from £595.00
from £595.00
# 016
MPN: 163399
348 GT PISTON & RINGS
Vaild for 348GT Michelotto Comp.
from £953.85
from £953.85
# 017
MPN: 132959
PISTONS RINGS SET
from £114.78
from £114.78
This part replaces part number 132773
# 018
-
ROF OIL SCRAPING RING
# 019
-
AC SEAL RING
# 020
MPN: 119537
PIN
from £34.44
from £34.44
# 021
MPN: 100174
GUDGEON PIN CIRCLIP
from £3.47
from £3.47
This part replaces part number 14594
# 022
-
CONNECTING ROD WITH CAP
# 023
MPN: 100156
CONNECTING ROD TIGHTENING SCREW
from £16.69
from £16.69
This part replaces part number 140020 - and 1 more. Click to view details
# 024
MPN: 104011
CONNECTING ROD TIGHTENING NUT
from £9.62
from £9.62
This part replaces part number 14511 which we have in stock - and 2 more. Click to view details
# 025
MPN: 107100
SMALL END BUSH
from £25.36
from £25.36
This part replaces part number 100155 - and 2 more. Click to view details
# 026
MPN: 100151
CON ROD BEARING +10
(1st Undersize mm 0,254)
from £45.05
from £45.05
This part replaces part number 106184
# 026
MPN: 100152
CON ROD BEARING +20
(2ª Undersize mm 0,508)
from £63.11
from £63.11
This part replaces part number 106185
# 026
MPN: 106183
CON ROD HALF BEARING STANDARD
from £20.04
from £20.04
This part replaces part number 100150
# 027
MPN: 138793
SCREW
from £98.97
from £98.97
This part replaces part number 100476 - and 2 more. Click to view details
# 028
MPN: 138792
WASHER
from £3.40
from £3.40
This part replaces part number 102775 which we have in stock - and 2 more. Click to view details
