ferrari 348 (1993) tb / ts rh cylinder head parts diagram

003 - RH cylinder head

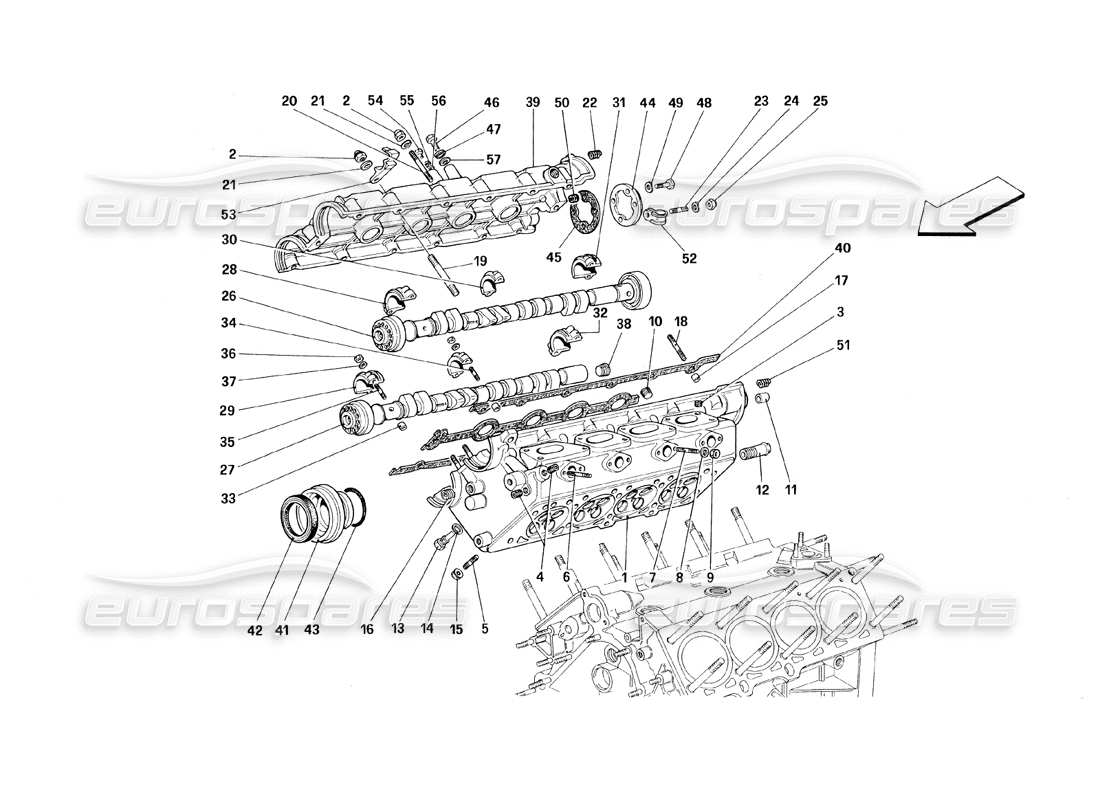

Ferrari 348 (1993) TB / TS R.H. Cylinder Head Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                #
                                                                                                Part number
                                                                                                Description
                                                                                                Price
                                                                                                # 000
                                                                                                MPN: 143273
                                                                                                right cylinder head
                                                                                                from £5,808.52
                                                                                                from £5,808.52
                                                                                                This part replaces part number 70000585
                                                                                                # 001
                                                                                                -
                                                                                                RH HEAD
                                                                                                Not as spare part - With complete cylinders head
                                                                                                # 002
                                                                                                MPN: 100044
                                                                                                NUT
                                                                                                from £0.29
                                                                                                from £0.29
                                                                                                This part replaces part number 151230 - and 1 more. Click to view details
                                                                                                # 003
                                                                                                MPN: 13525870
                                                                                                THREADED INSERT
                                                                                                from £1.70
                                                                                                from £1.70
                                                                                                This part replaces part number 105510
                                                                                                # 004
                                                                                                MPN: 14326150
                                                                                                THREADED PLUG
                                                                                                from £0.50
                                                                                                from £0.50
                                                                                                This part replaces part number 12326150
                                                                                                # 005
                                                                                                MPN: 12354524
                                                                                                STUD SECURING EXHAUST MANIFOLDS
                                                                                                from £16.49
                                                                                                from £16.49
                                                                                                This part replaces part number 12354521
                                                                                                # 006
                                                                                                MPN: 13541621
                                                                                                STUD SECURING WATER MANIFOLDS (CYL. 1,4)
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 007
                                                                                                MPN: 13541721
                                                                                                STUD SECURING WATER MANIFOLDS (CYL 2,3)
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 008
                                                                                                MPN: 11197774
                                                                                                WASHER
                                                                                                from £0.53
                                                                                                from £0.53
                                                                                                This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                # 009
                                                                                                MPN: 15896211
                                                                                                NUT
                                                                                                Supersession
                                                                                                Supersession
                                                                                                This part replaces part number 15896210 which we have in stock
                                                                                                # 010
                                                                                                MPN: 127635
                                                                                                THREADED PLUG
                                                                                                from £1.48
                                                                                                from £1.48
                                                                                                This part replaces part number 183447
                                                                                                # 011
                                                                                                MPN: 102725
                                                                                                DOWEL
                                                                                                from £0.64
                                                                                                from £0.64
                                                                                                # 012
                                                                                                MPN: 106227
                                                                                                UNION
                                                                                                from £4.06
                                                                                                from £4.06
                                                                                                # 013
                                                                                                MPN: 139489
                                                                                                PLUG
                                                                                                Not for catalyzed cars
                                                                                                from £7.93
                                                                                                from £7.93
                                                                                                # 014
                                                                                                MPN: 10257060
                                                                                                GASKET
                                                                                                Not for catalyzed cars
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                                # 015
                                                                                                MPN: 138392
                                                                                                NUT
                                                                                                (minimum order quantity = 25)
                                                                                                from £0.73
                                                                                                from £0.73
                                                                                                # 016
                                                                                                MPN: 13525870
                                                                                                THREADED INSERT
                                                                                                from £1.80
                                                                                                from £1.80
                                                                                                This part replaces part number 105510
                                                                                                # 017
                                                                                                MPN: 102725
                                                                                                DOWEL
                                                                                                from £0.64
                                                                                                from £0.64
                                                                                                # 018
                                                                                                MPN: 13541721
                                                                                                STUD
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 019
                                                                                                MPN: 13541721
                                                                                                STUD
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 020
                                                                                                MPN: 13541621
                                                                                                STUD
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 021
                                                                                                MPN: 11197774
                                                                                                WASHER
                                                                                                from £0.52
                                                                                                from £0.52
                                                                                                This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                # 022
                                                                                                MPN: 13525470
                                                                                                THREADED INSERT
                                                                                                from £0.53
                                                                                                from £0.53
                                                                                                This part replaces part number 107333
                                                                                                # 023
                                                                                                MPN: 11500521
                                                                                                STUD
                                                                                                from £1.85
                                                                                                from £1.85
                                                                                                # 024
                                                                                                MPN: 12601274
                                                                                                WASHER
                                                                                                from £0.53
                                                                                                from £0.53
                                                                                                This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                # 025
                                                                                                MPN: 102741
                                                                                                NUT
                                                                                                from £0.53
                                                                                                from £0.53
                                                                                                This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                # 026
                                                                                                MPN: 139334

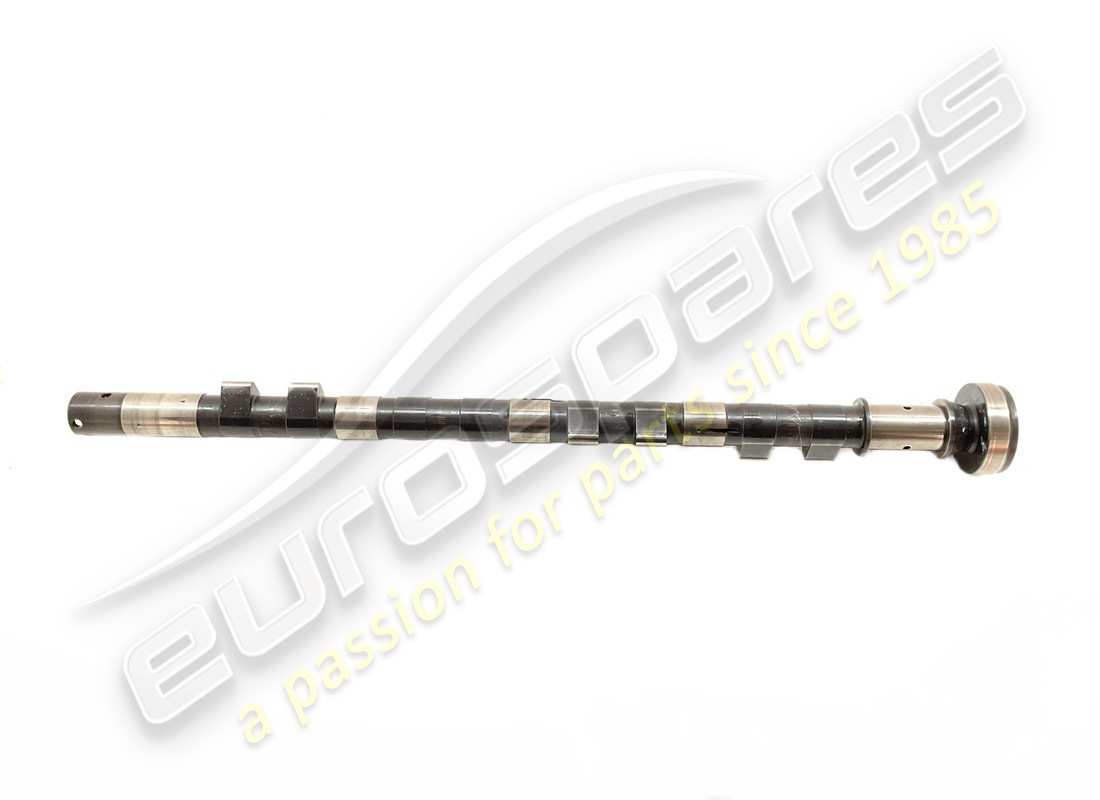

                                                                                                COMPLETE RH INDUCTION DISTRIBUTION SHAFT
                                                                                                from £563.34
                                                                                                from £563.34
                                                                                                # 027
                                                                                                MPN: 139337

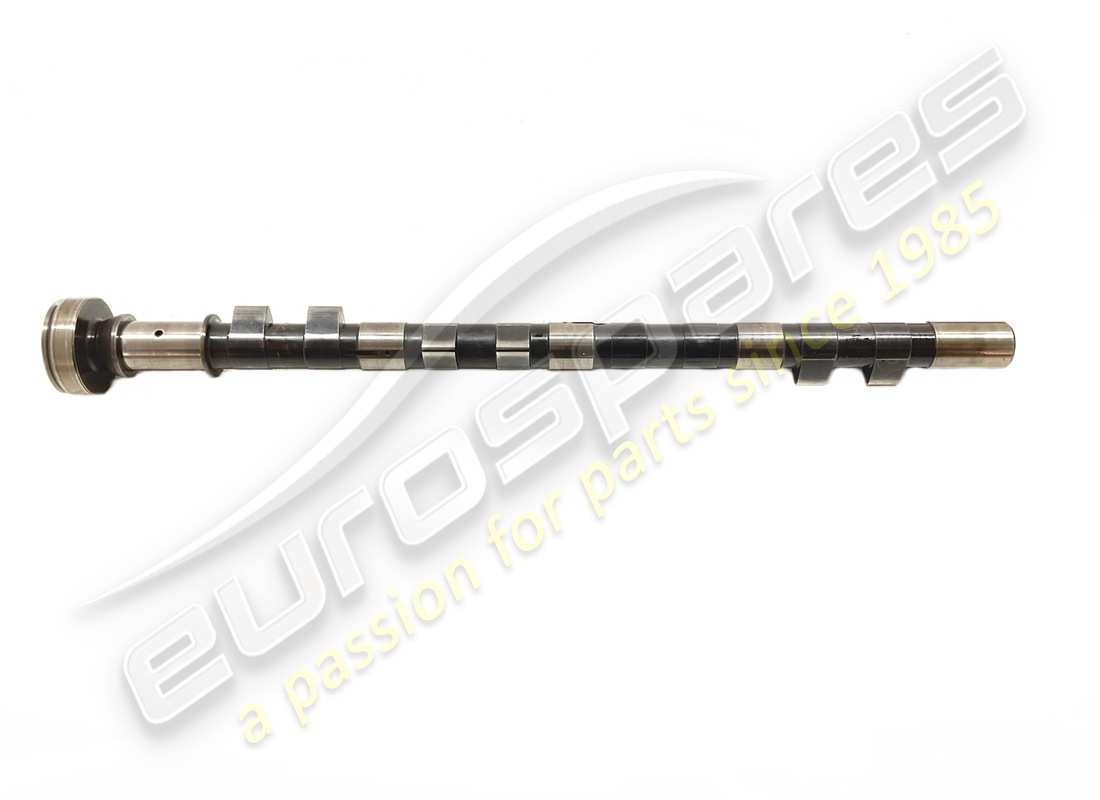

                                                                                                COMPLETE RH EXHAUST CAM SHAFT
                                                                                                from £1,241.11
                                                                                                from £1,241.11
                                                                                                # 028
                                                                                                -
                                                                                                INLET SIDE FRONT CAP
                                                                                                Not as spare part - With complete cylinders head
                                                                                                # 029
                                                                                                -
                                                                                                EXHAUST SIDE FRONT CAP
                                                                                                Not as spare part - With complete cylinders head
                                                                                                # 030
                                                                                                -
                                                                                                INTERMEDIATE CAP
                                                                                                Not as spare part - With complete cylinders head
                                                                                                # 031
                                                                                                -
                                                                                                INLET SIDE REAR CAP
                                                                                                Not as spare part - With complete cylinders head
                                                                                                # 032
                                                                                                -
                                                                                                EXHAUST SIDE REAR CAP
                                                                                                Not as spare part - With complete cylinders head
                                                                                                # 033
                                                                                                MPN: 102725
                                                                                                DOWEL
                                                                                                from £0.56
                                                                                                from £0.56
                                                                                                # 034
                                                                                                MPN: 102735
                                                                                                STUD (INNER CAPS)
                                                                                                from £16.61
                                                                                                from £16.61
                                                                                                This part replaces part number 4146561
                                                                                                # 035
                                                                                                MPN: 102754
                                                                                                STUD (OUTER CAPS)
                                                                                                from £5.00
                                                                                                from £5.00
                                                                                                # 036
                                                                                                MPN: 15896211
                                                                                                NUT
                                                                                                Supersession
                                                                                                Supersession
                                                                                                This part replaces part number 15896210 which we have in stock
                                                                                                # 037
                                                                                                MPN: 11197774
                                                                                                WASHER
                                                                                                from £0.51
                                                                                                from £0.51
                                                                                                This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                # 038
                                                                                                MPN: 10269750
                                                                                                THREADED PLUG
                                                                                                from £0.91
                                                                                                from £0.91
                                                                                                This part replaces part number 95184
                                                                                                # 039
                                                                                                -
                                                                                                RH CYLINDER HEAD COVER
                                                                                                Not as spare part - With complete cylinders head
                                                                                                # 040
                                                                                                MPN: 150078
                                                                                                RH GASKET
                                                                                                from £28.48
                                                                                                from £28.48
                                                                                                This part replaces part number 117263 - and 1 more. Click to view details
                                                                                                # 040
                                                                                                MPN: FCCG001/B
                                                                                                Cam Cover Gasket Set & Seal kit
                                                                                                Includes FCCG001 & seals - x4 134714 / x4 117275.
                                                                                                # 041
                                                                                                MPN: 144973
                                                                                                SMALL COVER
                                                                                                from £370.72
                                                                                                from £370.72
                                                                                                This part replaces part number 117257 - and 1 more. Click to view details
                                                                                                # 042
                                                                                                MPN: 134714
                                                                                                OIL SEAL
                                                                                                from £10.35
                                                                                                from £10.35
                                                                                                This part replaces part number 110314
                                                                                                # 043
                                                                                                MPN: 117275
                                                                                                O.R. GASKET
                                                                                                from £2.93
                                                                                                from £2.93
                                                                                                # 044
                                                                                                MPN: 103796
                                                                                                REAR SMALL COVER
                                                                                                from £167.71
                                                                                                from £167.71
                                                                                                # 045
                                                                                                MPN: 150075
                                                                                                GASKET
                                                                                                from £16.11
                                                                                                from £16.11
                                                                                                This part replaces part number 104694 - and 3 more. Click to view details
                                                                                                # 046
                                                                                                MPN: 10977524
                                                                                                SCREW
                                                                                                from £0.53
                                                                                                from £0.53
                                                                                                # 048
                                                                                                MPN: 10902324
                                                                                                SCREW
                                                                                                from £0.53
                                                                                                from £0.53
                                                                                                This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                                                # 049
                                                                                                MPN: 12601274
                                                                                                WASHER
                                                                                                from £0.53
                                                                                                from £0.53
                                                                                                This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                # 050
                                                                                                MPN: 13525470
                                                                                                THREADED INSERT
                                                                                                from £0.51
                                                                                                from £0.51
                                                                                                This part replaces part number 107333
                                                                                                # 051
                                                                                                MPN: 13525470
                                                                                                THREADED INSERT
                                                                                                from £0.51
                                                                                                from £0.51
                                                                                                This part replaces part number 107333
                                                                                                # 052
                                                                                                MPN: 10418401
                                                                                                BRACKET
                                                                                                from £1.55
                                                                                                from £1.55
                                                                                                # 053
                                                                                                MPN: 129544
                                                                                                CLIP
                                                                                                from £1.31
                                                                                                from £1.31
                                                                                                # 054
                                                                                                MPN: 10977624
                                                                                                SCREW
                                                                                                from £0.53
                                                                                                from £0.53
                                                                                                This part replaces part number 10977611 - and 1 more. Click to view details
                                                                                                # 055
                                                                                                MPN: 149951
                                                                                                WASHER
                                                                                                from £0.54
                                                                                                from £0.54
                                                                                                This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
                                                                                                # 056
                                                                                                MPN: 10519377
                                                                                                WASHER
                                                                                                Supersession
                                                                                                Supersession
                                                                                                This part replaces part number 10519305 which we have in stock - and 1 more. Click to view details
                                                                                                # 057
                                                                                                MPN: 12648201
                                                                                                WASHER
                                                                                                from £1.39
                                                                                                from £1.39
