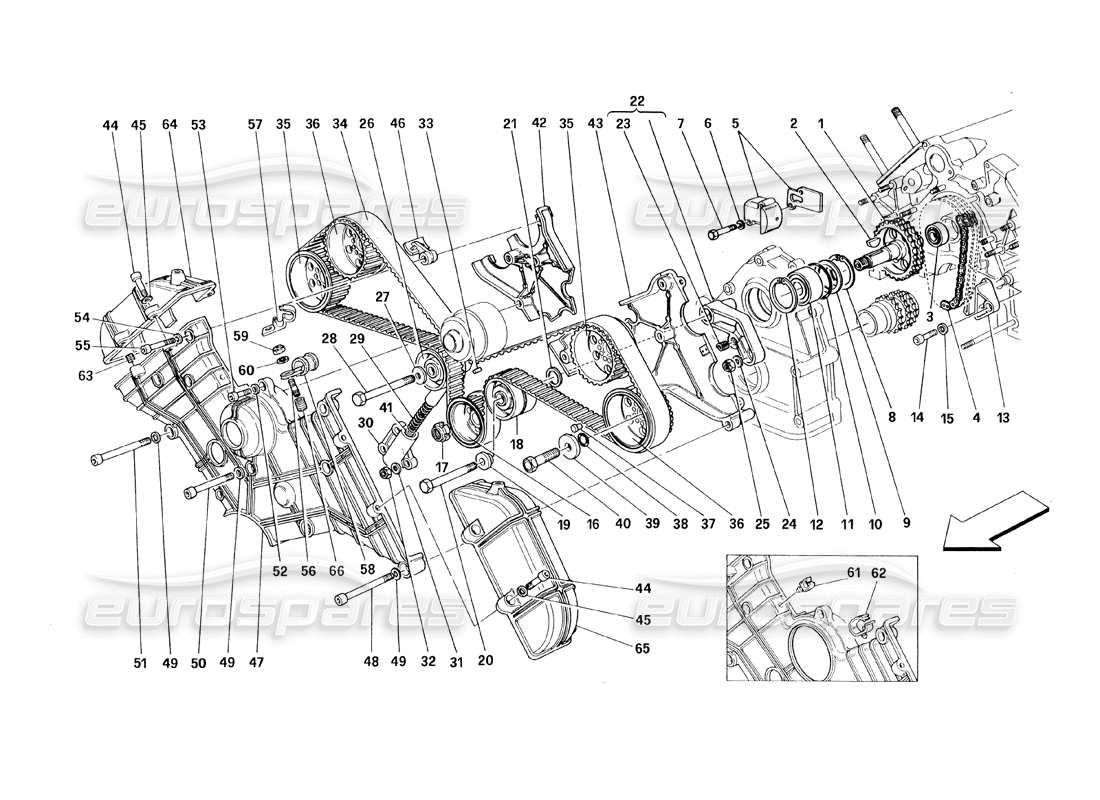

Ferrari 348 (1993) TB / TS Timing - Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 132808
DRIVEN GEAR
Valid till engine Nr. 24719
from £63.97
from £63.97
# 001
MPN: 144489
DRIVEN GEAR
Valid from engine Nr. 24720
from £195.75
from £195.75
# 002
MPN: 10206320
Key
from £0.80
from £0.80
# 003
MPN: 171177
BEARING
Valid from engine Nr. 24720
from £10.01
from £10.01
This part replaces part number 144713
# 003
MPN: 185343
BEARING
Valid till engine Nr. 2471 9
from £5.82
from £5.82
This part replaces part number 149241
# 004
MPN: 132968
TIMING CONTROL CHAIN
from £103.47
from £103.47
# 005
MPN: 147338/A
CHAIN PAD ONLY
from £79.66
from £79.66
This part replaces part number 147338
# 006
MPN: 11197774
WASHER
from £0.47
from £0.47
This part replaces part number 11197770 - and 3 more. Click to view details
# 007
MPN: 10903021
SCREW
Supersession
Supersession
# 008
MPN: 11060576
SEEGER RING
from £0.65
from £0.65
This part replaces part number 11060575
# 009
MPN: 133377
WASHER
from £8.15
from £8.15
# 010
MPN: 136140
O.R. GASKET
from £0.65
from £0.65
# 011
MPN: 170787
BEARING
from £61.70
from £61.70
This part replaces part number 144690
# 012
MPN: 11060576
SEEGER RING
from £0.65
from £0.65
This part replaces part number 11060575
# 013
MPN: 143782
GUIDE SHOE
from £49.29
from £49.29
# 014
MPN: 14305724
SCREW
from £0.47
from £0.47
This part replaces part number 11567624 - and 2 more. Click to view details
# 015
MPN: 12604279
WASHER
from £0.47
from £0.47
# 016
MPN: 132909
DRIVING GEAR
-Valid till engine Nr. 24719-
from £505.49
from £505.49
# 016
MPN: 144488
DRIVING GEAR
Valid from engine Nr. 24720
from £285.36
from £285.36
# 017
MPN: 104919
RING NUT
from £2.77
from £2.77
# 018
MPN: 145807
LH PULLEY
from £220.76
from £220.76
This part replaces part number 144555
# 019
MPN: 133385
BUSHING
from £17.98
from £17.98
# 020
MPN: 134663
SCREW
from £0.57
from £0.57
# 021
MPN: 137481
WASHER
from £0.67
from £0.67
# 022
MPN: 137473
BRACKET
Valid till stock exhaustion
Supersession
Supersession
# 022
MPN: 147132
BRACKET
Valid till stock exhaustion of 137473
from £254.24
from £254.24
This part replaces part number 137473
# 023
MPN: 13525770
THREADED INSERT
from £1.50
from £1.50
This part replaces part number 103830
# 024
MPN: 12601374
WASHER
from £0.47
from £0.47
This part replaces part number 10615474 - and 6 more. Click to view details
# 025
MPN: 16104411
NUT
from £0.47
from £0.47
# 026
MPN: 149791
RH PULLEY
from £263.28
from £263.28
This part replaces part number 144557
# 027
MPN: 12626221
WASHER
from £0.47
from £0.47
# 028
MPN: 134665
SCREW
from £0.47
from £0.47
# 029
MPN: 148356
SPRING
from £56.67
from £56.67
This part replaces part number 133867
# 029
MPN: 148356
SPRING
Valid after stock exhaustion of 133867
from £56.67
from £56.67
This part replaces part number 133867
# 030
MPN: 137632
BRACKET
from £106.43
from £106.43
# 031
MPN: 12601374
WASHER
from £0.47
from £0.47
This part replaces part number 10615474 - and 6 more. Click to view details
# 032
MPN: 104030
NUT
from £0.47
from £0.47
This part replaces part number 16104125
# 033
MPN: 10486110
PIN
from £5.19
from £5.19
# 034
MPN: 132843
TIMING CONTROL BELT
from £23.26
from £23.26
# 035
MPN: 136229
DRIVEN GEAR
from £264.50
from £264.50
# 036
MPN: 136230
DRIVEN GEAR
from £211.80
from £211.80
# 037
MPN: 106203
DOWEL
from £4.31
from £4.31
# 038
MPN: 114808
SEAL RING
from £2.32
from £2.32
# 039
MPN: 117274
WASHER
from £2.11
from £2.11
# 040
MPN: 146540
SCREW
from £1.67
from £1.67
This part replaces part number 16326431 - and 3 more. Click to view details
# 041
MPN: 12638601
WASHER
from £0.47
from £0.47
This part replaces part number 20232104
# 042
MPN: 133820
RH REAR SHIELD
Aluminium
from £141.44
from £141.44
# 042
MPN: 134217
RH REAR SHIELD
Black plastic
from £127.97
from £127.97
# 043
MPN: 133821
LH REAR SHIELD
Aluminium
from £85.01
from £85.01
# 043
MPN: 134218
LH REAR SHIELD
Black plastic
from £134.70
from £134.70
# 044
MPN: 14305321
SCREW
Supersession
Supersession
# 045
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 046
MPN: 133824
GUIDE SHOE
from £120.23
from £120.23
# 047
MPN: 134216
FRONT SHIELD
Black plastic - Alternative use - 134216/A
from £202.83
from £202.83
# 047
MPN: 134216/A
TIMING BELT COVER KIT
Black Plastic Timing belt cover kit.Consisting of parts - 134216 / 134219 / 134220 / 134217 / 134218
from £624.75
from £624.75
# 047
MPN: 143118
FRONT SHIELD
Aluminium
from £152.27
from £152.27
This part replaces part number 133819 - and 1 more. Click to view details
# 048
MPN: 14359521
SCREW
from £0.50
from £0.50
# 049
MPN: 12601374
WASHER
from £0.47
from £0.47
This part replaces part number 10615474 - and 6 more. Click to view details
# 050
MPN: 14308921
SCREW
from £0.47
from £0.47
# 051
MPN: 14309021
SCREW
from £0.47
from £0.47
# 052
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 053
MPN: 14305321
SCREW
Supersession
Supersession
# 054
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 055
MPN: 14305821
SCREW
from £0.47
from £0.47
# 056
MPN: 11500521
STUD
Valid for plastic shield
from £0.98
from £0.98
# 057
MPN: 143119
CLIP
Valid for M. 2.5 - Valid for plastic shield
from £0.47
from £0.47
# 058
MPN: 10442190
BRACKET
Valid for M. 2.7 - Valid for plastic shield
from £0.47
from £0.47
# 059
MPN: 12574211
NUT
Valid for plastic shield
from £0.71
from £0.71
# 060
MPN: 12604279
WASHER
Valid for plastic shield
from £0.47
from £0.47
# 061
MPN: 139964
CLIP
Valid for aluminium shield
from £0.47
from £0.47
# 062
MPN: 61681500
CLIP
Valid for aluminium shield
from £0.47
from £0.47
# 063
MPN: 13525570
THREADED INSERT
Valid for aluminium shield
from £1.38
from £1.38
This part replaces part number 109668
# 064
MPN: 133822
RH SHIELD CAP
Aluminium
from £84.00
from £84.00
# 064
MPN: 134219
RH SHIELD CAP
Black plastic
from £68.19
from £68.19
# 065
MPN: 133823
LH SHIELD CAP
Aluminium
from £30.87
from £30.87
# 065
MPN: 134220
LH SHIELD CAP
Black plastic
from £91.38
from £91.38
# 066
MPN: 120711
THREADED BUSHING
Valid for front shield 143118
from £9.66
from £9.66
-tb-_-ts-part-diagram-007.webp "FERRARI 348 (1993) TB / TS AIR INJECTION - IGNITION PARTS DIAGRAM")
-tb-_-ts-part-diagram-007a.webp "FERRARI 348 (1993) TB / TS AIR INJECTION - IGNITION PARTS DIAGRAM")
-tb-_-ts-part-diagram-008.webp "FERRARI 348 (1993) TB / TS AIR INJECTION DEVICE PARTS DIAGRAM")
-tb-_-ts-part-diagram-008a.webp "FERRARI 348 (1993) TB / TS AIR INJECTION DEVICE PARTS DIAGRAM")
-tb-_-ts-part-diagram-009.webp "FERRARI 348 (1993) TB / TS FUEL PUMP AND PIPES PARTS DIAGRAM")
-tb-_-ts-part-diagram-010.webp "FERRARI 348 (1993) TB / TS FUEL TANK PARTS DIAGRAM")
-tb-_-ts-part-diagram-011.webp "FERRARI 348 (1993) TB / TS GASOLINE VENT SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-011a.webp "FERRARI 348 (1993) TB / TS ANTIEVAPORATION DEVICE PARTS DIAGRAM")
-tb-_-ts-part-diagram-012.webp "FERRARI 348 (1993) TB / TS MANIFOLDS AND AIR INTAKE PARTS DIAGRAM")
-tb-_-ts-part-diagram-012a.webp "FERRARI 348 (1993) TB / TS MANIFOLDS AND COVERS PARTS DIAGRAM")
-tb-_-ts-part-diagram-012b.webp "FERRARI 348 (1993) TB / TS AIR INTAKE PARTS DIAGRAM")
-tb-_-ts-part-diagram-013.webp "FERRARI 348 (1993) TB / TS THROTTLE HOUSING AND LINKAGE PARTS DIAGRAM")
-tb-_-ts-part-diagram-014.webp "FERRARI 348 (1993) TB / TS EXHAUST SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-014a.webp "FERRARI 348 (1993) TB / TS EXHAUST SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-014b.webp "FERRARI 348 (1993) TB / TS EXHAUST SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-015.webp "FERRARI 348 (1993) TB / TS BLOW - BY SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-016.webp "FERRARI 348 (1993) TB / TS LUBRICATION - PUMPS AND OIL SUMPS PARTS DIAGRAM")
-tb-_-ts-part-diagram-017.webp "FERRARI 348 (1993) TB / TS LUBRICATION SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-018.webp "FERRARI 348 (1993) TB / TS COOLING SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-019.webp "FERRARI 348 (1993) TB / TS COOLING SYSTEM RADIATORS PARTS DIAGRAM")
-tb-_-ts-part-diagram-020.webp "FERRARI 348 (1993) TB / TS WATER PUMP PARTS DIAGRAM")
-tb-_-ts-part-diagram-021.webp "FERRARI 348 (1993) TB / TS CLUTCH - CONTROLS PARTS DIAGRAM")
-tb-_-ts-part-diagram-021a.webp "FERRARI 348 (1993) TB / TS CLUTCH - SINGLE AND DOUBLE DISC PARTS DIAGRAM")
-tb-_-ts-part-diagram-022.webp "FERRARI 348 (1993) TB / TS CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-tb-_-ts-part-diagram-022a.webp "FERRARI 348 (1993) TB / TS CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-tb-_-ts-part-diagram-023.webp "FERRARI 348 (1993) TB / TS GEARBOX - DIFFERENTIAL HOUSING AND INTERMEDIATE CASING PARTS DIAGRAM")
-tb-_-ts-part-diagram-024.webp "FERRARI 348 (1993) TB / TS GEARBOX COVERS PARTS DIAGRAM")
-tb-_-ts-part-diagram-025.webp "FERRARI 348 (1993) TB / TS MAIN SHAFT GEARS PARTS DIAGRAM")
-tb-_-ts-part-diagram-026.webp "FERRARI 348 (1993) TB / TS LAY SHAFT GEARS PARTS DIAGRAM")
-tb-_-ts-part-diagram-027.webp "FERRARI 348 (1993) TB / TS INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-tb-_-ts-part-diagram-028.webp "FERRARI 348 (1993) TB / TS OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-tb-_-ts-part-diagram-029.webp "FERRARI 348 (1993) TB / TS DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-tb-_-ts-part-diagram-030.webp "FERRARI 348 (1993) TB / TS BRAKE HYDRAULIC SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-030a.webp "FERRARI 348 (1993) TB / TS THROTTLE PEDAL AND BRAKE HYDRAULIC SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-031.webp "FERRARI 348 (1993) TB / TS HYDRAULIC SYSTEM FOR ANTISKID PARTS DIAGRAM")
-tb-_-ts-part-diagram-032.webp "FERRARI 348 (1993) TB / TS BRAKE SYSTEM (WITH ANTISKID) PARTS DIAGRAM")
-tb-_-ts-part-diagram-033.webp "FERRARI 348 (1993) TB / TS CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-tb-_-ts-part-diagram-034.webp "FERRARI 348 (1993) TB / TS HAND-BRAKE CONTROL PARTS DIAGRAM")
-tb-_-ts-part-diagram-035.webp "FERRARI 348 (1993) TB / TS STEERING BOX AND LINKAGE PARTS DIAGRAM")
-tb-_-ts-part-diagram-036.webp "FERRARI 348 (1993) TB / TS STEERING COLUMN PARTS DIAGRAM")
-tb-_-ts-part-diagram-037.webp "FERRARI 348 (1993) TB / TS FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-tb-_-ts-part-diagram-037a.webp "FERRARI 348 (1993) TB / TS FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-tb-_-ts-part-diagram-038.webp "FERRARI 348 (1993) TB / TS FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-tb-_-ts-part-diagram-039.webp "FERRARI 348 (1993) TB / TS REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-tb-_-ts-part-diagram-039a.webp "FERRARI 348 (1993) TB / TS REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-tb-_-ts-part-diagram-040.webp "FERRARI 348 (1993) TB / TS REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-tb-_-ts-part-diagram-041.webp "FERRARI 348 (1993) TB / TS WHEELS PARTS DIAGRAM")
-tb-_-ts-part-diagram-042.webp "FERRARI 348 (1993) TB / TS CURRENT GENERATOR - BATTERY PARTS DIAGRAM")
-tb-_-ts-part-diagram-042a.webp "FERRARI 348 (1993) TB / TS CURRENT GENERATOR - STARTING MOTOR PARTS DIAGRAM")
-tb-_-ts-part-diagram-043.webp "FERRARI 348 (1993) TB / TS AIR CONDITIONING COMPRESSOR PARTS DIAGRAM")
-tb-_-ts-part-diagram-044.webp "FERRARI 348 (1993) TB / TS EQUIPMENT - HORIZONTAL BAG PARTS DIAGRAM")
-tb-_-ts-part-diagram-044a.webp "FERRARI 348 (1993) TB / TS EQUIPMENT - VERTICAL BAG PARTS DIAGRAM")
-tb-_-ts-part-diagram-101.webp "FERRARI 348 (1993) TB / TS BODY - GENERAL UNITS PARTS DIAGRAM")
-tb-_-ts-part-diagram-102.webp "FERRARI 348 (1993) TB / TS FRONT PART STRUCTURES PARTS DIAGRAM")
-tb-_-ts-part-diagram-103.webp "FERRARI 348 (1993) TB / TS CENTRAL PART STRUCTURES PARTS DIAGRAM")
-tb-_-ts-part-diagram-104.webp "FERRARI 348 (1993) TB / TS FRAME - REAR PART ELEMENTS PARTS DIAGRAM")
-tb-_-ts-part-diagram-105.webp "FERRARI 348 (1993) TB / TS ROOF - OUTER TRIMS PARTS DIAGRAM")
-tb-_-ts-part-diagram-106.webp "FERRARI 348 (1993) TB / TS BODY - OUTER TRIMS PARTS DIAGRAM")
-tb-_-ts-part-diagram-107.webp "FERRARI 348 (1993) TB / TS PASSENGERS COMPARTMENT INSULATIONS PARTS DIAGRAM")
-tb-_-ts-part-diagram-107a.webp "FERRARI 348 (1993) TB / TS PASSENGERS COMPARTMENT INSULATIONS PARTS DIAGRAM")
-tb-_-ts-part-diagram-108.webp "FERRARI 348 (1993) TB / TS PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-tb-_-ts-part-diagram-108a.webp "FERRARI 348 (1993) TB / TS PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-tb-_-ts-part-diagram-109.webp "FERRARI 348 (1993) TB / TS FRONT COMPARTMENTS CARPETS PARTS DIAGRAM")
-tb-_-ts-part-diagram-110.webp "FERRARI 348 (1993) TB / TS ROOF TRIMS PARTS DIAGRAM")
-tb-_-ts-part-diagram-110a.webp "FERRARI 348 (1993) TB / TS ROOF TRIMS PARTS DIAGRAM")
-tb-_-ts-part-diagram-111.webp "FERRARI 348 (1993) TB / TS FRONT HOOD PARTS DIAGRAM")
-tb-_-ts-part-diagram-112.webp "FERRARI 348 (1993) TB / TS OPENING DEVICE FOR FRONT HOOD PARTS DIAGRAM")
-tb-_-ts-part-diagram-113.webp "FERRARI 348 (1993) TB / TS REAR HOOD PARTS DIAGRAM")
-tb-_-ts-part-diagram-114.webp "FERRARI 348 (1993) TB / TS OPENING DEVICES FOR REAR HOOD AND GAS DOOR PARTS DIAGRAM")
-tb-_-ts-part-diagram-115.webp "FERRARI 348 (1993) TB / TS DOORS - FRAMEWORK AND REAR MIRROR PARTS DIAGRAM")
-tb-_-ts-part-diagram-116.webp "FERRARI 348 (1993) TB / TS DOORS - OPENING CONTROL AND HINGES PARTS DIAGRAM")
-tb-_-ts-part-diagram-117.webp "FERRARI 348 (1993) TB / TS DOORS - GLASS LIFTING DEVICE PARTS DIAGRAM")
-tb-_-ts-part-diagram-118.webp "FERRARI 348 (1993) TB / TS DOORS - INNER TRIMS PARTS DIAGRAM")
-tb-_-ts-part-diagram-119.webp "FERRARI 348 (1993) TB / TS FRONT BUMPER PARTS DIAGRAM")
-tb-_-ts-part-diagram-120.webp "FERRARI 348 (1993) TB / TS REAR BUMPER PARTS DIAGRAM")
-tb-_-ts-part-diagram-121.webp "FERRARI 348 (1993) TB / TS GLASSES AND GASKETS PARTS DIAGRAM")
-tb-_-ts-part-diagram-122.webp "FERRARI 348 (1993) TB / TS SEATS AND SAFETY BELTS PARTS DIAGRAM")
-tb-_-ts-part-diagram-122a.webp "FERRARI 348 (1993) TB / TS SEATS AND SAFETY BELTS PARTS DIAGRAM")
-tb-_-ts-part-diagram-122b.webp "FERRARI 348 (1993) TB / TS SEATS AND SAFETY BELTS PARTS DIAGRAM")
-tb-_-ts-part-diagram-122c.webp "FERRARI 348 (1993) TB / TS SEATS AND SAFETY BELTS PARTS DIAGRAM")
-tb-_-ts-part-diagram-122d.webp "FERRARI 348 (1993) TB / TS PASSIVE SAFETY BELTS SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-123.webp "FERRARI 348 (1993) TB / TS TUNNEL - FRAMEWORK AND TRIMS PARTS DIAGRAM")
-tb-_-ts-part-diagram-123a.webp "FERRARI 348 (1993) TB / TS TUNNEL - FRAMEWORK AND TRIMS PARTS DIAGRAM")
-tb-_-ts-part-diagram-124.webp "FERRARI 348 (1993) TB / TS TUNNEL - ACCESSORIES PARTS DIAGRAM")
-tb-_-ts-part-diagram-124a.webp "FERRARI 348 (1993) TB / TS TUNNEL - ACCESSORIES PARTS DIAGRAM")
-tb-_-ts-part-diagram-125.webp "FERRARI 348 (1993) TB / TS TUNNEL - ACCESSORIES PARTS DIAGRAM")
-tb-_-ts-part-diagram-125a.webp "FERRARI 348 (1993) TB / TS TUNNEL - ACCESSORIES PARTS DIAGRAM")
-tb-_-ts-part-diagram-126.webp "FERRARI 348 (1993) TB / TS DASHBOARD - STRUCTURE AND SUPPORTS PARTS DIAGRAM")
-tb-_-ts-part-diagram-126a.webp "FERRARI 348 (1993) TB / TS DASHBOARD - TRIM AND ACCESSORIES PARTS DIAGRAM")
-tb-_-ts-part-diagram-126b.webp "FERRARI 348 (1993) TB / TS DASHBOARD - STRUCTURE AND SUPPORTS PARTS DIAGRAM")
-tb-_-ts-part-diagram-126c.webp "FERRARI 348 (1993) TB / TS DASHBOARD - TRIM AND ACCESSORIES PARTS DIAGRAM")
-tb-_-ts-part-diagram-127.webp "FERRARI 348 (1993) TB / TS INSTRUMENTS PARTS DIAGRAM")
-tb-_-ts-part-diagram-128.webp "FERRARI 348 (1993) TB / TS FRONT AND REAR LIGHTS PARTS DIAGRAM")
-tb-_-ts-part-diagram-129.webp "FERRARI 348 (1993) TB / TS LIGHTS LIFTING DEVICE AND HEADLIGHTS PARTS DIAGRAM")
-tb-_-ts-part-diagram-130.webp "FERRARI 348 (1993) TB / TS WINDSHIELD WIPER AND MOVEMENT PARTS DIAGRAM")
-tb-_-ts-part-diagram-131.webp "FERRARI 348 (1993) TB / TS GLASS WASHER AND HORNS PARTS DIAGRAM")
-tb-_-ts-part-diagram-132.webp "FERRARI 348 (1993) TB / TS ELECTRICAL SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-132a.webp "FERRARI 348 (1993) TB / TS ELECTRICAL SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-133.webp "FERRARI 348 (1993) TB / TS ELECTRICAL BOARDS PARTS DIAGRAM")
-tb-_-ts-part-diagram-134.webp "FERRARI 348 (1993) TB / TS EVAPORATOR UNIT AND PASSENGERS COMPARTMENT AERATING PARTS DIAGRAM")
-tb-_-ts-part-diagram-135.webp "FERRARI 348 (1993) TB / TS AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-001.webp "FERRARI 348 (1993) TB / TS CRANKCASE PARTS DIAGRAM")
-tb-_-ts-part-diagram-002.webp "FERRARI 348 (1993) TB / TS CRANKSHAFT, CONRODS AND PISTONS PARTS DIAGRAM")
-tb-_-ts-part-diagram-003.webp "FERRARI 348 (1993) TB / TS RH CYLINDER HEAD PARTS DIAGRAM")
-tb-_-ts-part-diagram-004.webp "FERRARI 348 (1993) TB / TS LH CYLINDER HEAD PARTS DIAGRAM")
-tb-_-ts-part-diagram-005.webp "FERRARI 348 (1993) TB / TS TIMING - TAPPETS PARTS DIAGRAM")
