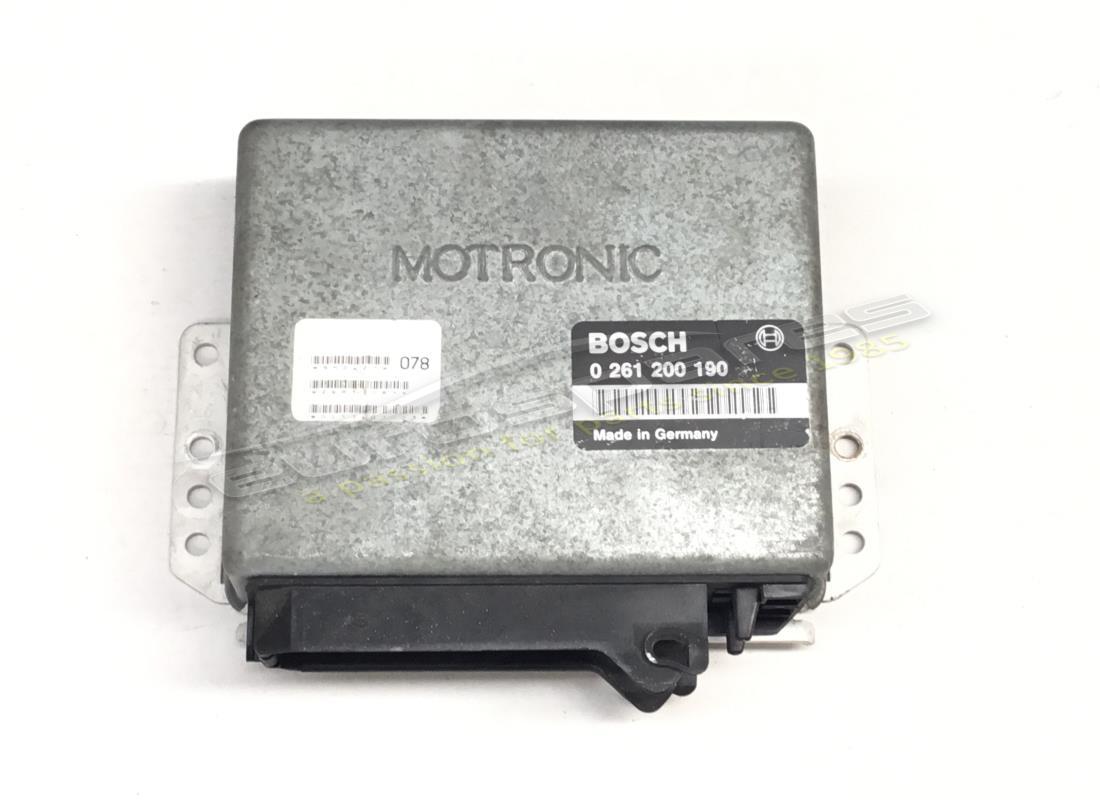

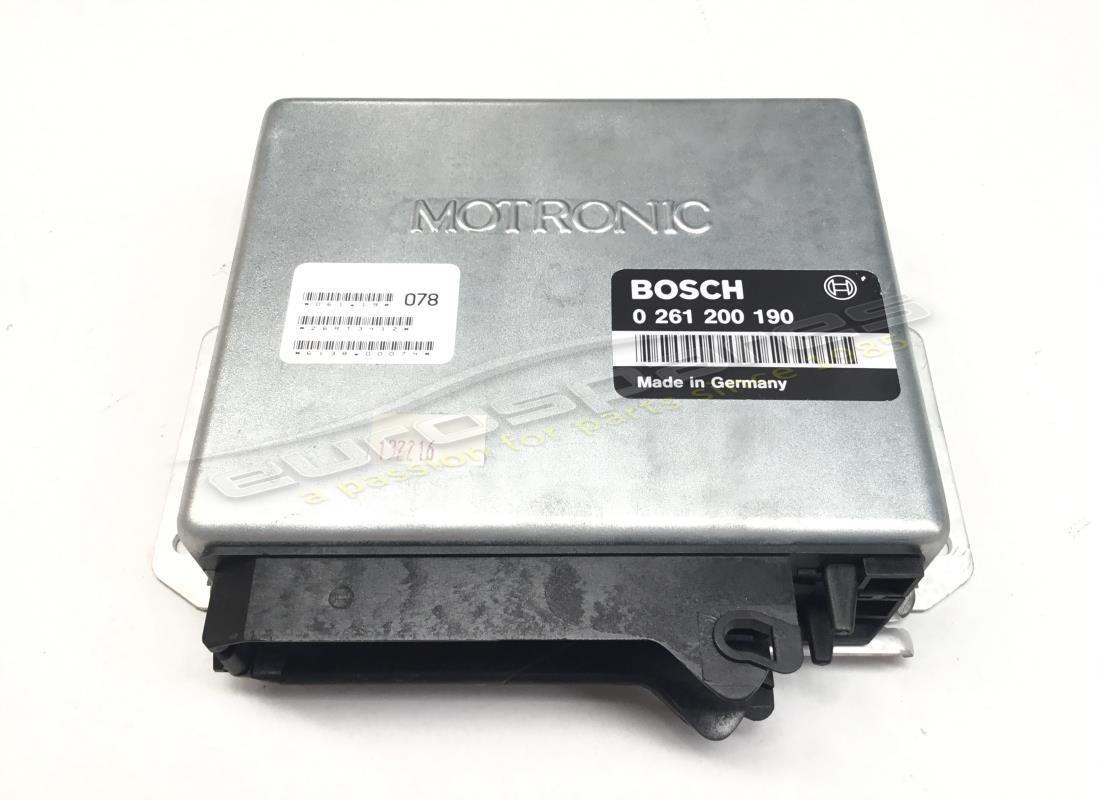

-Motronic 2.5
ferrari 348 (1993) tb / ts air injection - ignition parts diagram

007 - air injection - ignition

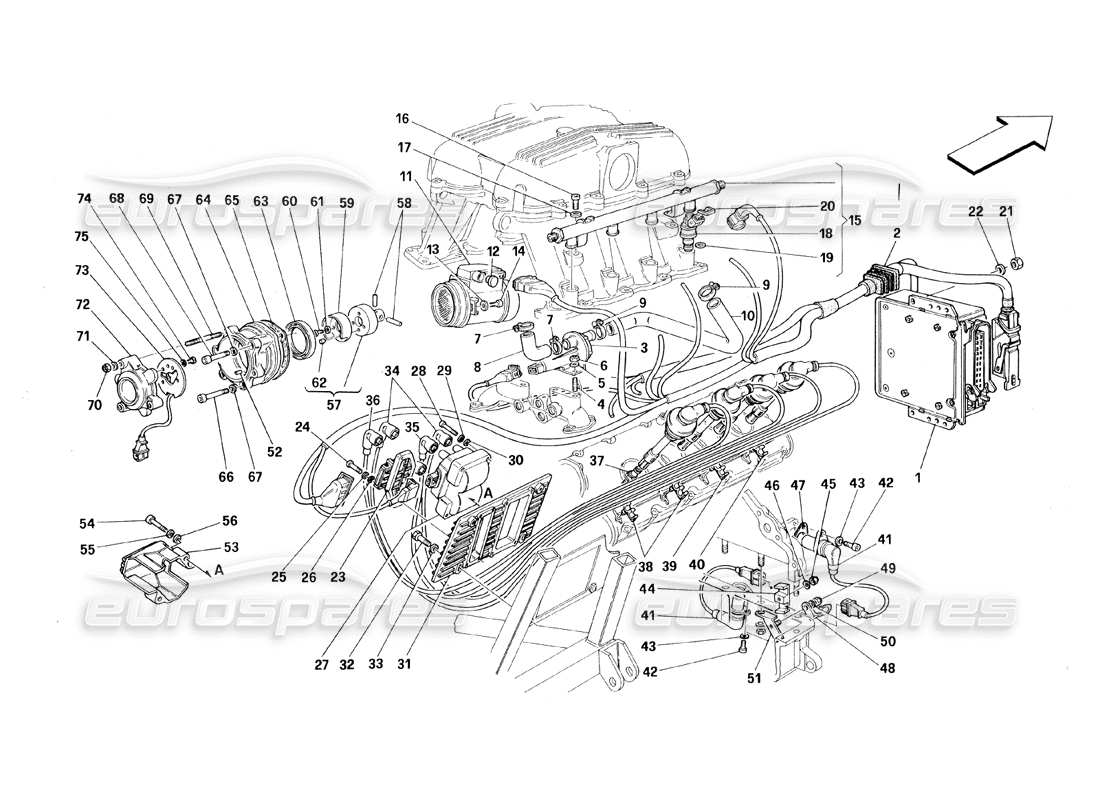

Ferrari 348 (1993) TB / TS Air Injection - Ignition Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                      #
                                                                                                                                      Part number
                                                                                                                                      Description
                                                                                                                                      Price
                                                                                                                                      # 000
                                                                                                                                      MPN: FHT022
                                                                                                                                      COMPLETE HT LEADS SET
                                                                                                                                      Engine lead set
                                                                                                                                      from £660.01
                                                                                                                                      from £660.01
                                                                                                                                      # 001
                                                                                                                                      MPN: 132216
                                                                                                                                      IGNITION/SUPPLY CONTROL SYSTEM
                                                                                                                                      from £881.50
                                                                                                                                      from £881.50
                                                                                                                                      # 002
                                                                                                                                      MPN: 139465
                                                                                                                                      RUBBER BOOT
                                                                                                                                      from £179.91
                                                                                                                                      from £179.91
                                                                                                                                      # 003
                                                                                                                                      MPN: 124802
                                                                                                                                      ADDITIONAL AIR VALVE
                                                                                                                                      from £500.88
                                                                                                                                      from £500.88
                                                                                                                                      # 004
                                                                                                                                      MPN: 11500024
                                                                                                                                      STUD
                                                                                                                                      from £1.66
                                                                                                                                      from £1.66
                                                                                                                                      This part replaces part number 11500011 which we have in stock - and 1 more. Click to view details
                                                                                                                                      # 005
                                                                                                                                      MPN: 14496401
                                                                                                                                      WASHER
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 007
                                                                                                                                      MPN: 13000390
                                                                                                                                      SCREW COLLAR
                                                                                                                                      from £0.51
                                                                                                                                      from £0.51
                                                                                                                                      This part replaces part number 12179590 - and 1 more. Click to view details

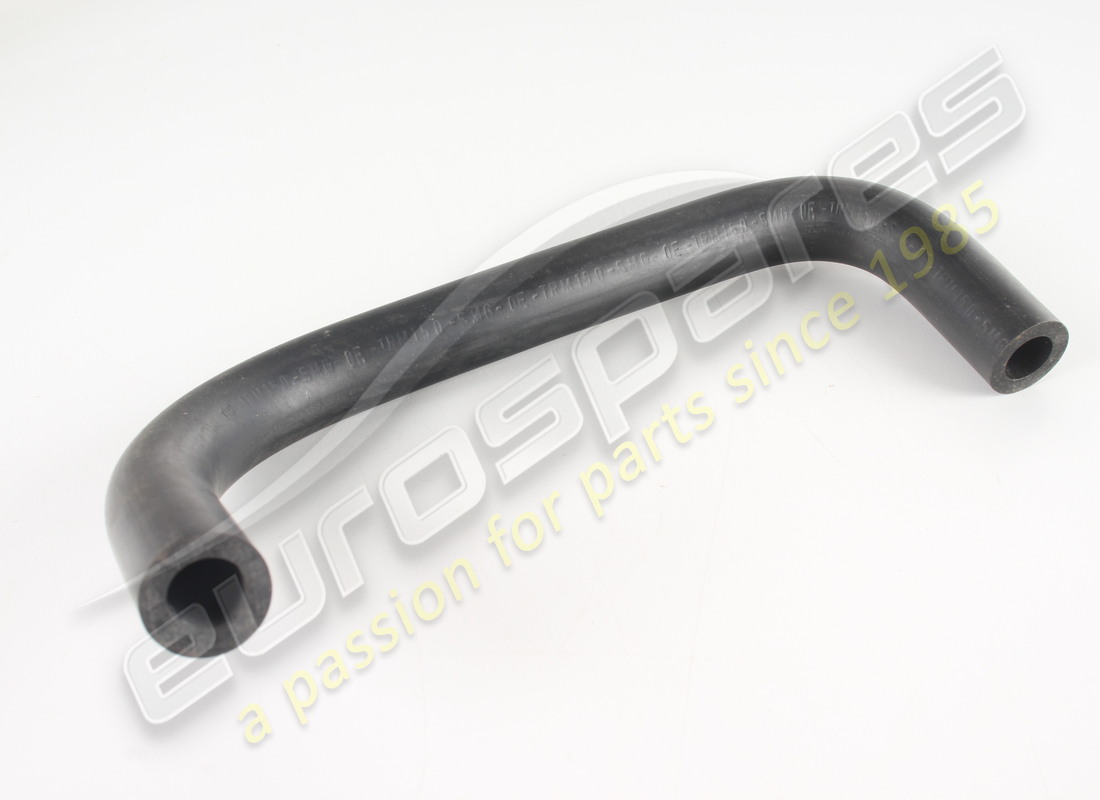

                                                                                                                                      # 008
                                                                                                                                      MPN: 139372
                                                                                                                                      AIR VALVE/MANIFOLD CONNECTION PIPE
                                                                                                                                      from £96.65
                                                                                                                                      from £96.65
                                                                                                                                      # 009
                                                                                                                                      MPN: 13000390
                                                                                                                                      SCREW COLLAR
                                                                                                                                      from £0.51
                                                                                                                                      from £0.51
                                                                                                                                      This part replaces part number 12179590 - and 1 more. Click to view details
                                                                                                                                      # 010
                                                                                                                                      MPN: 139451
                                                                                                                                      AIR VALVE/RH MANIFOLD CONNECTION PIPE
                                                                                                                                      from £7.34
                                                                                                                                      from £7.34
                                                                                                                                      # 010
                                                                                                                                      MPN: 139452
                                                                                                                                      AIR VALVE/LH MANIFOLD CONNECTION PIPE
                                                                                                                                      from £7.34
                                                                                                                                      from £7.34
                                                                                                                                      # 011
                                                                                                                                      MPN: 136374/A
                                                                                                                                      AIR FLOW METER
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 012
                                                                                                                                      MPN: 140190
                                                                                                                                      PLUG
                                                                                                                                      Valid for catalyzed cars
                                                                                                                                      from £11.86
                                                                                                                                      from £11.86
                                                                                                                                      # 012
                                                                                                                                      MPN: 144092
                                                                                                                                      PLUG
                                                                                                                                      Not for catalyzed cars
                                                                                                                                      from £7.07
                                                                                                                                      from £7.07
                                                                                                                                      This part replaces part number 140189
                                                                                                                                      # 013
                                                                                                                                      MPN: 12639978
                                                                                                                                      WASHER
                                                                                                                                      from £0.93
                                                                                                                                      from £0.93
                                                                                                                                      # 014
                                                                                                                                      MPN: 10373677
                                                                                                                                      SCREW
                                                                                                                                      from £10.02
                                                                                                                                      from £10.02
                                                                                                                                      # 015
                                                                                                                                      MPN: 137326
                                                                                                                                      INJECTORS COMPLETE TUBE
                                                                                                                                      from £199.50
                                                                                                                                      from £199.50
                                                                                                                                      # 016
                                                                                                                                      MPN: 20293306
                                                                                                                                      SCREW
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 017
                                                                                                                                      MPN: 12601374
                                                                                                                                      WASHER
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                                                      # 018
                                                                                                                                      MPN: 130968
                                                                                                                                      ELECTRO-INJECTOR
                                                                                                                                      from £585.34
                                                                                                                                      from £585.34
                                                                                                                                      # 019
                                                                                                                                      MPN: 133902
                                                                                                                                      GASKET
                                                                                                                                      from £3.29
                                                                                                                                      from £3.29
                                                                                                                                      # 020
                                                                                                                                      MPN: 144763
                                                                                                                                      INJECTOR RETAINING SPRING
                                                                                                                                      from £2.76
                                                                                                                                      from £2.76
                                                                                                                                      # 022
                                                                                                                                      MPN: 14496401
                                                                                                                                      WASHER
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 023
                                                                                                                                      MPN: 137511
                                                                                                                                      POWER MODULE
                                                                                                                                      from £181.60
                                                                                                                                      from £181.60
                                                                                                                                      # 024
                                                                                                                                      MPN: 13274672
                                                                                                                                      SCREW
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 025
                                                                                                                                      MPN: 149951
                                                                                                                                      WASHER
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
                                                                                                                                      # 026
                                                                                                                                      MPN: 10519377
                                                                                                                                      WASHER
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      This part replaces part number 10519305 - and 1 more. Click to view details
                                                                                                                                      # 027
                                                                                                                                      MPN: 138255
                                                                                                                                      IGNITION COIL
                                                                                                                                      from £83.05
                                                                                                                                      from £83.05
                                                                                                                                      # 028
                                                                                                                                      MPN: 13274972
                                                                                                                                      SCREW
                                                                                                                                      from £1.25
                                                                                                                                      from £1.25
                                                                                                                                      This part replaces part number 13274911 - and 1 more. Click to view details
                                                                                                                                      # 029
                                                                                                                                      MPN: 149951
                                                                                                                                      WASHER
                                                                                                                                      from £0.51
                                                                                                                                      from £0.51
                                                                                                                                      This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
                                                                                                                                      # 030
                                                                                                                                      MPN: 10519377
                                                                                                                                      WASHER
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      This part replaces part number 10519305 - and 1 more. Click to view details
                                                                                                                                      # 031
                                                                                                                                      MPN: 139434
                                                                                                                                      COIL AND MODULE SUPPORT
                                                                                                                                      from £50.63
                                                                                                                                      from £50.63
                                                                                                                                      # 032
                                                                                                                                      MPN: 10902724
                                                                                                                                      SCREW
                                                                                                                                      from £0.71
                                                                                                                                      from £0.71
                                                                                                                                      This part replaces part number 10902721 which we have in stock
                                                                                                                                      # 033
                                                                                                                                      MPN: 10519424
                                                                                                                                      WASHER
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                                                                                                                      # 034
                                                                                                                                      MPN: 188911
                                                                                                                                      CABLE (FOR SPARK PLUGS 1,2,7,8)
                                                                                                                                      from £311.32
                                                                                                                                      from £311.32
                                                                                                                                      This part replaces part number 137450
                                                                                                                                      # 034
                                                                                                                                      MPN: 188914
                                                                                                                                      CABLE (FOR SPARK PLUGS 1,2,7,8)
                                                                                                                                      With extension BERU
                                                                                                                                      from £276.16
                                                                                                                                      from £276.16
                                                                                                                                      This part replaces part number 145500
                                                                                                                                      # 034
                                                                                                                                      MPN: FHT022
                                                                                                                                      COMPLETE HT LEADS SET
                                                                                                                                      Engine lead set
                                                                                                                                      from £660.01
                                                                                                                                      from £660.01
                                                                                                                                      # 035
                                                                                                                                      MPN: 137451
                                                                                                                                      CABLE (FOR SPARK PLUGS 3,6)
                                                                                                                                      With extension type BOSCH - not as spare part - use part number: 188912
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 035
                                                                                                                                      MPN: 145501
                                                                                                                                      CABLE (FOR SPARK PLUGS 3,6)
                                                                                                                                      With extension BERU
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 035
                                                                                                                                      MPN: 188912
                                                                                                                                      CABLE (FOR SPARKING PLUGS 3,6)
                                                                                                                                      (replaces: 137451)
                                                                                                                                      from £151.89
                                                                                                                                      from £151.89
                                                                                                                                      This part replaces part number 137451 - and 1 more. Click to view details
                                                                                                                                      # 036
                                                                                                                                      MPN: 137452
                                                                                                                                      CABLE (FOR SPARK PLUGS 4,5)
                                                                                                                                      With extension BOSCH
                                                                                                                                      from £263.01
                                                                                                                                      from £263.01
                                                                                                                                      # 036
                                                                                                                                      MPN: 145502
                                                                                                                                      CABLE (FOR SPARK PLUGS 4,5)
                                                                                                                                      With extension BERU
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 036
                                                                                                                                      MPN: 188913
                                                                                                                                      CABLE (FOR SPARKING PLUGS 4,5)
                                                                                                                                      from £151.89
                                                                                                                                      from £151.89
                                                                                                                                      This part replaces part number 137452 which we have in stock - and 1 more. Click to view details
                                                                                                                                      # 037
                                                                                                                                      MPN: 150180/a
                                                                                                                                      SPARK PLUG
                                                                                                                                      (NGK Iridium)
                                                                                                                                      from £14.95
                                                                                                                                      from £14.95
                                                                                                                                      This part replaces part number 150180
                                                                                                                                      # 041
                                                                                                                                      MPN: 130975/A
                                                                                                                                      ANGULAR SPEED SENSOR
                                                                                                                                      Alternative use - 130975/A
                                                                                                                                      from £84.53
                                                                                                                                      from £84.53
                                                                                                                                      This part replaces part number 130975
                                                                                                                                      # 042
                                                                                                                                      MPN: 14305121
                                                                                                                                      SCREW
                                                                                                                                      from £0.47
                                                                                                                                      from £0.47
                                                                                                                                      # 043
                                                                                                                                      MPN: 12601274
                                                                                                                                      WASHER
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                                      # 044
                                                                                                                                      MPN: 139244
                                                                                                                                      SUPPORT
                                                                                                                                      from £141.49
                                                                                                                                      from £141.49
                                                                                                                                      # 045
                                                                                                                                      MPN: 15896470
                                                                                                                                      NUT
                                                                                                                                      (minimum order quantity = 20)
                                                                                                                                      from £0.82
                                                                                                                                      from £0.82
                                                                                                                                      This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                                                      # 046
                                                                                                                                      MPN: 11199279
                                                                                                                                      WASHER
                                                                                                                                      from £0.71
                                                                                                                                      from £0.71
                                                                                                                                      # 047
                                                                                                                                      MPN: 140621
                                                                                                                                      THICKNESS
                                                                                                                                      Possible fitting
                                                                                                                                      from £9.08
                                                                                                                                      from £9.08
                                                                                                                                      # 048
                                                                                                                                      MPN: 129544
                                                                                                                                      CLIP
                                                                                                                                      from £1.16
                                                                                                                                      from £1.16
                                                                                                                                      # 049
                                                                                                                                      MPN: 12574211
                                                                                                                                      NUT
                                                                                                                                      from £0.71
                                                                                                                                      from £0.71
                                                                                                                                      # 050
                                                                                                                                      MPN: 12648201
                                                                                                                                      WASHER
                                                                                                                                      from £1.43
                                                                                                                                      from £1.43
                                                                                                                                      # 051
                                                                                                                                      MPN: 139949
                                                                                                                                      BRACKET
                                                                                                                                      from £58.04
                                                                                                                                      from £58.04
                                                                                                                                      # 052
                                                                                                                                      MPN: 10331010
                                                                                                                                      PIN
                                                                                                                                      from £0.47
                                                                                                                                      from £0.47
                                                                                                                                      # 053
                                                                                                                                      MPN: 150631
                                                                                                                                      PROTECTION
                                                                                                                                      from £4.79
                                                                                                                                      from £4.79
                                                                                                                                      # 054
                                                                                                                                      MPN: 13274872
                                                                                                                                      SCREW
                                                                                                                                      from £1.99
                                                                                                                                      from £1.99
                                                                                                                                      # 055
                                                                                                                                      MPN: 149951
                                                                                                                                      WASHER
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
                                                                                                                                      # 056
                                                                                                                                      MPN: 10519377
                                                                                                                                      WASHER
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      This part replaces part number 10519305 - and 1 more. Click to view details
                                                                                                                                      # 057
                                                                                                                                      MPN: 133378
                                                                                                                                      COUPLING ON THE CAM SHAFT
                                                                                                                                      from £236.65
                                                                                                                                      from £236.65
                                                                                                                                      # 058
                                                                                                                                      MPN: 129120
                                                                                                                                      PIN
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      This part replaces part number 132355
                                                                                                                                      # 059
                                                                                                                                      -
                                                                                                                                      TIMER
                                                                                                                                      Not as spare part - With complete phase sensor
                                                                                                                                      # 060
                                                                                                                                      MPN: 10374721
                                                                                                                                      SCREW
                                                                                                                                      from £0.47
                                                                                                                                      from £0.47
                                                                                                                                      # 061
                                                                                                                                      MPN: 12604070
                                                                                                                                      WASHER
                                                                                                                                      from £0.47
                                                                                                                                      from £0.47
                                                                                                                                      # 062
                                                                                                                                      MPN: 10486110
                                                                                                                                      PIN
                                                                                                                                      from £10.40
                                                                                                                                      from £10.40
                                                                                                                                      # 063
                                                                                                                                      MPN: 149917
                                                                                                                                      OIL SEAL
                                                                                                                                      from £31.50
                                                                                                                                      from £31.50
                                                                                                                                      This part replaces part number 133064
                                                                                                                                      # 064
                                                                                                                                      MPN: 137508
                                                                                                                                      PHASE SENSOR SUPPORT
                                                                                                                                      from £40.10
                                                                                                                                      from £40.10
                                                                                                                                      # 065
                                                                                                                                      MPN: 150076
                                                                                                                                      SUPPORT GASKET
                                                                                                                                      from £11.74
                                                                                                                                      from £11.74
                                                                                                                                      This part replaces part number 133745
                                                                                                                                      # 066
                                                                                                                                      MPN: 14305920
                                                                                                                                      SCREW
                                                                                                                                      from £0.47
                                                                                                                                      from £0.47
                                                                                                                                      # 067
                                                                                                                                      MPN: 12604279
                                                                                                                                      WASHER
                                                                                                                                      from £0.54
                                                                                                                                      from £0.54
                                                                                                                                      # 068
                                                                                                                                      MPN: 14305821
                                                                                                                                      SCREW
                                                                                                                                      from £0.47
                                                                                                                                      from £0.47
                                                                                                                                      # 069
                                                                                                                                      MPN: 13539821
                                                                                                                                      STUD
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 070
                                                                                                                                      MPN: 12577811
                                                                                                                                      NUT
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 071
                                                                                                                                      MPN: 10519377
                                                                                                                                      WASHER
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      This part replaces part number 10519305 - and 1 more. Click to view details
                                                                                                                                      # 072
                                                                                                                                      MPN: 137510
                                                                                                                                      SMALL COVER
                                                                                                                                      from £42.95
                                                                                                                                      from £42.95
                                                                                                                                      # 073
                                                                                                                                      MPN: 146312
                                                                                                                                      COMPLETE PHASE SENSOR
                                                                                                                                      from £564.83
                                                                                                                                      from £564.83
                                                                                                                                      This part replaces part number 137266
                                                                                                                                      # 074
                                                                                                                                      MPN: 14418131
                                                                                                                                      SCREW
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      # 075
                                                                                                                                      MPN: 12600479
                                                                                                                                      WASHER
                                                                                                                                      Supersession
                                                                                                                                      Supersession
