ferrari 348 (1993) tb / ts fuel pump and pipes parts diagram

009 - fuel pump and pipes

Ferrari 348 (1993) TB / TS Fuel Pump and Pipes Parts Diagram

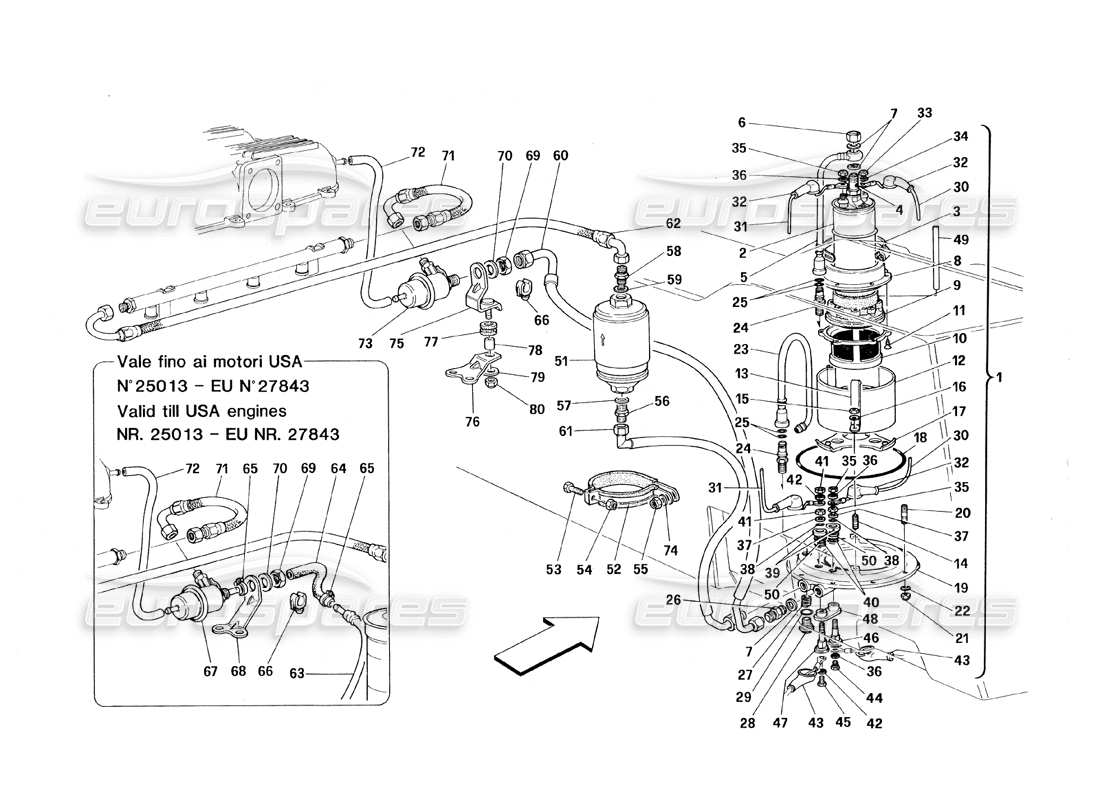

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                            #
                                                                                                                                                            Part number
                                                                                                                                                            Description
                                                                                                                                                            Price

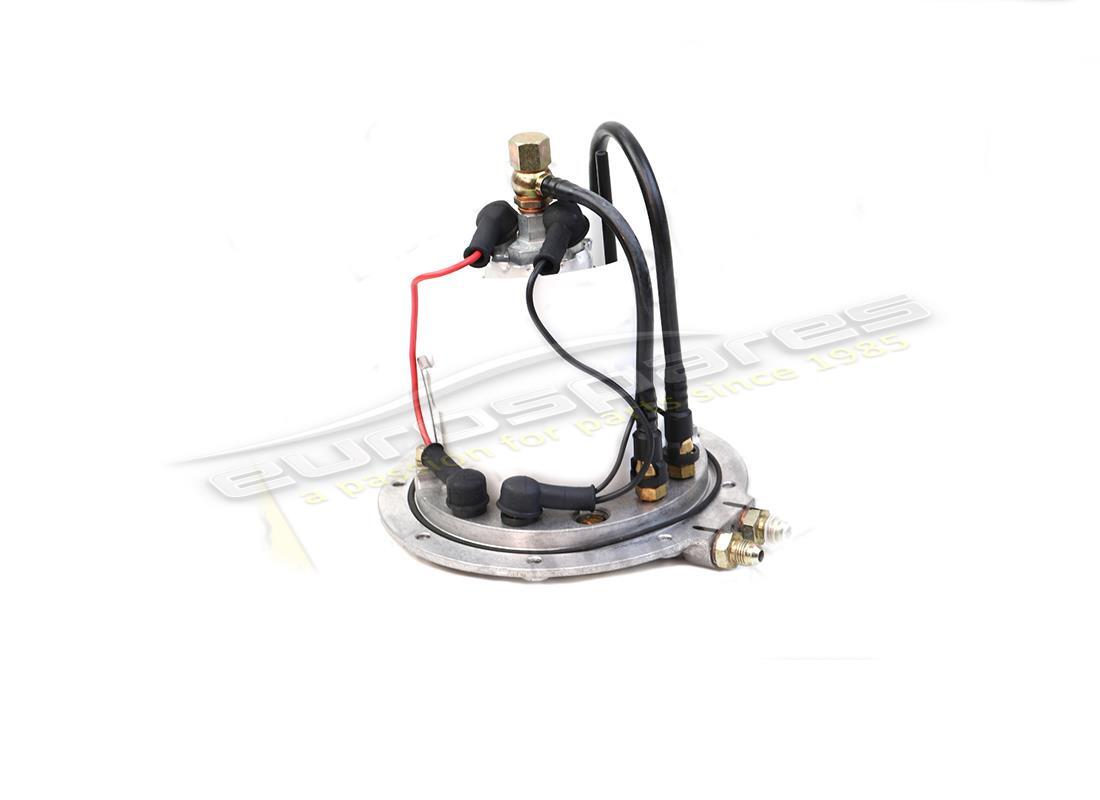

                                                                                                                                                            # 001
                                                                                                                                                            MPN: 155699
                                                                                                                                                            COMPLETE FUEL PUMP
                                                                                                                                                            from £5,309.90
                                                                                                                                                            from £5,309.90
                                                                                                                                                            This part replaces part number 146662
                                                                                                                                                            # 003
                                                                                                                                                            MPN: 13000890
                                                                                                                                                            SCREW COLLAR
                                                                                                                                                            from £0.56
                                                                                                                                                            from £0.56
                                                                                                                                                            This part replaces part number 12173290 - and 2 more. Click to view details
                                                                                                                                                            # 004
                                                                                                                                                            MPN: 120098
                                                                                                                                                            NONRETURN VALVE
                                                                                                                                                            from £90.67
                                                                                                                                                            from £90.67
                                                                                                                                                            # 005
                                                                                                                                                            MPN: 133967
                                                                                                                                                            FUEL PIPE
                                                                                                                                                            from £70.98
                                                                                                                                                            from £70.98
                                                                                                                                                            # 006
                                                                                                                                                            MPN: 10183217
                                                                                                                                                            PLUG
                                                                                                                                                            Supersession
                                                                                                                                                            Supersession
                                                                                                                                                            # 007
                                                                                                                                                            MPN: 11270160
                                                                                                                                                            GASKET
                                                                                                                                                            from £0.80
                                                                                                                                                            from £0.80
                                                                                                                                                            # 008
                                                                                                                                                            MPN: 126810
                                                                                                                                                            FUEL FILTER COVER
                                                                                                                                                            from £17.16
                                                                                                                                                            from £17.16
                                                                                                                                                            # 009
                                                                                                                                                            MPN: 126809
                                                                                                                                                            RUBBER GASKET (60 MM)
                                                                                                                                                            from £61.02
                                                                                                                                                            from £61.02
                                                                                                                                                            # 009
                                                                                                                                                            MPN: 144232
                                                                                                                                                            RUBBER GASKET (50 MM)
                                                                                                                                                            Supersession
                                                                                                                                                            Supersession
                                                                                                                                                            This part replaces part number 153188 which we have in stock
                                                                                                                                                            # 010
                                                                                                                                                            MPN: 126808
                                                                                                                                                            FILTER INSIDE CHAMBER
                                                                                                                                                            Supersession
                                                                                                                                                            Supersession
                                                                                                                                                            # 011
                                                                                                                                                            MPN: 15671101
                                                                                                                                                            SCREW
                                                                                                                                                            from £1.01
                                                                                                                                                            from £1.01
                                                                                                                                                            # 012
                                                                                                                                                            MPN: 126806
                                                                                                                                                            PAN
                                                                                                                                                            from £29.63
                                                                                                                                                            from £29.63
                                                                                                                                                            # 013
                                                                                                                                                            MPN: 137577
                                                                                                                                                            BRACKET
                                                                                                                                                            from £27.27
                                                                                                                                                            from £27.27
                                                                                                                                                            # 014
                                                                                                                                                            MPN: 11000924
                                                                                                                                                            STUD
                                                                                                                                                            from £0.76
                                                                                                                                                            from £0.76
                                                                                                                                                            This part replaces part number 11000921 which we have in stock
                                                                                                                                                            # 015
                                                                                                                                                            MPN: 13677911
                                                                                                                                                            NUT
                                                                                                                                                            from £0.71
                                                                                                                                                            from £0.71
                                                                                                                                                            # 016
                                                                                                                                                            MPN: 10730021
                                                                                                                                                            WASHER
                                                                                                                                                            from £0.47
                                                                                                                                                            from £0.47
                                                                                                                                                            # 017
                                                                                                                                                            MPN: 126807
                                                                                                                                                            ANTI VIBRATION PAD
                                                                                                                                                            from £20.98
                                                                                                                                                            from £20.98
                                                                                                                                                            # 018
                                                                                                                                                            MPN: 138453
                                                                                                                                                            GASKET
                                                                                                                                                            from £48.14
                                                                                                                                                            from £48.14
                                                                                                                                                            # 019
                                                                                                                                                            MPN: 139454
                                                                                                                                                            FUEL PUMP COVER
                                                                                                                                                            from £199.79
                                                                                                                                                            from £199.79
                                                                                                                                                            # 020
                                                                                                                                                            MPN: 11500224
                                                                                                                                                            STUD
                                                                                                                                                            from £0.47
                                                                                                                                                            from £0.47
                                                                                                                                                            This part replaces part number 11500221 - and 1 more. Click to view details
                                                                                                                                                            # 021
                                                                                                                                                            MPN: 19575491
                                                                                                                                                            NUT
                                                                                                                                                            # 022
                                                                                                                                                            MPN: 12601274
                                                                                                                                                            WASHER
                                                                                                                                                            from £0.47
                                                                                                                                                            from £0.47
                                                                                                                                                            This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                                                            # 023
                                                                                                                                                            MPN: 133968
                                                                                                                                                            FUEL FLOWING BACK PIPE
                                                                                                                                                            from £56.96
                                                                                                                                                            from £56.96
                                                                                                                                                            # 024
                                                                                                                                                            MPN: 133950
                                                                                                                                                            UNION
                                                                                                                                                            from £35.28
                                                                                                                                                            from £35.28
                                                                                                                                                            # 025
                                                                                                                                                            MPN: 133956
                                                                                                                                                            GASKET
                                                                                                                                                            from £0.90
                                                                                                                                                            from £0.90
                                                                                                                                                            # 026
                                                                                                                                                            MPN: 127756
                                                                                                                                                            UNION
                                                                                                                                                            from £5.78
                                                                                                                                                            from £5.78
                                                                                                                                                            # 027
                                                                                                                                                            MPN: 103388
                                                                                                                                                            THREADED INSERT
                                                                                                                                                            from £8.32
                                                                                                                                                            from £8.32
                                                                                                                                                            # 028
                                                                                                                                                            MPN: 134713
                                                                                                                                                            PLUG
                                                                                                                                                            from £7.90
                                                                                                                                                            from £7.90
                                                                                                                                                            This part replaces part number 154970
                                                                                                                                                            # 029
                                                                                                                                                            MPN: 134233
                                                                                                                                                            GASKET
                                                                                                                                                            from £0.47
                                                                                                                                                            from £0.47
                                                                                                                                                            # 030
                                                                                                                                                            MPN: 139519
                                                                                                                                                            POSITIVE CABLE
                                                                                                                                                            from £38.90
                                                                                                                                                            from £38.90
                                                                                                                                                            # 031
                                                                                                                                                            MPN: 146660
                                                                                                                                                            NEGATIVE CABLE
                                                                                                                                                            from £103.98
                                                                                                                                                            from £103.98
                                                                                                                                                            # 032
                                                                                                                                                            MPN: 130146
                                                                                                                                                            BOOT
                                                                                                                                                            from £5.42
                                                                                                                                                            from £5.42
                                                                                                                                                            This part replaces part number 137612
                                                                                                                                                            # 033
                                                                                                                                                            MPN: 10794011
                                                                                                                                                            NUT
                                                                                                                                                            from £0.26
                                                                                                                                                            from £0.26
                                                                                                                                                            # 034
                                                                                                                                                            MPN: 10615270
                                                                                                                                                            WASHER
                                                                                                                                                            Supersession
                                                                                                                                                            Supersession
                                                                                                                                                            # 035
                                                                                                                                                            MPN: 15896470
                                                                                                                                                            NUT
                                                                                                                                                            (minimum order quantity = 20)
                                                                                                                                                            from £0.47
                                                                                                                                                            from £0.47
                                                                                                                                                            This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                                                                            # 036
                                                                                                                                                            MPN: 149951
                                                                                                                                                            WASHER
                                                                                                                                                            from £0.47
                                                                                                                                                            from £0.47
                                                                                                                                                            This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
                                                                                                                                                            # 037
                                                                                                                                                            MPN: 10519401
                                                                                                                                                            WASHER
                                                                                                                                                            from £0.71
                                                                                                                                                            from £0.71
                                                                                                                                                            # 038
                                                                                                                                                            MPN: 134701
                                                                                                                                                            GASKET
                                                                                                                                                            from £0.47
                                                                                                                                                            from £0.47
                                                                                                                                                            # 039
                                                                                                                                                            MPN: 134672
                                                                                                                                                            BUSHING
                                                                                                                                                            from £0.47
                                                                                                                                                            from £0.47
                                                                                                                                                            # 040
                                                                                                                                                            MPN: 134705
                                                                                                                                                            GASKET
                                                                                                                                                            from £0.47
                                                                                                                                                            from £0.47
                                                                                                                                                            # 041
                                                                                                                                                            MPN: 15896211
                                                                                                                                                            NUT
                                                                                                                                                            Supersession
                                                                                                                                                            Supersession
                                                                                                                                                            This part replaces part number 15896210 which we have in stock
                                                                                                                                                            # 042
                                                                                                                                                            MPN: 10615470
                                                                                                                                                            WASHER
                                                                                                                                                            Supersession
                                                                                                                                                            Supersession
                                                                                                                                                            # 043
                                                                                                                                                            MPN: 137612
                                                                                                                                                            BOOT
                                                                                                                                                            Supersession
                                                                                                                                                            Supersession
                                                                                                                                                            # 044
                                                                                                                                                            MPN: 10856821
                                                                                                                                                            SCREW
                                                                                                                                                            from £0.47
                                                                                                                                                            from £0.47
                                                                                                                                                            # 045
                                                                                                                                                            MPN: 11635721
                                                                                                                                                            SCREW
                                                                                                                                                            from £0.47
                                                                                                                                                            from £0.47
                                                                                                                                                            # 046
                                                                                                                                                            MPN: 137611
                                                                                                                                                            MASS PIN
                                                                                                                                                            from £30.42
                                                                                                                                                            from £30.42
                                                                                                                                                            # 047
                                                                                                                                                            MPN: 137610
                                                                                                                                                            MASS PIN
                                                                                                                                                            from £24.80
                                                                                                                                                            from £24.80
                                                                                                                                                            # 048
                                                                                                                                                            MPN: 137613
                                                                                                                                                            OUTER FLANGE
                                                                                                                                                            from £0.58
                                                                                                                                                            from £0.58
                                                                                                                                                            # 049
                                                                                                                                                            MPN: 139205
                                                                                                                                                            VENT PIPE
                                                                                                                                                            from £25.59
                                                                                                                                                            from £25.59
                                                                                                                                                            # 050
                                                                                                                                                            MPN: 14456880
                                                                                                                                                            O.R. GASKET
                                                                                                                                                            from £0.47
                                                                                                                                                            from £0.47
                                                                                                                                                            # 051
                                                                                                                                                            MPN: 117792
                                                                                                                                                            FUEL FILTER
                                                                                                                                                            from £28.00
                                                                                                                                                            from £28.00
                                                                                                                                                            # 052
                                                                                                                                                            MPN: 126352
                                                                                                                                                            BRACKET
                                                                                                                                                            Valid till car Ass. Nr. 10927
                                                                                                                                                            from £3.14
                                                                                                                                                            from £3.14
                                                                                                                                                            # 052
                                                                                                                                                            MPN: 152212
                                                                                                                                                            FUEL FILTER
                                                                                                                                                            Valid from car Ass. Nr. 10928
                                                                                                                                                            from £15.70
                                                                                                                                                            from £15.70
                                                                                                                                                            # 052
                                                                                                                                                            MPN: 152885
                                                                                                                                                            BRACKET
                                                                                                                                                            Valid from car Ass. Nr. 10928
                                                                                                                                                            from £5.32
                                                                                                                                                            from £5.32
                                                                                                                                                            # 053
                                                                                                                                                            MPN: 10902324
                                                                                                                                                            SCREW
                                                                                                                                                            from £0.47
                                                                                                                                                            from £0.47
                                                                                                                                                            This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                                                                                                            # 055
                                                                                                                                                            MPN: 16104411
                                                                                                                                                            NUT
                                                                                                                                                            from £0.47
                                                                                                                                                            from £0.47
                                                                                                                                                            # 056
                                                                                                                                                            MPN: 109889
                                                                                                                                                            UINION
                                                                                                                                                            from £2.73
                                                                                                                                                            from £2.73
                                                                                                                                                            # 057
                                                                                                                                                            MPN: 10280060
                                                                                                                                                            GASKET
                                                                                                                                                            from £0.47
                                                                                                                                                            from £0.47
                                                                                                                                                            This part replaces part number 100501 - and 3 more. Click to view details
                                                                                                                                                            # 058
                                                                                                                                                            MPN: 109797
                                                                                                                                                            UNION
                                                                                                                                                            from £9.91
                                                                                                                                                            from £9.91
                                                                                                                                                            # 059
                                                                                                                                                            MPN: 11270160
                                                                                                                                                            GASKET
                                                                                                                                                            from £0.80
                                                                                                                                                            from £0.80

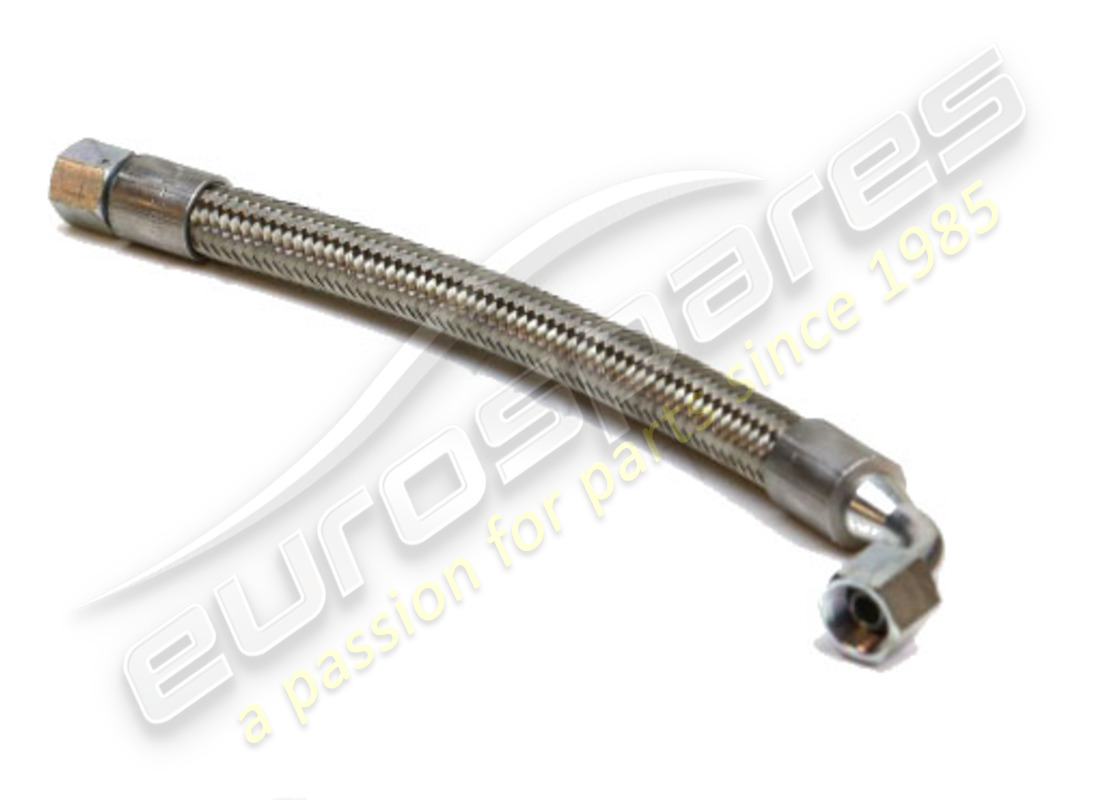

                                                                                                                                                            # 060
                                                                                                                                                            MPN: 147290
                                                                                                                                                            FUEL TUBE FROM PRESSURE ADJUSTER TO RH PUMP
                                                                                                                                                            from £122.53
                                                                                                                                                            from £122.53
                                                                                                                                                            # 060
                                                                                                                                                            MPN: 147291
                                                                                                                                                            FUEL TUBE FROM PRESSURE ADJUSTER TO LH PUMP
                                                                                                                                                            from £89.96
                                                                                                                                                            from £89.96
                                                                                                                                                            # 061
                                                                                                                                                            MPN: 141724
                                                                                                                                                            FUEL PIPE FROM PUMP TO RH FILTER
                                                                                                                                                            from £118.48
                                                                                                                                                            from £118.48
                                                                                                                                                            # 061
                                                                                                                                                            MPN: 141746
                                                                                                                                                            FUEL PIPE FROM PUMP TO LH FILTER
                                                                                                                                                            from £233.60
                                                                                                                                                            from £233.60
                                                                                                                                                            # 062
                                                                                                                                                            MPN: 143786
                                                                                                                                                            FUEL PIPE FROM RH FILTER TO RH FLUTE
                                                                                                                                                            from £368.63
                                                                                                                                                            from £368.63
                                                                                                                                                            # 062
                                                                                                                                                            MPN: 143787
                                                                                                                                                            FUEL PIPE FROM LH FILTER TO LH FLUTE
                                                                                                                                                            from £318.72
                                                                                                                                                            from £318.72
                                                                                                                                                            # 063
                                                                                                                                                            MPN: 141718
                                                                                                                                                            FUEL PIPE FROM PRESSURE ADJUSTER TO LH PUMP
                                                                                                                                                            from £66.19
                                                                                                                                                            from £66.19
                                                                                                                                                            # 063
                                                                                                                                                            MPN: 141751
                                                                                                                                                            FUEL PIPE FROM PRESSURE ADJUSTER TO RH PUMP
                                                                                                                                                            from £67.51
                                                                                                                                                            from £67.51
                                                                                                                                                            # 064
                                                                                                                                                            MPN: 139932
                                                                                                                                                            SLEEVE
                                                                                                                                                            from £16.20
                                                                                                                                                            from £16.20
                                                                                                                                                            # 065
                                                                                                                                                            MPN: 13000190
                                                                                                                                                            SCREW COLLAR
                                                                                                                                                            from £0.47
                                                                                                                                                            from £0.47
                                                                                                                                                            This part replaces part number 12178990 - and 1 more. Click to view details
                                                                                                                                                            # 066
                                                                                                                                                            MPN: 14574287
                                                                                                                                                            CLIP
                                                                                                                                                            from £4.32
                                                                                                                                                            from £4.32

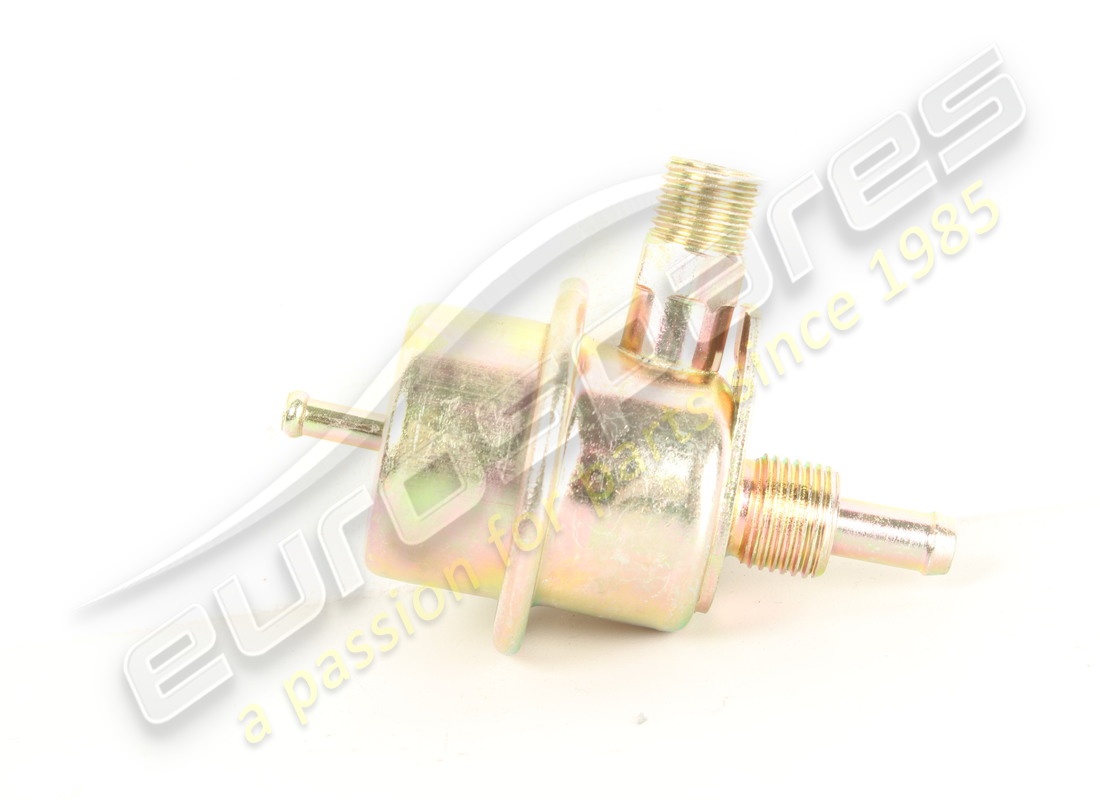

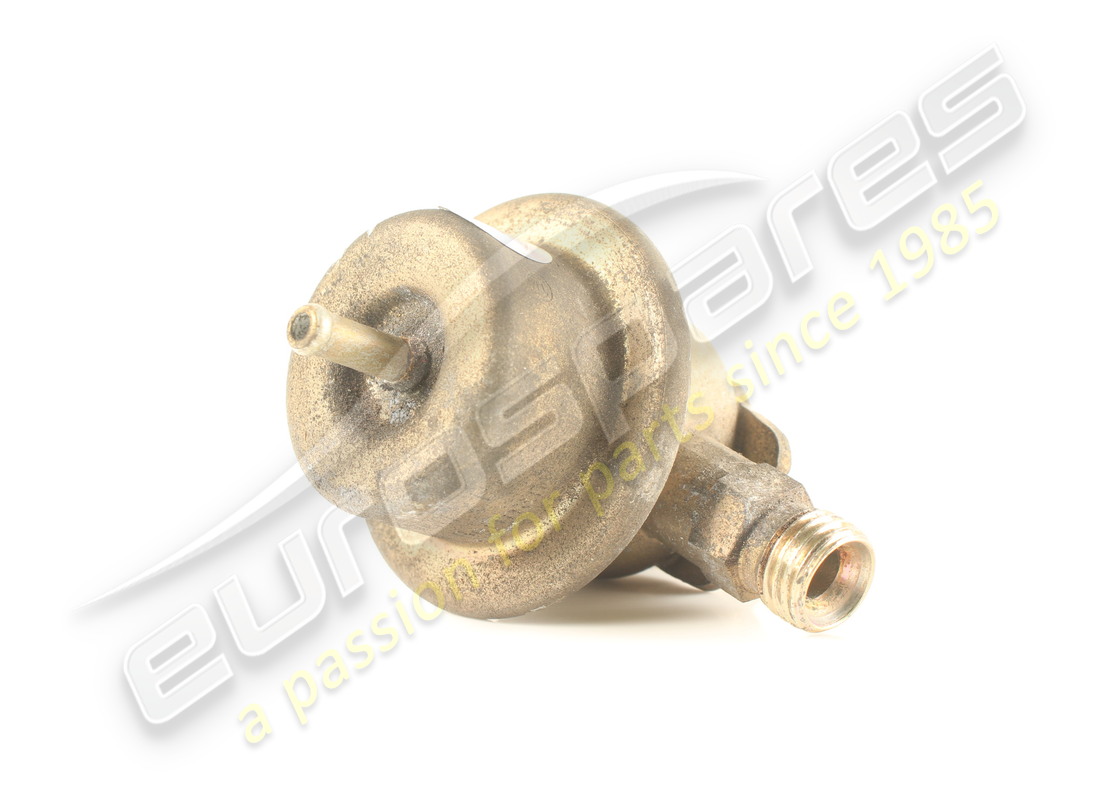

                                                                                                                                                            # 067
                                                                                                                                                            MPN: 137960
                                                                                                                                                            PRESSURE REGULATOR
                                                                                                                                                            from £128.60
                                                                                                                                                            from £128.60

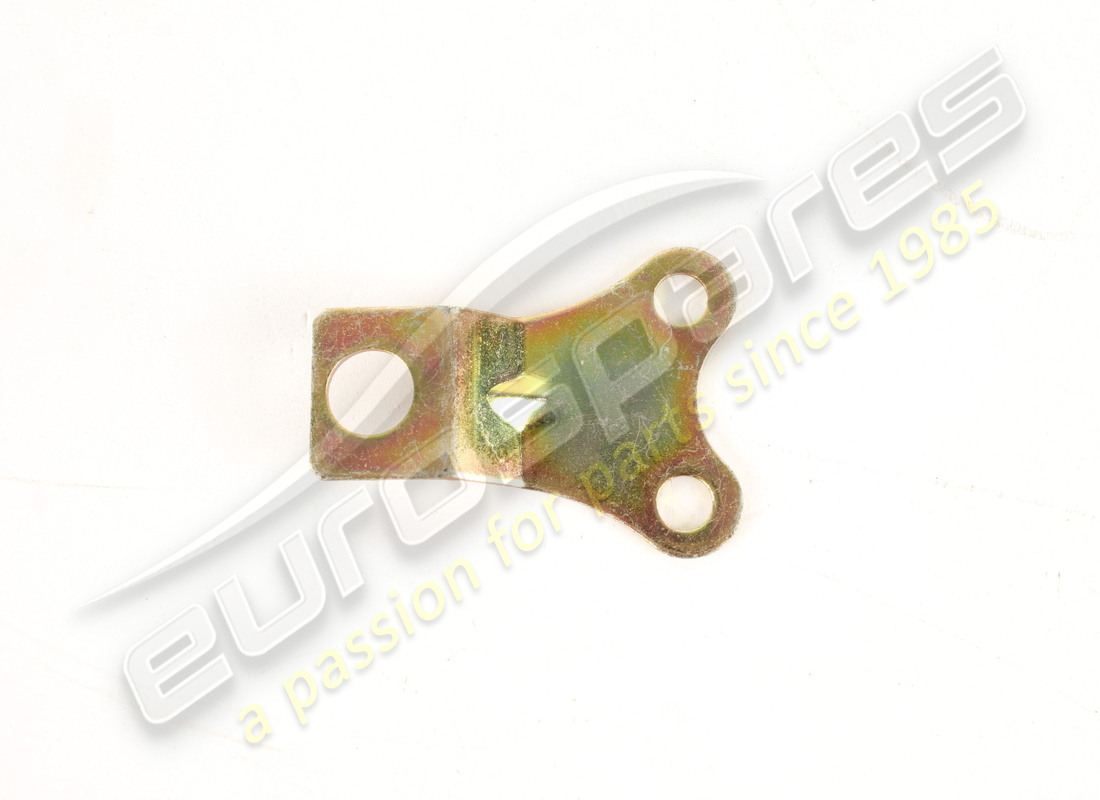

                                                                                                                                                            # 068
                                                                                                                                                            MPN: 139427
                                                                                                                                                            RH BRACKET
                                                                                                                                                            from £5.50
                                                                                                                                                            from £5.50

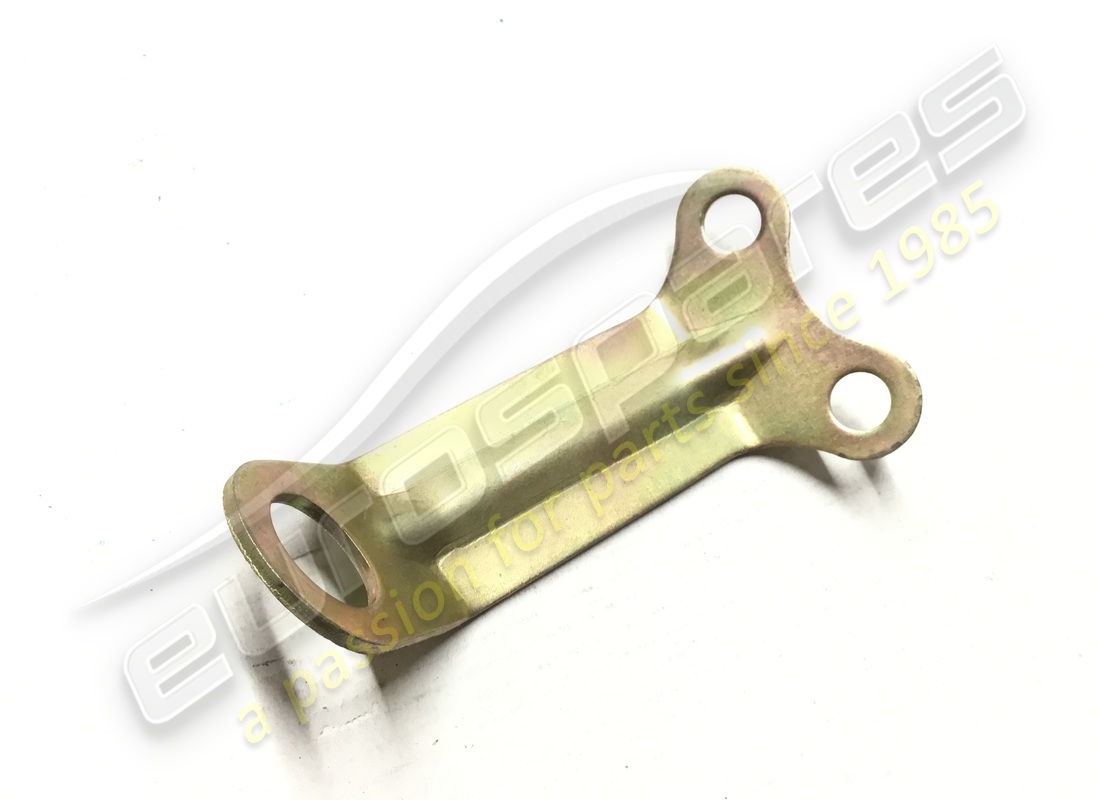

                                                                                                                                                            # 068
                                                                                                                                                            MPN: 139428
                                                                                                                                                            LH BRACKET
                                                                                                                                                            from £1.66
                                                                                                                                                            from £1.66
                                                                                                                                                            # 069
                                                                                                                                                            MPN: 101413
                                                                                                                                                            NUT
                                                                                                                                                            from £18.56
                                                                                                                                                            from £18.56
                                                                                                                                                            This part replaces part number 94630
                                                                                                                                                            # 070
                                                                                                                                                            MPN: 12601779
                                                                                                                                                            WASHER
                                                                                                                                                            Supersession
                                                                                                                                                            Supersession
                                                                                                                                                            # 071
                                                                                                                                                            MPN: 149812
                                                                                                                                                            FUEL PIPE FROM FLUTE TO PRESSURE ADJUSTER
                                                                                                                                                            from £128.24
                                                                                                                                                            from £128.24
                                                                                                                                                            This part replaces part number 143791 which we have in stock - and 1 more. Click to view details
                                                                                                                                                            # 072
                                                                                                                                                            MPN: 115042
                                                                                                                                                            PRESSURE ADJUSTER/COVER PIPE
                                                                                                                                                            from £4.75
                                                                                                                                                            from £4.75

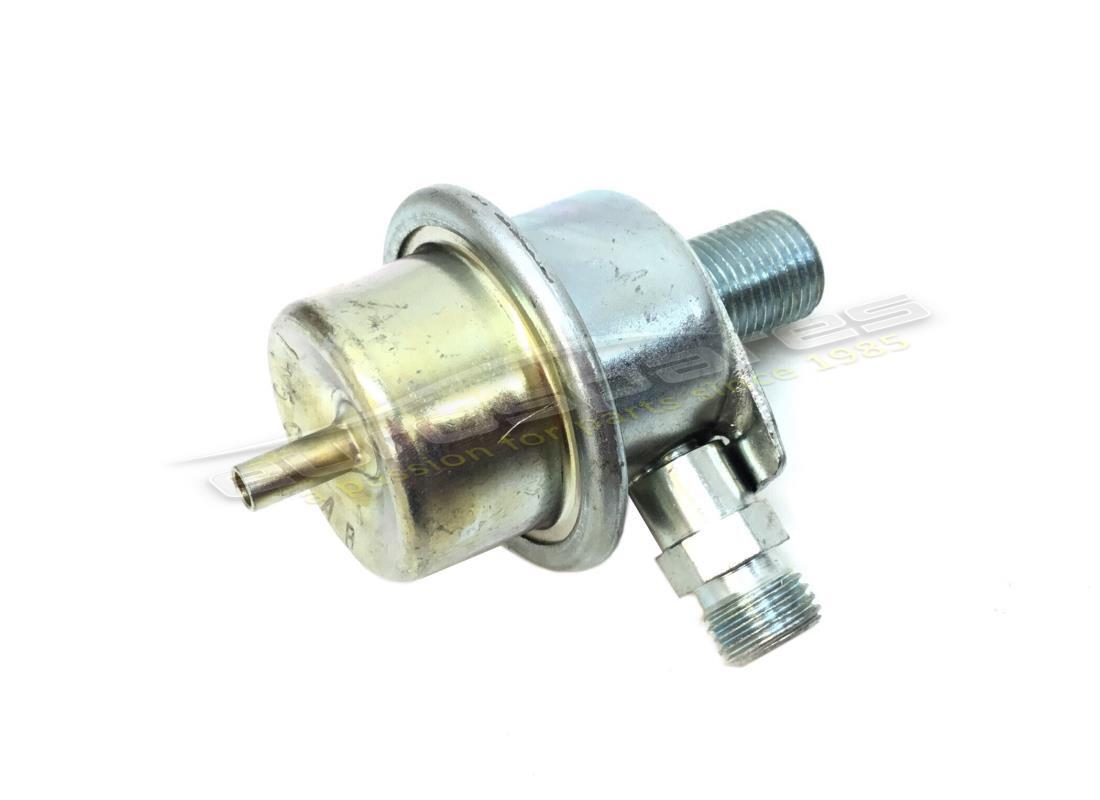

                                                                                                                                                            # 073
                                                                                                                                                            MPN: 147281
                                                                                                                                                            PRESSURE REGULATOR
                                                                                                                                                            from £624.75
                                                                                                                                                            from £624.75
                                                                                                                                                            # 074
                                                                                                                                                            MPN: 12646724
                                                                                                                                                            WASHER
                                                                                                                                                            from £0.47
                                                                                                                                                            from £0.47
                                                                                                                                                            This part replaces part number 12601571 which we have in stock - and 2 more. Click to view details

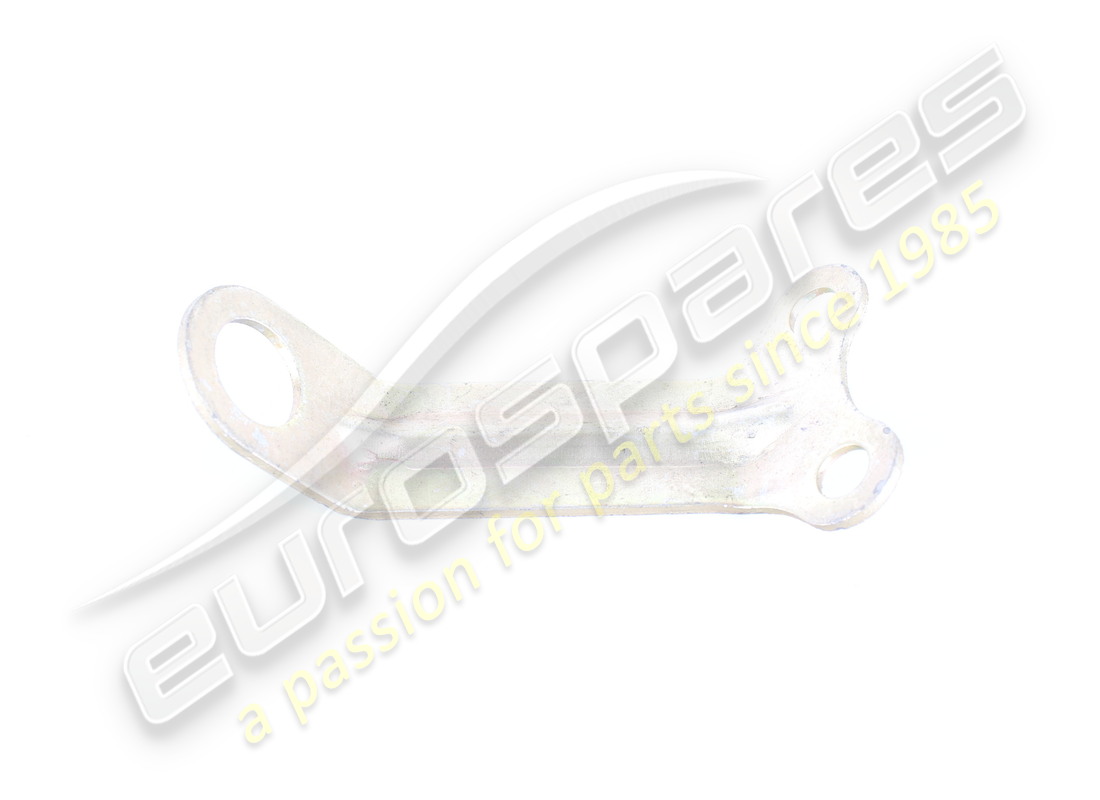

                                                                                                                                                            # 075
                                                                                                                                                            MPN: 148125
                                                                                                                                                            RH UPPER BRACKET
                                                                                                                                                            from £20.49
                                                                                                                                                            from £20.49
                                                                                                                                                            # 075
                                                                                                                                                            MPN: 148126
                                                                                                                                                            LH UPPER BRACKET
                                                                                                                                                            from £25.81
                                                                                                                                                            from £25.81
                                                                                                                                                            # 076
                                                                                                                                                            MPN: 148124
                                                                                                                                                            LOWER BRACKET
                                                                                                                                                            from £47.55
                                                                                                                                                            from £47.55
                                                                                                                                                            # 077
                                                                                                                                                            MPN: 103549
                                                                                                                                                            CABLE GROMMET
                                                                                                                                                            from £0.69
                                                                                                                                                            from £0.69
                                                                                                                                                            # 078
                                                                                                                                                            MPN: 103550
                                                                                                                                                            SPACER
                                                                                                                                                            from £1.14
                                                                                                                                                            from £1.14
                                                                                                                                                            This part replaces part number 4130913
                                                                                                                                                            # 079
                                                                                                                                                            MPN: 106744
                                                                                                                                                            WASHER
                                                                                                                                                            from £4.80
                                                                                                                                                            from £4.80
                                                                                                                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
