ferrari 348 (1993) tb / ts antievaporation device parts diagram

011A - Antievaporation Device

Ferrari 348 (1993) TB / TS Antievaporation Device Parts Diagram

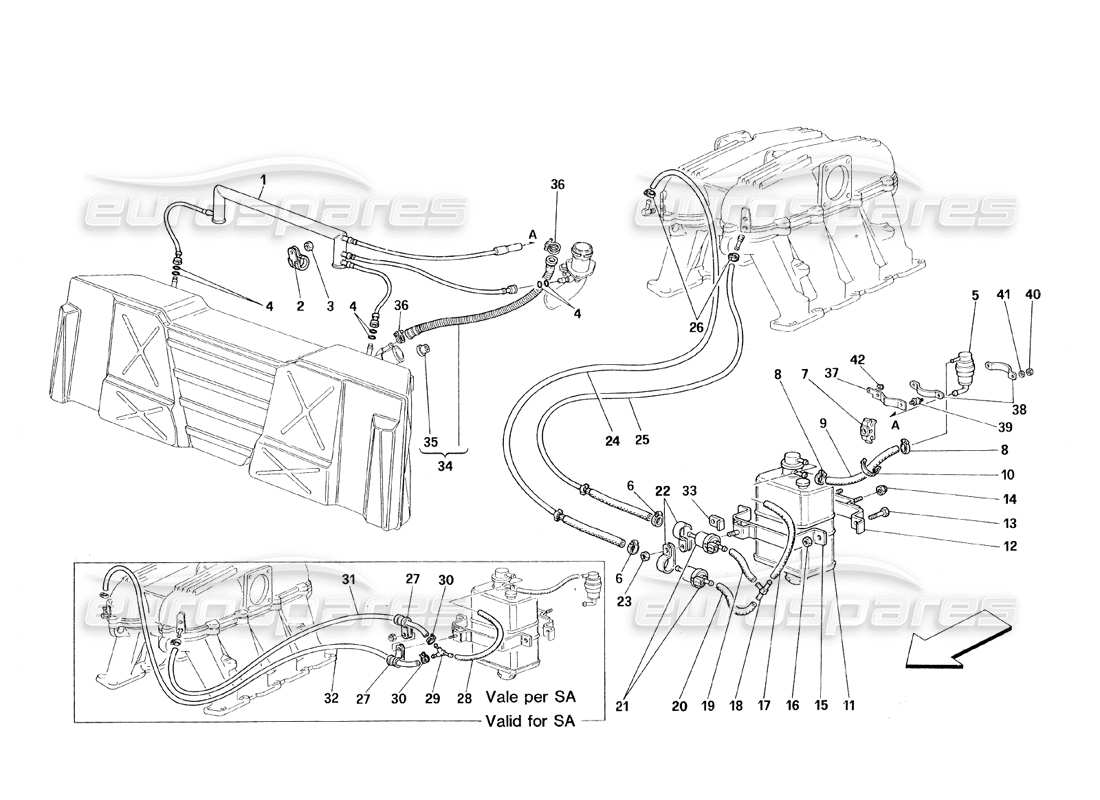

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Price
                                                            # 001
                                                            MPN: 133959
                                                            DISAREATOR
                                                            from £157.50
                                                            from £157.50
                                                            VAPOR SEPARATOR Genuine Ferrari Part - Used In stock
                                                            METAL PIPE ONLY, PLASTIC FLEXIBLE PIPES MISSING.
                                                            # 002
                                                            MPN: 10442290
                                                            BRACKET
                                                            from £0.51
                                                            from £0.51
                                                            # 004
                                                            MPN: 133956
                                                            O.R. GASKET
                                                            from £0.95
                                                            from £0.95
                                                            # 005
                                                            MPN: 139568
                                                            ANTI-TILTING VALVE
                                                            from £203.46
                                                            from £203.46
                                                            # 006
                                                            MPN: 13000190
                                                            SCREW COLLAR
                                                            from £0.53
                                                            from £0.53
                                                            This part replaces part number 12178990 - and 1 more. Click to view details
                                                            # 007
                                                            MPN: 141699
                                                            CUP
                                                            from £0.74
                                                            from £0.74
                                                            # 008
                                                            MPN: 13000190
                                                            SCREW COLLAR
                                                            from £0.53
                                                            from £0.53
                                                            This part replaces part number 12178990 - and 1 more. Click to view details
                                                            # 009
                                                            MPN: 133951
                                                            PIPE FROM ANTI-TURNING OVER VALVE TO FILTER
                                                            from £12.46
                                                            from £12.46
                                                            # 010
                                                            MPN: 145855
                                                            CLAMP
                                                            from £0.54
                                                            from £0.54
                                                            This part replaces part number 14560287 - and 1 more. Click to view details
                                                            # 011
                                                            MPN: 138419
                                                            VAPOR FILTER
                                                            from £511.85
                                                            from £511.85
                                                            # 012
                                                            MPN: 138494
                                                            FRAME FASTENING FILTER BRACKET
                                                            from £15.98
                                                            from £15.98
                                                            # 013
                                                            MPN: 10902124
                                                            SCREW
                                                            from £0.53
                                                            from £0.53
                                                            This part replaces part number 10902111 - and 1 more. Click to view details
                                                            # 015
                                                            MPN: 138496
                                                            COMPLETE BRACKET
                                                            from £10.79
                                                            from £10.79
                                                            This part replaces part number 147268 - and 1 more. Click to view details
                                                            # 017
                                                            MPN: 114874
                                                            PIPE FROM FILTER TO UNION
                                                            Not for SA
                                                            Supersession
                                                            Supersession
                                                            This part replaces part number 114873 - and 1 more. Click to view details
                                                            # 018
                                                            MPN: 105990
                                                            3-WAYS UNION
                                                            Not for SA
                                                            from £0.65
                                                            from £0.65
                                                            # 019
                                                            MPN: 142407
                                                            PIPE FROM UNION TO ANTIEVAPORATION VALVE
                                                            from £2.25
                                                            from £2.25
                                                            # 020
                                                            MPN: 142408
                                                            PIPE FROM UNION TO ANTIEVAPORATION VALVE
                                                            from £2.36
                                                            from £2.36
                                                            # 021
                                                            MPN: 130978
                                                            ANTI-EVAPORATION VALVE
                                                            Not for SA
                                                            from £268.99
                                                            from £268.99
                                                            # 022
                                                            MPN: 142196
                                                            BRACKET
                                                            Not for SA
                                                            from £0.94
                                                            from £0.94
                                                            # 023
                                                            MPN: 14058411
                                                            NUT
                                                            from £0.54
                                                            from £0.54
                                                            # 024
                                                            MPN: 142409
                                                            PIPE FROM VALVE TO RH MANIFOLD
                                                            Not for SA
                                                            from £75.86
                                                            from £75.86
                                                            # 025
                                                            MPN: 141551
                                                            PIPE FROM VALVE TO LH MANIFOLD
                                                            Not for SA
                                                            from £57.85
                                                            from £57.85
                                                            # 026
                                                            MPN: 12179090
                                                            SCREW COLLAR
                                                            Supersession
                                                            Supersession
                                                            This part replaces part number 102721
                                                            # 027
                                                            MPN: 10441290
                                                            BRACKET
                                                            Valid for SA
                                                            from £0.51
                                                            from £0.51
                                                            # 028
                                                            MPN: 133951
                                                            PIPE FROM FILTER TO UNION
                                                            Valid for SA
                                                            from £12.46
                                                            from £12.46
                                                            # 029
                                                            MPN: 146651
                                                            3-WAY UNION
                                                            Valid for SA
                                                            from £61.27
                                                            from £61.27
                                                            # 030
                                                            MPN: 13422877
                                                            CLAMP
                                                            Valid for SA
                                                            # 031
                                                            MPN: 118318
                                                            PIPE FROM UNION TO LH MANIFOLD
                                                            Valid for SA
                                                            from £15.45
                                                            from £15.45
                                                            This part replaces part number 113437
                                                            # 032
                                                            MPN: 114845
                                                            PIPE FROM UNION TO RH MANIFOLD
                                                            Valid for SA
                                                            from £35.57
                                                            from £35.57
                                                            # 033
                                                            MPN: 137716
                                                            PLATE
                                                            from £12.50
                                                            from £12.50
                                                            # 034
                                                            MPN: 142104
                                                            VENT PIPE FROM TANK TO UNION
                                                            from £86.21
                                                            from £86.21
                                                            # 035
                                                            MPN: 142106
                                                            GASKET
                                                            from £4.64
                                                            from £4.64
                                                            # 036
                                                            MPN: 13432870
                                                            SCREW COLLAR
                                                            from £7.18
                                                            from £7.18
                                                            This part replaces part number 164015
                                                            # 037
                                                            MPN: 149438
                                                            BRACKET
                                                            from £2.74
                                                            from £2.74
                                                            # 038
                                                            MPN: 149437
                                                            BRACKET
                                                            from £1.26
                                                            from £1.26
                                                            # 039
                                                            MPN: 113021
                                                            PAD
                                                            from £6.14
                                                            from £6.14
                                                            # 040
                                                            MPN: 15896470
                                                            NUT
                                                            (minimum order quantity = 20)
                                                            from £0.77
                                                            from £0.77
                                                            This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                            # 041
                                                            MPN: 127493
                                                            WASHER
                                                            from £0.51
                                                            from £0.51
                                                            This part replaces part number 106849 - and 1 more. Click to view details
