012 - manifolds and air intake

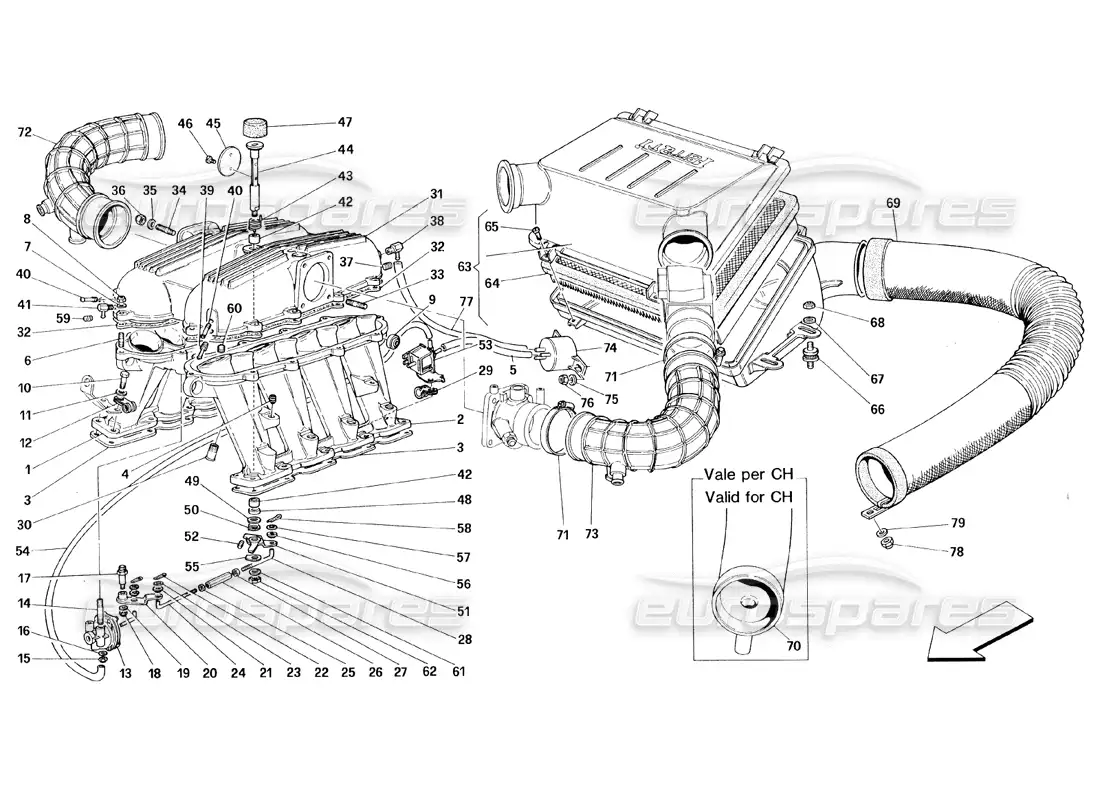

Ferrari 348 (1993) TB / TS Manifolds and Air Intake Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 144508
COMPLETE R.H SUCTION MANIFOLD
from £1,216.43
from £1,216.43
This part replaces part number 139332 - and 1 more. Click to view details
# 001
-
RH SUCTION MANIFOLD
Not as spare part With the assembly 144508
# 001
MPN: 144509
COMPLETE LH SUCTION MANIFOLD
from £965.72
from £965.72
This part replaces part number 139333 which we have in stock - and 1 more. Click to view details
# 002
-
LH SUCTION MANIFOLD
Not as spare part With the assembly 144509
# 003
MPN: 138029
GASKET
from £32.62
from £32.62
# 004
MPN: 13525770
THREADED INSERT
from £1.55
from £1.55
This part replaces part number 103830
# 005
MPN: 115147
PIPE FROM SOLENOID VALVE TO DEPRESSION TANK
from £2.95
from £2.95
This part replaces part number 321332
# 006
MPN: 11500321
STUD
Supersession
Supersession
# 007
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 008
MPN: 101239
NUT
from £1.60
from £1.60
This part replaces part number 92310
# 009
MPN: 100424
BALL JOINT
from £62.27
from £62.27
# 010
MPN: 16043721
SCREW
from £1.08
from £1.08
# 011
MPN: 12601374
WASHER
from £0.51
from £0.51
This part replaces part number 10615474 - and 6 more. Click to view details
# 012
MPN: 10450690
BRACKET
from £0.53
from £0.53
# 013
MPN: 136815
PNEUMATIC CAPSULE
from £13.15
from £13.15
# 014
MPN: 11001721
STUD
from £5.19
from £5.19
# 015
MPN: 12577811
NUT
Supersession
Supersession
# 016
MPN: 14496324
WASHER
from £1.39
from £1.39
This part replaces part number 14496301 which we have in stock
# 017
MPN: 137277
STUD
from £29.06
from £29.06
# 018
MPN: 12577811
NUT
Supersession
Supersession
# 019
MPN: 10730021
WASHER
from £0.47
from £0.47
# 020
MPN: 137135
LEVER
from £15.49
from £15.49
# 021
MPN: 137271
BUSHING
from £1.77
from £1.77
# 022
MPN: 10794501
SPLIT PIN
from £0.51
from £0.51
# 023
MPN: 14496204
WASHER
from £0.51
from £0.51
This part replaces part number 14496201
# 024
MPN: 137270
LH THREAD TIE ROD
from £20.42
from £20.42
# 025
MPN: 10791111
LH THREAD NUT
Supersession
Supersession
This part replaces part number 64203300
# 026
MPN: 137273
ADJUSTMENT SLEEVE
from £1.76
from £1.76
# 027
MPN: 10794011
RH THREAD NUT
from £0.30
from £0.30
# 028
MPN: 137276
RH THREAD TIE ROD
from £15.75
from £15.75
# 029
MPN: 10450590
BRACKET
from £1.21
from £1.21
# 030
MPN: 113636
UNION
from £14.29
from £14.29
# 030
MPN: 146877
COMPLETE SUCTION MANIFOLDS COVER
from £667.23
from £667.23
# 031
MPN: 149505
SUCTION MANIFOLDS COVER
from £773.18
from £773.18
This part replaces part number 143108 - and 2 more. Click to view details
# 032
MPN: 138045
GASKET
from £50.34
from £50.34
# 033
MPN: 13541124
STUD
from £11.62
from £11.62
This part replaces part number 13541121
# 034
MPN: 13541124
STUD
from £11.62
from £11.62
This part replaces part number 13541121
# 035
MPN: 14496401
WASHER
Supersession
Supersession
# 036
MPN: 101239
NUT
from £1.60
from £1.60
This part replaces part number 92310
# 037
MPN: 141563
PLUG
For catalyzed cars q.ty 2
from £1.02
from £1.02
This part replaces part number 194493
# 038
MPN: 128016
UNION
For catalyzed cars q.ty 2
from £6.74
from £6.74
# 039
MPN: 142507
UNION
Valid for catalyzed cars
from £4.96
from £4.96
# 040
MPN: 117348
UNION
from £4.53
from £4.53
# 041
MPN: 142511
UNION
Valid for catalyzed cars
from £1.76
from £1.76
# 042
MPN: 136922
BUSHING
from £1.08
from £1.08
# 043
MPN: 138169
SPRING
from £5.44
from £5.44
# 044
MPN: 138173
BUTTERFLY CONTROL SHAFT
from £116.71
from £116.71
# 045
MPN: 137280
AIR ADJUSTTING THROTTLE
from £33.50
from £33.50
# 046
MPN: 136923
SCREW
from £0.71
from £0.71
# 047
MPN: 139373
PROTECTION BOOT
from £51.42
from £51.42
# 048
MPN: 129269
SEAL RING
from £6.21
from £6.21
# 049
MPN: 136921
WASHER
from £0.47
from £0.47
# 050
MPN: 11065676
SEEGER RING
from £0.47
from £0.47
This part replaces part number 11065675 - and 1 more. Click to view details
# 051
MPN: 137134
Throttle control lever
from £23.00
from £23.00
# 052
MPN: 136924
SCREW
from £0.47
from £0.47
# 053
MPN: 111704
SOLENOID VALVE
from £160.61
from £160.61
This part replaces part number 129059
# 054
MPN: 128907
PNEUMATIC CAPSULE TO SOLENOID VALVE PIPE
from £63.62
from £63.62
# 055
MPN: 113566
SAFETY PLATE
from £1.96
from £1.96
# 056
MPN: 137271
BUSHING
from £1.81
from £1.81
# 057
MPN: 14496204
WASHER
from £0.53
from £0.53
This part replaces part number 14496201
# 058
MPN: 10794501
SPLIT PIN
from £0.53
from £0.53
# 059
MPN: 141563
PLUG
Not for catalyzed cars
from £1.04
from £1.04
This part replaces part number 194493
# 060
MPN: 14326150
THREADED PLUG
from £0.53
from £0.53
This part replaces part number 12326150
# 061
MPN: 137126
WASHER
from £1.08
from £1.08
# 062
MPN: 16102311
NUT
from £0.42
from £0.42
This part replaces part number 16102315
# 063
MPN: 136231
Air Box
Valid For 2.5 Motronic
from £439.84
from £439.84
# 064
MPN: 155871
AIR FILTER
from £26.71
from £26.71
This part replaces part number 133180
# 065
MPN: 10376577
SCREW
from £5.49
from £5.49
This part replaces part number 10376517
# 066
MPN: 102947
PAD
from £6.82
from £6.82
This part replaces part number 102007 - and 14 more. Click to view details
# 067
MPN: 10519424
WASHER
from £0.53
from £0.53
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 068
MPN: 12574211
NUT
from £0.71
from £0.71
# 069
MPN: 142402
AIR INLET CONNECTION PIPE - VALID FOR CATALYZED CARS-
from £194.68
from £194.68
# 070
MPN: 143882
AIR INLET CONNECTION PIPE - VALID FOR CH
from £382.29
from £382.29
# 071
MPN: 12177290
SCREW COLLAR
from £6.21
from £6.21
# 072
MPN: 136317
RH SLEEVE
from £27.19
from £27.19
# 073
MPN: 136318
LH SLEEVE
from £26.04
from £26.04
# 074
MPN: 140175
DEPRESSION TANK
from £101.07
from £101.07
# 075
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 076
MPN: 12575411
NUT
Supersession
Supersession
# 077
MPN: 125826
PIPE FROM COVER TO DEPRESSION TANK
from £6.19
from £6.19
# 078
MPN: 12575411
NUT
Supersession
Supersession
# 079
MPN: 14496401
WASHER
Supersession
Supersession

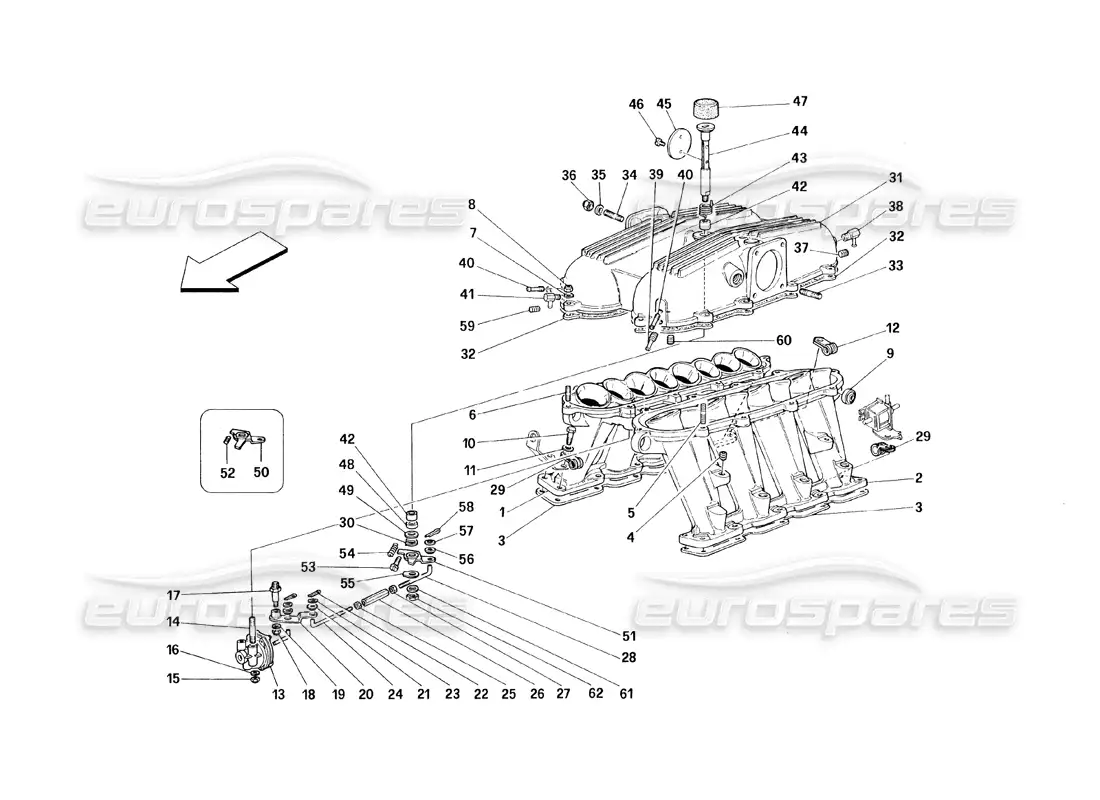

-tb-_-ts-part-diagram-012a.webp "FERRARI 348 (1993) TB / TS MANIFOLDS AND COVERS PARTS DIAGRAM")
-tb-_-ts-part-diagram-012b.webp "FERRARI 348 (1993) TB / TS AIR INTAKE PARTS DIAGRAM")
-tb-_-ts-part-diagram-013.webp "FERRARI 348 (1993) TB / TS THROTTLE HOUSING AND LINKAGE PARTS DIAGRAM")
-tb-_-ts-part-diagram-014.webp "FERRARI 348 (1993) TB / TS EXHAUST SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-014a.webp "FERRARI 348 (1993) TB / TS EXHAUST SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-014b.webp "FERRARI 348 (1993) TB / TS EXHAUST SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-015.webp "FERRARI 348 (1993) TB / TS BLOW - BY SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-016.webp "FERRARI 348 (1993) TB / TS LUBRICATION - PUMPS AND OIL SUMPS PARTS DIAGRAM")
-tb-_-ts-part-diagram-017.webp "FERRARI 348 (1993) TB / TS LUBRICATION SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-018.webp "FERRARI 348 (1993) TB / TS COOLING SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-019.webp "FERRARI 348 (1993) TB / TS COOLING SYSTEM RADIATORS PARTS DIAGRAM")
-tb-_-ts-part-diagram-020.webp "FERRARI 348 (1993) TB / TS WATER PUMP PARTS DIAGRAM")
-tb-_-ts-part-diagram-021.webp "FERRARI 348 (1993) TB / TS CLUTCH - CONTROLS PARTS DIAGRAM")
-tb-_-ts-part-diagram-021a.webp "FERRARI 348 (1993) TB / TS CLUTCH - SINGLE AND DOUBLE DISC PARTS DIAGRAM")
-tb-_-ts-part-diagram-022.webp "FERRARI 348 (1993) TB / TS CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-tb-_-ts-part-diagram-022a.webp "FERRARI 348 (1993) TB / TS CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-tb-_-ts-part-diagram-023.webp "FERRARI 348 (1993) TB / TS GEARBOX - DIFFERENTIAL HOUSING AND INTERMEDIATE CASING PARTS DIAGRAM")
-tb-_-ts-part-diagram-024.webp "FERRARI 348 (1993) TB / TS GEARBOX COVERS PARTS DIAGRAM")
-tb-_-ts-part-diagram-025.webp "FERRARI 348 (1993) TB / TS MAIN SHAFT GEARS PARTS DIAGRAM")
-tb-_-ts-part-diagram-026.webp "FERRARI 348 (1993) TB / TS LAY SHAFT GEARS PARTS DIAGRAM")
-tb-_-ts-part-diagram-027.webp "FERRARI 348 (1993) TB / TS INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-tb-_-ts-part-diagram-028.webp "FERRARI 348 (1993) TB / TS OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-tb-_-ts-part-diagram-029.webp "FERRARI 348 (1993) TB / TS DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-tb-_-ts-part-diagram-030.webp "FERRARI 348 (1993) TB / TS BRAKE HYDRAULIC SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-030a.webp "FERRARI 348 (1993) TB / TS THROTTLE PEDAL AND BRAKE HYDRAULIC SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-031.webp "FERRARI 348 (1993) TB / TS HYDRAULIC SYSTEM FOR ANTISKID PARTS DIAGRAM")
-tb-_-ts-part-diagram-032.webp "FERRARI 348 (1993) TB / TS BRAKE SYSTEM (WITH ANTISKID) PARTS DIAGRAM")
-tb-_-ts-part-diagram-033.webp "FERRARI 348 (1993) TB / TS CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-tb-_-ts-part-diagram-034.webp "FERRARI 348 (1993) TB / TS HAND-BRAKE CONTROL PARTS DIAGRAM")
-tb-_-ts-part-diagram-035.webp "FERRARI 348 (1993) TB / TS STEERING BOX AND LINKAGE PARTS DIAGRAM")
-tb-_-ts-part-diagram-036.webp "FERRARI 348 (1993) TB / TS STEERING COLUMN PARTS DIAGRAM")
-tb-_-ts-part-diagram-037.webp "FERRARI 348 (1993) TB / TS FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-tb-_-ts-part-diagram-037a.webp "FERRARI 348 (1993) TB / TS FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-tb-_-ts-part-diagram-038.webp "FERRARI 348 (1993) TB / TS FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-tb-_-ts-part-diagram-039.webp "FERRARI 348 (1993) TB / TS REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-tb-_-ts-part-diagram-039a.webp "FERRARI 348 (1993) TB / TS REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-tb-_-ts-part-diagram-040.webp "FERRARI 348 (1993) TB / TS REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-tb-_-ts-part-diagram-041.webp "FERRARI 348 (1993) TB / TS WHEELS PARTS DIAGRAM")
-tb-_-ts-part-diagram-042.webp "FERRARI 348 (1993) TB / TS CURRENT GENERATOR - BATTERY PARTS DIAGRAM")
-tb-_-ts-part-diagram-042a.webp "FERRARI 348 (1993) TB / TS CURRENT GENERATOR - STARTING MOTOR PARTS DIAGRAM")
-tb-_-ts-part-diagram-043.webp "FERRARI 348 (1993) TB / TS AIR CONDITIONING COMPRESSOR PARTS DIAGRAM")
-tb-_-ts-part-diagram-044.webp "FERRARI 348 (1993) TB / TS EQUIPMENT - HORIZONTAL BAG PARTS DIAGRAM")
-tb-_-ts-part-diagram-044a.webp "FERRARI 348 (1993) TB / TS EQUIPMENT - VERTICAL BAG PARTS DIAGRAM")
-tb-_-ts-part-diagram-101.webp "FERRARI 348 (1993) TB / TS BODY - GENERAL UNITS PARTS DIAGRAM")
-tb-_-ts-part-diagram-102.webp "FERRARI 348 (1993) TB / TS FRONT PART STRUCTURES PARTS DIAGRAM")
-tb-_-ts-part-diagram-103.webp "FERRARI 348 (1993) TB / TS CENTRAL PART STRUCTURES PARTS DIAGRAM")
-tb-_-ts-part-diagram-104.webp "FERRARI 348 (1993) TB / TS FRAME - REAR PART ELEMENTS PARTS DIAGRAM")
-tb-_-ts-part-diagram-105.webp "FERRARI 348 (1993) TB / TS ROOF - OUTER TRIMS PARTS DIAGRAM")
-tb-_-ts-part-diagram-106.webp "FERRARI 348 (1993) TB / TS BODY - OUTER TRIMS PARTS DIAGRAM")
-tb-_-ts-part-diagram-107.webp "FERRARI 348 (1993) TB / TS PASSENGERS COMPARTMENT INSULATIONS PARTS DIAGRAM")
-tb-_-ts-part-diagram-107a.webp "FERRARI 348 (1993) TB / TS PASSENGERS COMPARTMENT INSULATIONS PARTS DIAGRAM")
-tb-_-ts-part-diagram-108.webp "FERRARI 348 (1993) TB / TS PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-tb-_-ts-part-diagram-108a.webp "FERRARI 348 (1993) TB / TS PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-tb-_-ts-part-diagram-109.webp "FERRARI 348 (1993) TB / TS FRONT COMPARTMENTS CARPETS PARTS DIAGRAM")
-tb-_-ts-part-diagram-110.webp "FERRARI 348 (1993) TB / TS ROOF TRIMS PARTS DIAGRAM")
-tb-_-ts-part-diagram-110a.webp "FERRARI 348 (1993) TB / TS ROOF TRIMS PARTS DIAGRAM")
-tb-_-ts-part-diagram-111.webp "FERRARI 348 (1993) TB / TS FRONT HOOD PARTS DIAGRAM")
-tb-_-ts-part-diagram-112.webp "FERRARI 348 (1993) TB / TS OPENING DEVICE FOR FRONT HOOD PARTS DIAGRAM")
-tb-_-ts-part-diagram-113.webp "FERRARI 348 (1993) TB / TS REAR HOOD PARTS DIAGRAM")
-tb-_-ts-part-diagram-114.webp "FERRARI 348 (1993) TB / TS OPENING DEVICES FOR REAR HOOD AND GAS DOOR PARTS DIAGRAM")
-tb-_-ts-part-diagram-115.webp "FERRARI 348 (1993) TB / TS DOORS - FRAMEWORK AND REAR MIRROR PARTS DIAGRAM")
-tb-_-ts-part-diagram-116.webp "FERRARI 348 (1993) TB / TS DOORS - OPENING CONTROL AND HINGES PARTS DIAGRAM")
-tb-_-ts-part-diagram-117.webp "FERRARI 348 (1993) TB / TS DOORS - GLASS LIFTING DEVICE PARTS DIAGRAM")
-tb-_-ts-part-diagram-118.webp "FERRARI 348 (1993) TB / TS DOORS - INNER TRIMS PARTS DIAGRAM")
-tb-_-ts-part-diagram-119.webp "FERRARI 348 (1993) TB / TS FRONT BUMPER PARTS DIAGRAM")
-tb-_-ts-part-diagram-120.webp "FERRARI 348 (1993) TB / TS REAR BUMPER PARTS DIAGRAM")
-tb-_-ts-part-diagram-121.webp "FERRARI 348 (1993) TB / TS GLASSES AND GASKETS PARTS DIAGRAM")
-tb-_-ts-part-diagram-122.webp "FERRARI 348 (1993) TB / TS SEATS AND SAFETY BELTS PARTS DIAGRAM")
-tb-_-ts-part-diagram-122a.webp "FERRARI 348 (1993) TB / TS SEATS AND SAFETY BELTS PARTS DIAGRAM")
-tb-_-ts-part-diagram-122b.webp "FERRARI 348 (1993) TB / TS SEATS AND SAFETY BELTS PARTS DIAGRAM")
-tb-_-ts-part-diagram-122c.webp "FERRARI 348 (1993) TB / TS SEATS AND SAFETY BELTS PARTS DIAGRAM")
-tb-_-ts-part-diagram-122d.webp "FERRARI 348 (1993) TB / TS PASSIVE SAFETY BELTS SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-123.webp "FERRARI 348 (1993) TB / TS TUNNEL - FRAMEWORK AND TRIMS PARTS DIAGRAM")
-tb-_-ts-part-diagram-123a.webp "FERRARI 348 (1993) TB / TS TUNNEL - FRAMEWORK AND TRIMS PARTS DIAGRAM")
-tb-_-ts-part-diagram-124.webp "FERRARI 348 (1993) TB / TS TUNNEL - ACCESSORIES PARTS DIAGRAM")
-tb-_-ts-part-diagram-124a.webp "FERRARI 348 (1993) TB / TS TUNNEL - ACCESSORIES PARTS DIAGRAM")
-tb-_-ts-part-diagram-125.webp "FERRARI 348 (1993) TB / TS TUNNEL - ACCESSORIES PARTS DIAGRAM")
-tb-_-ts-part-diagram-125a.webp "FERRARI 348 (1993) TB / TS TUNNEL - ACCESSORIES PARTS DIAGRAM")
-tb-_-ts-part-diagram-126.webp "FERRARI 348 (1993) TB / TS DASHBOARD - STRUCTURE AND SUPPORTS PARTS DIAGRAM")
-tb-_-ts-part-diagram-126a.webp "FERRARI 348 (1993) TB / TS DASHBOARD - TRIM AND ACCESSORIES PARTS DIAGRAM")
-tb-_-ts-part-diagram-126b.webp "FERRARI 348 (1993) TB / TS DASHBOARD - STRUCTURE AND SUPPORTS PARTS DIAGRAM")
-tb-_-ts-part-diagram-126c.webp "FERRARI 348 (1993) TB / TS DASHBOARD - TRIM AND ACCESSORIES PARTS DIAGRAM")
-tb-_-ts-part-diagram-127.webp "FERRARI 348 (1993) TB / TS INSTRUMENTS PARTS DIAGRAM")
-tb-_-ts-part-diagram-128.webp "FERRARI 348 (1993) TB / TS FRONT AND REAR LIGHTS PARTS DIAGRAM")
-tb-_-ts-part-diagram-129.webp "FERRARI 348 (1993) TB / TS LIGHTS LIFTING DEVICE AND HEADLIGHTS PARTS DIAGRAM")
-tb-_-ts-part-diagram-130.webp "FERRARI 348 (1993) TB / TS WINDSHIELD WIPER AND MOVEMENT PARTS DIAGRAM")
-tb-_-ts-part-diagram-131.webp "FERRARI 348 (1993) TB / TS GLASS WASHER AND HORNS PARTS DIAGRAM")
-tb-_-ts-part-diagram-132.webp "FERRARI 348 (1993) TB / TS ELECTRICAL SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-132a.webp "FERRARI 348 (1993) TB / TS ELECTRICAL SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-133.webp "FERRARI 348 (1993) TB / TS ELECTRICAL BOARDS PARTS DIAGRAM")
-tb-_-ts-part-diagram-134.webp "FERRARI 348 (1993) TB / TS EVAPORATOR UNIT AND PASSENGERS COMPARTMENT AERATING PARTS DIAGRAM")
-tb-_-ts-part-diagram-135.webp "FERRARI 348 (1993) TB / TS AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-001.webp "FERRARI 348 (1993) TB / TS CRANKCASE PARTS DIAGRAM")
-tb-_-ts-part-diagram-002.webp "FERRARI 348 (1993) TB / TS CRANKSHAFT, CONRODS AND PISTONS PARTS DIAGRAM")
-tb-_-ts-part-diagram-003.webp "FERRARI 348 (1993) TB / TS RH CYLINDER HEAD PARTS DIAGRAM")
-tb-_-ts-part-diagram-004.webp "FERRARI 348 (1993) TB / TS LH CYLINDER HEAD PARTS DIAGRAM")
-tb-_-ts-part-diagram-005.webp "FERRARI 348 (1993) TB / TS TIMING - TAPPETS PARTS DIAGRAM")
-tb-_-ts-part-diagram-006.webp "FERRARI 348 (1993) TB / TS TIMING - CONTROLS PARTS DIAGRAM")
-tb-_-ts-part-diagram-007.webp "FERRARI 348 (1993) TB / TS AIR INJECTION - IGNITION PARTS DIAGRAM")
-tb-_-ts-part-diagram-007a.webp "FERRARI 348 (1993) TB / TS AIR INJECTION - IGNITION PARTS DIAGRAM")
-tb-_-ts-part-diagram-008.webp "FERRARI 348 (1993) TB / TS AIR INJECTION DEVICE PARTS DIAGRAM")
-tb-_-ts-part-diagram-008a.webp "FERRARI 348 (1993) TB / TS AIR INJECTION DEVICE PARTS DIAGRAM")
-tb-_-ts-part-diagram-009.webp "FERRARI 348 (1993) TB / TS FUEL PUMP AND PIPES PARTS DIAGRAM")
-tb-_-ts-part-diagram-010.webp "FERRARI 348 (1993) TB / TS FUEL TANK PARTS DIAGRAM")
-tb-_-ts-part-diagram-011.webp "FERRARI 348 (1993) TB / TS GASOLINE VENT SYSTEM PARTS DIAGRAM")
-tb-_-ts-part-diagram-011a.webp "FERRARI 348 (1993) TB / TS ANTIEVAPORATION DEVICE PARTS DIAGRAM")
