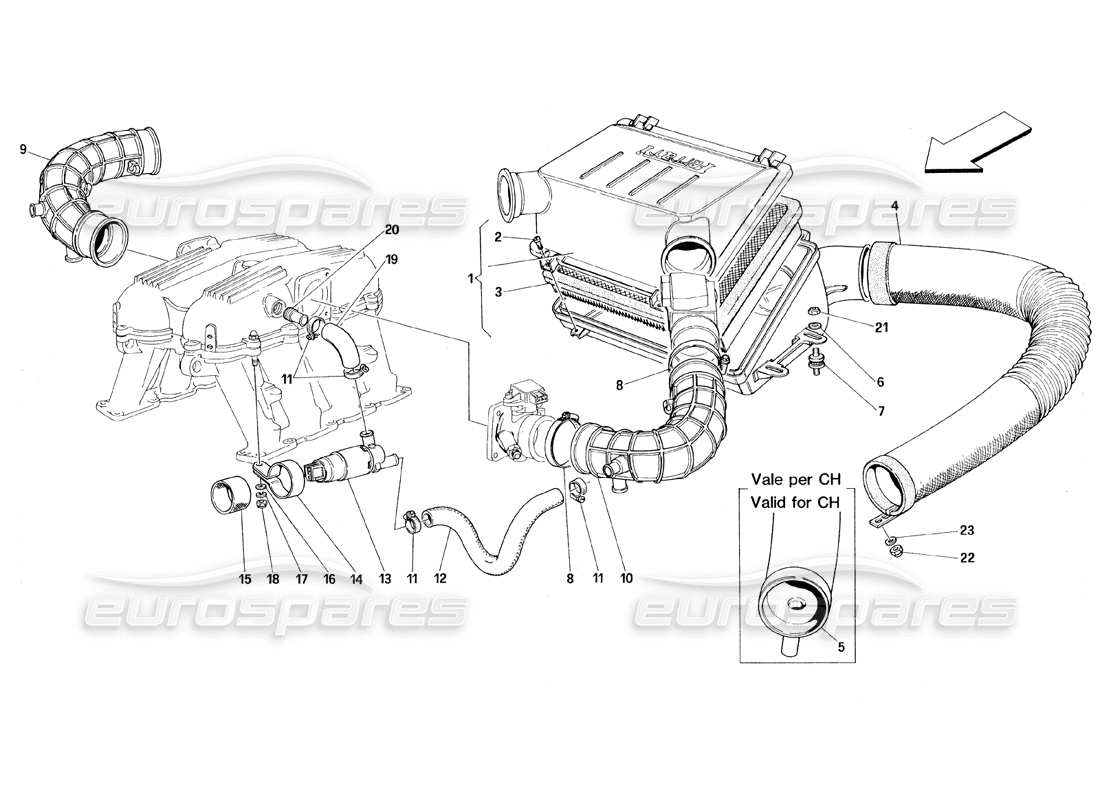

012B - AIR INTAKE
Ferrari 348 (1993) TB / TS Air Intake Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 142054
COMPLETE AIR INTAKE
Not for CH
from £175.18
from £175.18
# 001
MPN: 144090
COMPLETE AIR INTAKE
Valid for CH
from £369.26
from £369.26
# 002
MPN: 10376577
SCREW
from £0.50
from £0.50
This part replaces part number 10376517
# 003
MPN: 155871
AIR FILTER
from £26.41
from £26.41
This part replaces part number 133180
# 003
MPN: 155871
AIR FILTER
Valid after stock exhaustion of 133180
from £26.41
from £26.41
This part replaces part number 133180
# 004
MPN: 142402
AIR INLET CONNECTION PIPE
Not for CH
from £98.26
from £98.26
# 005
MPN: 143882
AIR INLET CONNECTION PIPE
Valid for CH
from £279.95
from £279.95
# 006
MPN: 10519424
WASHER
from £0.47
from £0.47
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 007
MPN: 102947
PAD
from £6.26
from £6.26
This part replaces part number 102007 - and 14 more. Click to view details
# 008
MPN: 12177290
SCREW COLLAR
from £3.42
from £3.42
# 009
MPN: 143257
RH SLEEVE
from £43.95
from £43.95
# 010
MPN: 143236
LH SLEEVE
from £47.51
from £47.51
# 011
MPN: 13000490
SCREW COLLAR
from £0.47
from £0.47
This part replaces part number 10169090 - and 3 more. Click to view details
# 012
MPN: 143201
LH PIPETOREGULATUR
from £13.32
from £13.32
# 012
MPN: 143202
RH PIPE TO REGULATOR
from £13.32
from £13.32
# 013
MPN: 142432
REGULATOR FOR IDLE ADJUSTMENT
from £168.17
from £168.17
# 014
MPN: 143294
LH BRACKET
from £1.19
from £1.19
# 014
MPN: 143301
RH BRACKET
from £1.38
from £1.38
# 015
MPN: 143291
SLEEVE
from £1.55
from £1.55
# 016
MPN: 14496401
WASHER
Supersession
Supersession
# 017
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.47
from £0.47
This part replaces part number 10516470 - and 4 more. Click to view details
# 018
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 019
MPN: 143270
PIPE FROM REGULATOR TO AIR PLENUM CHAMBER
from £5.21
from £5.21
# 020
MPN: 143286
UNION
from £3.09
from £3.09
# 021
MPN: 12574211
NUT
from £0.71
from £0.71
# 022
MPN: 12575411
NUT
Supersession
Supersession
# 023
MPN: 14496401
WASHER
Supersession
Supersession
