013 - Throttle Housing and Linkage

Ferrari 348 (1993) TB / TS Throttle Housing and Linkage Parts Diagram

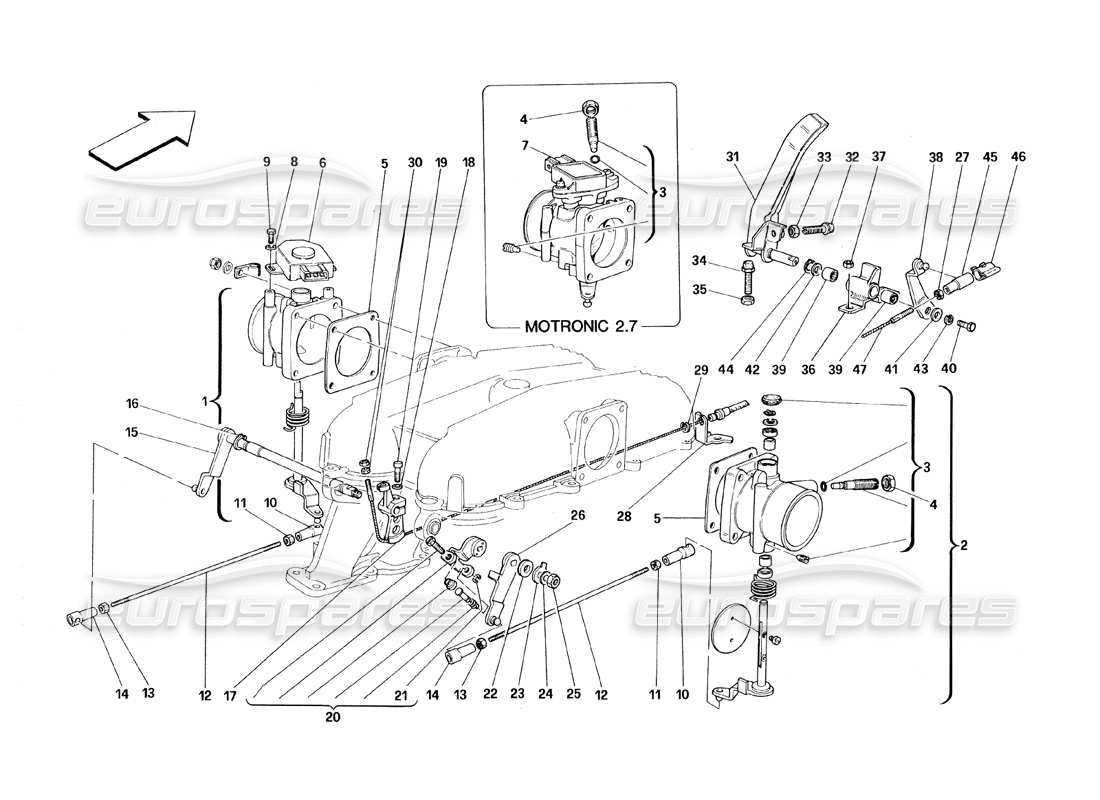

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Price
                                                                          # 001
                                                                          MPN: 139531

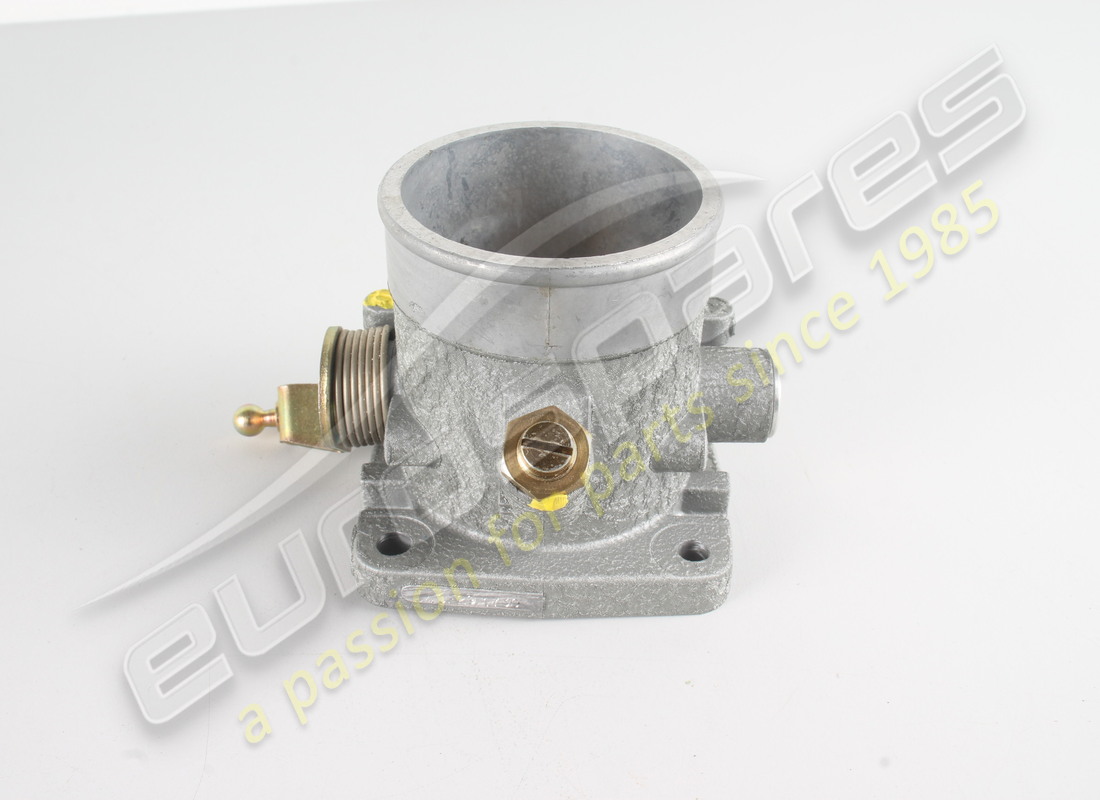

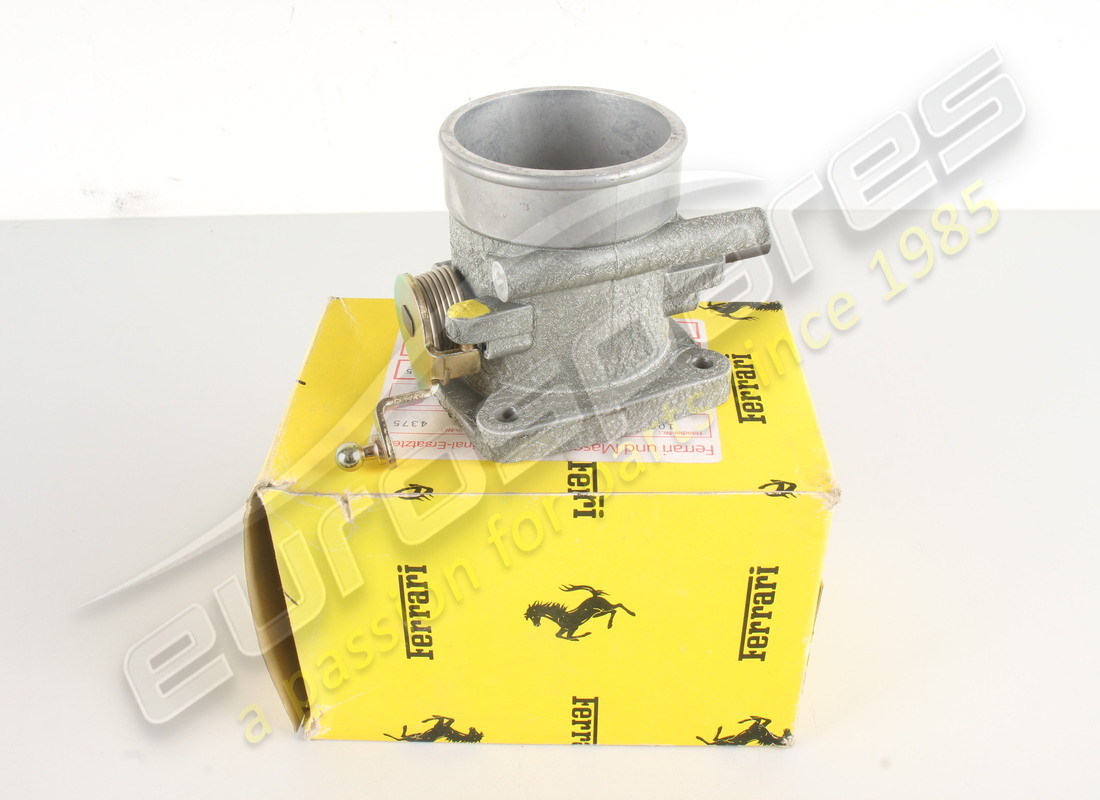

                                                                          COMPLETE RH THROTTLE HOLDER
                                                                          Valid for M. 2.5
                                                                          from £198.98
                                                                          from £198.98
                                                                          # 001
                                                                          MPN: 142498
                                                                          COMPLETE RH THROTTLE HOLDER
                                                                          Valid for M. 2.7
                                                                          from £447.62
                                                                          from £447.62
                                                                          This part replaces part number 144228
                                                                          # 002
                                                                          MPN: 139532
                                                                          COMPLETE LH THROTTLE HOLDER
                                                                          Valid for M. 2.5
                                                                          from £198.98
                                                                          from £198.98
                                                                          # 002
                                                                          MPN: 142499
                                                                          COMPLETE LH THROTTLE HOLDER
                                                                          Valid for M. 2.7
                                                                          from £447.62
                                                                          from £447.62
                                                                          # 003
                                                                          MPN: 70000610
                                                                          ADJUSTMENT KIT FOR THROTTLE BODY
                                                                          from £81.99
                                                                          from £81.99
                                                                          # 004
                                                                          MPN: 11691311
                                                                          NUT
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 005
                                                                          MPN: 136919
                                                                          GASKET
                                                                          from £2.92
                                                                          from £2.92
                                                                          # 006
                                                                          MPN: 130974
                                                                          MICRO-SWITCH
                                                                          Valid for M. 2.5
                                                                          from £319.27
                                                                          from £319.27
                                                                          # 007
                                                                          MPN: 158170
                                                                          POTENTIOMETER FOR THROTTLE VALVE
                                                                          Valid for M. 2.7
                                                                          from £121.39
                                                                          from £121.39
                                                                          This part replaces part number 142434 - and 1 more. Click to view details
                                                                          # 008
                                                                          MPN: 12601070
                                                                          WASHER
                                                                          For M. 2.5 q.ty 2
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 009
                                                                          MPN: 10444521
                                                                          SCREW
                                                                          For M. 2.5 q.ty 2
                                                                          from £0.71
                                                                          from £0.71
                                                                          # 010
                                                                          MPN: 173999
                                                                          RH THREAD THROTTLE BALL JOINT
                                                                          from £2.48
                                                                          from £2.48
                                                                          This part replaces part number 105617 - and 2 more. Click to view details
                                                                          # 011
                                                                          MPN: 15896470
                                                                          RH THREAD NUT
                                                                          (minimum order quantity = 20)
                                                                          from £0.79
                                                                          from £0.79
                                                                          This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                          # 012
                                                                          MPN: 139551
                                                                          TIE ROD
                                                                          from £6.31
                                                                          from £6.31
                                                                          # 013
                                                                          MPN: 105586
                                                                          LH THREAD NUT
                                                                          from £4.65
                                                                          from £4.65
                                                                          # 015
                                                                          MPN: 139925
                                                                          TRANSMISSION SPINDLE FOR BUTTERFLY CONTROL
                                                                          from £59.77
                                                                          from £59.77
                                                                          # 016
                                                                          MPN: 11065976
                                                                          FLEXIBLE RING
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 11065975
                                                                          # 017
                                                                          MPN: 139923
                                                                          THROTTLE CONTROL ECCENTRIC
                                                                          from £33.01
                                                                          from £33.01
                                                                          # 018
                                                                          MPN: 12639701
                                                                          WASHER
                                                                          Supersession
                                                                          Supersession
                                                                          This part replaces part number 12639704
                                                                          # 019
                                                                          MPN: 14432221
                                                                          SCREW
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 020
                                                                          MPN: 137054
                                                                          BUTTERFLY SYNCHRONIZATION CONTROL ASSEMBLY
                                                                          from £17.79
                                                                          from £17.79
                                                                          # 021
                                                                          MPN: 11087571
                                                                          FLEXIBLE RING
                                                                          Supersession
                                                                          Supersession
                                                                          # 022
                                                                          MPN: 137053
                                                                          SPACER
                                                                          from £3.85
                                                                          from £3.85
                                                                          # 023
                                                                          MPN: 113566
                                                                          SAFETY PLATE
                                                                          from £1.96
                                                                          from £1.96
                                                                          # 024
                                                                          MPN: 13550301
                                                                          WASHER
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 025
                                                                          MPN: 16102311
                                                                          NUT
                                                                          from £0.43
                                                                          from £0.43
                                                                          This part replaces part number 16102315
                                                                          # 026
                                                                          MPN: 139929
                                                                          DRIVEN LEVER
                                                                          from £14.27
                                                                          from £14.27
                                                                          # 027
                                                                          MPN: 15896470
                                                                          NUT
                                                                          (minimum order quantity = 20)
                                                                          from £0.79
                                                                          from £0.79
                                                                          This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                          # 028
                                                                          MPN: 138422
                                                                          BRACKET
                                                                          from £37.84
                                                                          from £37.84
                                                                          # 029
                                                                          MPN: 11087974
                                                                          FLEXIBLE RING
                                                                          from £0.53
                                                                          from £0.53
                                                                          This part replaces part number 11087976
                                                                          # 030
                                                                          MPN: 10725011
                                                                          NUT
                                                                          from £0.85
                                                                          from £0.85
                                                                          # 031
                                                                          MPN: 137569

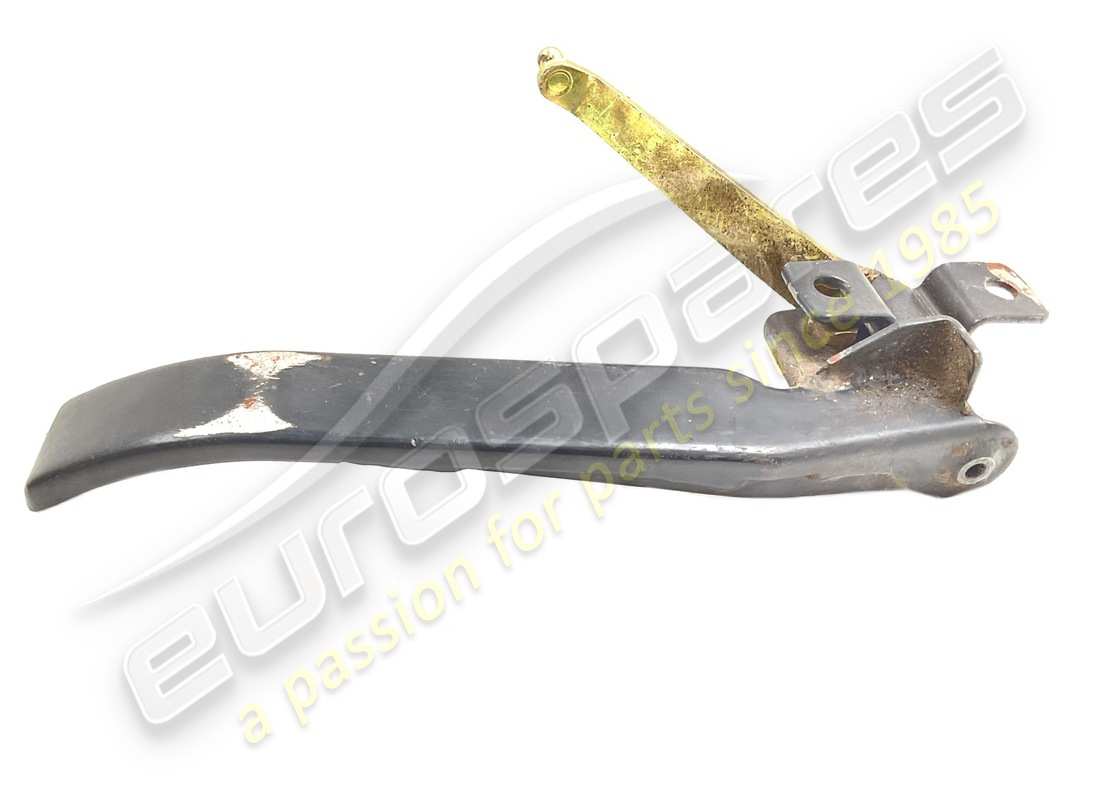

                                                                          Accelerator Pedal
                                                                          from £109.11
                                                                          from £109.11
                                                                          # 032
                                                                          MPN: 123961
                                                                          PIN
                                                                          from £2.48
                                                                          from £2.48
                                                                          # 033
                                                                          MPN: 16102311
                                                                          NUT
                                                                          from £0.43
                                                                          from £0.43
                                                                          This part replaces part number 16102315
                                                                          # 034
                                                                          MPN: 137012
                                                                          PIN
                                                                          from £10.06
                                                                          from £10.06
                                                                          # 035
                                                                          MPN: 16102311
                                                                          NUT
                                                                          from £0.43
                                                                          from £0.43
                                                                          This part replaces part number 16102315
                                                                          # 036
                                                                          MPN: 137009
                                                                          ACCELERATOR SUPPORT
                                                                          from £45.95
                                                                          from £45.95
                                                                          # 037
                                                                          MPN: 104030
                                                                          SELF LOCKING NUT
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 16104125
                                                                          # 038
                                                                          MPN: 145425
                                                                          ACCELERATOR LEVER
                                                                          from £7.68
                                                                          from £7.68
                                                                          This part replaces part number 137570 - and 2 more. Click to view details
                                                                          # 039
                                                                          MPN: 101677
                                                                          ROLLER BEARING
                                                                          from £2.10
                                                                          from £2.10
                                                                          # 040
                                                                          MPN: 10902221
                                                                          SCREW
                                                                          from £0.52
                                                                          from £0.52
                                                                          # 041
                                                                          MPN: 106744
                                                                          WASHER
                                                                          from £4.91
                                                                          from £4.91
                                                                          # 042
                                                                          MPN: 105931
                                                                          SPACER WASHER
                                                                          MM. 0.7
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 042
                                                                          MPN: 108576
                                                                          SPACER WASHER
                                                                          MM. 1.0
                                                                          from £0.70
                                                                          from £0.70
                                                                          # 043
                                                                          MPN: 127494
                                                                          WASHER
                                                                          (minimum order quantity = 20)
                                                                          from £0.54
                                                                          from £0.54
                                                                          This part replaces part number 10516470 - and 4 more. Click to view details
                                                                          # 044
                                                                          MPN: 11066076
                                                                          SEEGER RING
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 11066075
                                                                          # 045
                                                                          MPN: 10123811
                                                                          BALL JOINT HEAD
                                                                          from £10.71
                                                                          from £10.71
                                                                          # 046
                                                                          MPN: 10124776
                                                                          CLIP
                                                                          Supersession
                                                                          Supersession
                                                                          # 047
                                                                          MPN: 137578

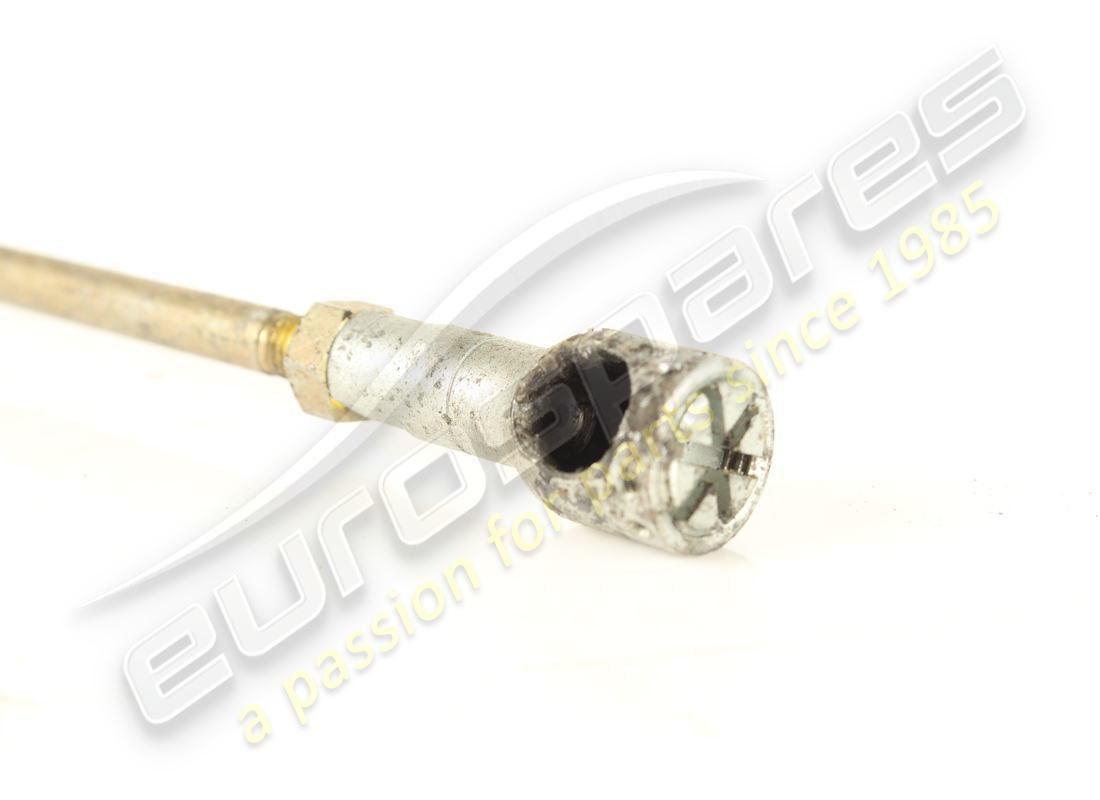

                                                                          ACCELERATOR CABLE
                                                                          Valid for TB - For TS valid till car Nr. 94909 for USA TS and USA SPYDER valid till car Nr. 94268
                                                                          from £140.02
                                                                          from £140.02
                                                                          # 047
                                                                          MPN: 138252
                                                                          ACCELERATOR CABLE RHD
                                                                          Rhd Cable Valid for TB- For TS valid till car Nr. 94909
                                                                          from £140.02
                                                                          from £140.02
                                                                          # 047
                                                                          MPN: 153698
                                                                          ACCELERATOR CABLE
                                                                          for USA TS and USA SPYDER Valid for TS from car Nr. 94910 valid from car Nr. 94269
                                                                          from £140.00
                                                                          from £140.00
                                                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
