ferrari 348 (1993) tb / ts exhaust system parts diagram

014 - Exhaust System

Ferrari 348 (1993) TB / TS Exhaust System Parts Diagram

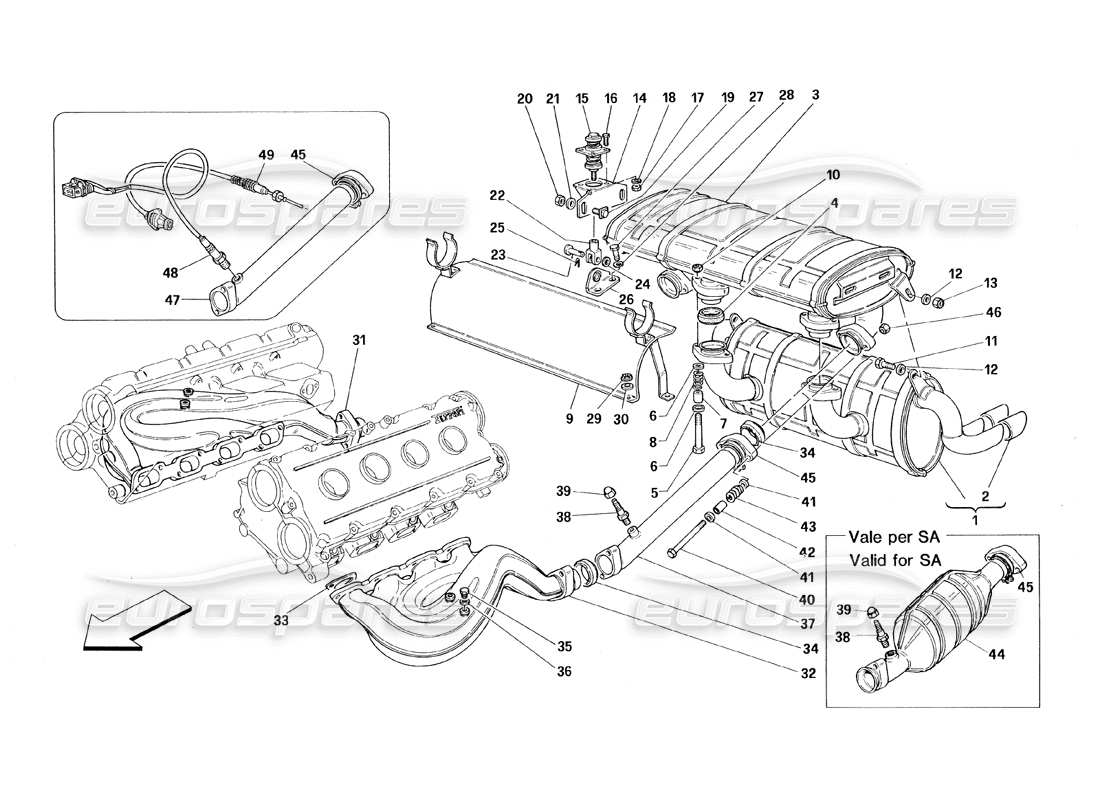

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Price
                                                                                        # 001
                                                                                        MPN: 136278
                                                                                        REAR SILENCER
                                                                                        from £597.85
                                                                                        from £597.85
                                                                                        # 002
                                                                                        MPN: 136894
                                                                                        TERMINAL COVER
                                                                                        from £34.55
                                                                                        from £34.55
                                                                                        # 003
                                                                                        MPN: 136277
                                                                                        FRONT MUFFLER
                                                                                        from £286.58
                                                                                        from £286.58
                                                                                        # 004
                                                                                        MPN: 154984
                                                                                        GASKET
                                                                                        from £9.95
                                                                                        from £9.95
                                                                                        This part replaces part number 118338 - and 2 more. Click to view details
                                                                                        # 005
                                                                                        MPN: 137431
                                                                                        SCREW
                                                                                        from £29.80
                                                                                        from £29.80
                                                                                        # 006
                                                                                        MPN: 128010
                                                                                        WASHER
                                                                                        from £2.16
                                                                                        from £2.16
                                                                                        # 007
                                                                                        MPN: 114749
                                                                                        SPACER
                                                                                        from £1.24
                                                                                        from £1.24
                                                                                        # 008
                                                                                        MPN: 111743
                                                                                        SPRING
                                                                                        from £6.91
                                                                                        from £6.91
                                                                                        # 009
                                                                                        MPN: 62663300
                                                                                        EXHAUST PROTECTION PANEL
                                                                                        from £336.00
                                                                                        from £336.00
                                                                                        This part replaces part number 62662900 - and 2 more. Click to view details
                                                                                        # 010
                                                                                        MPN: 114748
                                                                                        NUT
                                                                                        from £8.85
                                                                                        from £8.85
                                                                                        # 011
                                                                                        MPN: 16043421
                                                                                        SCREW
                                                                                        from £2.69
                                                                                        from £2.69
                                                                                        This part replaces part number 95524
                                                                                        # 012
                                                                                        MPN: 128010
                                                                                        WASHER
                                                                                        from £2.16
                                                                                        from £2.16
                                                                                        # 013
                                                                                        MPN: 114748
                                                                                        NUT
                                                                                        from £8.90
                                                                                        from £8.90

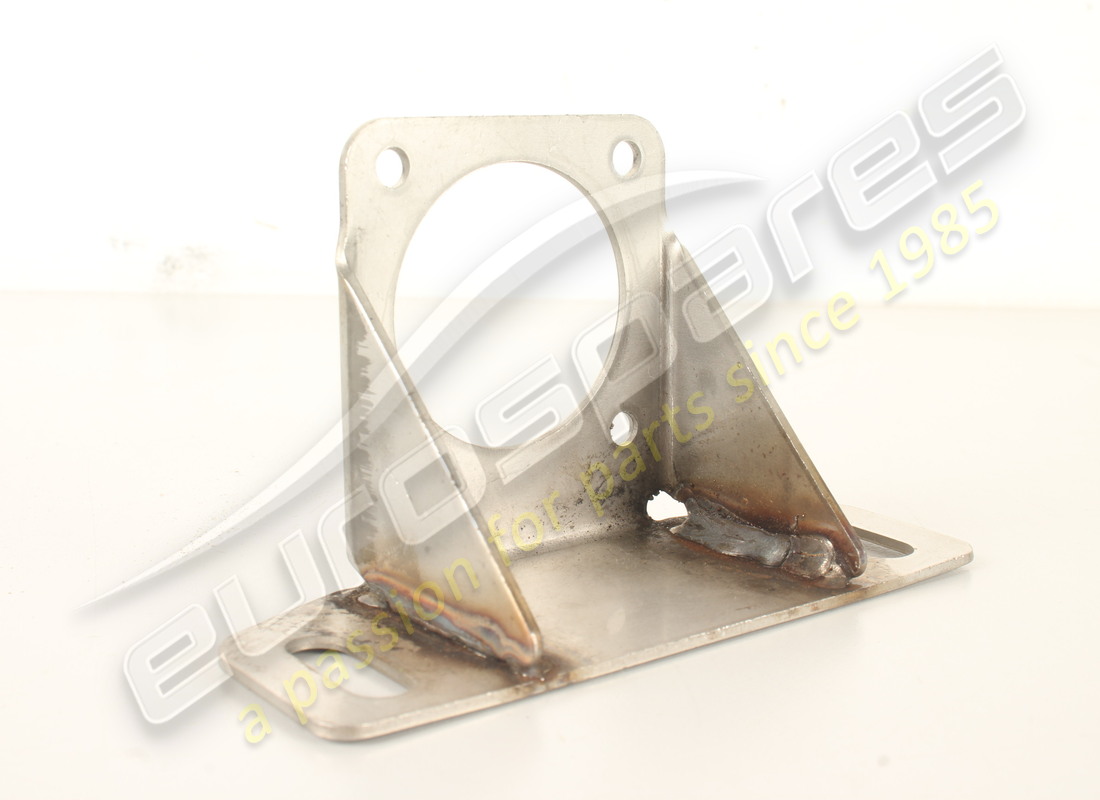

                                                                                        # 014
                                                                                        MPN: 136877
                                                                                        BRACKET
                                                                                        from £158.83
                                                                                        from £158.83
                                                                                        # 015
                                                                                        MPN: 139180
                                                                                        PAD
                                                                                        from £170.08
                                                                                        from £170.08
                                                                                        # 016
                                                                                        MPN: 10977624
                                                                                        SCREW
                                                                                        from £0.48
                                                                                        from £0.48
                                                                                        This part replaces part number 10977611 - and 1 more. Click to view details
                                                                                        # 017
                                                                                        MPN: 15896470
                                                                                        NUT
                                                                                        (minimum order quantity = 20)
                                                                                        from £0.77
                                                                                        from £0.77
                                                                                        This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                        # 018
                                                                                        MPN: 127493
                                                                                        WASHER
                                                                                        from £0.48
                                                                                        from £0.48
                                                                                        This part replaces part number 106849 - and 1 more. Click to view details
                                                                                        # 019
                                                                                        MPN: 137534
                                                                                        SCREW
                                                                                        from £12.09
                                                                                        from £12.09
                                                                                        # 020
                                                                                        MPN: 114748
                                                                                        NUT
                                                                                        from £8.85
                                                                                        from £8.85
                                                                                        # 021
                                                                                        MPN: 128010
                                                                                        WASHER
                                                                                        from £2.16
                                                                                        from £2.16
                                                                                        # 022
                                                                                        MPN: 10007871
                                                                                        FORK
                                                                                        from £6.02
                                                                                        from £6.02
                                                                                        # 023
                                                                                        MPN: 10050811
                                                                                        PIN
                                                                                        from £5.22
                                                                                        from £5.22
                                                                                        This part replaces part number 10050810
                                                                                        # 024
                                                                                        MPN: 10519624
                                                                                        WASHER
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                        # 025
                                                                                        MPN: 10734301
                                                                                        SPLIT PIN
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 026
                                                                                        MPN: 145741
                                                                                        SMALL PLATE
                                                                                        from £66.20
                                                                                        from £66.20
                                                                                        # 027
                                                                                        MPN: 16043221
                                                                                        SCREW
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 13842414 - and 1 more. Click to view details
                                                                                        # 028
                                                                                        MPN: 127496
                                                                                        WASHER
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                        # 029
                                                                                        MPN: 14058411
                                                                                        NUT
                                                                                        from £0.52
                                                                                        from £0.52
                                                                                        # 030
                                                                                        MPN: 12644421
                                                                                        WASHER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 031
                                                                                        MPN: 136275
                                                                                        RH EXHAUST MANIFOLD
                                                                                        from £605.78
                                                                                        from £605.78
                                                                                        This part replaces part number 149947 - and 1 more. Click to view details
                                                                                        # 032
                                                                                        MPN: 136276
                                                                                        LH EXHAUST MANIFOLD
                                                                                        from £576.93
                                                                                        from £576.93
                                                                                        This part replaces part number 149948 - and 1 more. Click to view details
                                                                                        # 033
                                                                                        MPN: 138076
                                                                                        GASKET
                                                                                        from £6.18
                                                                                        from £6.18
                                                                                        This part replaces part number 133908
                                                                                        # 034
                                                                                        MPN: 154984
                                                                                        GASKET
                                                                                        from £9.95
                                                                                        from £9.95
                                                                                        This part replaces part number 118338 - and 2 more. Click to view details
                                                                                        # 035
                                                                                        MPN: 110860
                                                                                        PLUG
                                                                                        from £10.16
                                                                                        from £10.16
                                                                                        This part replaces part number 11903240
                                                                                        # 036
                                                                                        MPN: 10298460
                                                                                        GASKET
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 93353
                                                                                        # 037
                                                                                        MPN: 141006
                                                                                        EXTENSION BETWEEN MANIFOLD AND SILENCER
                                                                                        valid for cars without thermocouple
                                                                                        from £130.32
                                                                                        from £130.32
                                                                                        This part replaces part number 137513
                                                                                        # 038
                                                                                        MPN: 144240
                                                                                        UNION
                                                                                        from £17.16
                                                                                        from £17.16
                                                                                        # 039
                                                                                        MPN: 150595
                                                                                        NUT
                                                                                        from £0.58
                                                                                        from £0.58
                                                                                        This part replaces part number 16109642
                                                                                        # 040
                                                                                        MPN: 137431
                                                                                        SCREW
                                                                                        from £29.00
                                                                                        from £29.00
                                                                                        # 041
                                                                                        MPN: 128010
                                                                                        WASHER
                                                                                        from £2.16
                                                                                        from £2.16
                                                                                        # 042
                                                                                        MPN: 114749
                                                                                        SPACER
                                                                                        from £1.24
                                                                                        from £1.24
                                                                                        # 043
                                                                                        MPN: 111743
                                                                                        SPRING
                                                                                        from £6.91
                                                                                        from £6.91
                                                                                        # 044
                                                                                        MPN: 143871
                                                                                        EXHAUST PRE-MUFFLER
                                                                                        Valid for SA
                                                                                        from £250.00
                                                                                        from £250.00
                                                                                        # 045
                                                                                        MPN: 141874
                                                                                        FLANGED STUB PIPE
                                                                                        from £210.37
                                                                                        from £210.37
                                                                                        # 046
                                                                                        MPN: 114748
                                                                                        NUT
                                                                                        from £8.76
                                                                                        from £8.76

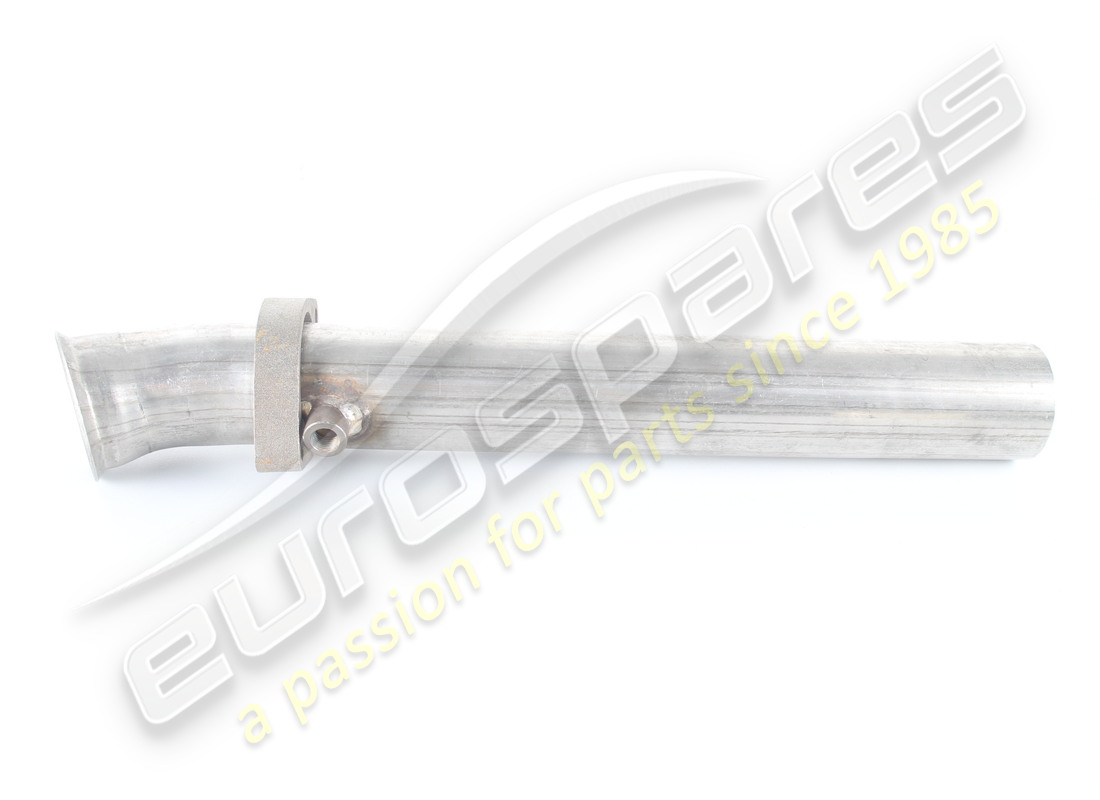

                                                                                        # 047
                                                                                        MPN: 149633
                                                                                        EXTENSION BETWEEN MANIFOLD AND SILENCER
                                                                                        valid for cars with thermocouple
                                                                                        from £220.41
                                                                                        from £220.41
                                                                                        # 048
                                                                                        MPN: 142514
                                                                                        OXYGEN SENSOR
                                                                                        Valid for de-catalyzed cars
                                                                                        from £239.29
                                                                                        from £239.29
                                                                                        # 049
                                                                                        MPN: 144270
                                                                                        THERMOCOUPLE
                                                                                        Valid for de-catalyzed cars
                                                                                        from £557.62
                                                                                        from £557.62
                                                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
