ferrari 348 (1993) tb / ts exhaust system parts diagram

014A - Exhaust System

Ferrari 348 (1993) TB / TS Exhaust System Parts Diagram

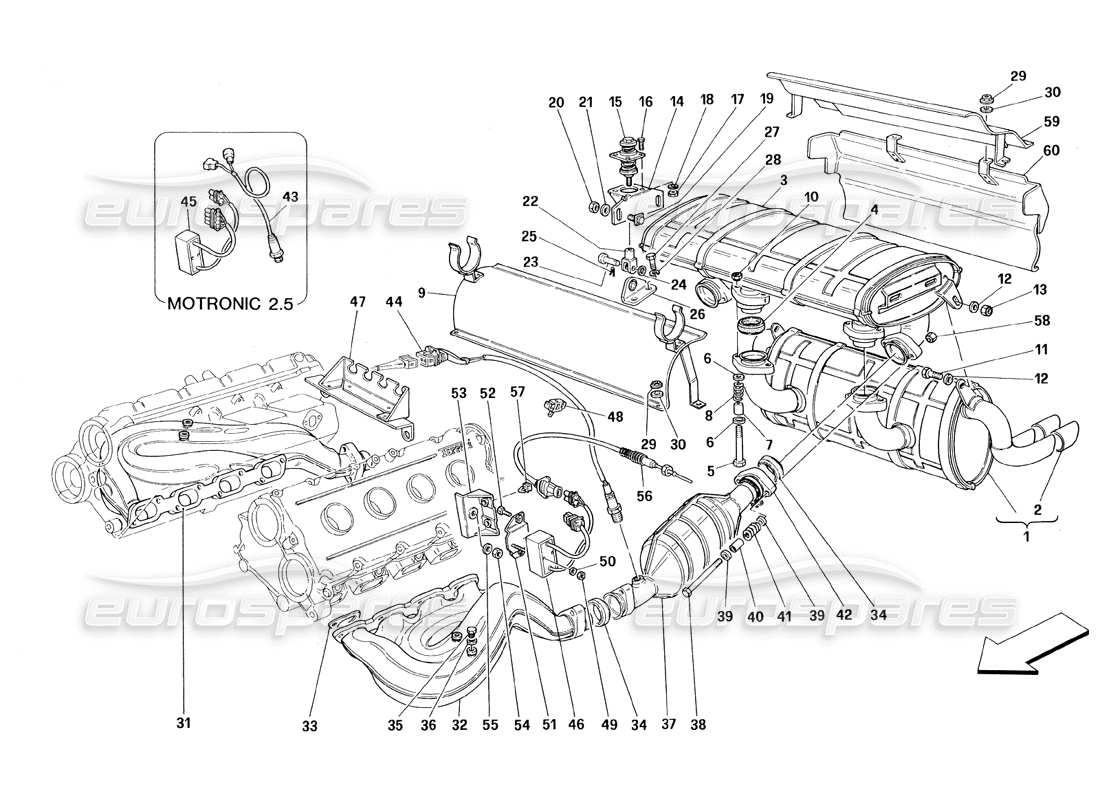

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                    #
                                                                                                    Part number
                                                                                                    Description
                                                                                                    Price
                                                                                                    # 001
                                                                                                    MPN: 136278

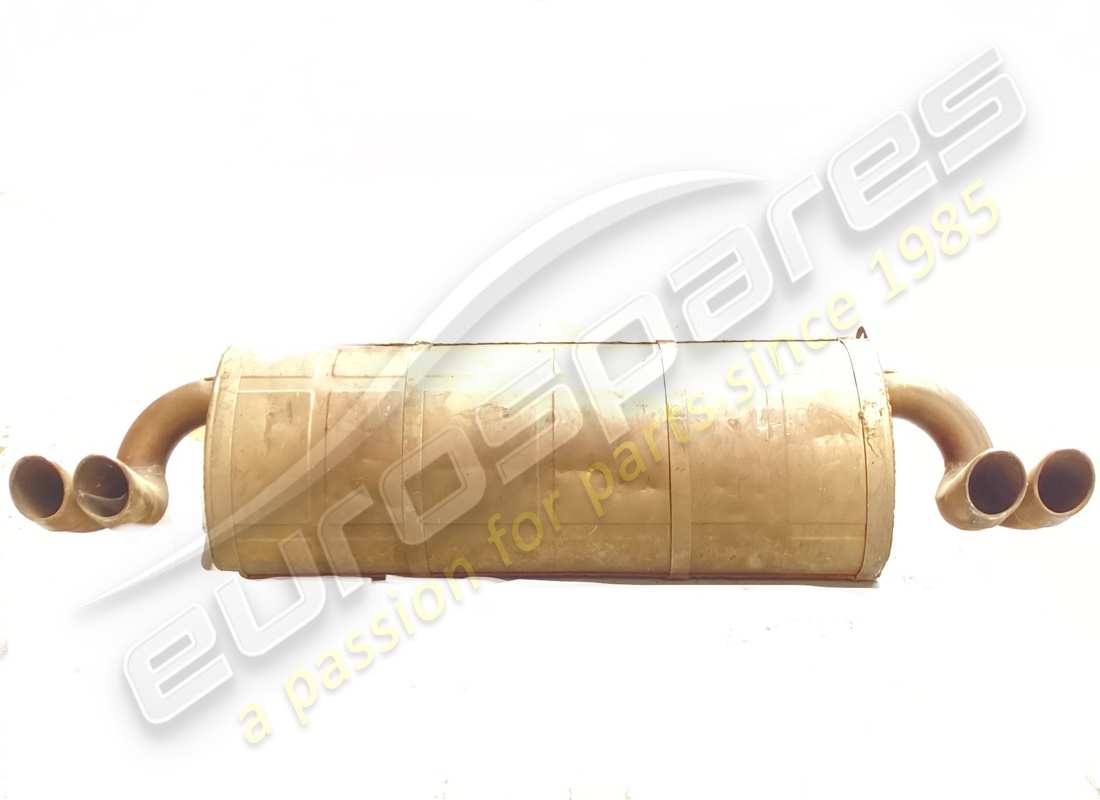

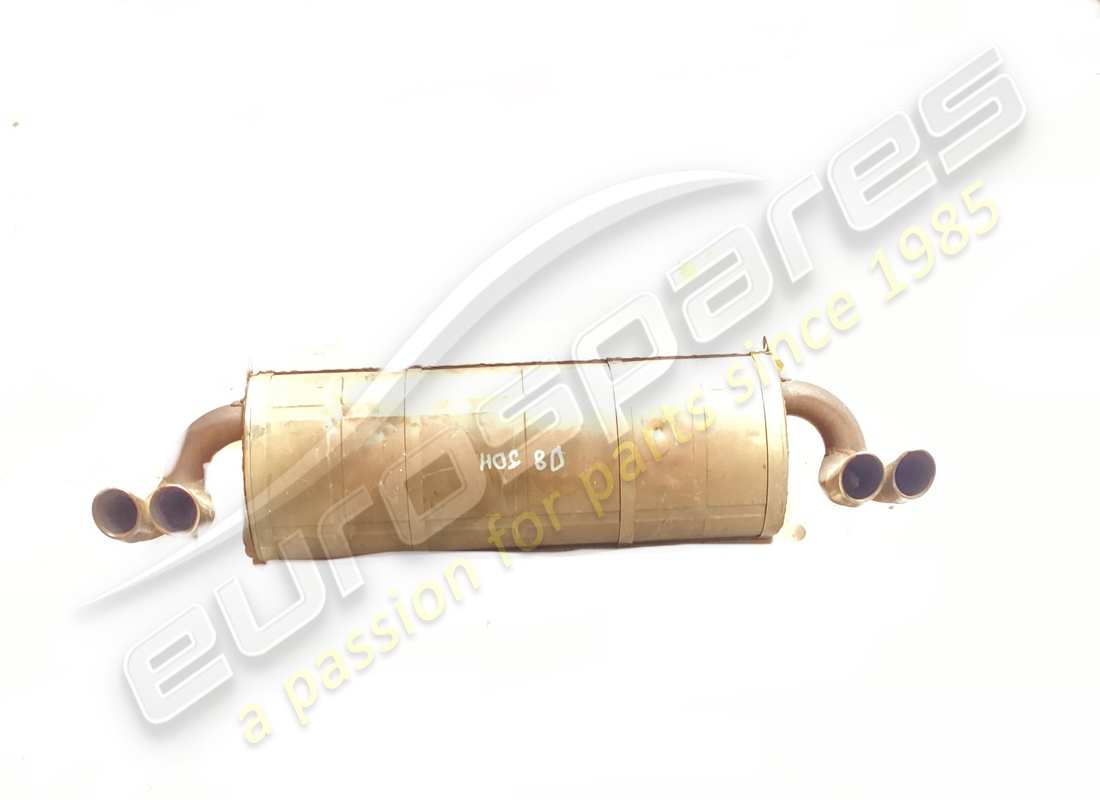

                                                                                                    REAR SILENCER
                                                                                                    from £597.85
                                                                                                    from £597.85
                                                                                                    # 002
                                                                                                    MPN: 136894
                                                                                                    TERMINAL COVER
                                                                                                    from £34.55
                                                                                                    from £34.55
                                                                                                    # 003
                                                                                                    MPN: 136277
                                                                                                    FRONT MUFFLER
                                                                                                    from £286.58
                                                                                                    from £286.58
                                                                                                    # 004
                                                                                                    MPN: 154984
                                                                                                    GASKET
                                                                                                    from £9.95
                                                                                                    from £9.95
                                                                                                    This part replaces part number 118338 - and 2 more. Click to view details
                                                                                                    # 005
                                                                                                    MPN: 137431
                                                                                                    SCREW
                                                                                                    from £29.80
                                                                                                    from £29.80
                                                                                                    # 006
                                                                                                    MPN: 128010
                                                                                                    WASHER
                                                                                                    from £2.16
                                                                                                    from £2.16
                                                                                                    # 007
                                                                                                    MPN: 114749
                                                                                                    SPACER
                                                                                                    from £1.24
                                                                                                    from £1.24
                                                                                                    # 008
                                                                                                    MPN: 111743
                                                                                                    SPRING
                                                                                                    from £6.85
                                                                                                    from £6.85
                                                                                                    # 009
                                                                                                    MPN: 62663300
                                                                                                    EXHAUST PROTECTION PANEL
                                                                                                    from £336.00
                                                                                                    from £336.00
                                                                                                    This part replaces part number 62662900 - and 2 more. Click to view details
                                                                                                    # 010
                                                                                                    MPN: 114748
                                                                                                    NUT
                                                                                                    from £8.85
                                                                                                    from £8.85
                                                                                                    # 011
                                                                                                    MPN: 16043421
                                                                                                    SCREW
                                                                                                    from £2.69
                                                                                                    from £2.69
                                                                                                    This part replaces part number 95524
                                                                                                    # 012
                                                                                                    MPN: 128010
                                                                                                    WASHER
                                                                                                    from £2.16
                                                                                                    from £2.16
                                                                                                    # 013
                                                                                                    MPN: 114748
                                                                                                    NUT
                                                                                                    from £8.90
                                                                                                    from £8.90
                                                                                                    # 014
                                                                                                    MPN: 136877
                                                                                                    BRACKET
                                                                                                    from £158.83
                                                                                                    from £158.83
                                                                                                    # 015
                                                                                                    MPN: 139180
                                                                                                    PAD
                                                                                                    from £170.08
                                                                                                    from £170.08
                                                                                                    # 016
                                                                                                    MPN: 10977624
                                                                                                    SCREW
                                                                                                    from £0.48
                                                                                                    from £0.48
                                                                                                    This part replaces part number 10977611 - and 1 more. Click to view details
                                                                                                    # 017
                                                                                                    MPN: 15896470
                                                                                                    NUT
                                                                                                    (minimum order quantity = 20)
                                                                                                    from £0.77
                                                                                                    from £0.77
                                                                                                    This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                    # 018
                                                                                                    MPN: 127493
                                                                                                    WASHER
                                                                                                    from £0.48
                                                                                                    from £0.48
                                                                                                    This part replaces part number 106849 - and 1 more. Click to view details
                                                                                                    # 019
                                                                                                    MPN: 137534
                                                                                                    SCREW
                                                                                                    from £12.09
                                                                                                    from £12.09
                                                                                                    # 020
                                                                                                    MPN: 114748
                                                                                                    NUT
                                                                                                    from £8.85
                                                                                                    from £8.85
                                                                                                    # 021
                                                                                                    MPN: 128010
                                                                                                    WASHER
                                                                                                    from £2.16
                                                                                                    from £2.16
                                                                                                    # 022
                                                                                                    MPN: 10007871
                                                                                                    FORK
                                                                                                    from £6.02
                                                                                                    from £6.02
                                                                                                    # 023
                                                                                                    MPN: 10050811
                                                                                                    PIN
                                                                                                    from £5.22
                                                                                                    from £5.22
                                                                                                    This part replaces part number 10050810
                                                                                                    # 024
                                                                                                    MPN: 10519624
                                                                                                    WASHER
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                    # 025
                                                                                                    MPN: 10734301
                                                                                                    SPLIT PIN
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    # 026
                                                                                                    MPN: 145741
                                                                                                    SMALL PLATE
                                                                                                    from £66.20
                                                                                                    from £66.20
                                                                                                    # 027
                                                                                                    MPN: 16043221
                                                                                                    SCREW
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 13842414 - and 1 more. Click to view details
                                                                                                    # 028
                                                                                                    MPN: 127496
                                                                                                    WASHER
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                    # 029
                                                                                                    MPN: 14058411
                                                                                                    NUT
                                                                                                    from £0.51
                                                                                                    from £0.51
                                                                                                    # 030
                                                                                                    MPN: 12644421
                                                                                                    WASHER
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 031
                                                                                                    MPN: 136275
                                                                                                    RH EXHAUST MANIFOLD
                                                                                                    With plugs for CO suction
                                                                                                    from £605.78
                                                                                                    from £605.78
                                                                                                    This part replaces part number 149947 - and 1 more. Click to view details
                                                                                                    # 031
                                                                                                    MPN: 149947
                                                                                                    RH EXHAUST MANIFOLD
                                                                                                    Without plugs for CO suction Valid for USA, CDN, CH
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 032
                                                                                                    MPN: 136276
                                                                                                    LH EXHAUST MANIFOLD
                                                                                                    With plugs for CO suction
                                                                                                    from £576.93
                                                                                                    from £576.93
                                                                                                    This part replaces part number 149948 - and 1 more. Click to view details
                                                                                                    # 032
                                                                                                    MPN: 149948
                                                                                                    LH EXHAUST MANIFOLD
                                                                                                    Without plugs for CO suction Valid for USA, CDN, CH
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 033
                                                                                                    MPN: 138076
                                                                                                    GASKET
                                                                                                    from £6.18
                                                                                                    from £6.18
                                                                                                    This part replaces part number 133908
                                                                                                    # 034
                                                                                                    MPN: 154984
                                                                                                    GASKET
                                                                                                    from £9.95
                                                                                                    from £9.95
                                                                                                    This part replaces part number 118338 - and 2 more. Click to view details
                                                                                                    # 035
                                                                                                    MPN: 110860
                                                                                                    THREADED PLUG
                                                                                                    from £9.60
                                                                                                    from £9.60
                                                                                                    This part replaces part number 11903240
                                                                                                    # 036
                                                                                                    MPN: 10298460
                                                                                                    GASKET
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 93353
                                                                                                    # 037
                                                                                                    MPN: 134001
                                                                                                    RH CATALYST
                                                                                                    not as spare part - replaced by part number: 160506 (replace in pairs)
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    This part replaces part number 136273
                                                                                                    # 037
                                                                                                    MPN: 143871
                                                                                                    EXHAUST PRE-MUFFLER
                                                                                                    Valid for not catalyzed cars With pipes for CO suction
                                                                                                    from £250.00
                                                                                                    from £250.00
                                                                                                    # 037
                                                                                                    MPN: 151609
                                                                                                    EXHAUST PRE-MUFFLER
                                                                                                    Valid for not catalyzed cars Valid for oxygen sensor 151667
                                                                                                    from £259.18
                                                                                                    from £259.18
                                                                                                    # 037
                                                                                                    MPN: 160506

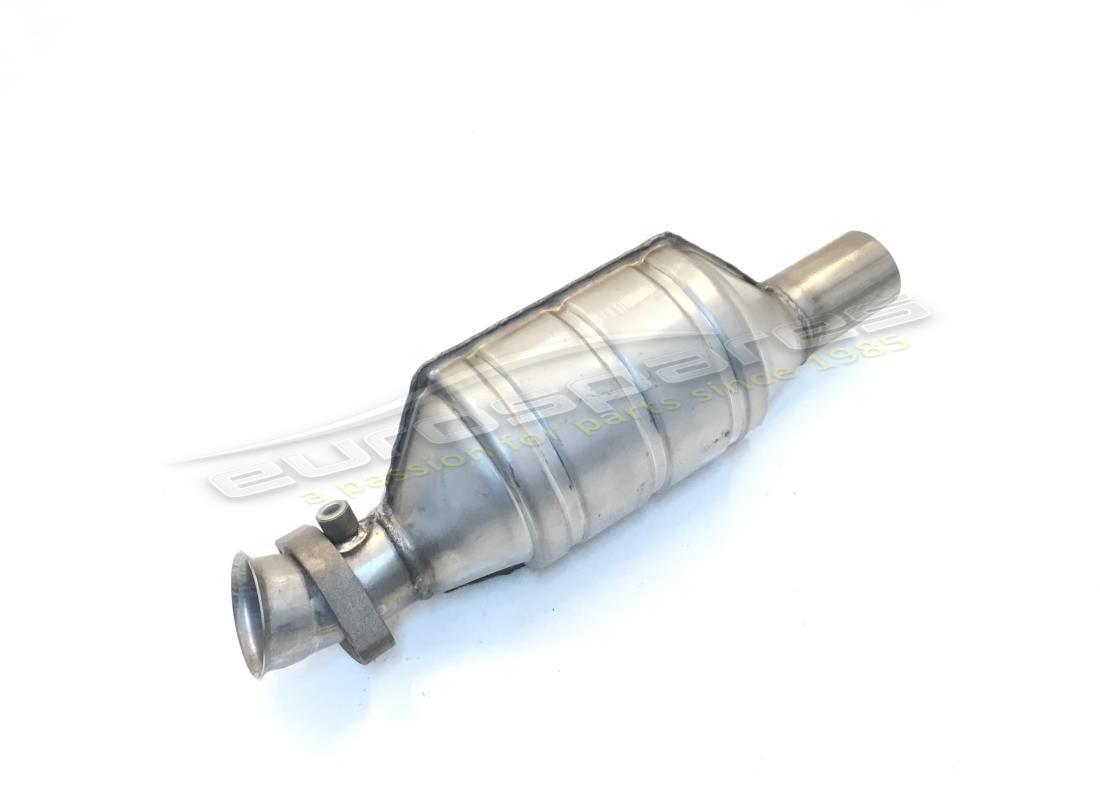

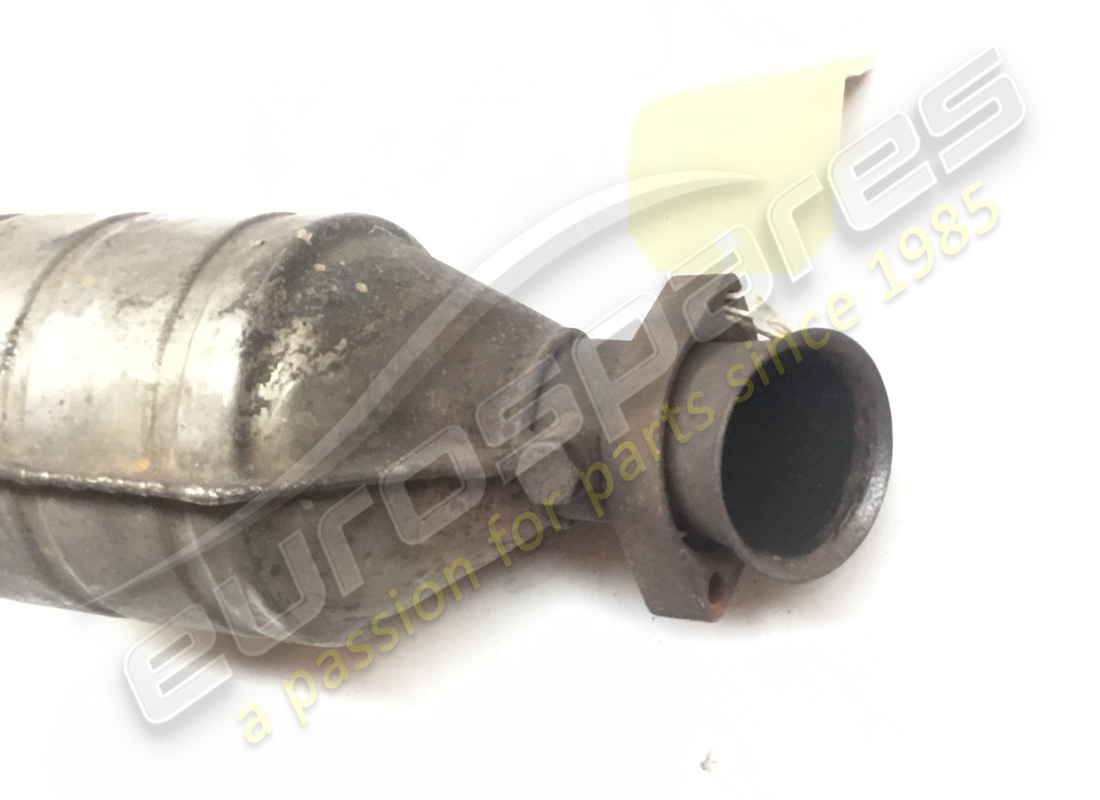

                                                                                                    CATALYTIC CONVERTER
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    This part replaces part number 134001 - and 2 more. Click to view details
                                                                                                    # 037
                                                                                                    MPN: 160506
                                                                                                    CATALYTIC CONVERTER
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    This part replaces part number 134001 - and 2 more. Click to view details
                                                                                                    # 038
                                                                                                    MPN: 137431
                                                                                                    SCREW
                                                                                                    from £29.00
                                                                                                    from £29.00
                                                                                                    # 039
                                                                                                    MPN: 128010
                                                                                                    WASHER
                                                                                                    from £2.16
                                                                                                    from £2.16
                                                                                                    # 040
                                                                                                    MPN: 114749
                                                                                                    SPACER
                                                                                                    from £1.24
                                                                                                    from £1.24
                                                                                                    # 041
                                                                                                    MPN: 111743
                                                                                                    SPRING
                                                                                                    from £6.85
                                                                                                    from £6.85
                                                                                                    # 042
                                                                                                    MPN: 141874
                                                                                                    FLANGED STUB PIPE
                                                                                                    from £210.37
                                                                                                    from £210.37
                                                                                                    # 043
                                                                                                    MPN: 121515

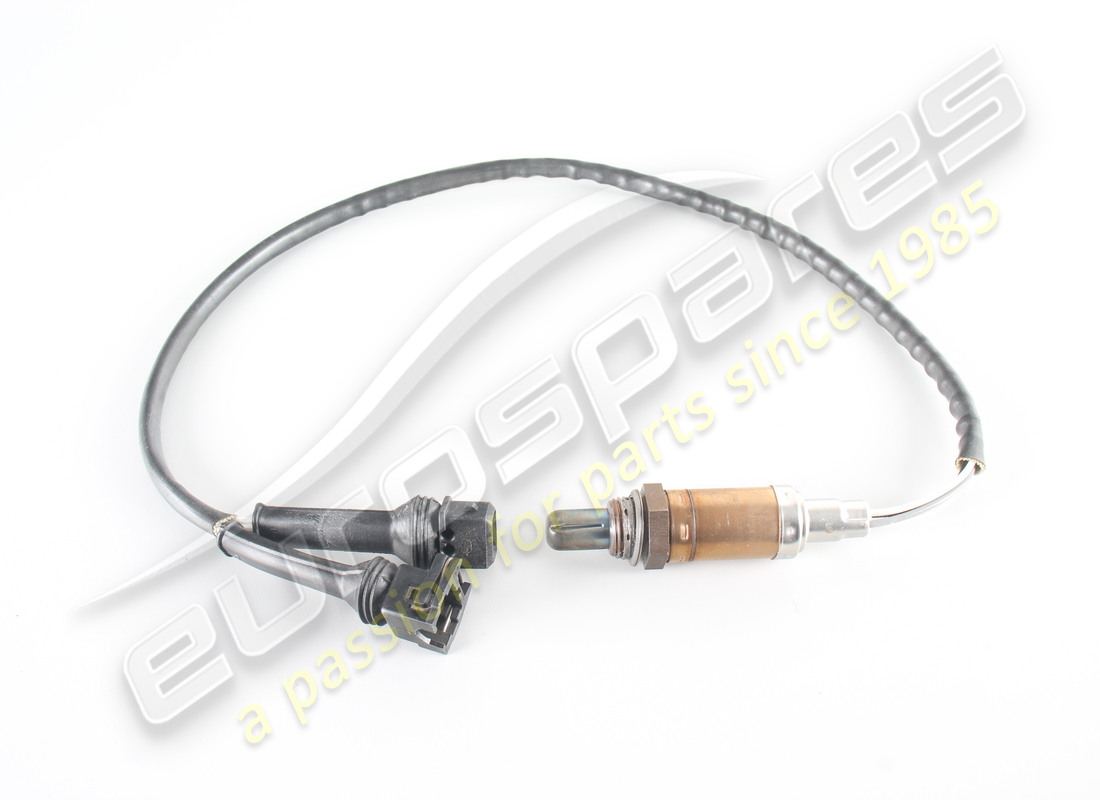

                                                                                                    OXYGEN SENSOR
                                                                                                    Valid for M. 2.5
                                                                                                    from £190.51
                                                                                                    from £190.51
                                                                                                    This part replaces part number 125881
                                                                                                    # 044
                                                                                                    MPN: 142514

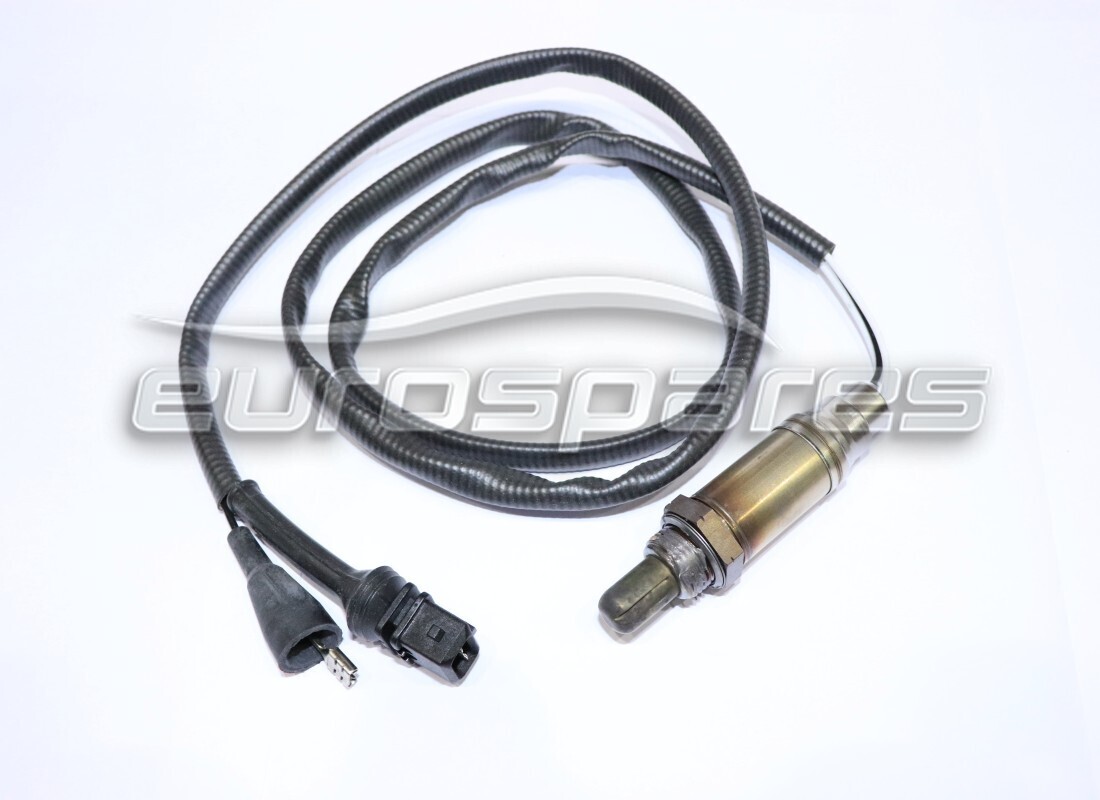

                                                                                                    OXYGEN SENSOR
                                                                                                    Valid for M. 2.7 Valid for ignition/supply contro system
                                                                                                    from £239.29
                                                                                                    from £239.29
                                                                                                    # 044
                                                                                                    MPN: 146650
                                                                                                    OXYGEN SENSOR
                                                                                                    Valid for M. 2.7 Valid for ignition/supply control system 147176 ref. BOSCH 0261200489
                                                                                                    from £133.12
                                                                                                    from £133.12
                                                                                                    # 044
                                                                                                    MPN: 151667
                                                                                                    OXYGEN SENSOR
                                                                                                    Valid for not catalyzed cars with pre-muffler 151609
                                                                                                    from £369.82
                                                                                                    from £369.82
                                                                                                    # 045
                                                                                                    MPN: 141037

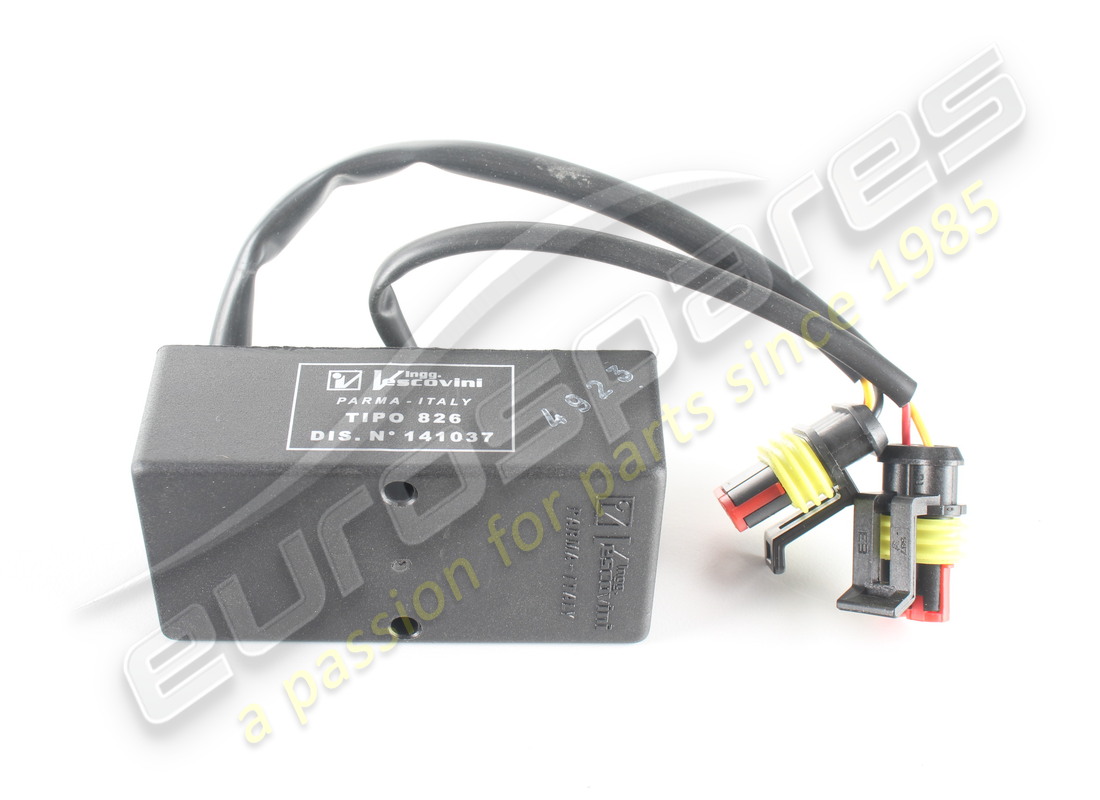

                                                                                                    CONTROL STATION
                                                                                                    Valid for M 2.5 Not for SA
                                                                                                    from £341.91
                                                                                                    from £341.91
                                                                                                    # 046
                                                                                                    MPN: 142581
                                                                                                    CONTROL STATION
                                                                                                    Valid for M. 2.7 Valid for SA
                                                                                                    from £426.98
                                                                                                    from £426.98
                                                                                                    # 047
                                                                                                    MPN: 145487
                                                                                                    BRACKET
                                                                                                    Valid for M. 2.7
                                                                                                    from £11.76
                                                                                                    from £11.76
                                                                                                    # 048
                                                                                                    MPN: 145473
                                                                                                    CLIP
                                                                                                    Valid for M. 2.7
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 049
                                                                                                    MPN: 12574011
                                                                                                    NUT
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    # 050
                                                                                                    MPN: 14496204
                                                                                                    WASHER
                                                                                                    from £0.48
                                                                                                    from £0.48
                                                                                                    This part replaces part number 14496201
                                                                                                    # 051
                                                                                                    MPN: 62844200
                                                                                                    BRACKET FOR CONTROL UNIT
                                                                                                    from £9.66
                                                                                                    from £9.66
                                                                                                    # 052
                                                                                                    MPN: 10444621
                                                                                                    SCREW
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    # 053
                                                                                                    MPN: 143851
                                                                                                    SUPPORT
                                                                                                    from £2.36
                                                                                                    from £2.36
                                                                                                    # 055
                                                                                                    MPN: 12639701
                                                                                                    WASHER
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    This part replaces part number 12639704
                                                                                                    # 056
                                                                                                    MPN: 144270
                                                                                                    THERMOCOUPLE
                                                                                                    from £557.62
                                                                                                    from £557.62
                                                                                                    # 057
                                                                                                    MPN: 144036
                                                                                                    CLIP
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 058
                                                                                                    MPN: 114748
                                                                                                    NUT
                                                                                                    from £8.76
                                                                                                    from £8.76
                                                                                                    # 059
                                                                                                    MPN: 63006500
                                                                                                    UPPER REAR SHIELD
                                                                                                    from £814.95
                                                                                                    from £814.95
                                                                                                    # 060
                                                                                                    MPN: 63547900
                                                                                                    BUMPER PROTECTION SHIELD
                                                                                                    valid till car Ass.nr.12478 valid for fiberglass bumber valid fro USA,CDN,SA and J
                                                                                                    from £818.67
                                                                                                    from £818.67
                                                                                                    # 060
                                                                                                    MPN: 63632900
                                                                                                    BUMPER PROTECTION SHIELD
                                                                                                    Valid from car Ass. Nr. 12479 Valid for RIM bumper Not for USA, CDN, SA and J
                                                                                                    from £548.87
                                                                                                    from £548.87
                                                                                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
