ferrari 348 (1993) tb / ts cooling system radiators parts diagram

019 - Cooling System Radiators

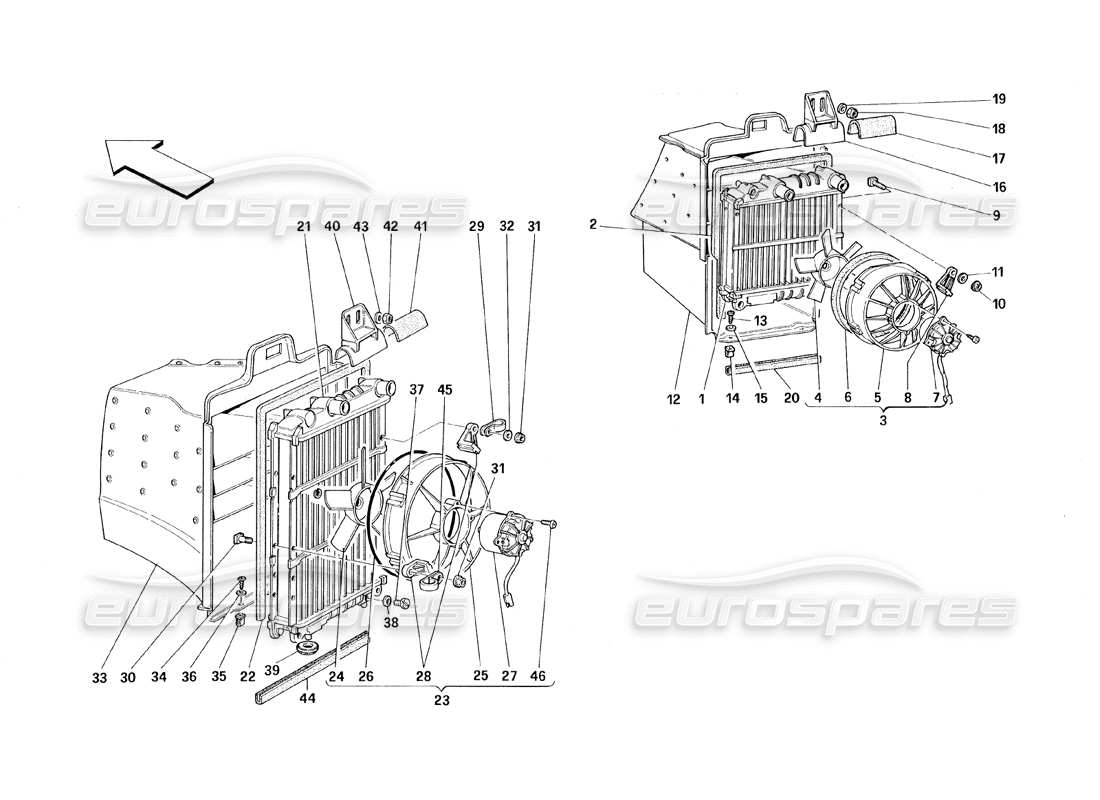

Ferrari 348 (1993) TB / TS Cooling System Radiators Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Price
                                                                                          # 001
                                                                                          MPN: 137619

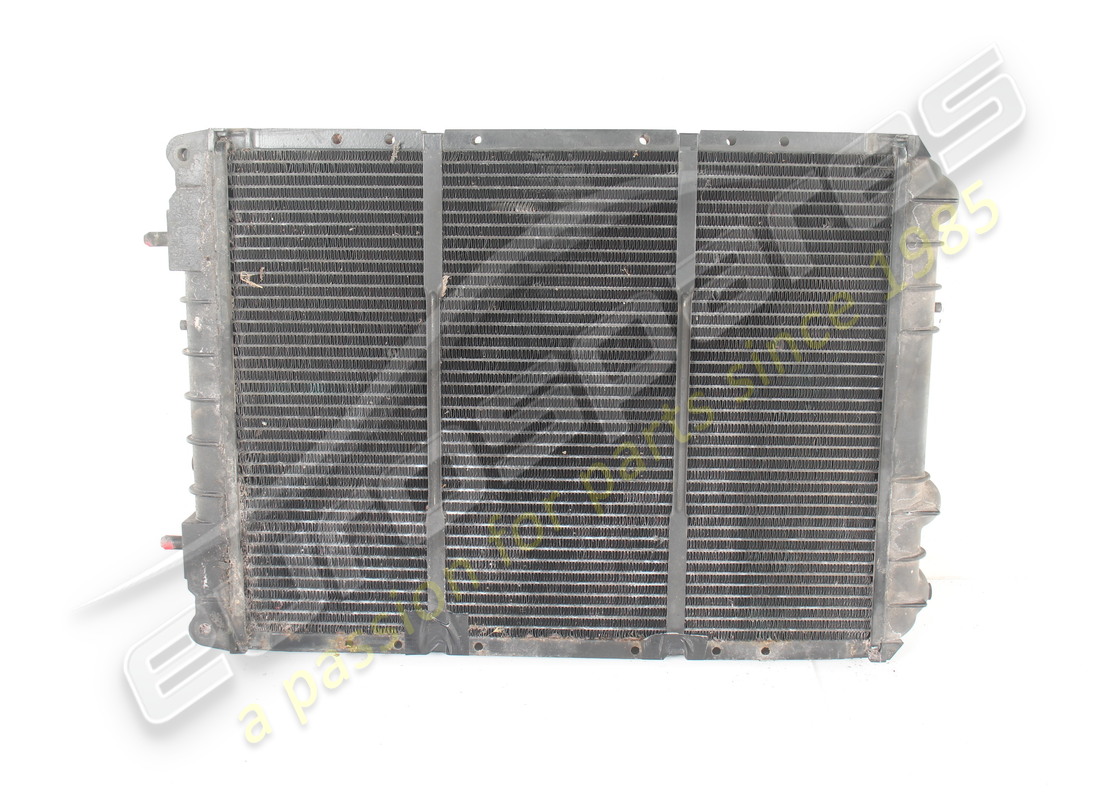

                                                                                          WATER RH RADIATOR
                                                                                          from £1,254.75
                                                                                          from £1,254.75
                                                                                          This part replaces part number 139907 - and 1 more. Click to view details
                                                                                          # 002
                                                                                          MPN: 63370800
                                                                                          UPPER GASKET
                                                                                          from £4.09
                                                                                          from £4.09
                                                                                          # 003
                                                                                          MPN: 140403

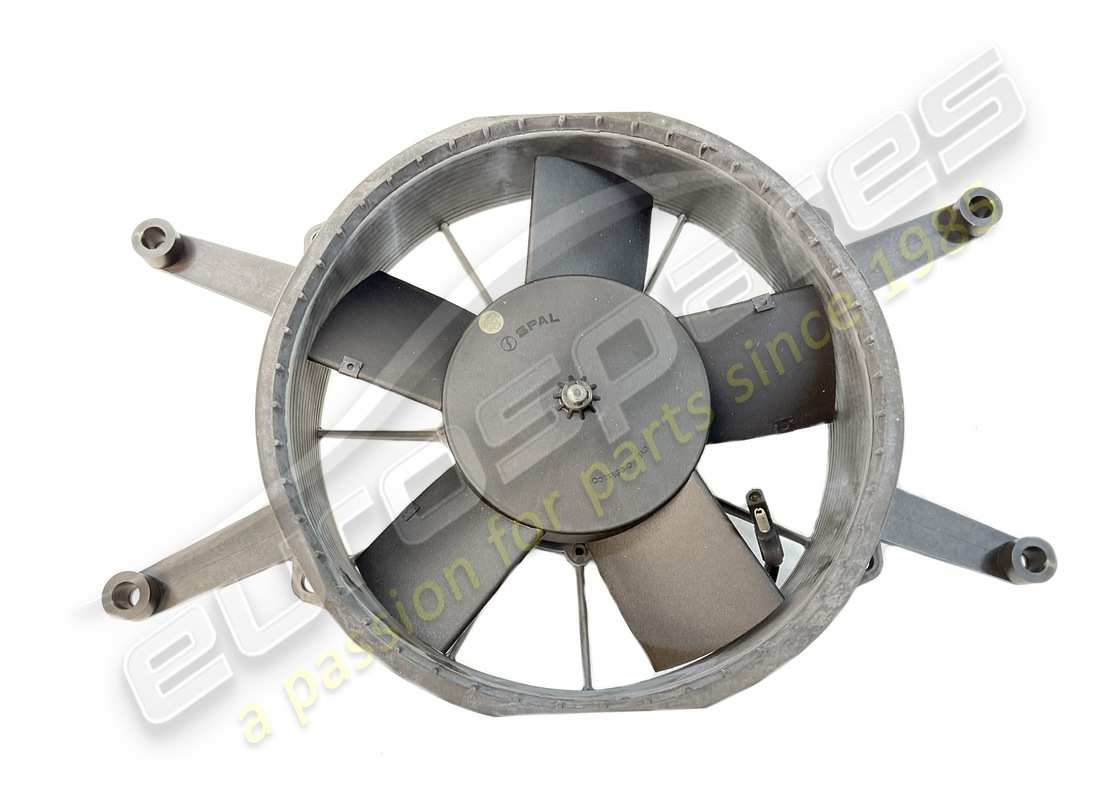

                                                                                          COMPLETE RH ELECTROFAN
                                                                                          from £154.85
                                                                                          from £154.85
                                                                                          # 004
                                                                                          MPN: 143544
                                                                                          BLOWER
                                                                                          from £30.41
                                                                                          from £30.41
                                                                                          # 005
                                                                                          MPN: 143545
                                                                                          AIR CONVEYOR
                                                                                          from £16.20
                                                                                          from £16.20
                                                                                          # 006
                                                                                          MPN: 147577
                                                                                          RUBBER EDGE
                                                                                          from £12.23
                                                                                          from £12.23
                                                                                          # 007
                                                                                          MPN: 143543
                                                                                          MOTOR
                                                                                          from £55.40
                                                                                          from £55.40
                                                                                          # 008
                                                                                          MPN: 147576
                                                                                          SUPPORT
                                                                                          from £3.35
                                                                                          from £3.35
                                                                                          # 009
                                                                                          MPN: 11944811
                                                                                          SCREW
                                                                                          from £0.95
                                                                                          from £0.95
                                                                                          # 010
                                                                                          MPN: 14058411
                                                                                          NUT
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 011
                                                                                          MPN: 12644401
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 012
                                                                                          MPN: 62097900
                                                                                          RH AIR INLET
                                                                                          plastic
                                                                                          from £472.26
                                                                                          from £472.26
                                                                                          # 012
                                                                                          MPN: 62097900/A
                                                                                          RH AIR INLET
                                                                                          Fibreglass
                                                                                          from £309.75
                                                                                          from £309.75
                                                                                          # 013
                                                                                          MPN: 15903901
                                                                                          SCREW
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 014
                                                                                          MPN: 14202580
                                                                                          BLOCK
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 015
                                                                                          MPN: 12638101
                                                                                          WASHER
                                                                                          from £0.71
                                                                                          from £0.71
                                                                                          # 016
                                                                                          MPN: 137621

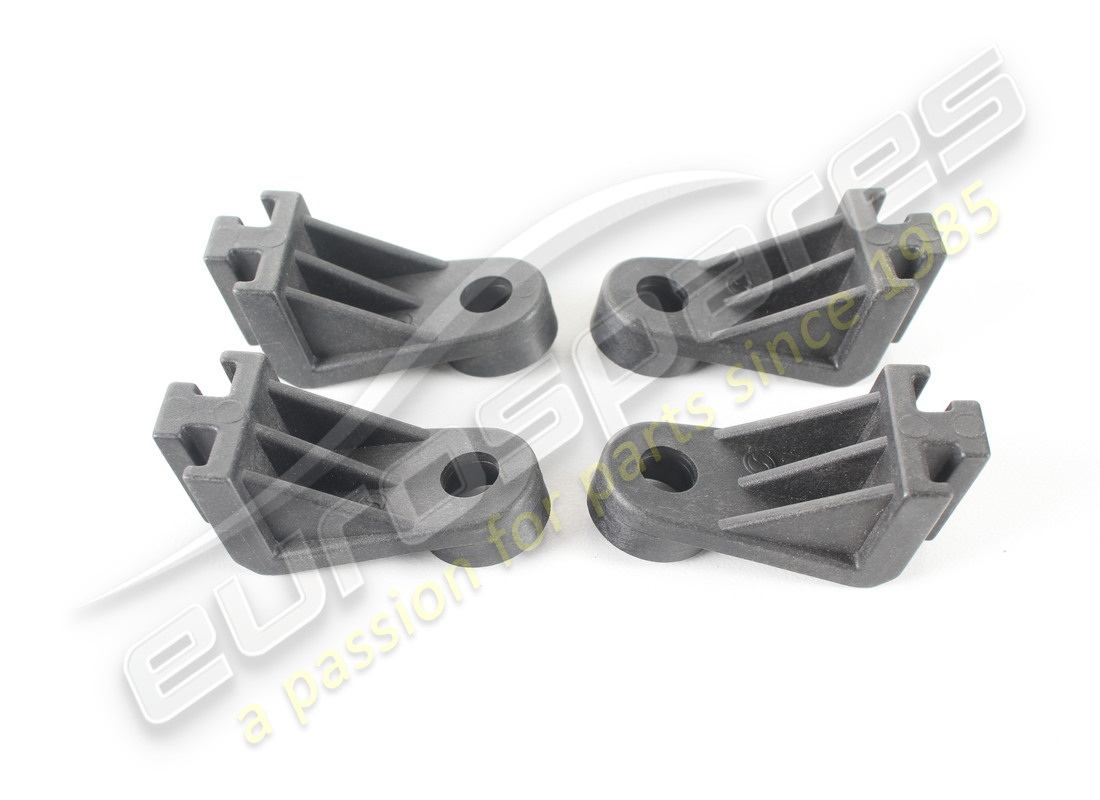

                                                                                          RADIATOR FASTENING BRACKET
                                                                                          from £9.31
                                                                                          from £9.31
                                                                                          # 017
                                                                                          MPN: 137630
                                                                                          RUBBER THICKNESS
                                                                                          from £11.76
                                                                                          from £11.76
                                                                                          # 018
                                                                                          MPN: 16104411
                                                                                          NUT
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 019
                                                                                          MPN: 12646724
                                                                                          WASHER
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          This part replaces part number 12601571 which we have in stock - and 2 more. Click to view details
                                                                                          # 020
                                                                                          MPN: 63370900
                                                                                          LOWER GASKET
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 021
                                                                                          MPN: 137617

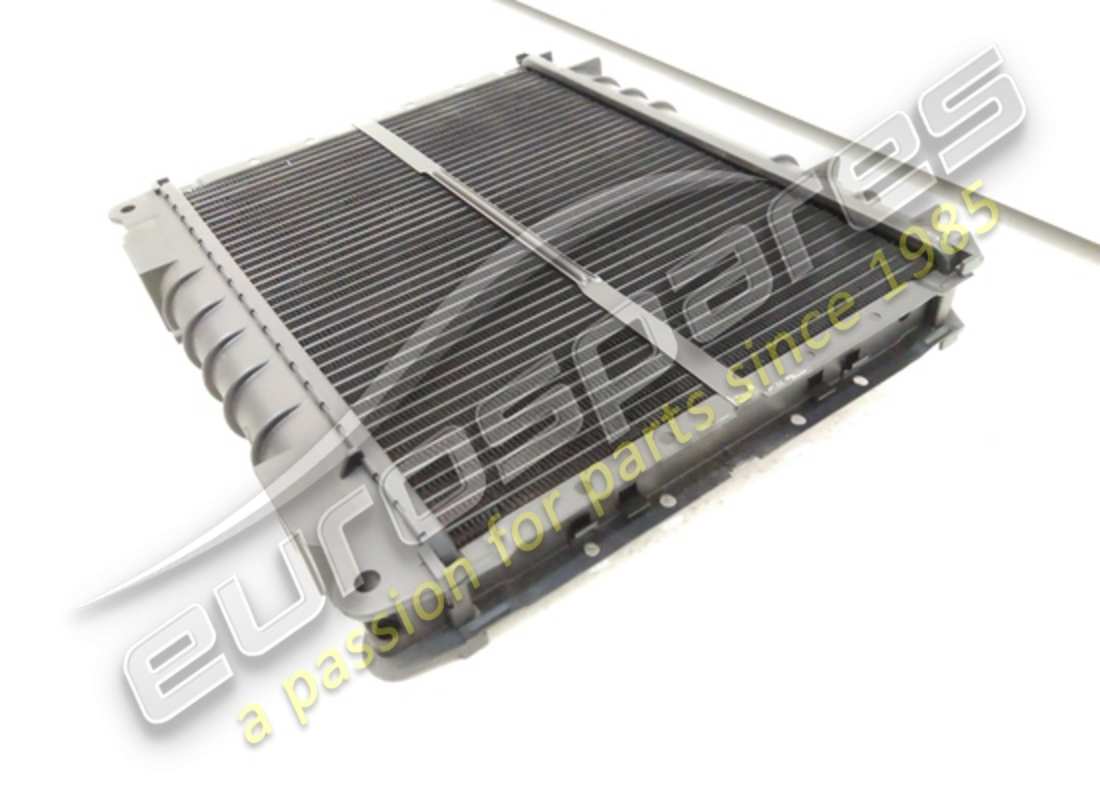

                                                                                          WATER LH RADIATOR
                                                                                          from £5,002.09
                                                                                          from £5,002.09
                                                                                          This part replaces part number 139908
                                                                                          # 022
                                                                                          MPN: 63370800
                                                                                          UPPER GASKET
                                                                                          from £4.09
                                                                                          from £4.09
                                                                                          # 023
                                                                                          MPN: 140404
                                                                                          COMPLETE LH ELECTROFAN
                                                                                          from £157.22
                                                                                          from £157.22
                                                                                          # 024
                                                                                          MPN: 147579
                                                                                          BLOWER
                                                                                          from £27.81
                                                                                          from £27.81
                                                                                          # 025
                                                                                          MPN: 147578
                                                                                          AIR CONVEYOR
                                                                                          from £32.12
                                                                                          from £32.12
                                                                                          # 026
                                                                                          MPN: 147580

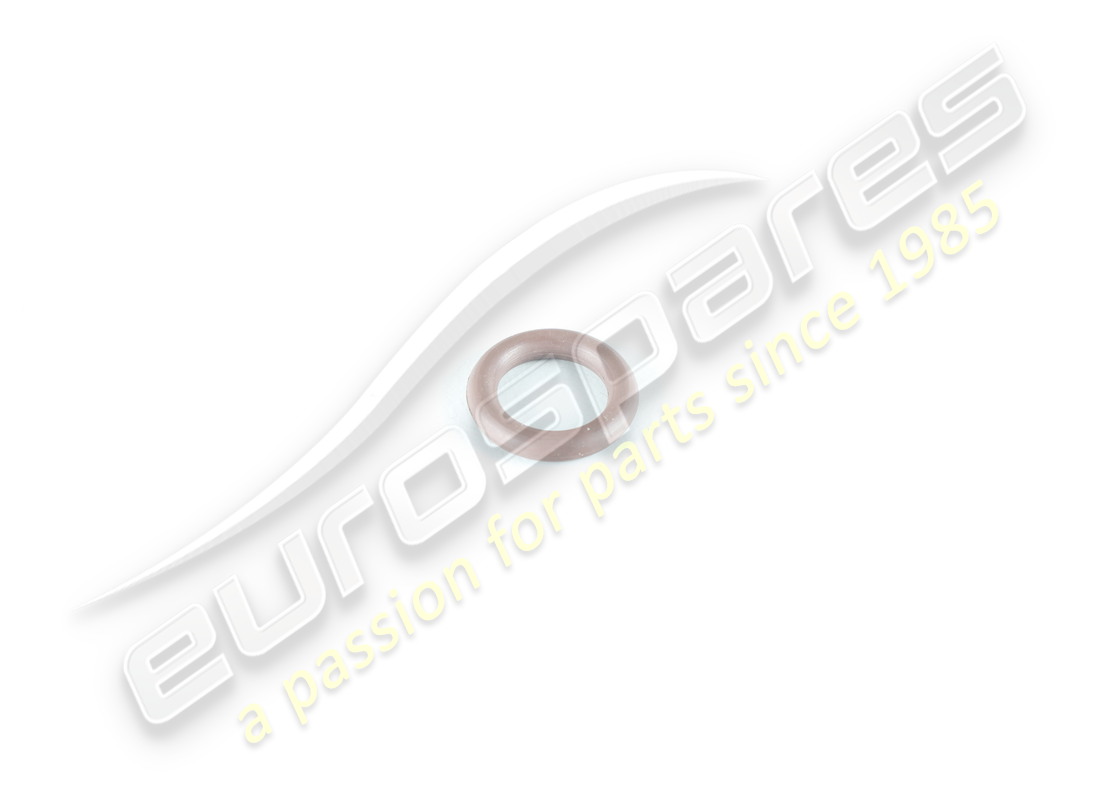

                                                                                          O.R. GASKET
                                                                                          from £3.01
                                                                                          from £3.01
                                                                                          # 027
                                                                                          MPN: 143543
                                                                                          MOTOR
                                                                                          from £55.40
                                                                                          from £55.40
                                                                                          # 028
                                                                                          MPN: 147581
                                                                                          SUPPORT
                                                                                          from £13.34
                                                                                          from £13.34
                                                                                          # 029
                                                                                          MPN: 10418301
                                                                                          BRACKET
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          # 030
                                                                                          MPN: 11944511
                                                                                          SCREW
                                                                                          from £1.61
                                                                                          from £1.61
                                                                                          # 031
                                                                                          MPN: 14058411
                                                                                          NUT
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 032
                                                                                          MPN: 12644401
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 033
                                                                                          MPN: 62098000
                                                                                          LH AIR INLET
                                                                                          plastic
                                                                                          from £396.62
                                                                                          from £396.62
                                                                                          # 033
                                                                                          MPN: 62098000/A
                                                                                          LH AIR INLET
                                                                                          Fibreglass
                                                                                          from £309.75
                                                                                          from £309.75
                                                                                          # 034
                                                                                          MPN: 15903901
                                                                                          SCREW
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 035
                                                                                          MPN: 14202580
                                                                                          BLOCK
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 036
                                                                                          MPN: 12638101
                                                                                          WASHER
                                                                                          from £0.71
                                                                                          from £0.71
                                                                                          # 037
                                                                                          MPN: 140149

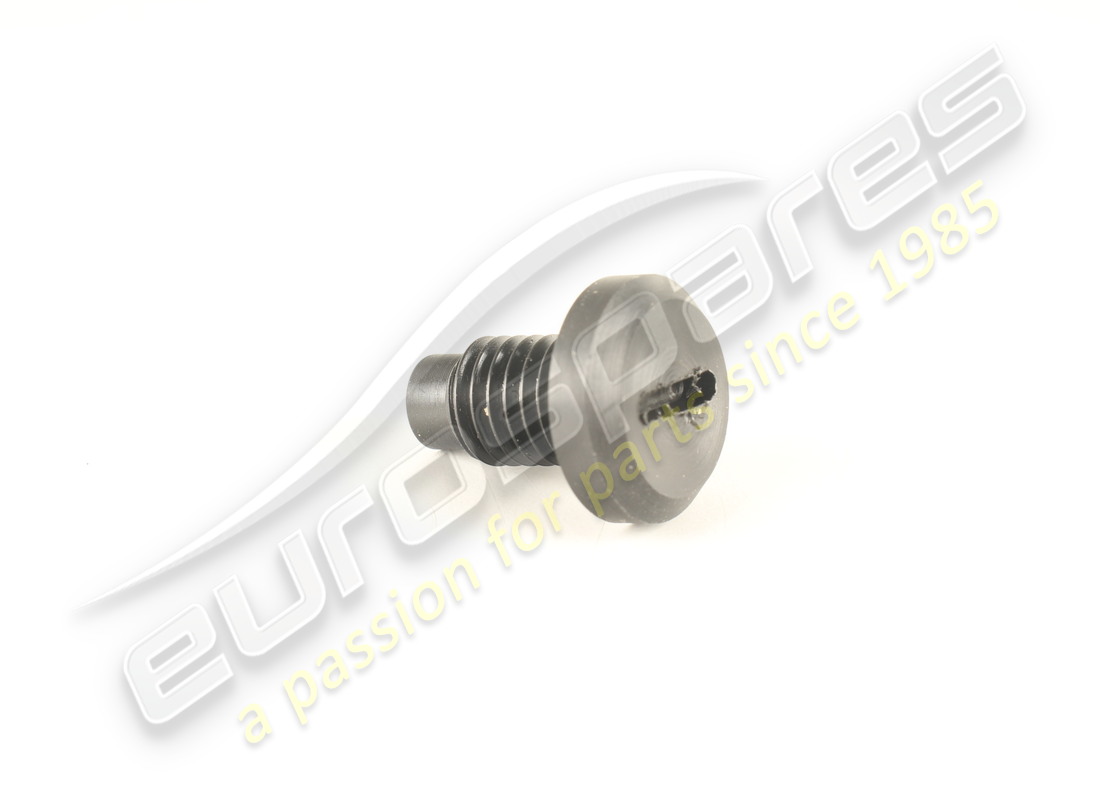

                                                                                          THREADED PLUG
                                                                                          from £10.53
                                                                                          from £10.53
                                                                                          # 038
                                                                                          MPN: 140150
                                                                                          GASKET
                                                                                          from £1.02
                                                                                          from £1.02
                                                                                          # 039
                                                                                          MPN: 137624

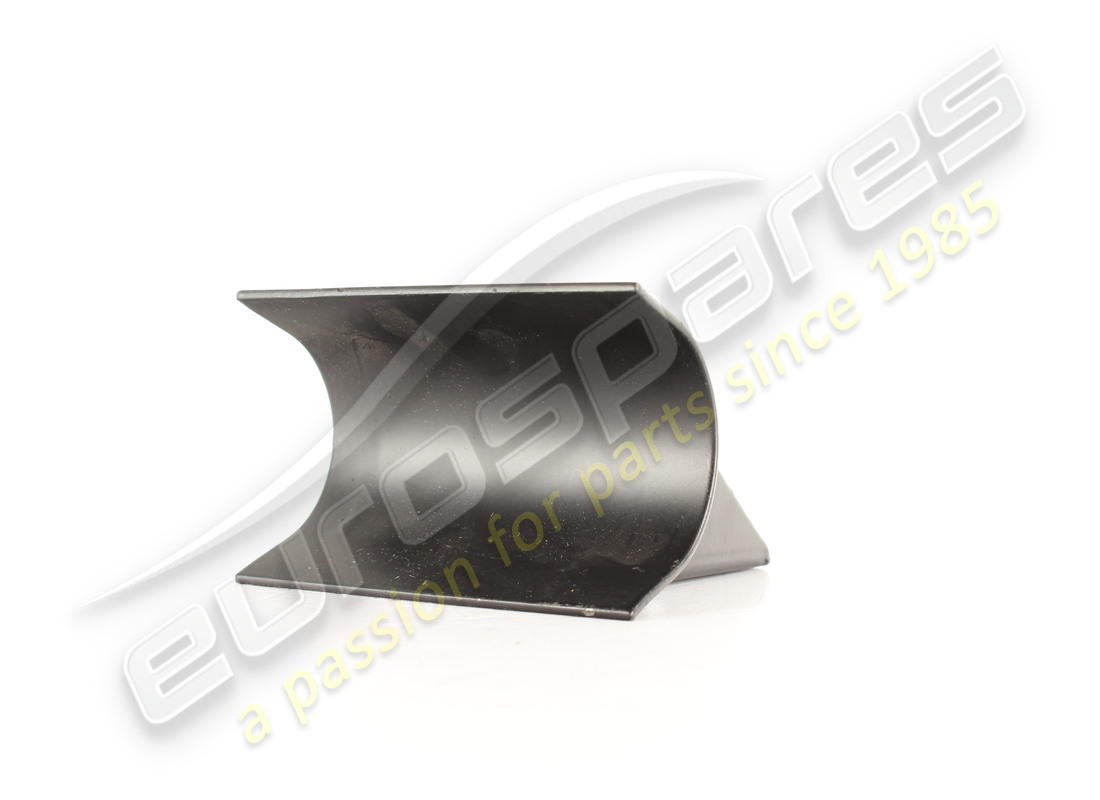

                                                                                          PAD
                                                                                          from £23.05
                                                                                          from £23.05
                                                                                          # 040
                                                                                          MPN: 137621
                                                                                          RADIATOR FASTENING BRACKET
                                                                                          from £9.31
                                                                                          from £9.31
                                                                                          # 041
                                                                                          MPN: 137630
                                                                                          RUBBER THICKNESS
                                                                                          from £11.76
                                                                                          from £11.76
                                                                                          # 042
                                                                                          MPN: 16104411
                                                                                          NUT
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 043
                                                                                          MPN: 12646724
                                                                                          WASHER
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          This part replaces part number 12601571 which we have in stock - and 2 more. Click to view details
                                                                                          # 044
                                                                                          MPN: 63370900
                                                                                          LOWER GASKET
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 045
                                                                                          MPN: 10418801
                                                                                          BRACKET
                                                                                          from £0.51
                                                                                          from £0.51
                                                                                          # 046
                                                                                          MPN: 123298

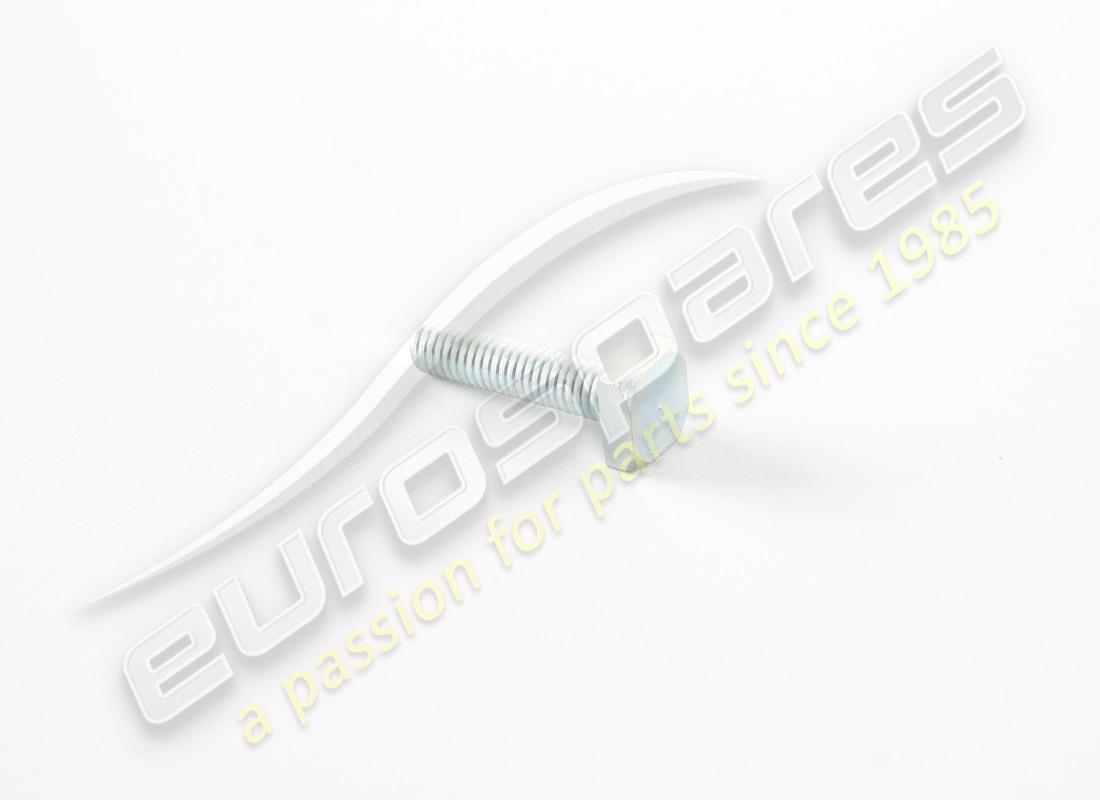

                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
