ferrari 348 (1993) tb / ts clutch release control parts diagram

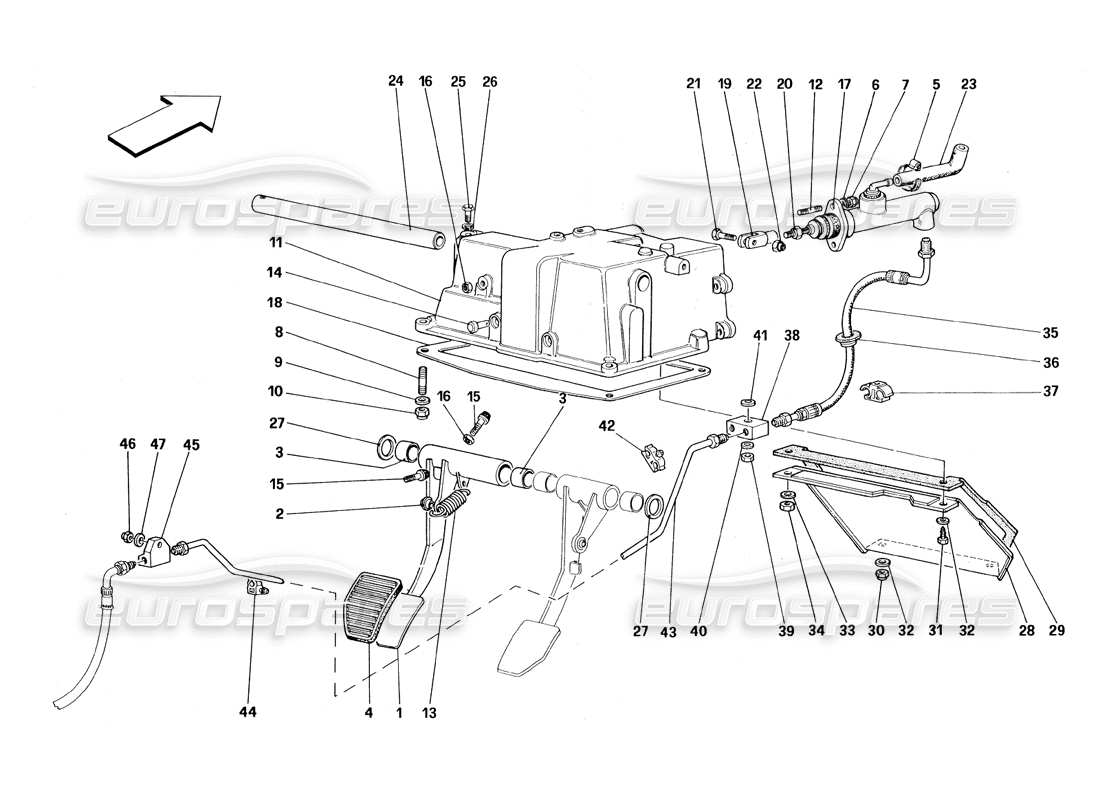

022A - clutch release control

Ferrari 348 (1993) TB / TS Clutch Release Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Price
                                                                                        # 001
                                                                                        MPN: 149324
                                                                                        CLUTCH PEDAL
                                                                                        Valid till car Ass. Nr. 8540
                                                                                        from £546.03
                                                                                        from £546.03
                                                                                        This part replaces part number 139392
                                                                                        # 001
                                                                                        MPN: 149863
                                                                                        CLUTCH PEDAL
                                                                                        Valid from car Ass. Nr. 8541
                                                                                        from £11.86
                                                                                        from £11.86
                                                                                        # 002
                                                                                        MPN: 109407
                                                                                        BALL JOINT
                                                                                        from £22.42
                                                                                        from £22.42
                                                                                        # 003
                                                                                        MPN: 103163
                                                                                        BUSHING
                                                                                        from £2.92
                                                                                        from £2.92
                                                                                        # 004
                                                                                        MPN: 132818
                                                                                        PEDAL RUBBER
                                                                                        Valid for pedal 149324
                                                                                        from £6.71
                                                                                        from £6.71
                                                                                        # 004
                                                                                        MPN: 149295
                                                                                        PEDAL RUBBER
                                                                                        Valid for pedal 149868
                                                                                        from £63.67
                                                                                        from £63.67
                                                                                        # 005
                                                                                        MPN: 12179190
                                                                                        SCREW COLLAR
                                                                                        Supersession
                                                                                        Supersession
                                                                                        This part replaces part number 102604
                                                                                        # 007
                                                                                        MPN: 133215
                                                                                        NUT
                                                                                        Supersession
                                                                                        Supersession
                                                                                        This part replaces part number 64342800
                                                                                        # 008
                                                                                        MPN: 13516824
                                                                                        STUD
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 13516821
                                                                                        # 009
                                                                                        MPN: 14499401
                                                                                        WASHER
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 010
                                                                                        MPN: 104030
                                                                                        SELF LOCKING NUT
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 16104125
                                                                                        # 010
                                                                                        MPN: 148261
                                                                                        RHD PEDAL SUPPORT
                                                                                        from £513.54
                                                                                        from £513.54
                                                                                        This part replaces part number 138311 - and 1 more. Click to view details
                                                                                        # 011
                                                                                        -
                                                                                        PEDAL SUPPORT
                                                                                        # 012
                                                                                        MPN: 13516824
                                                                                        STUD
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 13516821
                                                                                        # 013
                                                                                        MPN: 101305
                                                                                        SPRING
                                                                                        from £8.31
                                                                                        from £8.31
                                                                                        This part replaces part number 660343
                                                                                        # 014
                                                                                        MPN: 129612
                                                                                        PIN
                                                                                        from £1.41
                                                                                        from £1.41
                                                                                        # 015
                                                                                        MPN: 144011
                                                                                        PEDAL ADJUSTEMENT CAP
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 016
                                                                                        MPN: 16102311
                                                                                        NUT
                                                                                        from £0.43
                                                                                        from £0.43
                                                                                        This part replaces part number 16102315
                                                                                        # 017
                                                                                        MPN: 175211
                                                                                        Clutch Pump
                                                                                        from £88.80
                                                                                        from £88.80
                                                                                        This part replaces part number 123416 - and 4 more. Click to view details
                                                                                        # 018
                                                                                        MPN: 129615
                                                                                        GASKET
                                                                                        from £8.77
                                                                                        from £8.77
                                                                                        # 019
                                                                                        MPN: 10248271
                                                                                        FORK
                                                                                        from £13.11
                                                                                        from £13.11
                                                                                        # 020
                                                                                        MPN: 16102311
                                                                                        NUT
                                                                                        from £0.43
                                                                                        from £0.43
                                                                                        This part replaces part number 16102315
                                                                                        # 021
                                                                                        MPN: 130926
                                                                                        SCREW
                                                                                        from £3.70
                                                                                        from £3.70
                                                                                        # 023
                                                                                        MPN: 134903
                                                                                        PIPE FROM PUMP TO TANK
                                                                                        from £1.80
                                                                                        from £1.80
                                                                                        # 024
                                                                                        MPN: 131319
                                                                                        PEDAL FASTENING PIN
                                                                                        from £76.67
                                                                                        from £76.67
                                                                                        # 025
                                                                                        MPN: 10902224
                                                                                        SCREW
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 026
                                                                                        MPN: 12601274
                                                                                        WASHER
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                        # 027
                                                                                        MPN: 106083
                                                                                        SPACER WASHER
                                                                                        mm. 1,0
                                                                                        from £0.71
                                                                                        from £0.71
                                                                                        # 027
                                                                                        MPN: 113833
                                                                                        SPACER WASHER
                                                                                        mm. 1,1
                                                                                        from £1.89
                                                                                        from £1.89
                                                                                        # 027
                                                                                        MPN: 113834
                                                                                        SPACER WASHER
                                                                                        mm. 1,2
                                                                                        from £2.10
                                                                                        from £2.10
                                                                                        # 027
                                                                                        MPN: 113835
                                                                                        SPACER WASHER
                                                                                        mm. 1,3
                                                                                        from £1.89
                                                                                        from £1.89
                                                                                        # 027
                                                                                        MPN: 113836
                                                                                        SPACER WASHER
                                                                                        mm. 1,4
                                                                                        from £2.37
                                                                                        from £2.37
                                                                                        # 028
                                                                                        MPN: 62164600
                                                                                        PEDAL SUPPORT GUARD
                                                                                        from £34.73
                                                                                        from £34.73
                                                                                        # 029
                                                                                        MPN: 62697800
                                                                                        GASKET
                                                                                        from £6.81
                                                                                        from £6.81
                                                                                        # 030
                                                                                        MPN: 12574211
                                                                                        NUT
                                                                                        from £0.71
                                                                                        from £0.71
                                                                                        # 031
                                                                                        MPN: 15925601
                                                                                        SCREW
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 032
                                                                                        MPN: 12646601
                                                                                        WASHER
                                                                                        from £0.71
                                                                                        from £0.71
                                                                                        # 034
                                                                                        MPN: 104030
                                                                                        SELF LOCKING NUT
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 16104125
                                                                                        # 035
                                                                                        MPN: 140669
                                                                                        HOSE
                                                                                        from £126.34
                                                                                        from £126.34
                                                                                        # 036
                                                                                        MPN: 105369
                                                                                        CABLE GROMMET
                                                                                        from £19.10
                                                                                        from £19.10
                                                                                        # 037
                                                                                        MPN: 141699
                                                                                        CLIP
                                                                                        from £0.74
                                                                                        from £0.74
                                                                                        # 038
                                                                                        MPN: 139375
                                                                                        UNION
                                                                                        from £83.52
                                                                                        from £83.52
                                                                                        # 040
                                                                                        MPN: 12639701
                                                                                        WASHER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        This part replaces part number 12639704
                                                                                        # 041
                                                                                        MPN: 143041
                                                                                        SPACER
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 042
                                                                                        MPN: 145473
                                                                                        CLIP
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 043
                                                                                        MPN: 140666
                                                                                        INTERMEDIATE TUBE
                                                                                        from £81.05
                                                                                        from £81.05
                                                                                        # 044
                                                                                        MPN: 141521
                                                                                        CLIP
                                                                                        from £1.98
                                                                                        from £1.98
                                                                                        # 047
                                                                                        MPN: 12639701
                                                                                        WASHER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        This part replaces part number 12639704
