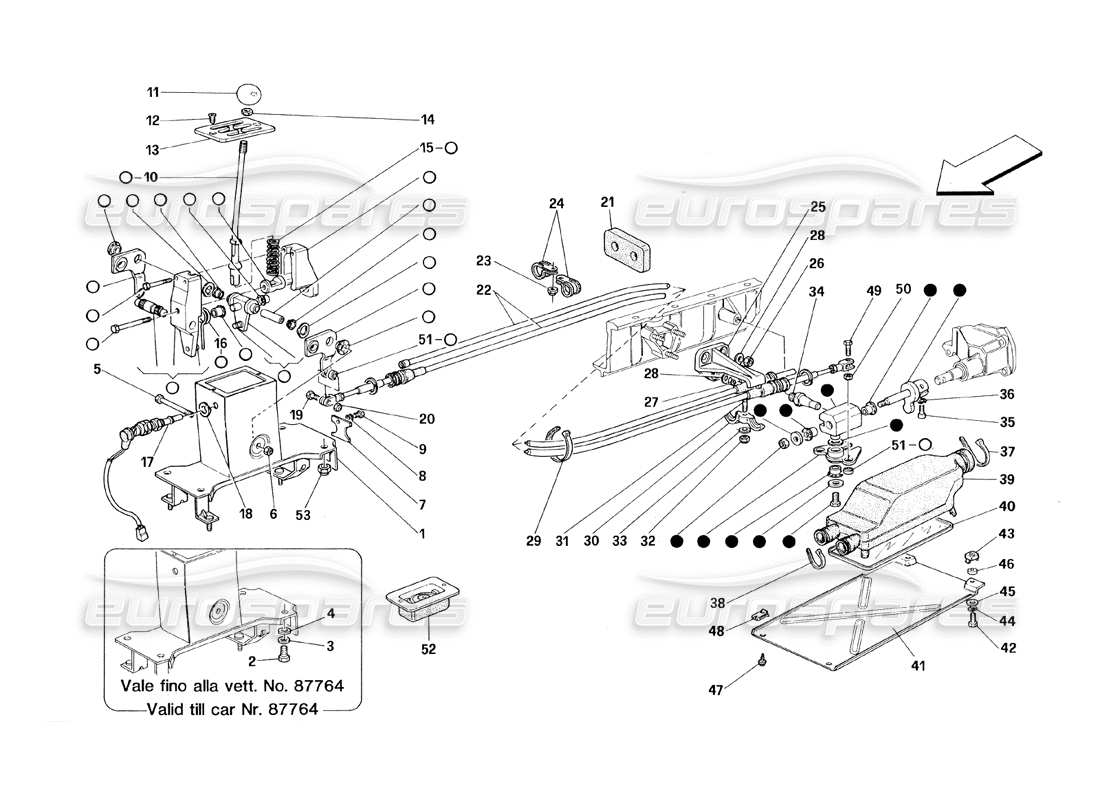

028 - Outside Gearbox Controls

Ferrari 348 (1993) TB / TS OuTSide Gearbox Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                      #
                                                                                                      Part number
                                                                                                      Description
                                                                                                      Price
                                                                                                      # 000
                                                                                                      -
                                                                                                      not as spare part
                                                                                                      # 000
                                                                                                      -
                                                                                                      not as spare part
                                                                                                      # 000
                                                                                                      MPN: 144743
                                                                                                      GEARBOX CONTROL ASSEMBLY
                                                                                                      from £1,612.24
                                                                                                      from £1,612.24
                                                                                                      # 000
                                                                                                      MPN: 149570
                                                                                                      INNER CONTROL DRIVING GEAR ASSEMBLY
                                                                                                      from £997.50
                                                                                                      from £997.50
                                                                                                      This part replaces part number 139779 - and 11 more. Click to view details
                                                                                                      # 000-B
                                                                                                      MPN: 148077
                                                                                                      GEAR LEVER TRANSLATER ASSY
                                                                                                      from £498.75
                                                                                                      from £498.75
                                                                                                      This part replaces part number 139796 - and 7 more. Click to view details
                                                                                                      # 001
                                                                                                      MPN: 139777
                                                                                                      GEARBOX CONTROL BOX
                                                                                                      from £39.55
                                                                                                      from £39.55
                                                                                                      # 002
                                                                                                      MPN: 16043124
                                                                                                      SCREW
                                                                                                      Valid till car Nr. 87764
                                                                                                      from £0.26
                                                                                                      from £0.26
                                                                                                      This part replaces part number 16043121 which we have in stock - and 1 more. Click to view details
                                                                                                      SCREW Genuine Ferrari Part - Used In stock
                                                                                                      Removed from 458 engine 178999
                                                                                                      # 003
                                                                                                      MPN: 127496
                                                                                                      WASHER
                                                                                                      Valid till car Nr. 87764
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                      # 004
                                                                                                      MPN: 14499421
                                                                                                      WASHER
                                                                                                      Valid till car Nr. 87764
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 14499424
                                                                                                      # 005
                                                                                                      MPN: 139846
                                                                                                      SCREW
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 006
                                                                                                      MPN: 139847
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 007
                                                                                                      MPN: 139784
                                                                                                      PLATE
                                                                                                      from £0.84
                                                                                                      from £0.84
                                                                                                      # 008
                                                                                                      MPN: 139843
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 009
                                                                                                      MPN: 139851
                                                                                                      SCREW
                                                                                                      from £1.37
                                                                                                      from £1.37
                                                                                                      # 010
                                                                                                      MPN: 139805
                                                                                                      CONTROL LEVER
                                                                                                      from £547.77
                                                                                                      from £547.77
                                                                                                      # 011
                                                                                                      MPN: 162614
                                                                                                      GEAR KNOB
                                                                                                      from £306.88
                                                                                                      from £306.88
                                                                                                      This part replaces part number 95403828
                                                                                                      # 012
                                                                                                      MPN: 101619
                                                                                                      SCREW
                                                                                                      from £9.27
                                                                                                      from £9.27
                                                                                                      This part replaces part number 95940228
                                                                                                      # 013
                                                                                                      MPN: 148452
                                                                                                      GEAR SELECTOR
                                                                                                      from £361.19
                                                                                                      from £361.19
                                                                                                      This part replaces part number 127444 which we have in stock - and 2 more. Click to view details
                                                                                                      # 014
                                                                                                      MPN: 108010
                                                                                                      COUNTER NUT
                                                                                                      from £5.46
                                                                                                      from £5.46
                                                                                                      This part replaces part number 103312 - and 1 more. Click to view details
                                                                                                      # 015
                                                                                                      MPN: 139786
                                                                                                      REVERSE GEAR SPRING
                                                                                                      from £0.83
                                                                                                      from £0.83
                                                                                                      # 016
                                                                                                      MPN: 139785
                                                                                                      MOUTH PIECE SPRING
                                                                                                      from £1.51
                                                                                                      from £1.51
                                                                                                      # 017
                                                                                                      MPN: 115980
                                                                                                      PUSH-BUTTON SWITCH
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 104320
                                                                                                      # 019
                                                                                                      MPN: 141410
                                                                                                      SCREW
                                                                                                      from £0.63
                                                                                                      from £0.63
                                                                                                      # 020
                                                                                                      MPN: 141411
                                                                                                      NUT
                                                                                                      from £1.17
                                                                                                      from £1.17
                                                                                                      # 021
                                                                                                      MPN: 62657100
                                                                                                      EXPANDIBLE GASKET
                                                                                                      from £2.00
                                                                                                      from £2.00
                                                                                                      # 022
                                                                                                      MPN: 150298
                                                                                                      GEARBOX CONTROL CABLES
                                                                                                      from £178.50
                                                                                                      from £178.50
                                                                                                      This part replaces part number 144739 - and 2 more. Click to view details
                                                                                                      # 023
                                                                                                      MPN: 12574211
                                                                                                      NUT
                                                                                                      from £0.71
                                                                                                      from £0.71
                                                                                                      # 024
                                                                                                      MPN: 10441590
                                                                                                      BRACKET
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 10113600
                                                                                                      # 025
                                                                                                      MPN: 137476
                                                                                                      CABLE SUPPORT
                                                                                                      from £64.55
                                                                                                      from £64.55
                                                                                                      # 026
                                                                                                      MPN: 104030
                                                                                                      SELF LOCKING NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 16104125
                                                                                                      # 027
                                                                                                      MPN: 16102311
                                                                                                      NUT
                                                                                                      from £0.43
                                                                                                      from £0.43
                                                                                                      This part replaces part number 16102315
                                                                                                      # 028
                                                                                                      MPN: 12601374
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                      # 029
                                                                                                      MPN: 105550
                                                                                                      CLAMP
                                                                                                      from £1.28
                                                                                                      from £1.28
                                                                                                      # 030
                                                                                                      MPN: 152645
                                                                                                      CABLES LOWER SUPPORT
                                                                                                      from £43.95
                                                                                                      from £43.95
                                                                                                      This part replaces part number 145394
                                                                                                      # 031
                                                                                                      MPN: 13540921
                                                                                                      STUD
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 032
                                                                                                      MPN: 15896211
                                                                                                      NUT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 15896210
                                                                                                      # 033
                                                                                                      MPN: 12601274
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                      # 034
                                                                                                      MPN: 139800
                                                                                                      TRANSLATOR REACTION PIN
                                                                                                      from £359.94
                                                                                                      from £359.94
                                                                                                      # 035
                                                                                                      MPN: 141399
                                                                                                      SCREW
                                                                                                      from £53.13
                                                                                                      from £53.13
                                                                                                      This part replaces part number 13027387
                                                                                                      # 037
                                                                                                      MPN: 145855
                                                                                                      CLAMP
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      This part replaces part number 14560287 - and 1 more. Click to view details
                                                                                                      # 038
                                                                                                      MPN: 139854
                                                                                                      CLAMP
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 039
                                                                                                      MPN: 139802
                                                                                                      RUBBER BOOT
                                                                                                      from £10.43
                                                                                                      from £10.43
                                                                                                      # 040
                                                                                                      MPN: 139803
                                                                                                      COVER PLATE
                                                                                                      from £225.01
                                                                                                      from £225.01
                                                                                                      # 041
                                                                                                      MPN: 140847
                                                                                                      PROTECTION PLATE
                                                                                                      from £441.00
                                                                                                      from £441.00
                                                                                                      # 042
                                                                                                      MPN: 10977524
                                                                                                      SCREW
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      # 043
                                                                                                      MPN: 60659100
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
                                                                                                      # 044
                                                                                                      MPN: 127494
                                                                                                      WASHER
                                                                                                      (minimum order quantity = 20)
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                      # 045
                                                                                                      MPN: 12643701
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 12643704 - and 1 more. Click to view details
                                                                                                      # 046
                                                                                                      MPN: 104339
                                                                                                      SPACER
                                                                                                      from £3.34
                                                                                                      from £3.34
                                                                                                      # 047
                                                                                                      MPN: 15687901
                                                                                                      SCREW
                                                                                                      from £0.84
                                                                                                      from £0.84
                                                                                                      # 048
                                                                                                      MPN: 60696300
                                                                                                      CLIP
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 049
                                                                                                      MPN: 141410
                                                                                                      SCREW
                                                                                                      from £0.63
                                                                                                      from £0.63
                                                                                                      # 050
                                                                                                      MPN: 141411
                                                                                                      NUT
                                                                                                      from £1.17
                                                                                                      from £1.17
                                                                                                      # 051
                                                                                                      MPN: 152533
                                                                                                      BALL JOINT
                                                                                                      from £33.97
                                                                                                      from £33.97
                                                                                                      This part replaces part number 141408 which we have in stock
                                                                                                      # 052
                                                                                                      MPN: 145498
                                                                                                      DRIVING GEAR BELLOW
                                                                                                      from £50.06
                                                                                                      from £50.06
                                                                                                      # 053
                                                                                                      MPN: 104030
                                                                                                      SELF LOCKING NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 16104125
