029 - Differential & Axle Shafts

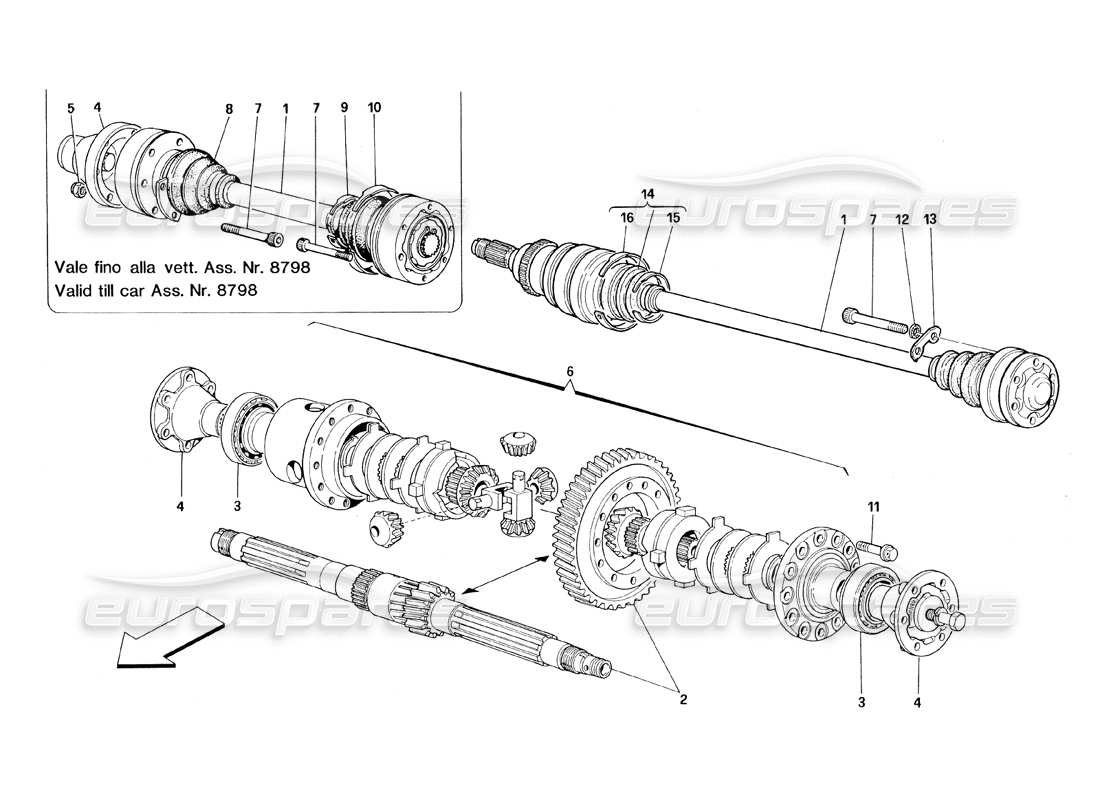

Ferrari 348 (1993) TB / TS Differential & Axle Shafts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 116016
AXLE SHAFT
Valid till car Ass. Nr. 8798
from £1,592.04
from £1,592.04
# 001
MPN: 139513
AXLE SHAFT
Valid from car Ass. Nr. 8799
from £2,439.44
from £2,439.44
# 002
MPN: 70000577
COMPLETE BEVEL GEAR PAIR
Valid for gearbox 141685 and 152041
from £4,344.57
from £4,344.57
# 002
MPN: 70088653
COMPLETE BEVEL GEAR PAIR
Valid for gearbox 139499
# 003
MPN: 125390
BEARING
from £93.74
from £93.74
# 004
MPN: 128256
FLANGE FOR AXLE COUPLING
Valid till car Ass. Nr. 8798
from £73.00
from £73.00
# 004
MPN: 139898
FLANGE FOR AXLE COUPLING
Valid from car Ass. Nr. 8799
from £84.79
from £84.79
# 005
MPN: 101633
DRIVESHAFT NUT
(original)
from £4.29
from £4.29
# 006
MPN: 101626
COMPLETE DIFFERENTIAL
Valid till stock exhaustion
Supersession
Supersession
This part replaces part number 101623
# 006
MPN: 147258
COMPLETE DIFFERENTIAL
Valid after stock exhaustion of 101626
from £4,430.57
from £4,430.57
This part replaces part number 101626
# 007
MPN: 101632
DRIVESHAFT BOLT
from £5.00
from £5.00
This part replaces part number 103432 - and 3 more. Click to view details
# 007
MPN: 223916
SCREW
from £1.37
from £1.37
This part replaces part number 181910
# 008
MPN: 95860404
AXLE BOOT
from £9.95
from £9.95
This part replaces part number 95860404/A
# 009
MPN: 117956
SMALL CLAMP
Valid till car Ass. Nr. 8798
from £2.77
from £2.77
# 010
MPN: 117957
BIG CLAMP
Valid till car Ass. Nr. 8798
from £3.56
from £3.56
# 011
MPN: 152613
SCREW
from £8.17
from £8.17
# 012
MPN: 12605674
WASHER
Valid from car Ass. Nr. 8799
from £0.47
from £0.47
This part replaces part number 12605679
# 013
MPN: 149415
SCRAPING PLATE
Valid from car Ass. Nr. 8799
from £1.08
from £1.08
# 014
MPN: 70000868
PROTECTION REPLACEMENT SET -WHEEL SIDE
Valid from car Ass. Nr. 8799
from £67.80
from £67.80
This part replaces part number 70000782
# 014
MPN: 70006022
PROTECTION REPLACEMENT SET - GEARBOX SIDE
from £54.95
from £54.95
This part replaces part number 70000867
# 015
MPN: 154213
SMALL CLAMP
Valid from car Ass. Nr. 8799
from £2.39
from £2.39
This part replaces part number 167570
# 016
MPN: 172347
BIG CLAMP
from £3.99
from £3.99
This part replaces part number 154214 - and 1 more. Click to view details
