030A - throttle pedal and brake hydraulic system

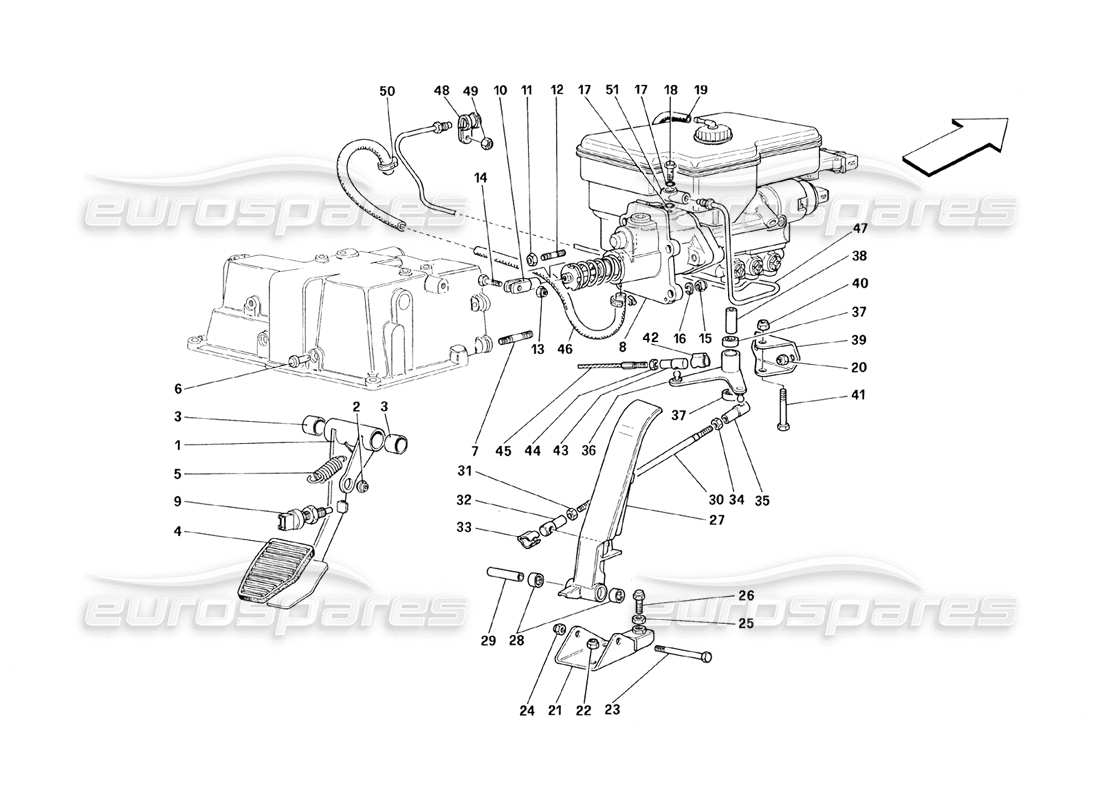

Ferrari 348 (1993) TB / TS Throttle Pedal and Brake Hydraulic System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 149325
BRAKE PEDAL LEVER
Valid till car Ass. Nr. 8540
from £369.58
from £369.58
This part replaces part number 138304
# 001
MPN: 149867
BRAKE PEDAL LEVER
Valid from car Ass. Nr. 8541
from £128.68
from £128.68
# 002
MPN: 109407
BALL JOINT
from £21.94
from £21.94
# 003
MPN: 103163
BUSHING
from £2.85
from £2.85
# 004
MPN: 132819
PEDAL RUBBER
Valid for pedal 149325
from £5.42
from £5.42
# 004
MPN: 149292
PEDAL RUBBER
Valid for pedal 149867
from £123.00
from £123.00
# 005
MPN: 101305
SPRING
from £5.43
from £5.43
This part replaces part number 660343

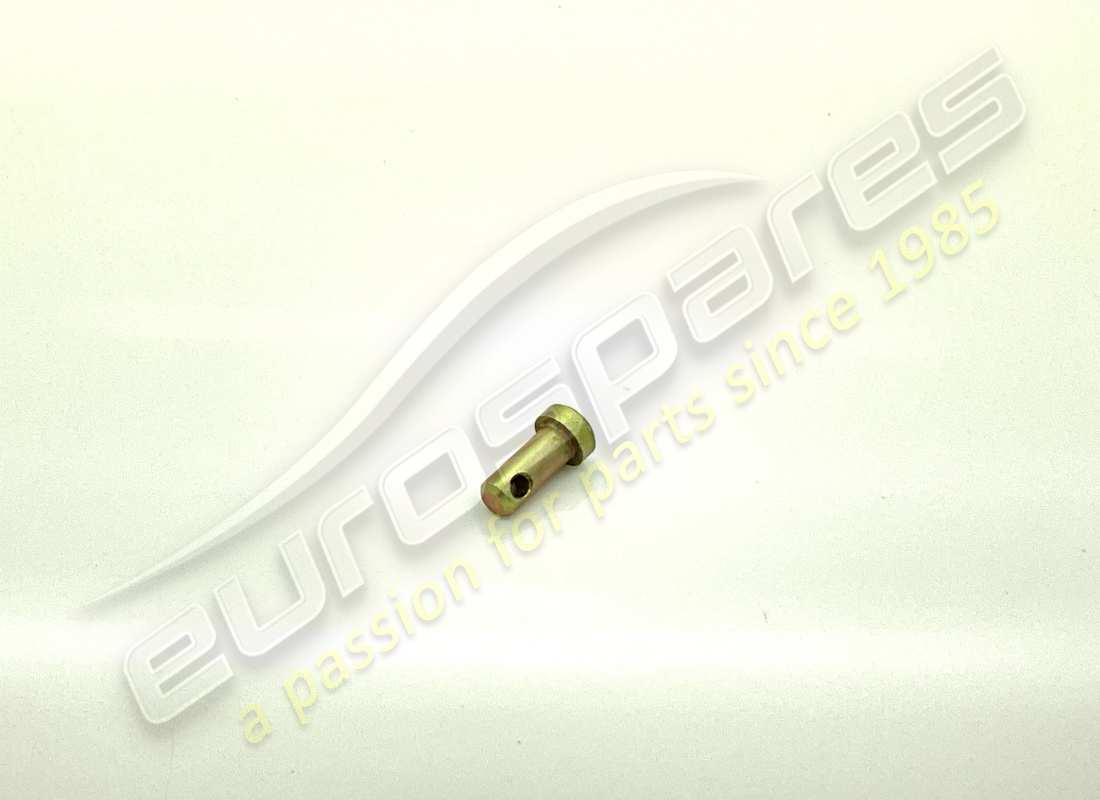

# 006
MPN: 129612
SPRING ANCHOR PIN
from £1.72
from £1.72

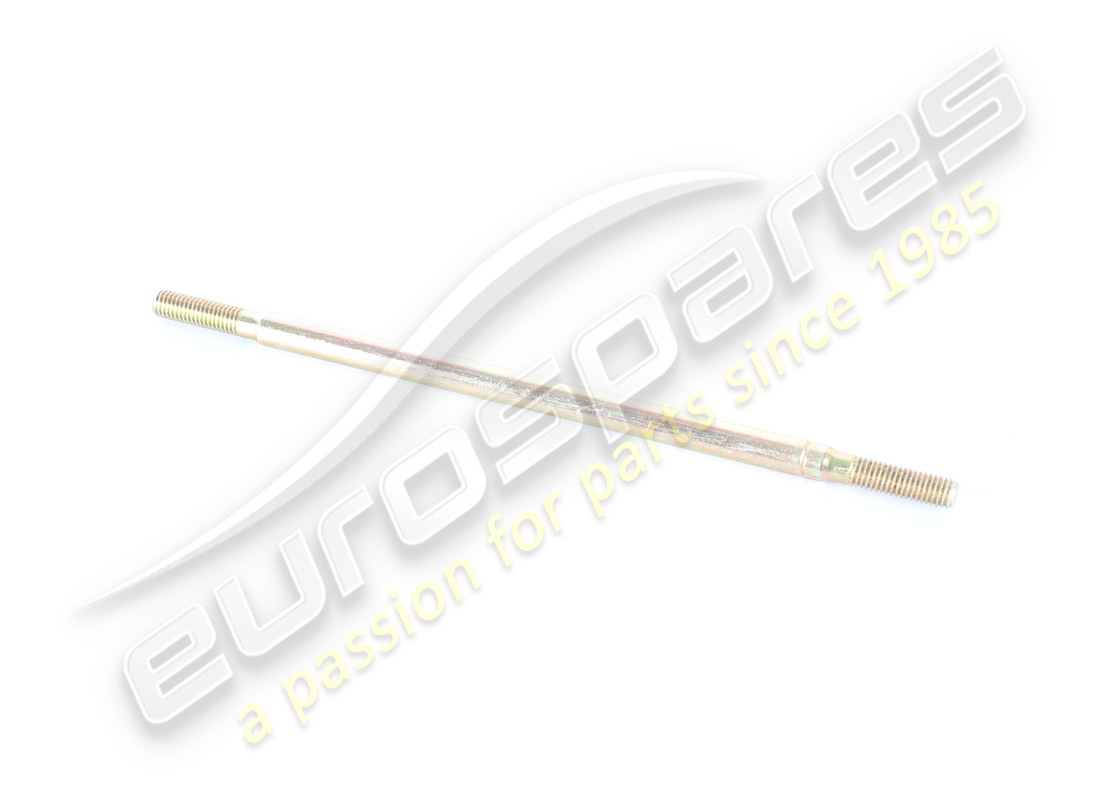

# 007
MPN: 13543424
STUD
from £1.04
from £1.04
This part replaces part number 13543421
# 008
MPN: 70000582
BRAKE HYDRAULIC UNIT KIT
Supersession
Supersession
This part replaces part number 139234 which we have in stock
# 008
MPN: 70000769
BRAKE HYDRAULIC UNIT KIT
from £2,503.91
from £2,503.91
This part replaces part number 70000583
# 009
MPN: 133555
STOP CONTROL SWITCH
from £18.60
from £18.60

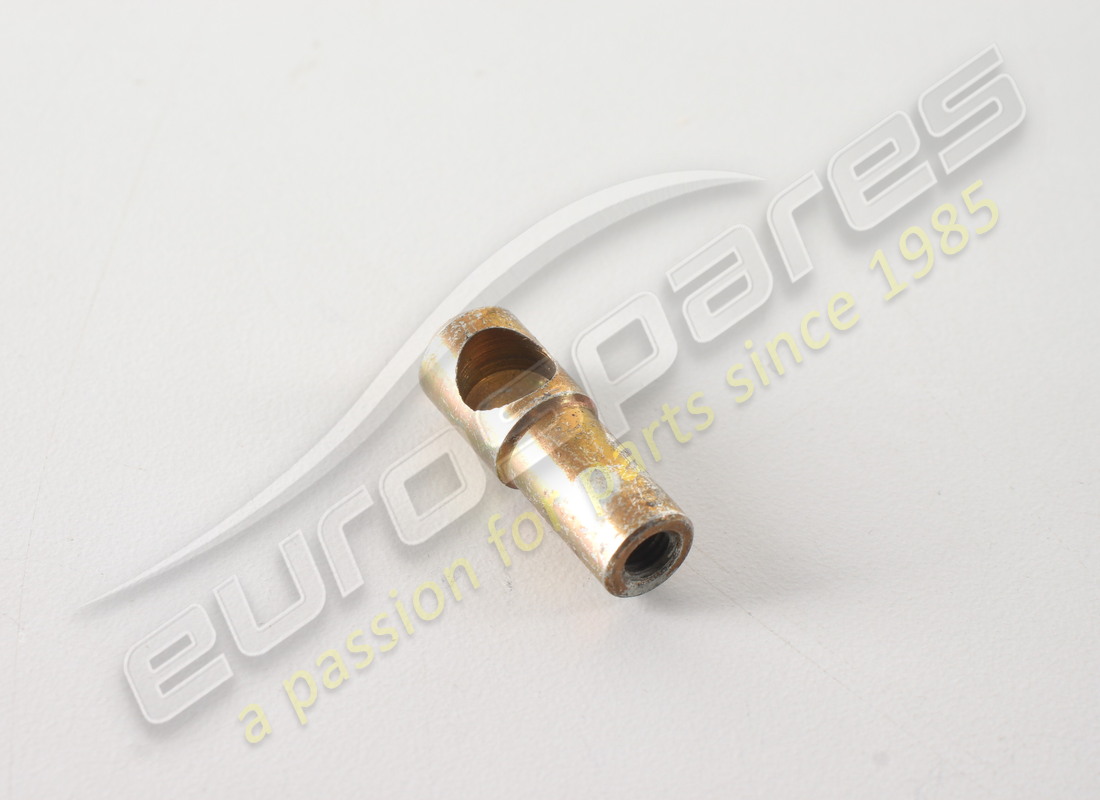

# 010
MPN: 10007871
FORK
from £6.02
from £6.02
# 011
MPN: 16102311
NUT
from £0.42
from £0.42
This part replaces part number 16102315
# 012
MPN: 13517124
STUD
from £2.32
from £2.32
This part replaces part number 13517121 - and 1 more. Click to view details
# 013
MPN: 16104411
NUT
from £0.54
from £0.54
# 014
MPN: 130926
SCREW
from £4.51
from £4.51
# 015
MPN: 104030
SELF LOCKING NUT
from £0.53
from £0.53
This part replaces part number 16104125
# 016
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
# 017
MPN: 70000510
O-RING KIT
from £94.57
from £94.57
This part replaces part number 131874
# 018
MPN: 131873
UNION
from £3.59
from £3.59
# 019
MPN: 103846
VENT PIPE
from £36.12
from £36.12
# 020
MPN: 12574211
NUT
from £0.71
from £0.71
# 021
MPN: 138204
PEDAL SUPPORT
from £14.22
from £14.22
# 022
MPN: 104030
SELF LOCKING NUT
from £0.53
from £0.53
This part replaces part number 16104125
# 023
MPN: 10903621
SCREW
from £0.53
from £0.53
# 024
MPN: 12574211
NUT
from £0.71
from £0.71
# 025
MPN: 16102311
NUT
from £0.42
from £0.42
This part replaces part number 16102315
# 026
MPN: 137012
ADJUSTER PIN
from £12.27
from £12.27
# 027
MPN: 138199
Accelerator Pedal
from £306.64
from £306.64
# 028
MPN: 101677
ROLLER BEARING
from £2.05
from £2.05
# 029
MPN: 138219
PIN
from £58.51
from £58.51
# 030
MPN: 138214
SPRAG
from £7.99
from £7.99
# 031
MPN: 15896470
NUT
(minimum order quantity = 20)
from £0.77
from £0.77
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 032
MPN: 10123811
BALL JOINT HEAD
from £10.83
from £10.83
# 033
MPN: 10124776
CUP
Supersession
Supersession
# 034
MPN: 105586
LH THREAD NUT
from £4.65
from £4.65
# 035
MPN: 105619
LH THREAD BALL JOINT
from £79.56
from £79.56
# 036
MPN: 138215
ACCELERATOR LEVER
from £87.40
from £87.40
# 037
MPN: 101677
ROLLER BEARING
from £2.05
from £2.05
# 038
MPN: 138218
PIN
from £56.09
from £56.09
# 039
MPN: 138217
LEVER SUPPORT
from £5.70
from £5.70
# 040
MPN: 12575411
NUT
Supersession
Supersession
# 041
MPN: 10903221
SCREW
from £1.08
from £1.08
# 042
MPN: 10124776
CLIP
Supersession
Supersession
# 043
MPN: 10123811
BALL JOINT HEAD
from £10.83
from £10.83
# 044
MPN: 15896470
NUT
(minimum order quantity = 20)
from £0.77
from £0.77
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 045
MPN: 138252
ACCELERATOR CABLE RHD
Rhd Cable Valid for TB- For TS valid till car Nr. 94909
from £140.02
from £140.02
# 045
MPN: 153699
ACCELERATOR CABLE
Valid for TS from car Nr. 94910
Supersession
Supersession
# 046
MPN: 143069
PIPE
from £15.33
from £15.33
# 047
MPN: 143677
PIPE
from £9.86
from £9.86
# 048
MPN: 10441590
BRACKET
from £0.53
from £0.53
This part replaces part number 10113600
# 049
MPN: 12575411
NUT
Supersession
Supersession
# 050
MPN: 12179190
SCREW COLLAR
Supersession
Supersession
This part replaces part number 102604
# 051
MPN: 136311
UNION
from £33.39
from £33.39
