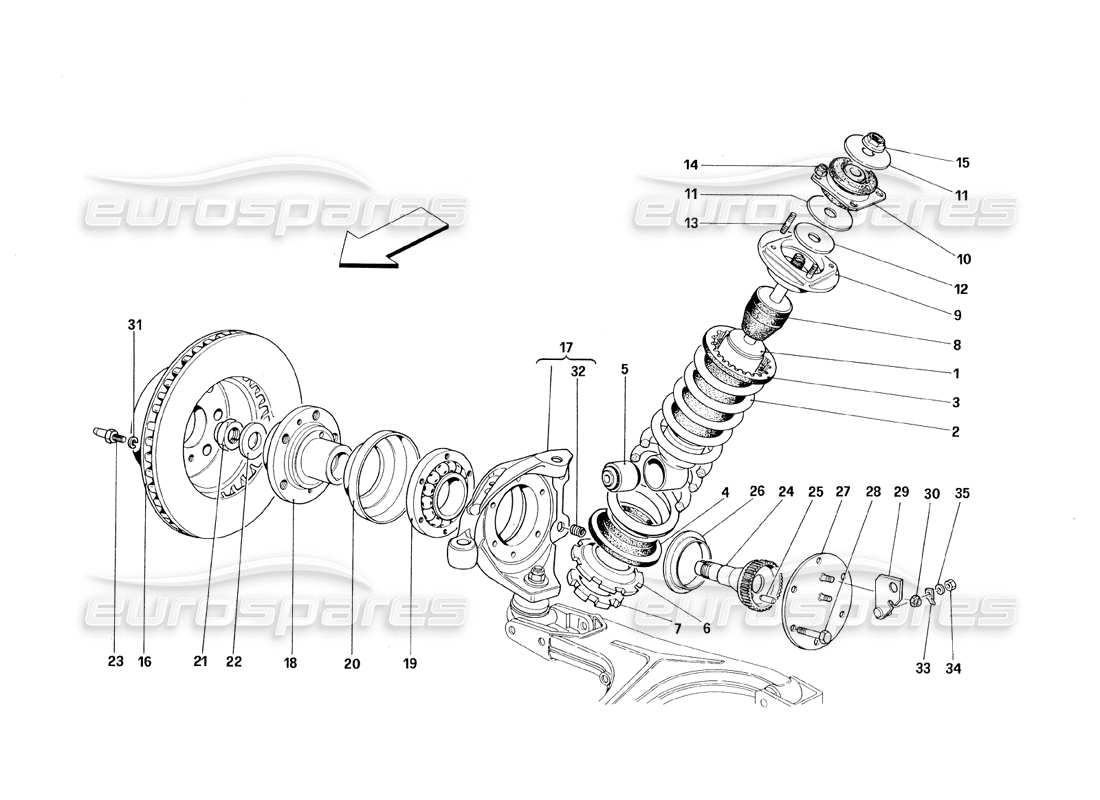

037 - Front Suspension - Shock Absorber and Brake Disc
Ferrari 348 (1993) TB / TS Front Suspension - Shock Absorber and Brake Disc Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 141857
SHOCK ABSORBER
from £399.00
from £399.00
# 001
MPN: 146290
SHOCK ABSORBER
from £450.16
from £450.16
This part replaces part number 139441 which we have in stock - and 5 more. Click to view details
# 002
MPN: 142474
SPRING
Sold in pair Valid for shock absorber 141857 Nol as spare part now Replaced by 148786
Supersession
Supersession
# 002
MPN: 148786
SPRING
Sold in pair Valid for shock absorber 146290 Not for USA SPYDER; for TB/TS I and D only valid till car Ass. Nr. 13559
from £116.85
from £116.85
This part replaces part number 142474
# 002
MPN: 151881
SPRING
Sold in pair Valid for shock absorber 146290 Valid for USA SPYDER; for TB/TS I and D only valid from car Ass. Nr. 13560
from £240.70
from £240.70
# 002
MPN: 163307
FRONT ROAD SPRING
valid for 348 GT Michelotto Comp.
from £517.99
from £517.99
# 003
MPN: 113582
UPPER SPACER
from £105.68
from £105.68
# 004
MPN: 113581
LOWER SPACER
from £6.22
from £6.22
This part replaces part number 387000338 - and 2 more. Click to view details
# 005
MPN: 130516
ESTENDBLOCK
from £20.38
from £20.38
# 006
MPN: 155086
SPACER
from £24.17
from £24.17
# 007
MPN: 141860
RING NUT
from £63.87
from £63.87
# 008
MPN: 139448
PAD
from £22.95
from £22.95
# 009
MPN: 151547
SPRING RETAINING CUP
from £63.94
from £63.94
This part replaces part number 114809 - and 3 more. Click to view details
# 010
MPN: 114812
HYPERBLOCK
from £34.63
from £34.63
This part replaces part number 114812/A - and 7 more. Click to view details
# 011
MPN: 114815
WASHER
from £0.86
from £0.86
# 012
MPN: 147143
SPACER
from £6.80
from £6.80
# 013
MPN: 13543324
STUD
from £0.57
from £0.57
This part replaces part number 13543321
# 014
MPN: 104030
NUT
from £0.51
from £0.51
This part replaces part number 16104125
# 015
MPN: 137826
NUT
from £1.86
from £1.86
# 016
MPN: 160051
FRONT BRAKE DISC
from £295.00
from £295.00
This part replaces part number 131750
# 017
MPN: 138515

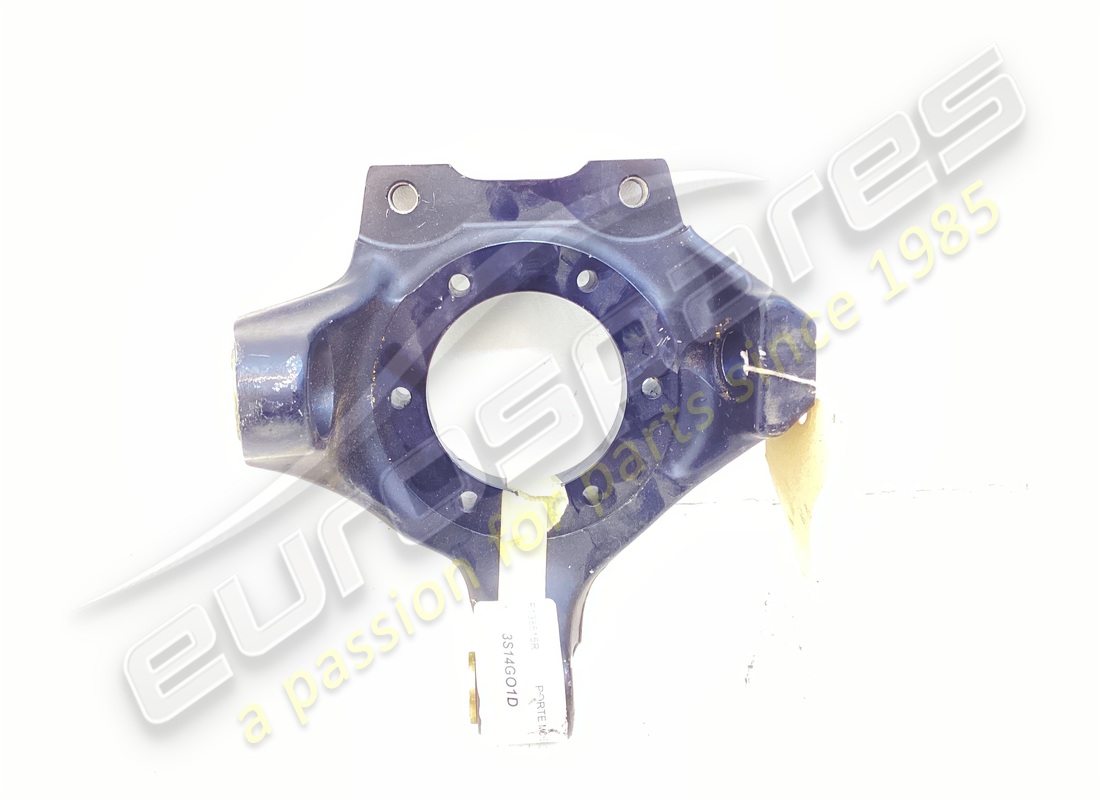

RH STEERING KNUCKLE
from £1,138.55
from £1,138.55
# 017
MPN: 138516

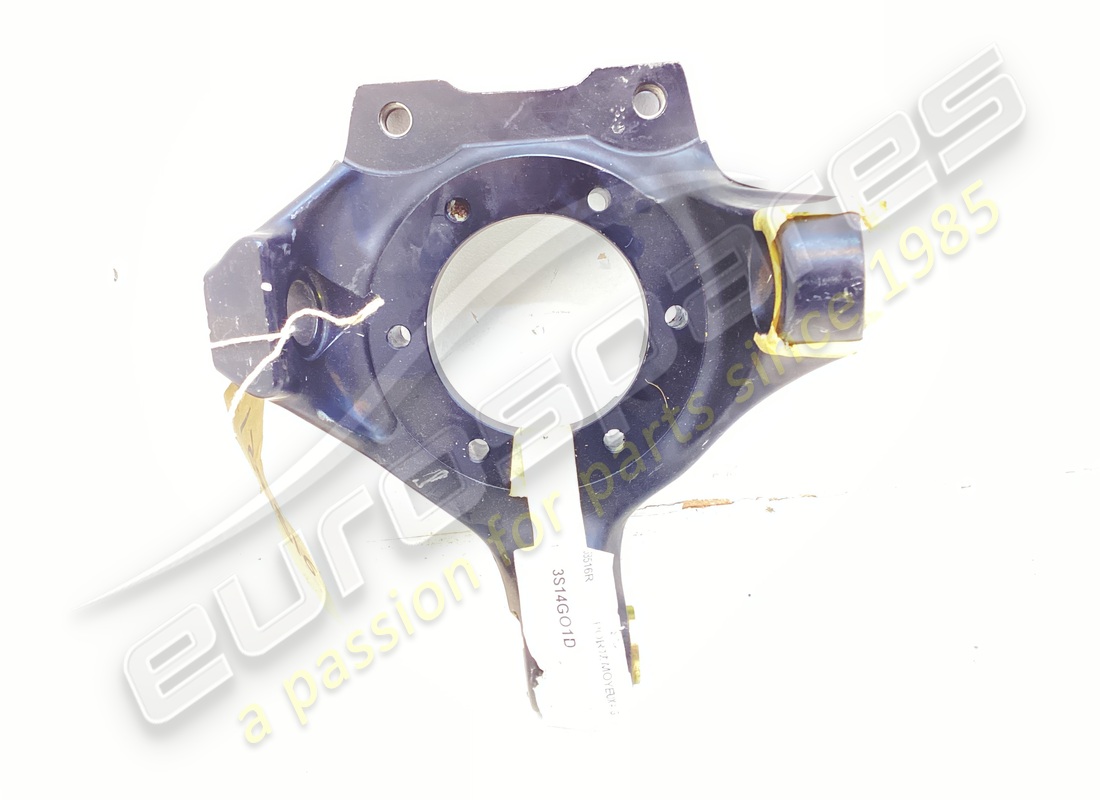

LH STEERING KNUCKLE
from £1,138.55
from £1,138.55
# 018
MPN: 131738
FRONT WHEEL HUB
up to chassis n. 87980
from £519.75
from £519.75
# 019
MPN: 112799
BEARING
from £700.49
from £700.49
# 020
MPN: 112823
SMALL SUMP
from £48.42
from £48.42
# 021
MPN: 124642
NUT
from £22.87
from £22.87
# 022
MPN: 124464
WASHER
from £21.49
from £21.49
# 023
MPN: 104370
CENTERING PIN
from £5.62
from £5.62
This part replaces part number 139981
# 024
MPN: 139671
PIN WITH TOOTHED WHEEL
from £320.90
from £320.90
# 025
MPN: 13909870
PIN
from £0.47
from £0.47
# 026
MPN: 131279
PROTECTION RING
from £109.18
from £109.18
# 027
MPN: 139664
COVER
from £5.98
from £5.98
# 028
MPN: 14238931
SCREW
from £3.53
from £3.53
# 029
MPN: 139692
RH SUPPORT
from £9.32
from £9.32
# 029
MPN: 139693
LH SUPPORT
from £8.46
from £8.46
# 030
MPN: 12575411
NUT
Supersession
Supersession
# 031
MPN: 127496
WASHER
from £0.53
from £0.53
This part replaces part number 10516671 - and 2 more. Click to view details
# 032
MPN: 133771
THREADED INSERT
from £1.92
from £1.92
# 033
MPN: 143405
FASTON TONGUE
from £0.53
from £0.53
# 034
MPN: 15896470
NUT
(minimum order quantity = 20)
from £0.81
from £0.81
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 035
MPN: 149951
WASHER
from £0.53
from £0.53
This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
