ferrari 348 (1993) tb / ts current generator - starting motor parts diagram

042A - Current Generator - Starting Motor

Ferrari 348 (1993) TB / TS Current Generator - Starting Motor Parts Diagram

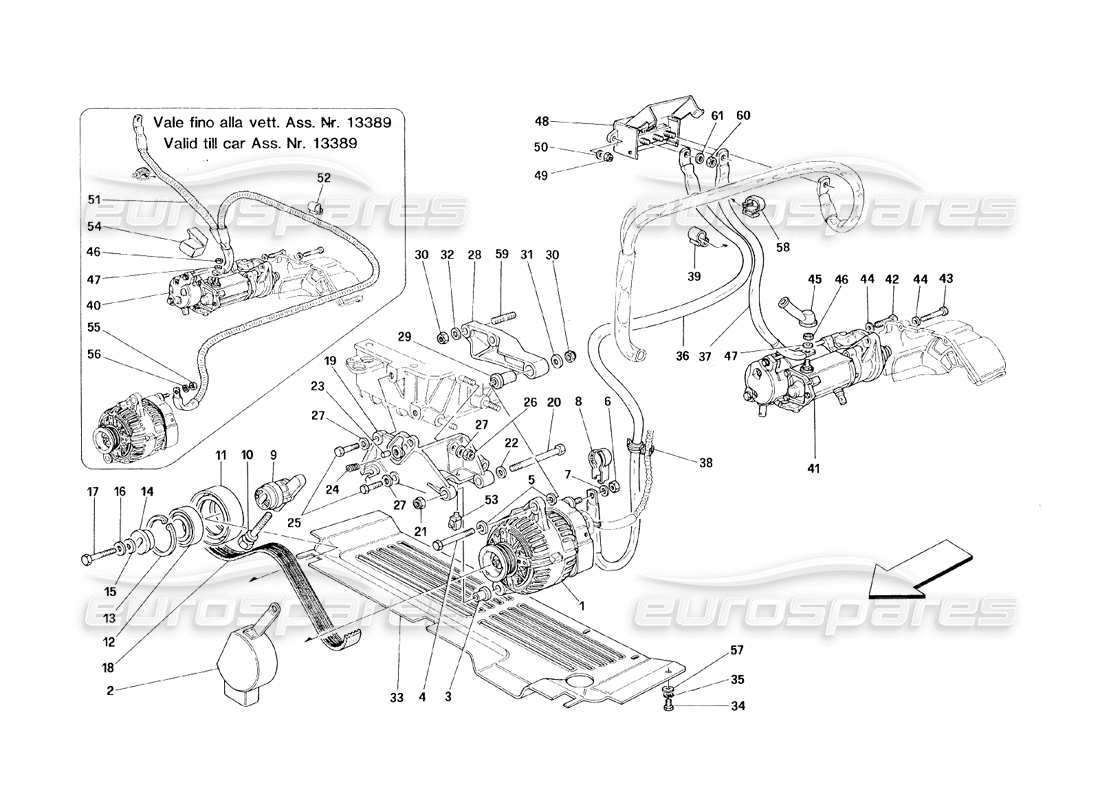

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Price
                                                                                                            # 001
                                                                                                            MPN: 155785
                                                                                                            GENERATOR 105 A. NIPPONDENSO
                                                                                                            on exhaustion use part number: 70000809
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 001
                                                                                                            MPN: 156235
                                                                                                            ALTERNATOR 140A (NIPPON DENSO)
                                                                                                            from £844.34
                                                                                                            from £844.34
                                                                                                            # 001
                                                                                                            MPN: 70000809
                                                                                                            ALTERNATOR KIT
                                                                                                            from £1,006.02
                                                                                                            from £1,006.02
                                                                                                            This part replaces part number 155785
                                                                                                            # 002
                                                                                                            MPN: 155684
                                                                                                            ALTERNATOR SHIELD
                                                                                                            from £62.67
                                                                                                            from £62.67
                                                                                                            # 003
                                                                                                            MPN: 145358
                                                                                                            BUSHING
                                                                                                            from £12.78
                                                                                                            from £12.78
                                                                                                            # 004
                                                                                                            MPN: 15888824
                                                                                                            SCREW
                                                                                                            from £3.24
                                                                                                            from £3.24
                                                                                                            This part replaces part number 15888821
                                                                                                            # 005
                                                                                                            MPN: 12642501
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 006
                                                                                                            MPN: 16102321
                                                                                                            NUT
                                                                                                            from £1.35
                                                                                                            from £1.35
                                                                                                            # 007
                                                                                                            MPN: 12601374
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                            # 008
                                                                                                            MPN: 154803
                                                                                                            PROTECTION BOOT
                                                                                                            from £2.58
                                                                                                            from £2.58
                                                                                                            # 009
                                                                                                            MPN: 139359
                                                                                                            BELT TIGHTENING HUB
                                                                                                            from £223.31
                                                                                                            from £223.31
                                                                                                            # 010
                                                                                                            MPN: 139309
                                                                                                            ADJUSTMENT SCREW
                                                                                                            from £31.03
                                                                                                            from £31.03
                                                                                                            # 011
                                                                                                            MPN: 139321
                                                                                                            BELT TIGHTENING PULLEY
                                                                                                            from £246.21
                                                                                                            from £246.21
                                                                                                            # 012
                                                                                                            MPN: 177436
                                                                                                            BEARING
                                                                                                            from £21.81
                                                                                                            from £21.81
                                                                                                            This part replaces part number 139368
                                                                                                            # 013
                                                                                                            MPN: 11061076
                                                                                                            SEEGER RING
                                                                                                            from £0.45
                                                                                                            from £0.45
                                                                                                            This part replaces part number 11061075 - and 1 more. Click to view details
                                                                                                            # 014
                                                                                                            MPN: 142473
                                                                                                            BEARING SPACER
                                                                                                            from £19.05
                                                                                                            from £19.05
                                                                                                            This part replaces part number 139360
                                                                                                            # 015
                                                                                                            MPN: 11190579
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 016
                                                                                                            MPN: 138194
                                                                                                            WASHER
                                                                                                            from £14.83
                                                                                                            from £14.83
                                                                                                            # 017
                                                                                                            MPN: 15888721
                                                                                                            SCREW
                                                                                                            from £1.13
                                                                                                            from £1.13
                                                                                                            # 018
                                                                                                            MPN: 144909
                                                                                                            GENERATOR CONTROL BELT
                                                                                                            Valid for 90 A NIPPONDENSO alternator - USE PART NUMBER 199824
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 141061
                                                                                                            # 018
                                                                                                            MPN: 199824
                                                                                                            GENERATOR CONTROL BELT
                                                                                                            from £15.70
                                                                                                            from £15.70
                                                                                                            This part replaces part number 144909
                                                                                                            # 018
                                                                                                            MPN: 199828
                                                                                                            GENERATOR CONTROL BELT
                                                                                                            from £14.13
                                                                                                            from £14.13
                                                                                                            This part replaces part number 156239
                                                                                                            # 018
                                                                                                            MPN: 199830
                                                                                                            GENERATOR CONTROL BELT
                                                                                                            Valid for 105 A NIPPONDENSO alternator
                                                                                                            from £7.50
                                                                                                            from £7.50
                                                                                                            This part replaces part number 156703
                                                                                                            # 019
                                                                                                            MPN: 145357
                                                                                                            LOWER SUPPORT
                                                                                                            from £169.93
                                                                                                            from £169.93
                                                                                                            # 020
                                                                                                            MPN: 114818
                                                                                                            SCREW
                                                                                                            from £25.11
                                                                                                            from £25.11
                                                                                                            # 021
                                                                                                            MPN: 102742
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 12557621 - and 2 more. Click to view details
                                                                                                            # 022
                                                                                                            MPN: 12641024
                                                                                                            WASHER
                                                                                                            from £1.02
                                                                                                            from £1.02
                                                                                                            This part replaces part number 12641021
                                                                                                            # 023
                                                                                                            MPN: 125717
                                                                                                            DOWEL
                                                                                                            from £1.58
                                                                                                            from £1.58
                                                                                                            # 024
                                                                                                            MPN: 13526070
                                                                                                            THREADED INSERT
                                                                                                            from £1.97
                                                                                                            from £1.97
                                                                                                            This part replaces part number 104657
                                                                                                            # 026
                                                                                                            MPN: 16104411
                                                                                                            NUT
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 027
                                                                                                            MPN: 12604479
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 028
                                                                                                            MPN: 149627
                                                                                                            UPPER BRACKET
                                                                                                            from £27.52
                                                                                                            from £27.52
                                                                                                            # 029
                                                                                                            MPN: 137768
                                                                                                            .ESTENDBLOCK
                                                                                                            from £48.36
                                                                                                            from £48.36
                                                                                                            # 030
                                                                                                            MPN: 102742
                                                                                                            NUT
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 12557621 - and 2 more. Click to view details
                                                                                                            # 032
                                                                                                            MPN: 12638601
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 20232104
                                                                                                            # 033
                                                                                                            MPN: 156330
                                                                                                            PROTECTION GRILLE
                                                                                                            from £249.36
                                                                                                            from £249.36
                                                                                                            This part replaces part number 140846
                                                                                                            # 034
                                                                                                            MPN: 10977524
                                                                                                            SCREW
                                                                                                            from £0.53
                                                                                                            from £0.53
                                                                                                            # 035
                                                                                                            MPN: 127494
                                                                                                            WASHER
                                                                                                            (minimum order quantity = 20)
                                                                                                            from £0.53
                                                                                                            from £0.53
                                                                                                            This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                            # 036
                                                                                                            MPN: 153952

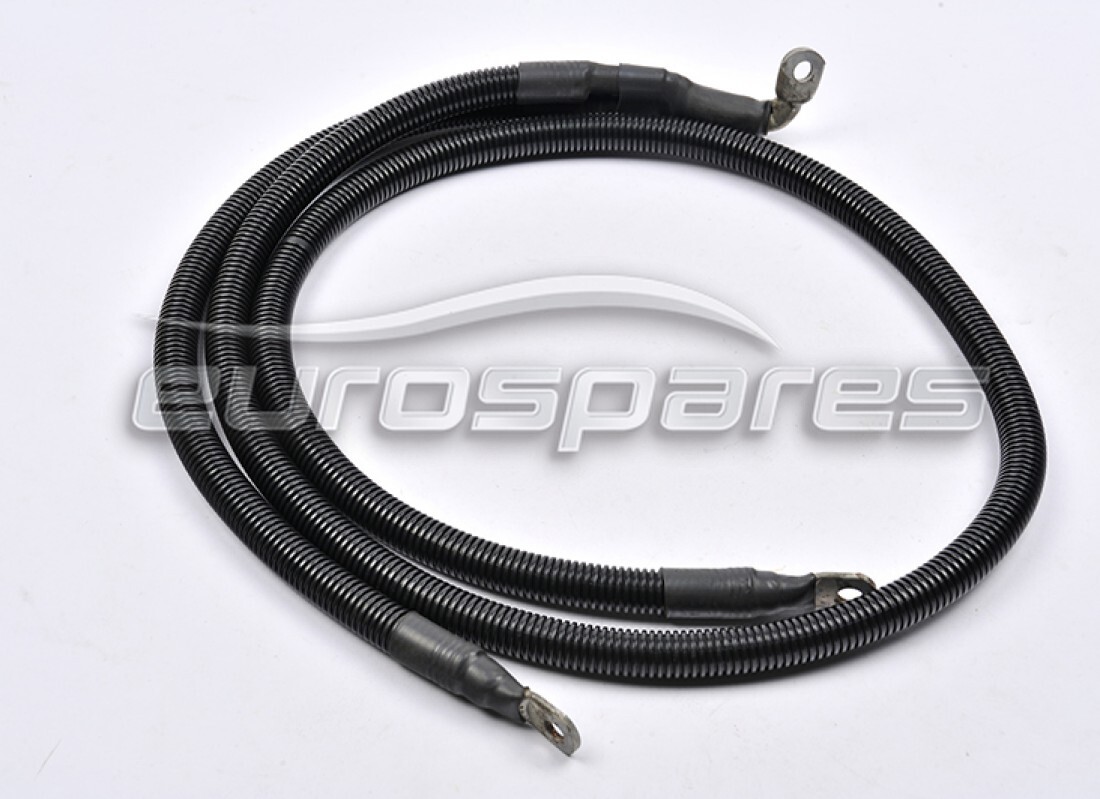

                                                                                                            ALTERNATOR-TERMINAL BOX CONNECTING CABLE
                                                                                                            Valid for starting motor 151852
                                                                                                            from £120.21
                                                                                                            from £120.21
                                                                                                            # 037
                                                                                                            MPN: 153953
                                                                                                            STARTING MOTOR-TERMINAL BOX CONNECTING CABLE
                                                                                                            Valid for starting motor 151852
                                                                                                            from £61.98
                                                                                                            from £61.98
                                                                                                            # 038
                                                                                                            MPN: 139966
                                                                                                            CLIP
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 039
                                                                                                            MPN: 152245
                                                                                                            CLIP
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 040
                                                                                                            MPN: 141706
                                                                                                            STARTER MOTOR
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 134387
                                                                                                            # 040
                                                                                                            MPN: 141706
                                                                                                            STARTER MOTOR
                                                                                                            BLACK colour Valid till car Ass. Nr. 13389
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 134387
                                                                                                            # 041
                                                                                                            MPN: 151852
                                                                                                            STARTER MOTOR
                                                                                                            SILVER colour Valid from car Ass. Nr. 13390
                                                                                                            from £980.84
                                                                                                            from £980.84
                                                                                                            # 042
                                                                                                            MPN: 16044224
                                                                                                            SCREW
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 16044221 which we have in stock
                                                                                                            # 043
                                                                                                            MPN: 16044721
                                                                                                            SCREW
                                                                                                            from £0.83
                                                                                                            from £0.83
                                                                                                            # 044
                                                                                                            MPN: 12601374
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                            # 045
                                                                                                            MPN: 124683
                                                                                                            PROTECTION BOOT
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 139937
                                                                                                            # 047
                                                                                                            MPN: 12625221
                                                                                                            WASHER
                                                                                                            from £0.54
                                                                                                            from £0.54
                                                                                                            # 048
                                                                                                            MPN: 170114
                                                                                                            TERMINAL BOX
                                                                                                            from £7.17
                                                                                                            from £7.17
                                                                                                            This part replaces part number 153357
                                                                                                            # 049
                                                                                                            MPN: 12574011
                                                                                                            NUT
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 050
                                                                                                            MPN: 10519201
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 10519281
                                                                                                            # 051
                                                                                                            MPN: 151338
                                                                                                            TERMINAL BOX-STARTING MOTOR ALTERNATOR CONNECTING CABLE
                                                                                                            Valid for starting motor 141706
                                                                                                            from £162.62
                                                                                                            from £162.62
                                                                                                            # 052
                                                                                                            MPN: 152245
                                                                                                            CLIP
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 053
                                                                                                            MPN: 14574287
                                                                                                            CLIP
                                                                                                            from £4.28
                                                                                                            from £4.28
                                                                                                            # 054
                                                                                                            MPN: 149426
                                                                                                            CABLE TERMINAL PROTECTION
                                                                                                            from £3.23
                                                                                                            from £3.23
                                                                                                            # 055
                                                                                                            MPN: 16102311
                                                                                                            NUT
                                                                                                            from £0.43
                                                                                                            from £0.43
                                                                                                            This part replaces part number 16102315
                                                                                                            # 056
                                                                                                            MPN: 12601374
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                            # 057
                                                                                                            MPN: 12643701
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 12643704 - and 1 more. Click to view details
                                                                                                            # 058
                                                                                                            MPN: 140798
                                                                                                            CLIP
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 059
                                                                                                            MPN: 13449721
                                                                                                            STUD
                                                                                                            from £1.14
                                                                                                            from £1.14
                                                                                                            # 060
                                                                                                            MPN: 147985
                                                                                                            NUT
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 061
                                                                                                            MPN: 10519624
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
