ferrari 348 (1993) tb / ts body - outer trims parts diagram

106 - Body - Outer Trims

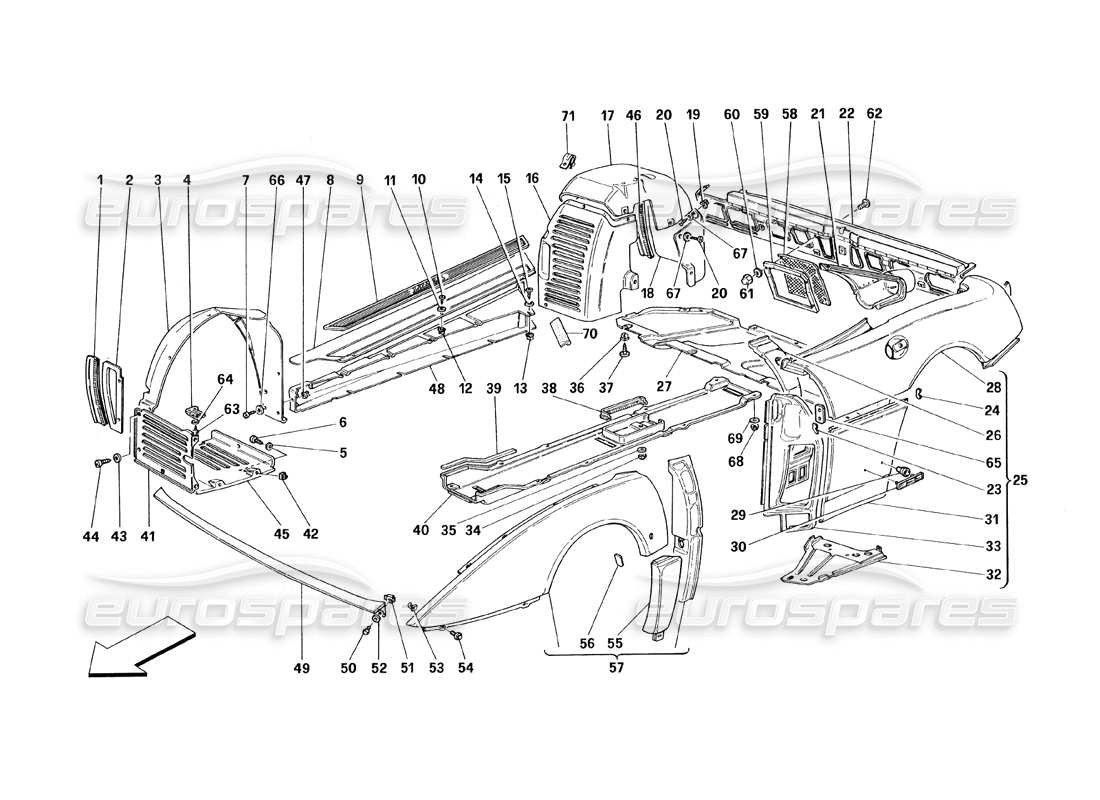

Ferrari 348 (1993) TB / TS Body - Outer Trims Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                              #
                                                                                                                              Part number
                                                                                                                              Description
                                                                                                                              Price
                                                                                                                              # 000
                                                                                                                              MPN: 620662300

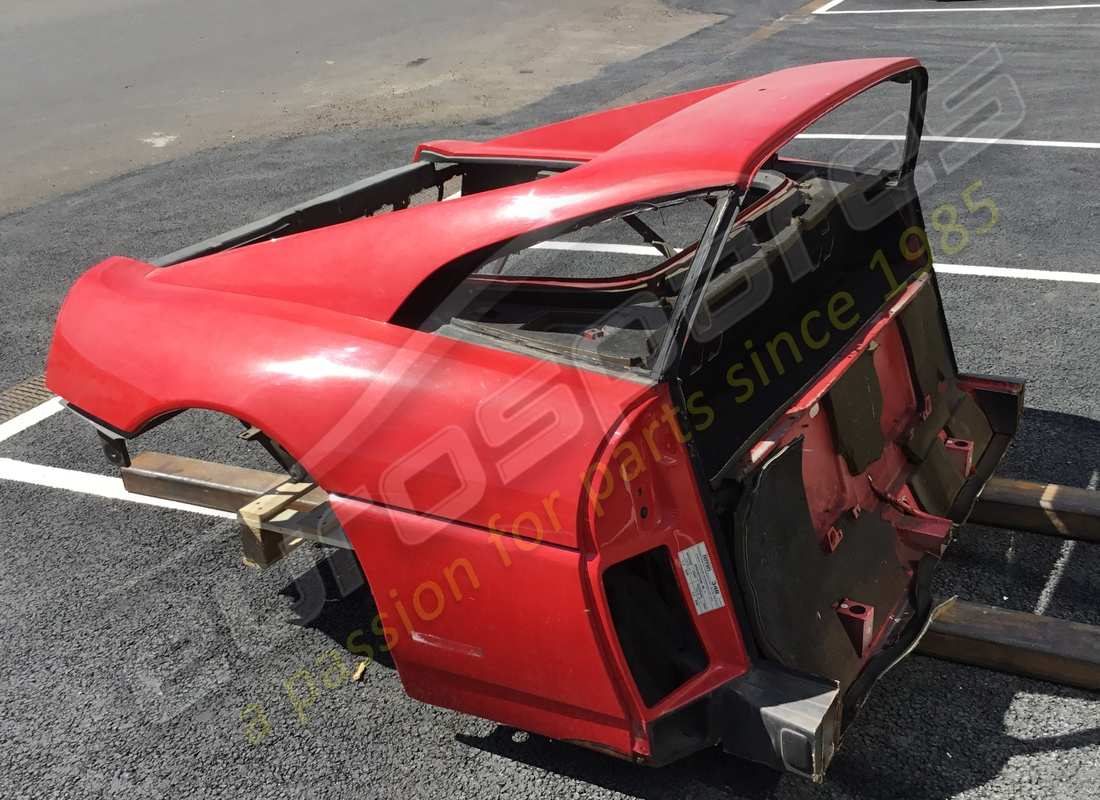

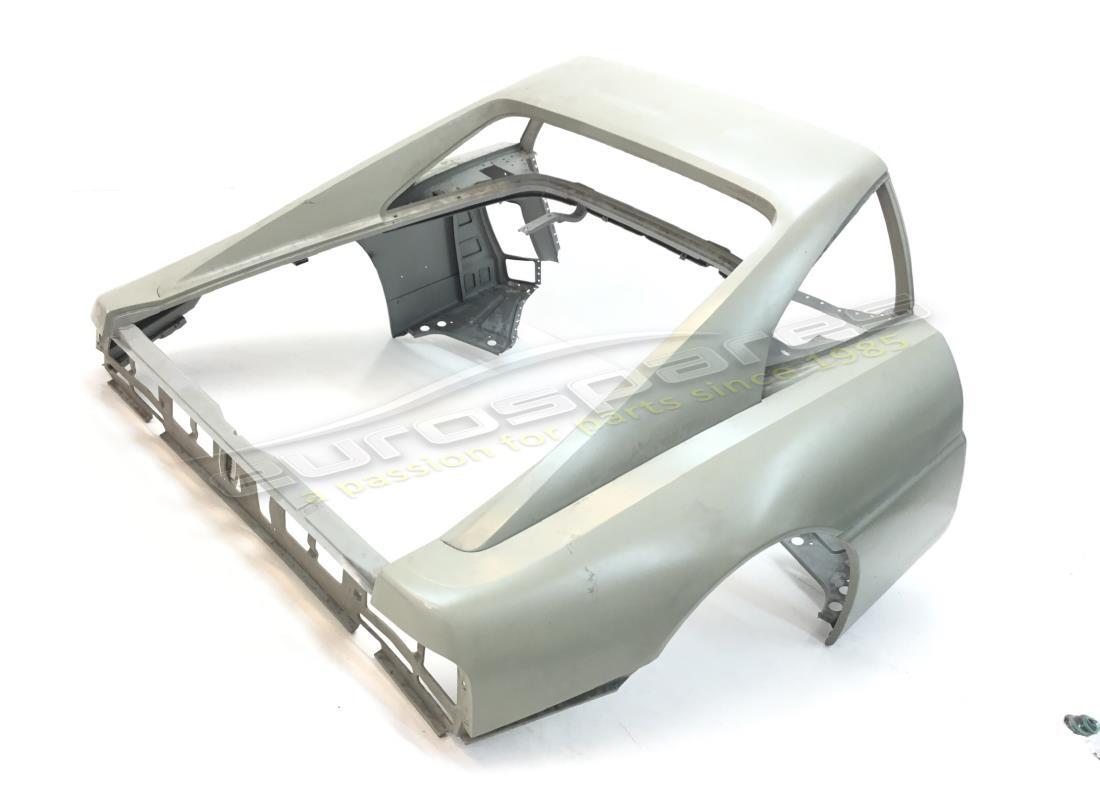

                                                                                                                              COMPLETE REAR BODYWORK
                                                                                                                              Valid for TS
                                                                                                                              # 001
                                                                                                                              MPN: 63393200
                                                                                                                              GASKET
                                                                                                                              from £6.59
                                                                                                                              from £6.59
                                                                                                                              # 002
                                                                                                                              MPN: 62807700
                                                                                                                              RH FRONT LATERAL GRAVEL GUARD
                                                                                                                              from £99.22
                                                                                                                              from £99.22
                                                                                                                              # 002
                                                                                                                              MPN: 62807800
                                                                                                                              LH FRONT LATERAL GRAVEL GUARD
                                                                                                                              from £106.68
                                                                                                                              from £106.68
                                                                                                                              # 003
                                                                                                                              MPN: 62095500
                                                                                                                              RH FRONT WHEELHOUSE GRAVEL GUARD
                                                                                                                              from £135.43
                                                                                                                              from £135.43
                                                                                                                              # 003
                                                                                                                              MPN: 62095600
                                                                                                                              LH FRONT WHEELHOUSE GRAVEL GUARD
                                                                                                                              from £135.43
                                                                                                                              from £135.43
                                                                                                                              # 004
                                                                                                                              MPN: 62128100
                                                                                                                              LOWER GUARD FIXING BRACKET
                                                                                                                              from £45.23
                                                                                                                              from £45.23
                                                                                                                              # 005
                                                                                                                              MPN: 12638178
                                                                                                                              WASHER
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              This part replaces part number 10519578 - and 3 more. Click to view details
                                                                                                                              # 006
                                                                                                                              MPN: 15645507
                                                                                                                              SCREW
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              # 007
                                                                                                                              MPN: 15687378
                                                                                                                              SCREW
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              This part replaces part number 15782701 which we have in stock
                                                                                                                              # 008
                                                                                                                              MPN: 62171900
                                                                                                                              RH KICK PLATE
                                                                                                                              from £240.31
                                                                                                                              from £240.31
                                                                                                                              # 008
                                                                                                                              MPN: 62172000
                                                                                                                              LH KICK PLATE
                                                                                                                              from £359.80
                                                                                                                              from £359.80
                                                                                                                              # 008
                                                                                                                              MPN: 644470000
                                                                                                                              PAIR OF CARBON LOOK KICK PLATES
                                                                                                                              # 009
                                                                                                                              MPN: 62172100
                                                                                                                              KICK PLATE RUBBER
                                                                                                                              from £79.68
                                                                                                                              from £79.68
                                                                                                                              This part replaces part number 62172200
                                                                                                                              # 010
                                                                                                                              MPN: 15914977
                                                                                                                              SCREW
                                                                                                                              from £0.88
                                                                                                                              from £0.88
                                                                                                                              # 011
                                                                                                                              MPN: 12642878
                                                                                                                              WASHER
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              # 012
                                                                                                                              MPN: 14115580
                                                                                                                              BLOCK
                                                                                                                              from £0.53
                                                                                                                              from £0.53
                                                                                                                              # 013
                                                                                                                              MPN: 14202782
                                                                                                                              BLOCK
                                                                                                                              from £0.71
                                                                                                                              from £0.71
                                                                                                                              # 014
                                                                                                                              MPN: 12643777
                                                                                                                              WASHER
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              This part replaces part number 12643706 which we have in stock - and 1 more. Click to view details
                                                                                                                              # 015
                                                                                                                              MPN: 15917177
                                                                                                                              SCREW
                                                                                                                              from £0.61
                                                                                                                              from £0.61
                                                                                                                              # 016
                                                                                                                              MPN: 62084400
                                                                                                                              RH REAR WHEELHOUSE
                                                                                                                              Front side
                                                                                                                              from £864.39
                                                                                                                              from £864.39
                                                                                                                              # 016
                                                                                                                              MPN: 62084500
                                                                                                                              LH REAR WHEELHOUSE
                                                                                                                              Front side
                                                                                                                              from £1,436.91
                                                                                                                              from £1,436.91
                                                                                                                              # 017
                                                                                                                              MPN: 62084600
                                                                                                                              RH REAR WHEELHOUSE
                                                                                                                              Central side
                                                                                                                              from £320.57
                                                                                                                              from £320.57
                                                                                                                              # 017
                                                                                                                              MPN: 62084700
                                                                                                                              LH REAR WHEELHOUSE
                                                                                                                              Central side
                                                                                                                              from £257.24
                                                                                                                              from £257.24
                                                                                                                              # 018
                                                                                                                              MPN: 62118400
                                                                                                                              RH REAR WHEELHOUSE
                                                                                                                              Rearside
                                                                                                                              from £256.98
                                                                                                                              from £256.98
                                                                                                                              # 018
                                                                                                                              MPN: 62118500
                                                                                                                              LH REAR WHEELHOUSE
                                                                                                                              REAR SIDE
                                                                                                                              from £280.52
                                                                                                                              from £280.52
                                                                                                                              # 019
                                                                                                                              MPN: 14215480
                                                                                                                              BLOCK
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              This part replaces part number 14211580
                                                                                                                              # 020
                                                                                                                              MPN: 15687378
                                                                                                                              SCREW
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              This part replaces part number 15782701 which we have in stock
                                                                                                                              # 021
                                                                                                                              MPN: 62118700
                                                                                                                              CONVEYOR FOR RH AIR PLUG
                                                                                                                              from £61.88
                                                                                                                              from £61.88
                                                                                                                              # 021
                                                                                                                              MPN: 62118800
                                                                                                                              CONVEYOR FOR LH AIR PLUG
                                                                                                                              from £61.88
                                                                                                                              from £61.88
                                                                                                                              # 022
                                                                                                                              MPN: 62067400
                                                                                                                              REAR SIDE COVERING
                                                                                                                              Not Valid for USA, CDN and AUS
                                                                                                                              from £2,379.93
                                                                                                                              from £2,379.93
                                                                                                                              # 022
                                                                                                                              MPN: 62871800
                                                                                                                              REAR SIDE COVERING
                                                                                                                              valid for USA,CDN and AUS
                                                                                                                              from £1,658.91
                                                                                                                              from £1,658.91
                                                                                                                              # 023
                                                                                                                              MPN: 62067000
                                                                                                                              FRONT SIDE COVERING FOR RH REAR FENDER
                                                                                                                              from £1.20
                                                                                                                              from £1.20
                                                                                                                              This part replaces part number 62067100
                                                                                                                              # 023
                                                                                                                              MPN: 62067100
                                                                                                                              FRONT SIDE COVERING FOR LH REAR FENDER
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              # 024
                                                                                                                              MPN: 62218200
                                                                                                                              CENTRAL COVERING FOR REAR FENDER
                                                                                                                              from £3.98
                                                                                                                              from £3.98
                                                                                                                              This part replaces part number 62218300
                                                                                                                              # 025
                                                                                                                              MPN: 62066200
                                                                                                                              COMPLETE RH REAR FENDER
                                                                                                                              from £1,875.31
                                                                                                                              from £1,875.31
                                                                                                                              # 025
                                                                                                                              MPN: 62066300
                                                                                                                              COMPLETE LH REAR FENDER
                                                                                                                              from £1,875.31
                                                                                                                              from £1,875.31
                                                                                                                              # 026
                                                                                                                              MPN: 62072700
                                                                                                                              INTERNAL REINFORCEMENT FOR RH REAR FENDER
                                                                                                                              from £19.09
                                                                                                                              from £19.09
                                                                                                                              # 026
                                                                                                                              MPN: 62072800
                                                                                                                              INTERNAL REINFORCEMENT FOR RH REAR FENDER
                                                                                                                              from £19.09
                                                                                                                              from £19.09
                                                                                                                              # 027
                                                                                                                              MPN: 140917
                                                                                                                              FUEL TANK PROTECTION PLATE
                                                                                                                              from £969.77
                                                                                                                              from £969.77
                                                                                                                              # 028
                                                                                                                              MPN: 70000629
                                                                                                                              UPPER SIDE OF RH REAR FENDER
                                                                                                                              from £1,213.15
                                                                                                                              from £1,213.15
                                                                                                                              This part replaces part number 62066600
                                                                                                                              # 028
                                                                                                                              MPN: 70000630
                                                                                                                              UPPER SIDE OF LH REAR FENDER
                                                                                                                              from £1,213.15
                                                                                                                              from £1,213.15
                                                                                                                              This part replaces part number 62066700
                                                                                                                              # 029
                                                                                                                              MPN: 60324506
                                                                                                                              CUP
                                                                                                                              from £1.59
                                                                                                                              from £1.59
                                                                                                                              This part replaces part number 62773000
                                                                                                                              # 030
                                                                                                                              MPN: 20043105
                                                                                                                              PININFARINA MOTIF
                                                                                                                              from £48.00
                                                                                                                              from £48.00
                                                                                                                              # 031
                                                                                                                              MPN: 70000631
                                                                                                                              LOWER SIDE OF RH REAR FENDER
                                                                                                                              from £187.37
                                                                                                                              from £187.37
                                                                                                                              This part replaces part number 62066800
                                                                                                                              # 031
                                                                                                                              MPN: 70000632
                                                                                                                              LOWER SIDE OF LH REAR FENDER
                                                                                                                              from £210.06
                                                                                                                              from £210.06
                                                                                                                              This part replaces part number 62066900
                                                                                                                              # 032
                                                                                                                              MPN: 62076100
                                                                                                                              RH LOWER PLATE
                                                                                                                              from £34.77
                                                                                                                              from £34.77
                                                                                                                              # 032
                                                                                                                              MPN: 62076200
                                                                                                                              LH LOWER PLATE
                                                                                                                              from £41.98
                                                                                                                              from £41.98
                                                                                                                              # 033
                                                                                                                              MPN: 70000633
                                                                                                                              RH DOOR STRIP
                                                                                                                              Completed with plate 65
                                                                                                                              from £499.13
                                                                                                                              from £499.13
                                                                                                                              This part replaces part number 62854800
                                                                                                                              # 033
                                                                                                                              MPN: 70000634
                                                                                                                              LH DOOR STRIP
                                                                                                                              Completed with plate 65
                                                                                                                              from £499.13
                                                                                                                              from £499.13
                                                                                                                              This part replaces part number 62854900
                                                                                                                              # 035
                                                                                                                              MPN: 12640677
                                                                                                                              WASHER
                                                                                                                              not as spare part - use part number: 12640678
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              This part replaces part number 12640606 - and 1 more. Click to view details
                                                                                                                              # 035
                                                                                                                              MPN: 12643777
                                                                                                                              WASHER
                                                                                                                              Valid for GD
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              This part replaces part number 12643706 which we have in stock - and 1 more. Click to view details
                                                                                                                              # 036
                                                                                                                              MPN: 14202985
                                                                                                                              BLOCK
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              # 037
                                                                                                                              MPN: 15785101
                                                                                                                              SCREW
                                                                                                                              from £0.71
                                                                                                                              from £0.71
                                                                                                                              # 038
                                                                                                                              MPN: 62858800
                                                                                                                              GASKET FOR TURRET
                                                                                                                              from £7.68
                                                                                                                              from £7.68
                                                                                                                              # 039
                                                                                                                              MPN: 62660300
                                                                                                                              GASKET
                                                                                                                              from £7.06
                                                                                                                              from £7.06
                                                                                                                              # 040
                                                                                                                              MPN: 62660200
                                                                                                                              PROTECTION
                                                                                                                              from £395.93
                                                                                                                              from £395.93
                                                                                                                              # 041
                                                                                                                              MPN: 62095300
                                                                                                                              RH LOWER FRONT GRAVEL GUARD
                                                                                                                              from £300.68
                                                                                                                              from £300.68
                                                                                                                              # 041
                                                                                                                              MPN: 63510200
                                                                                                                              LH LOWER FRONT GRAVEL GUARD
                                                                                                                              from £909.33
                                                                                                                              from £909.33
                                                                                                                              This part replaces part number 62095400
                                                                                                                              # 042
                                                                                                                              MPN: 14202180
                                                                                                                              BLOCK
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              # 043
                                                                                                                              MPN: 12638178
                                                                                                                              WASHER
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              This part replaces part number 10519578 - and 3 more. Click to view details
                                                                                                                              # 044
                                                                                                                              MPN: 15903978
                                                                                                                              SCREW
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              # 045
                                                                                                                              MPN: 62127900
                                                                                                                              RH LOWER GUARD FOR UNDERBODY
                                                                                                                              from £517.91
                                                                                                                              from £517.91
                                                                                                                              # 045
                                                                                                                              MPN: 62128000
                                                                                                                              LH LOWER GUARD FOR UNDERBODY
                                                                                                                              from £1,397.79
                                                                                                                              from £1,397.79
                                                                                                                              # 046
                                                                                                                              MPN: 63393200
                                                                                                                              GASKET
                                                                                                                              from £6.59
                                                                                                                              from £6.59
                                                                                                                              # 047
                                                                                                                              MPN: 14215480
                                                                                                                              BLOCK
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              This part replaces part number 14211580
                                                                                                                              # 048
                                                                                                                              MPN: 62065900
                                                                                                                              COVERING FOR RH UNDERDOOR
                                                                                                                              from £262.50
                                                                                                                              from £262.50
                                                                                                                              # 048
                                                                                                                              MPN: 62066000
                                                                                                                              COVERING FOR LH UNDERDOOR
                                                                                                                              from £210.00
                                                                                                                              from £210.00
                                                                                                                              # 049
                                                                                                                              MPN: 62059500
                                                                                                                              FRONT SIDE COVERING
                                                                                                                              from £402.85
                                                                                                                              from £402.85
                                                                                                                              # 050
                                                                                                                              MPN: 10977624
                                                                                                                              SCREW
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              This part replaces part number 10977611 - and 1 more. Click to view details
                                                                                                                              # 051
                                                                                                                              MPN: 14647590
                                                                                                                              NUT
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              # 052
                                                                                                                              MPN: 13577701
                                                                                                                              WASHER
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              # 053
                                                                                                                              MPN: 62115800
                                                                                                                              NUT
                                                                                                                              from £1.04
                                                                                                                              from £1.04
                                                                                                                              # 054
                                                                                                                              MPN: 13836971
                                                                                                                              SCREW
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              This part replaces part number 18770124
                                                                                                                              # 055
                                                                                                                              MPN: 62065000
                                                                                                                              LOWER SIDE OF RH FRONT FENDER
                                                                                                                              from £254.45
                                                                                                                              from £254.45
                                                                                                                              # 055
                                                                                                                              MPN: 62065100
                                                                                                                              LOWER SIDE OF LH FRONT FENDER
                                                                                                                              from £60.87
                                                                                                                              from £60.87
                                                                                                                              # 056
                                                                                                                              MPN: 62065200
                                                                                                                              FENDER FRONT PROTECTION
                                                                                                                              from £34.76
                                                                                                                              from £34.76
                                                                                                                              # 057
                                                                                                                              MPN: 62064400
                                                                                                                              COMPLETE RH FRONT FENDER
                                                                                                                              Not for USA and CDN
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              # 057
                                                                                                                              MPN: 62921400
                                                                                                                              COMPLETE RH FRONT FENDER
                                                                                                                              Valid for USA and CDN
                                                                                                                              from £3,235.95
                                                                                                                              from £3,235.95
                                                                                                                              This part replaces part number 62064400
                                                                                                                              # 057
                                                                                                                              MPN: 63962200
                                                                                                                              COMPLETE LH FRONT FENDER
                                                                                                                              Not for USA and CDN
                                                                                                                              from £1,317.31
                                                                                                                              from £1,317.31
                                                                                                                              # 057
                                                                                                                              MPN: 63962200
                                                                                                                              COMPLETE LH FRONT FENDER
                                                                                                                              Valid for USA and CDN
                                                                                                                              from £1,317.31
                                                                                                                              from £1,317.31
                                                                                                                              # 058
                                                                                                                              MPN: 63006800
                                                                                                                              REAR SHIELD NET
                                                                                                                              from £34.89
                                                                                                                              from £34.89
                                                                                                                              # 059
                                                                                                                              MPN: 63006700
                                                                                                                              Frame
                                                                                                                              from £79.62
                                                                                                                              from £79.62
                                                                                                                              # 060
                                                                                                                              MPN: 12638178
                                                                                                                              WASHER
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              This part replaces part number 10519578 - and 3 more. Click to view details
                                                                                                                              # 061
                                                                                                                              MPN: 14054048
                                                                                                                              NUT
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              This part replaces part number 14054042
                                                                                                                              # 062
                                                                                                                              MPN: 20286209
                                                                                                                              SCREW
                                                                                                                              from £5.40
                                                                                                                              from £5.40
                                                                                                                              # 063
                                                                                                                              MPN: 15645507
                                                                                                                              SCREW
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              # 063
                                                                                                                              MPN: 15688075
                                                                                                                              SCREW
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              This part replaces part number 15688007 which we have in stock - and 1 more. Click to view details
                                                                                                                              # 064
                                                                                                                              MPN: 12638178
                                                                                                                              WASHER
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              This part replaces part number 10519578 - and 3 more. Click to view details
                                                                                                                              # 065
                                                                                                                              MPN: 62055200
                                                                                                                              STRIKER FIXING PLATE
                                                                                                                              from £4.04
                                                                                                                              from £4.04
                                                                                                                              # 066
                                                                                                                              MPN: 12638178
                                                                                                                              WASHER
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              This part replaces part number 10519578 - and 3 more. Click to view details
                                                                                                                              # 067
                                                                                                                              MPN: 12638178
                                                                                                                              WASHER
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              This part replaces part number 10519578 - and 3 more. Click to view details
                                                                                                                              # 068
                                                                                                                              MPN: 12574121
                                                                                                                              NUT
                                                                                                                              Not for GD
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              This part replaces part number 12574111 - and 2 more. Click to view details
                                                                                                                              # 068
                                                                                                                              MPN: 12575421
                                                                                                                              NUT
                                                                                                                              Valid for GD
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              # 069
                                                                                                                              MPN: 12624177
                                                                                                                              WASHER
                                                                                                                              Not for GD
                                                                                                                              from £1.43
                                                                                                                              from £1.43
                                                                                                                              # 069
                                                                                                                              MPN: 12643777
                                                                                                                              WASHER
                                                                                                                              Valid for GD
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              This part replaces part number 12643706 which we have in stock - and 1 more. Click to view details
                                                                                                                              # 070
                                                                                                                              MPN: 63251400
                                                                                                                              RH REAR GASKET
                                                                                                                              from £80.67
                                                                                                                              from £80.67
                                                                                                                              # 070
                                                                                                                              MPN: 63251500
                                                                                                                              LH REAR GASKET
                                                                                                                              from £79.86
                                                                                                                              from £79.86
                                                                                                                              # 071
                                                                                                                              MPN: 60517200
                                                                                                                              CLIP
                                                                                                                              from £1.54
                                                                                                                              from £1.54
