-Valid for TS - Valid From Car Nr. 94910 TS and Nr. 94269 USA TS
ferrari 348 (1993) tb / ts passengers compartment carpets parts diagram

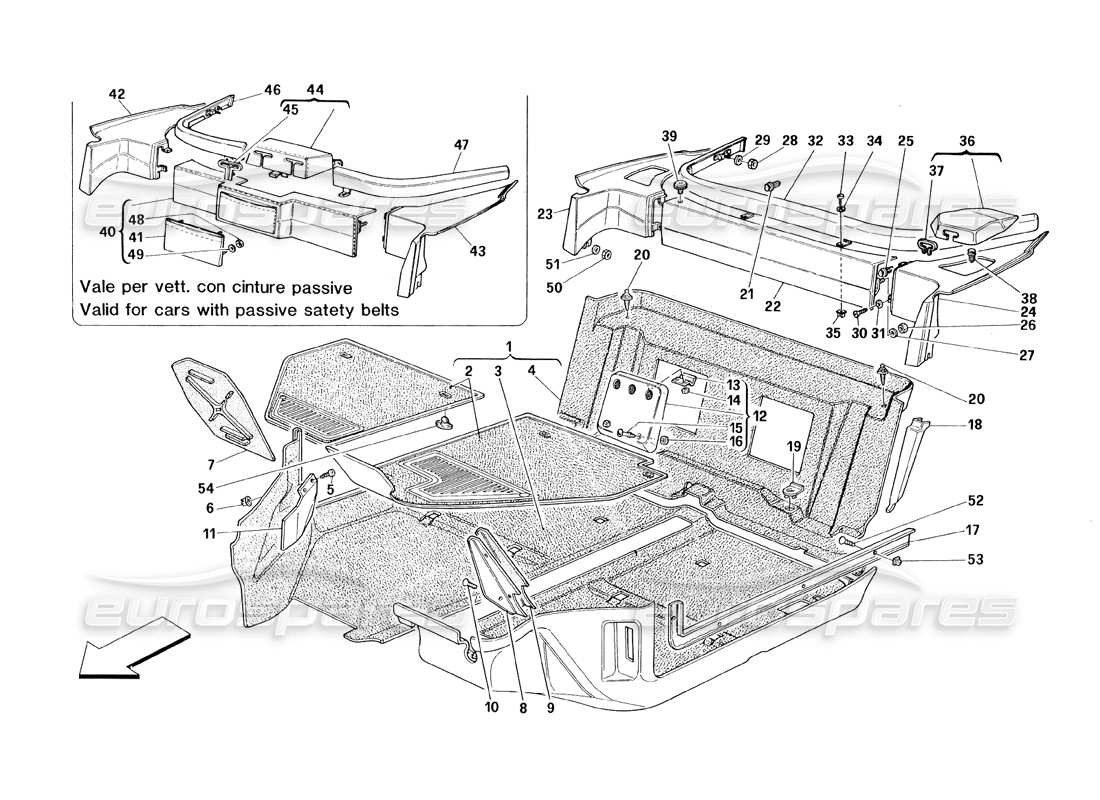

108A - passengers compartment carpets

Ferrari 348 (1993) TB / TS Passengers Compartment Carpets Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price

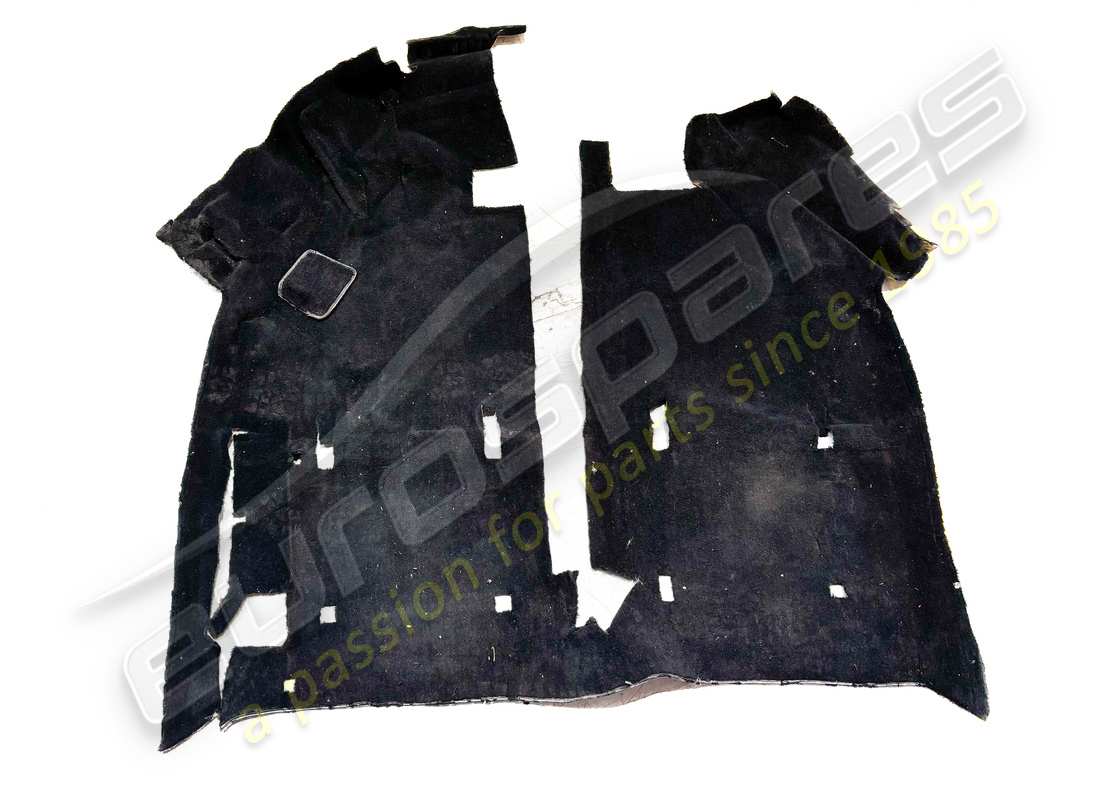

                                        # 001
                                        MPN: 1000400
                                        LHD COMPLETE CARPETS SERIES
                                        from £523.43
                                        from £523.43
                                        # 001
                                        MPN: 1000401
                                        RHD COMPLETE CARPETS SERIES
                                        from £481.33
                                        from £481.33
                                        # 002
                                        MPN: 632998..
                                        PILOT/PASSENGER MOVABLE CARPETS
                                        -Valid for RHD ..colour code required
                                        Supersession
                                        Supersession
                                        # 002
                                        MPN: 63299890
                                        PILOT/PASSENGER MOVABLE CARPETS
                                        RHD - Black
                                        from £383.40
                                        from £383.40
                                        This part replaces part number 632998..
                                        # 002
                                        MPN: 633016..
                                        PILOT/PASSENGER MOVABLE CARPETS
                                        Not for GD
                                        Supersession
                                        Supersession
                                        # 003
                                        -
                                        FLATBED PRE-SHAPED CARPET
                                        # 004
                                        -
                                        BENCH CARPET
                                        # 005
                                        MPN: 15916170
                                        SCREW
                                        Valid for GD
                                        from £0.71
                                        from £0.71
                                        # 006
                                        MPN: 14202580
                                        BLOCK
                                        Valid for GD
                                        from £0.47
                                        from £0.47
                                        # 007
                                        MPN: 62840200
                                        SLAB FOR PASSENGER SIDE FOOT REST PLATE
                                        Not for GD
                                        from £29.45
                                        from £29.45
                                        # 007
                                        MPN: 62986600
                                        SLAB FOR PASSENGER SIDE FOOT REST PLATE
                                        Valid for GD
                                        from £15.08
                                        from £15.08
                                        # 008
                                        MPN: 63359500
                                        CARPET FASTENING PLATE
                                        Not for GD
                                        from £32.35
                                        from £32.35
                                        # 009
                                        MPN: 63359600
                                        SLAB FOR PLATE
                                        Not for GD
                                        from £109.33
                                        from £109.33
                                        # 010
                                        MPN: 15915807
                                        SCREW
                                        Not for GD
                                        from £0.47
                                        from £0.47
                                        # 011
                                        MPN: 63343500
                                        ACCELERATOR PEDAL PROTECTION
                                        Valid for GD
                                        from £191.19
                                        from £191.19
                                        # 012
                                        MPN: 635736..
                                        LINING
                                        Supersession
                                        Supersession
                                        # 012
                                        MPN: 635737..
                                        COMPLETE CONTROL UNIT COVER
                                        from £183.75
                                        from £183.75
                                        # 013
                                        MPN: 63569200
                                        FIXING CLIP
                                        from £1.51
                                        from £1.51
                                        # 014
                                        MPN: 12574011
                                        NUT
                                        from £0.53
                                        from £0.53
                                        # 015
                                        MPN: 62692600
                                        PIN
                                        from £5.72
                                        from £5.72
                                        # 016
                                        MPN: 62692700
                                        RUBBER FOR PIN
                                        from £1.01
                                        from £1.01
                                        # 017
                                        MPN: 629988..
                                        RH LOWER MOULDING
                                        Valid for cars without passive safety belts For cars with passive safety belts see Table 122/D
                                        Supersession
                                        Supersession
                                        # 017
                                        MPN: 629991..
                                        LH LOWER MOULDING
                                        Valid for cars without passive safety belts For cars with passive safety belts see Table 122/D
                                        Supersession
                                        Supersession
                                        # 018
                                        MPN: 635944..
                                        RH REAR MOLDING
                                        Not for USA
                                        Supersession
                                        Supersession
                                        # 018
                                        MPN: 635947..
                                        LH REAR MOLDING
                                        Not for USA
                                        Supersession
                                        Supersession
                                        # 018
                                        MPN: 636241..
                                        RH REAR MOLDING
                                        Valid for USA
                                        Supersession
                                        Supersession
                                        # 018
                                        MPN: 636244..
                                        LH REAR MOLDING
                                        Valid for USA
                                        Supersession
                                        Supersession
                                        # 019
                                        MPN: 63595400
                                        BUSHING FOR ROOF
                                        from £1.16
                                        from £1.16
                                        # 020
                                        MPN: 60271806
                                        SCREW TAP
                                        from £10.84
                                        from £10.84
                                        This part replaces part number 61632100
                                        # 021
                                        MPN: 14188181
                                        RETAINER
                                        from £0.51
                                        from £0.51
                                        This part replaces part number 14188282
                                        # 022
                                        MPN: 62200400
                                        CENTRAL COVERED TAIL REAR WINDOW CHASSIS
                                        Valid for cars without passive safety belts Not for CDN
                                        from £94.76
                                        from £94.76
                                        # 022
                                        MPN: 62200600
                                        LINING
                                        Valid for cars without passive safety belts
                                        from £27.52
                                        from £27.52
                                        # 022
                                        MPN: 63316200
                                        CENTRAL COVERED TAIL REAR WINDIW CHASSIS
                                        Valid for CDN
                                        # 023
                                        MPN: 62201100
                                        RH SIDE COVERED TAIL REAR WINDOW CHASSIS
                                        Valid for cars without passive safety belts
                                        from £398.74
                                        from £398.74
                                        # 023
                                        MPN: 62201300
                                        LINING
                                        Valid for cars without passive safety belts
                                        from £33.16
                                        from £33.16
                                        # 024
                                        MPN: 62201200
                                        LH SIDE COVERED TAIL REAR WINDOW CHASSIS
                                        Valid for cars without passive safety belts
                                        from £398.74
                                        from £398.74
                                        # 024
                                        MPN: 62201400
                                        LINING
                                        Valid for cars without passive safety belts
                                        from £23.06
                                        from £23.06
                                        # 025
                                        MPN: 14188181
                                        RETAINER
                                        from £0.51
                                        from £0.51
                                        This part replaces part number 14188282
                                        # 026
                                        MPN: 15896470
                                        NUT
                                        (minimum order quantity = 20)
                                        from £0.78
                                        from £0.78
                                        This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                        # 027
                                        MPN: 12638101
                                        WASHER
                                        from £0.71
                                        from £0.71
                                        # 028
                                        MPN: 15896470
                                        NUT
                                        (minimum order quantity = 20)
                                        from £0.78
                                        from £0.78
                                        This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                        # 029
                                        MPN: 12638101
                                        WASHER
                                        from £0.71
                                        from £0.71
                                        # 030
                                        MPN: 15958801
                                        SCREW
                                        from £0.47
                                        from £0.47
                                        # 031
                                        MPN: 12638101
                                        WASHER
                                        from £0.71
                                        from £0.71
                                        # 032
                                        MPN: 62199600
                                        COVERED TAIL REAR WINDOW CROSSPIECE
                                        Valid for cars without passive safety belts Not for CON
                                        from £73.90
                                        from £73.90
                                        # 032
                                        MPN: 62199800
                                        LINING
                                        Valid for cars without passive safety belts
                                        from £8.91
                                        from £8.91
                                        # 032
                                        MPN: 63315900
                                        COVERED TAIL REAR WINDOW CROSSPIECE
                                        Valid for CDN
                                        # 033
                                        MPN: 15958801
                                        SCREW
                                        from £0.47
                                        from £0.47
                                        # 034
                                        MPN: 12638101
                                        WASHER
                                        from £0.71
                                        from £0.71
                                        # 035
                                        MPN: 14115980
                                        BLOCK
                                        from £0.70
                                        from £0.70
                                        This part replaces part number 14202380
                                        # 036
                                        MPN: 62912200
                                        RH COVERED ROLLER COVER
                                        Valid for cars without passive safety belts
                                        from £110.29
                                        from £110.29
                                        # 036
                                        MPN: 62912300
                                        LH COVERED ROLLER COVER
                                        Valid for cars without passive safety belts
                                        from £121.59
                                        from £121.59
                                        # 036
                                        MPN: 62912400
                                        LINING
                                        Valid for cars without passive safety belts
                                        from £4.23
                                        from £4.23
                                        # 037
                                        MPN: 60709400
                                        PLATE
                                        Valid for cars without passive safety belts
                                        from £5.68
                                        from £5.68
                                        # 038
                                        MPN: 14188181
                                        RETAINER
                                        from £0.48
                                        from £0.48
                                        This part replaces part number 14188282
                                        # 039
                                        MPN: 63239300
                                        BUTTON WITH PIN
                                        Valid for CDN
                                        Supersession
                                        Supersession
                                        # 040
                                        MPN: 62447800
                                        LINING
                                        Valid for cars with passive safety belts
                                        from £90.81
                                        from £90.81
                                        # 040
                                        MPN: 62953800
                                        CENTRAL COVERED TAIL REAR WINDOW CHASSIS WITH POCKET
                                        Valid for cars with passive safety belts
                                        from £675.85
                                        from £675.85
                                        # 041
                                        MPN: 62736400
                                        CENTRAL POCKET COMPLETE
                                        Valid for cars with passive safety belts
                                        from £110.53
                                        from £110.53
                                        # 042
                                        MPN: 62448000
                                        LINING
                                        Valid for cars with passive safety belts
                                        from £214.62
                                        from £214.62
                                        # 042
                                        MPN: 62954200
                                        RH SIDE COVERED TAIL REAR WINDOW CHASSIS
                                        Valid for cars with passive safety belts
                                        from £480.34
                                        from £480.34
                                        # 043
                                        MPN: 62448100
                                        LINING
                                        Valid for cars with passive safety belts
                                        from £196.35
                                        from £196.35
                                        # 043
                                        MPN: 62954300
                                        LH SIDE COVERED TAIL REAR WINDOW CHASSIS
                                        Valid for cars with passive safety belts
                                        from £490.34
                                        from £490.34
                                        # 044
                                        MPN: 62448500
                                        LINING
                                        Valid for cars with passive safety belts
                                        from £30.71
                                        from £30.71
                                        # 044
                                        MPN: 62955000
                                        COVERED TRIM FOR DRIVING BELTS
                                        Valid for cars with passive safety belts
                                        from £267.57
                                        from £267.57
                                        # 045
                                        MPN: 62449600
                                        PLATE
                                        Valid for cars with passive safety belts
                                        from £13.32
                                        from £13.32
                                        # 046
                                        MPN: 62447500
                                        LINING
                                        Valid for cars with passive safety belts
                                        from £5.41
                                        from £5.41
                                        # 046
                                        MPN: 62952000
                                        RH COVERED TAIL REAR WINDOW CROSSPIECE
                                        Valid for cars with passive safety belts
                                        from £123.38
                                        from £123.38
                                        # 047
                                        MPN: 62447500
                                        LINING
                                        Valid for cars with passive safety belts
                                        from £5.41
                                        from £5.41
                                        # 047
                                        MPN: 62952100
                                        LH COVERED TAIL REAR WINDOW CROSSPIECE
                                        Valid for cars with passive safety belts
                                        from £123.38
                                        from £123.38
                                        # 048
                                        MPN: 12577811
                                        NUT
                                        Valid for cars with passive safety belts
                                        Supersession
                                        Supersession
                                        # 049
                                        MPN: 12638101
                                        WASHER
                                        Valid for cars with passive safety belts
                                        from £0.71
                                        from £0.71
                                        # 050
                                        MPN: 15896470
                                        NUT
                                        (minimum order quantity = 20)
                                        from £0.78
                                        from £0.78
                                        This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                        # 051
                                        MPN: 12638101
                                        WASHER
                                        from £0.71
                                        from £0.71
                                        # 052
                                        MPN: 15916207
                                        SCREW
                                        Valid for cars without passive safety belts
                                        from £0.47
                                        from £0.47
                                        # 053
                                        MPN: 14201980
                                        BLOCK
                                        Valid for cars without passive safety belts
                                        from £0.52
                                        from £0.52
