109 - Front CompartmenTS Carpets

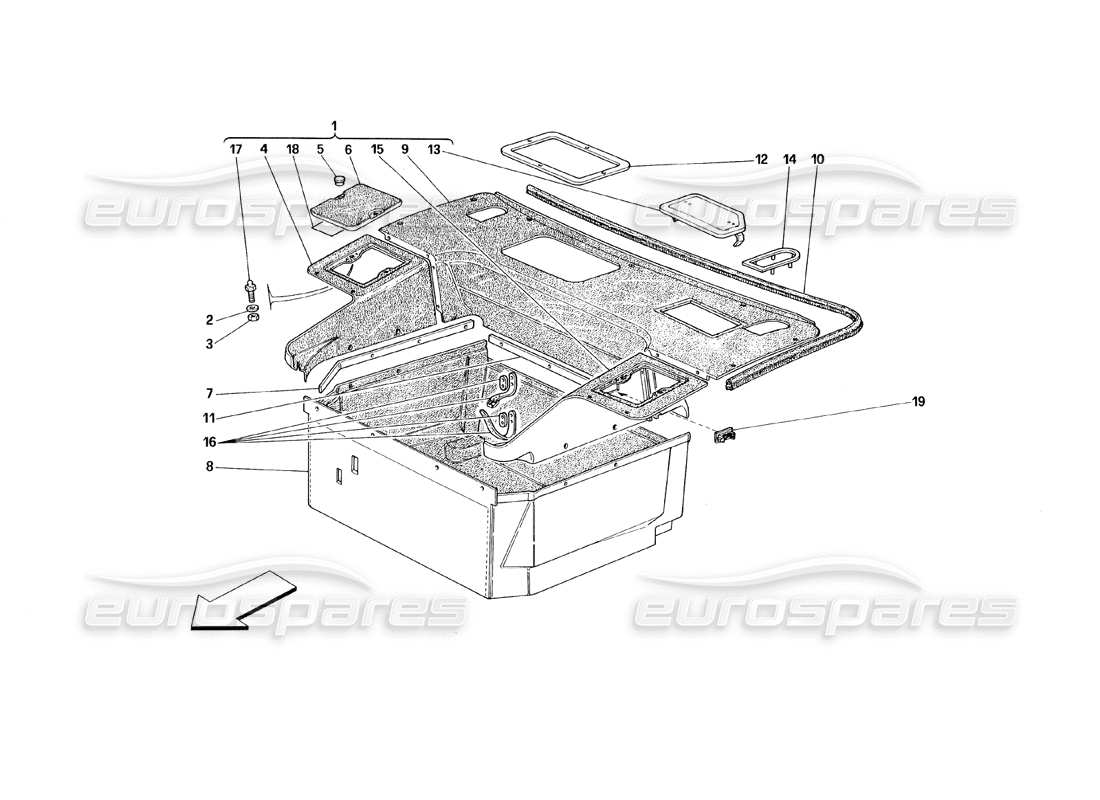

Ferrari 348 (1993) TB / TS Front CompartmenTS Carpets Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 62886700
CARPET SERIES FOR TRUNK COMPARTMENT
Not for GD
from £874.23
from £874.23
# 001
MPN: 62886800
CARPET SERIES FOR TRUNK COMPARTMENT
Valid for GD
from £1,003.38
from £1,003.38
# 002
MPN: 12638101
WASHER
from £0.71
from £0.71
# 003
MPN: 12574121
NUT
Supersession
Supersession
This part replaces part number 12574111 - and 2 more. Click to view details
# 004
MPN: 62838600
RH SIDE CARPET
Not for GD
from £181.68
from £181.68
# 004
MPN: 62875600
RH SIDE CARPET
Valid for GD
from £181.68
from £181.68
# 005
MPN: 60727200
FEMALE BUTTON
from £18.08
from £18.08
This part replaces part number 60084506
# 006
MPN: 62884200
CONTROL UNIT INSPECTION COMPLETE COVER
With threaded pin
from £196.35
from £196.35
# 006
MPN: 62957600
CONTROL UNIT INSPECTION COMPLETE COVER
With pushing button
from £258.25
from £258.25
# 007
MPN: 62989400
SIDE MOLDING
from £94.70
from £94.70
# 008
MPN: 62838500
TRUNK BOTTOM CARPET
Not for GD
from £103.16
from £103.16
# 008
MPN: 62875500
TRUNK BOTTOM CARPET
Valid for GD
from £163.19
from £163.19
# 009
MPN: 62838800
REAR CARPET FOR TRUNK BOTTOM
Not for GD
from £612.86
from £612.86
# 009
MPN: 62875800
REAR CARPET FOR TRUNK BOTTOM
Valid for GD
from £649.46
from £649.46
# 010
MPN: 62086300
GASKET
Supersession
Supersession
This part replaces part number 64517100
# 011
MPN: 62989300
CENTRAL MOLDING
Not for GD
from £115.52
from £115.52
# 011
MPN: 63015100
CENTRAL MOLDING
Valid for GD
from £95.18
from £95.18
# 012
MPN: 62897400
A.C. SOCKET MOLDING
from £233.93
from £233.93
# 013
MPN: 62957500
COVER FOR BRAKE OIL INSPECTION
from £94.76
from £94.76
This part replaces part number 62977500
# 014
MPN: 62897300
MOULDING
from £57.86
from £57.86
# 015
MPN: 62838700
LH SIDE CARPET
Not for GD
from £239.72
from £239.72
# 015
MPN: 62875700
LH SIDE CARPET
Valid for GD
from £180.00
from £180.00
# 016
MPN: 63568100
COMPLETE BELT FOR TOOL KIT
from £26.52
from £26.52
This part replaces part number 62959800
# 017
MPN: 60084407
SCREW TAP
from £3.46
from £3.46
# 054
MPN: 63698100
FIXING BUTTON
Supersession
Supersession
This part replaces part number 63698200 - and 1 more. Click to view details
