110 - Roof Trims

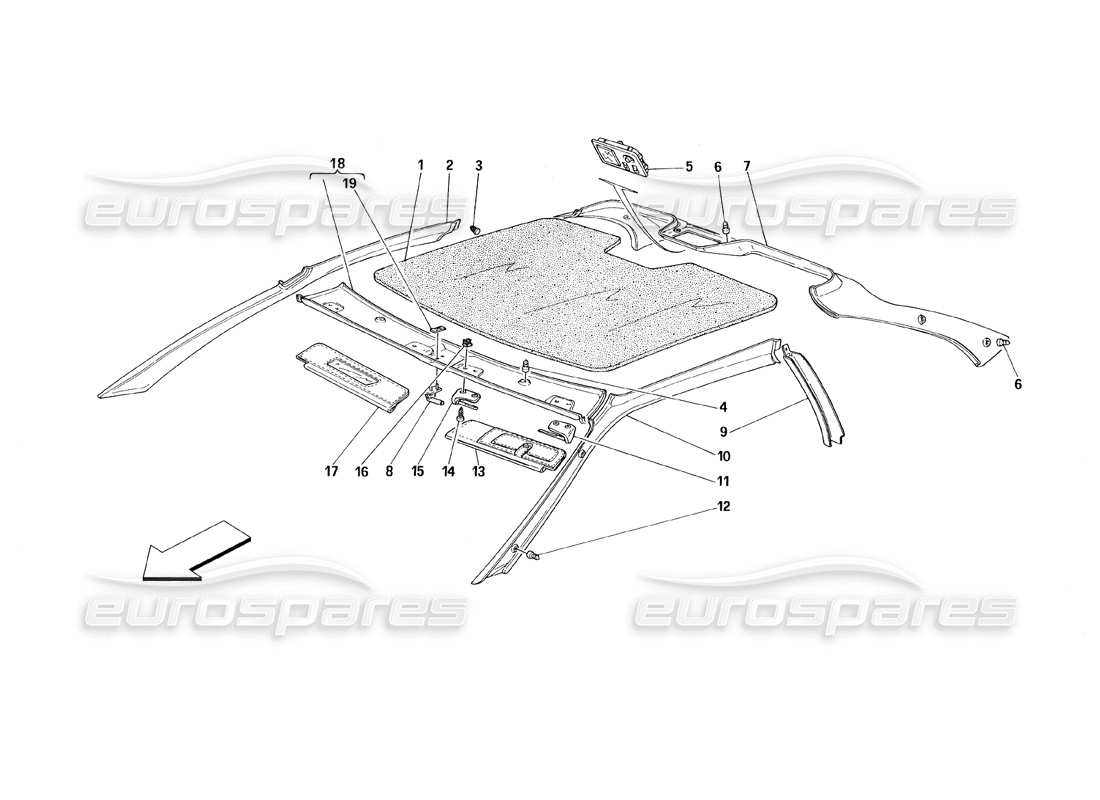

Ferrari 348 (1993) TB / TS Roof Trims Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 62803700
UPHOLSTERY
Grey Made of cloth
from £389.83
from £389.83
# 001
MPN: 62858300
UPHOLSTERY
Brown Made of cloth Valid till stock exhaustion
from £246.39
from £246.39
# 001
MPN: 62858400
UPHOLSTERY
Beige Made of cloth
from £209.92
from £209.92
# 001
MPN: 62858500
UPHOLSTERY
Red Made of cloth
from £264.14
from £264.14
# 001
MPN: 62858600
UPHOLSTERY
Blue Made of cloth
from £317.98
from £317.98
# 001
MPN: 630192..
UPHOLSTERY
Made of leather
Supersession
Supersession
# 002
MPN: 62149900
FRONT RH POOST COVERING MOLDING
from £549.78
from £549.78
# 002
MPN: 62150200
LINING
from £9.67
from £9.67
# 003
MPN: 14592587
FIXING BUTTON
from £0.54
from £0.54
# 004
MPN: 14188181
RETAINER
from £0.51
from £0.51
This part replaces part number 14188282
# 005
MPN: 134458
ROOF LAMP FOR PASSENGERS COMPARTMENT LIGHTING
from £93.08
from £93.08
# 006
MPN: 14188181
RETAINER
from £0.50
from £0.50
This part replaces part number 14188282
# 007
MPN: 62151300
REAR MOLDING FOR ROOF AND FINS
from £766.12
from £766.12
# 007
MPN: 62151500
LINING
from £27.66
from £27.66
# 008
MPN: 62744000
COURTESY HOOKS SERIES
Valid for cars with passive safety belts
from £4.35
from £4.35
# 009
MPN: 62150600
REAR RH POST COVERING MOLDING
from £66.28
from £66.28
# 009
MPN: 62150700
REAR LH POST COVERING MOLDING
from £119.19
from £119.19
# 009
MPN: 62150900
LINING
from £6.36
from £6.36
# 009
MPN: 62151000
LINING
from £6.84
from £6.84
# 010
MPN: 62150000
FRONTLH POST COVERING MOLDING
from £549.78
from £549.78
# 010
MPN: 62150300
LINING
from £15.89
from £15.89
# 011
MPN: 61003300
LH BRACKET FOR SCREEN FASTENING
from £48.28
from £48.28
# 012
MPN: 14188181
RETAINER
from £0.47
from £0.47
This part replaces part number 14188282

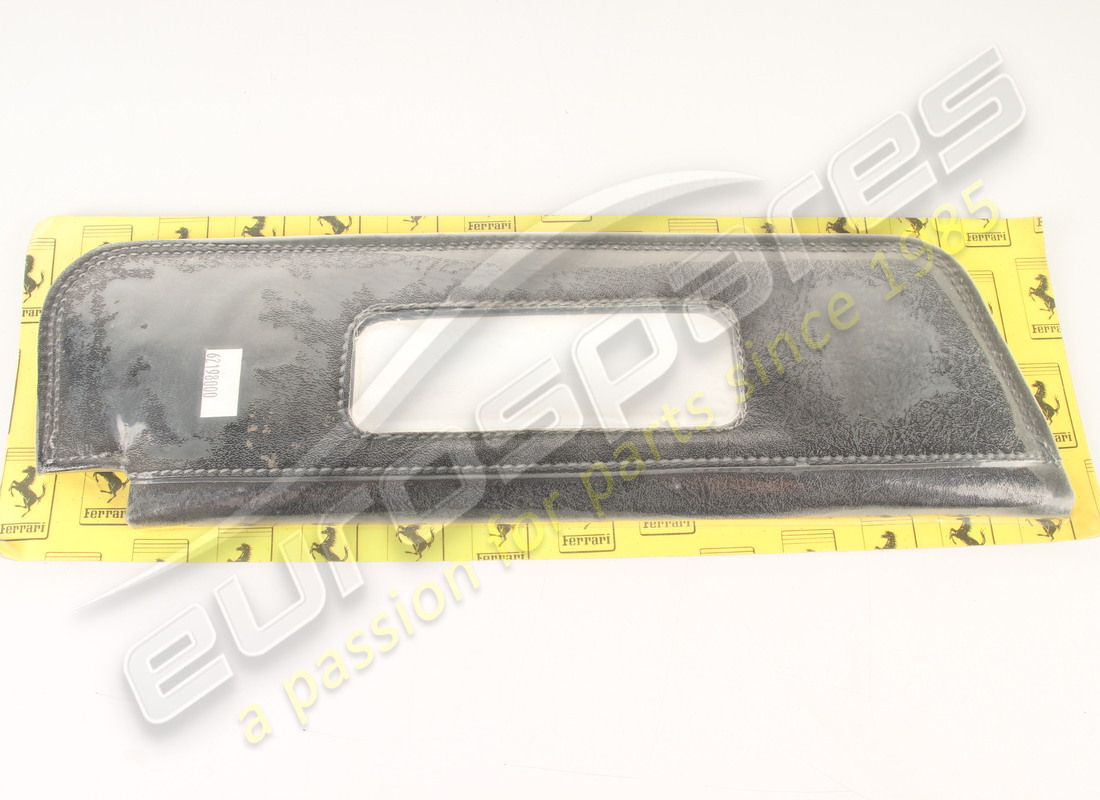

# 013
MPN: 62198000
LH SUN SCREEN
Not for GD
from £172.27
from £172.27
# 013
MPN: 62198600
LH SUN SCREEN
Valid for GD
from £82.53
from £82.53
# 014
MPN: 12673107
SCREW
from £4.89
from £4.89
# 015
MPN: 61003200
RH BRACKET FOR SCREEN FASTENING
from £48.28
from £48.28
# 016
MPN: 14215480
BLOCK
from £0.52
from £0.52
This part replaces part number 14211580
# 017
MPN: 62197900
RH SUNSCREEN
Not for GD
from £238.73
from £238.73
# 017
MPN: 62849900
RH SUN SCREEN
Valid for GD
from £121.30
from £121.30
# 018
MPN: 134442
PLATE FOR FUSE IDENTIFICATION
Place it under the LH Control unit inspection cover
from £5.68
from £5.68
# 018
MPN: 62149500
UPPER MOLDING FOR WINDSHIELD
Valid for cars without passive safety belts
from £208.95
from £208.95
# 018
MPN: 62149700
LINING
from £7.78
from £7.78
# 018
MPN: 63312500
UPPER MOLDING FOR WINDSHIELD
Valid for cars with passive safety belts
from £151.66
from £151.66
# 019
MPN: 139517
DOME LAMP
from £7.52
from £7.52
# 019
MPN: 14183471
PLATE
Valid for cars with passive safety belts
from £0.47
from £0.47
