111 - Front Hood

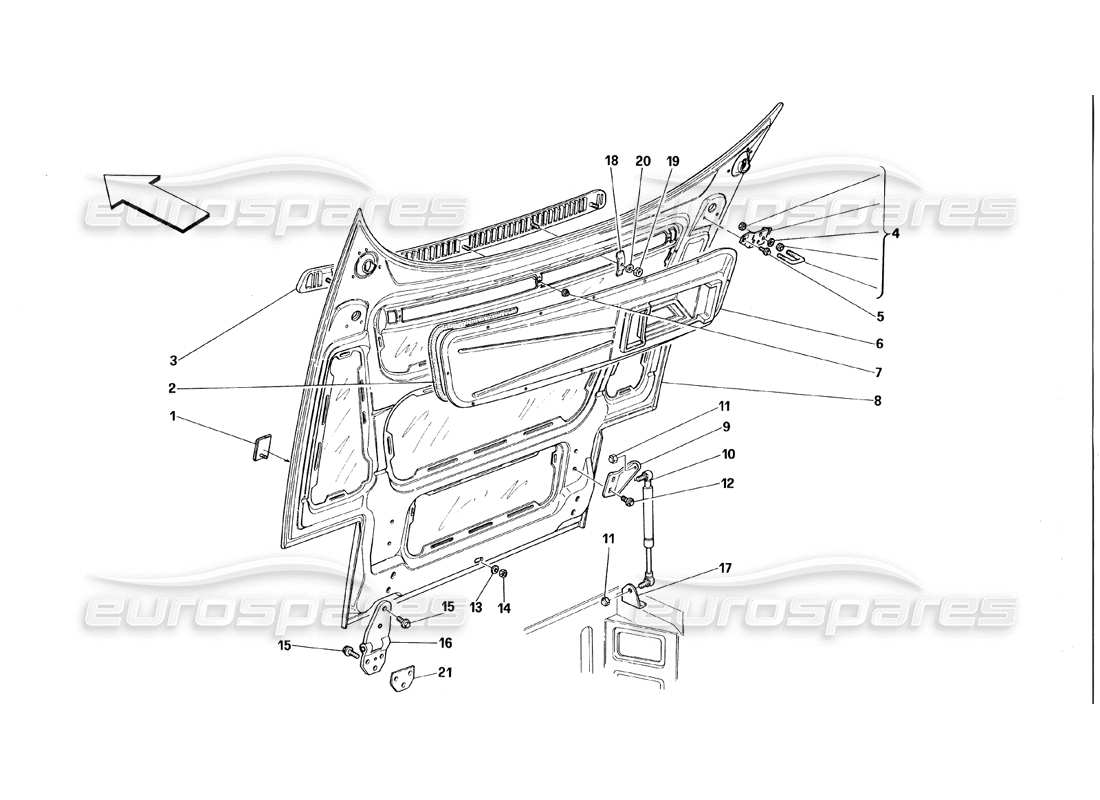

Ferrari 348 (1993) TB / TS Front Hood Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 001
                                          MPN: 62673100
                                          FRONT ORNAMENT
                                          from £125.00
                                          from £125.00
                                          # 002
                                          MPN: 63001600
                                          GASKET
                                          from £5.70
                                          from £5.70
                                          # 003
                                          MPN: 62115300
                                          AIR INTAKE PLATE BADGE
                                          from £599.50
                                          from £599.50
                                          # 004
                                          MPN: 65772400
                                          COMPLETE HOOD CLOSING STRIKER
                                          from £118.86
                                          from £118.86
                                          This part replaces part number 62086000
                                          # 005
                                          MPN: 13836371
                                          SCREW
                                          from £1.49
                                          from £1.49
                                          # 006
                                          MPN: 62120300
                                          AIR CONVEYOR
                                          Not for GD
                                          from £89.25
                                          from £89.25
                                          # 006
                                          MPN: 62142500
                                          AIR CONVEYOR
                                          Valid for GD
                                          from £194.16
                                          from £194.16
                                          # 007
                                          MPN: 14203480
                                          NUT
                                          from £0.47
                                          from £0.47
                                          # 008
                                          MPN: 63501300
                                          FRONT HOOD BONNET
                                          from £3,323.12
                                          from £3,323.12
                                          This part replaces part number 62757800
                                          # 009
                                          MPN: 62059300
                                          RH BRACKET
                                          from £13.76
                                          from £13.76
                                          # 009
                                          MPN: 62921300
                                          LH BRACKET
                                          from £26.07
                                          from £26.07
                                          # 010
                                          MPN: 62175300
                                          FRONT HOOD/ENGINE COVER STRUT
                                          from £6.50
                                          from £6.50
                                          # 011
                                          MPN: 16104411
                                          NUT
                                          from £0.47
                                          from £0.47
                                          # 012
                                          MPN: 13836371
                                          SCREW
                                          from £1.49
                                          from £1.49
                                          # 013
                                          MPN: 10519377
                                          WASHER
                                          Supersession
                                          Supersession
                                          This part replaces part number 10519305 - and 1 more. Click to view details
                                          # 014
                                          MPN: 12574115
                                          NUT
                                          from £1.11
                                          from £1.11
                                          # 015
                                          MPN: 13836721
                                          SCREW
                                          from £0.47
                                          from £0.47
                                          # 016
                                          MPN: 62062600
                                          FRONT HOOD BONNET HINGE
                                          from £135.97
                                          from £135.97
                                          # 017
                                          MPN: 62096400
                                          RH BRACKET
                                          from £59.24
                                          from £59.24
                                          # 017
                                          MPN: 62096500
                                          LH BRACKET
                                          from £59.24
                                          from £59.24
                                          # 018
                                          MPN: 63337900
                                          BRACKET
                                          from £35.07
                                          from £35.07
                                          # 019
                                          MPN: 14048615
                                          NUT
                                          from £0.47
                                          from £0.47
                                          # 020
                                          MPN: 14496377
                                          WASHER
                                          from £1.07
                                          from £1.07
                                          This part replaces part number 14496309
                                          # 021
                                          MPN: 62757500
                                          ZINCFOIL
                                          from £3.51
                                          from £3.51
