ferrari 348 (1993) tb / ts opening devices for rear hood and gas door parts diagram

114 - Opening Devices for Rear Hood and Gas Door

Ferrari 348 (1993) TB / TS Opening Devices for Rear Hood and Gas Door Parts Diagram

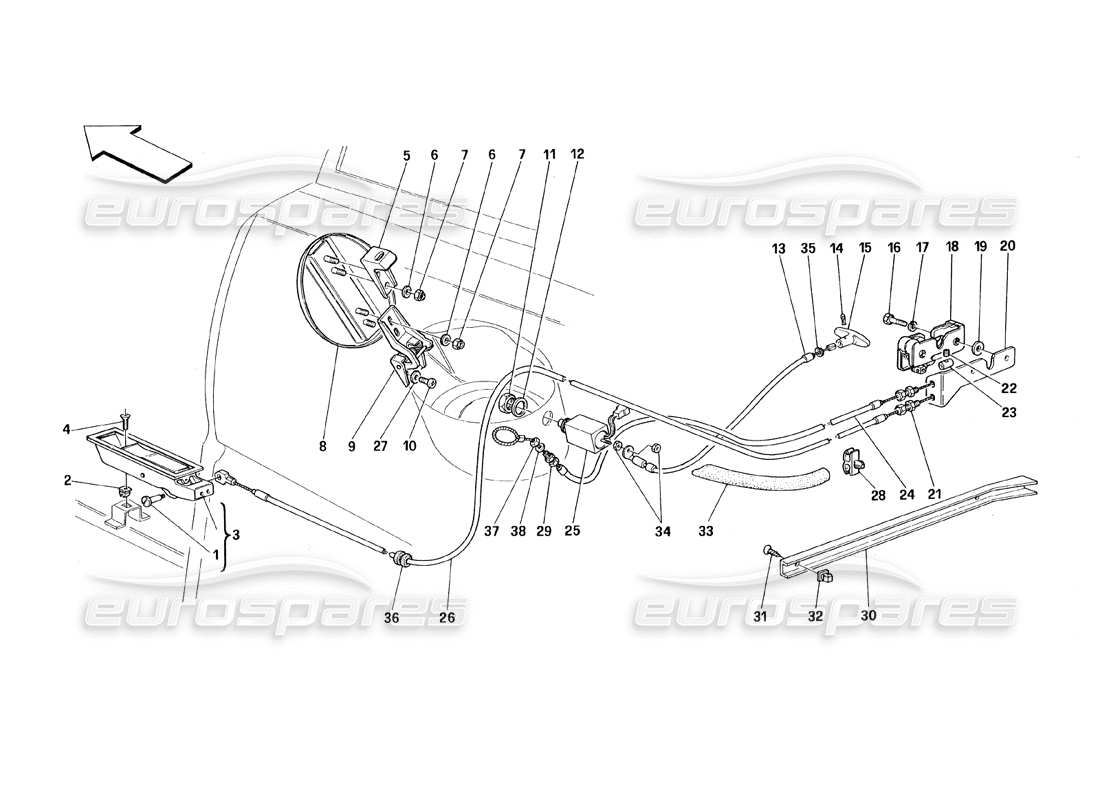

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 62552200
                                                                      PIN FOR CABLE FASTENING
                                                                      from £12.97
                                                                      from £12.97
                                                                      # 002
                                                                      MPN: 14115980
                                                                      BLOCK
                                                                      from £0.69
                                                                      from £0.69
                                                                      This part replaces part number 14202380
                                                                      # 003
                                                                      MPN: 62551900
                                                                      OPENING HANDLE FOR ENGINE HOOD
                                                                      from £199.79
                                                                      from £199.79
                                                                      # 004
                                                                      MPN: 15672607
                                                                      SCREW
                                                                      Supersession
                                                                      Supersession
                                                                      # 005
                                                                      MPN: 60538100
                                                                      STRIKER PLATE FOR GAS UNION DOOR
                                                                      from £12.03
                                                                      from £12.03
                                                                      # 006
                                                                      MPN: 12638101
                                                                      WASHER
                                                                      from £0.71
                                                                      from £0.71
                                                                      # 007
                                                                      MPN: 12574115
                                                                      NUT
                                                                      from £1.08
                                                                      from £1.08
                                                                      # 008
                                                                      MPN: 62075200
                                                                      FUEL INLET LID
                                                                      from £32.88
                                                                      from £32.88
                                                                      # 009
                                                                      MPN: 62370400
                                                                      HINGE FOR GAS UNION DOOR
                                                                      from £85.95
                                                                      from £85.95
                                                                      # 010
                                                                      MPN: 13274011
                                                                      SCREW
                                                                      from £1.08
                                                                      from £1.08
                                                                      # 011
                                                                      MPN: 60538800
                                                                      RING NUT
                                                                      from £4.96
                                                                      from £4.96
                                                                      # 012
                                                                      MPN: 60772600
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      # 013
                                                                      MPN: 62830400
                                                                      SAFETY CABLE FOR GAS UNION DOOR
                                                                      from £10.26
                                                                      from £10.26
                                                                      # 014
                                                                      MPN: 60711000
                                                                      CLIP
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 015
                                                                      MPN: 60710900
                                                                      EMERGENCY HANDLE
                                                                      from £5.13
                                                                      from £5.13
                                                                      # 016
                                                                      MPN: 10903021
                                                                      SCREW
                                                                      Supersession
                                                                      Supersession
                                                                      # 018
                                                                      MPN: 60277407
                                                                      ENGINE BONNET LOCK
                                                                      from £287.51
                                                                      from £287.51
                                                                      This part replaces part number 60023405 - and 15 more. Click to view details
                                                                      # 019
                                                                      MPN: 12644401
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 020

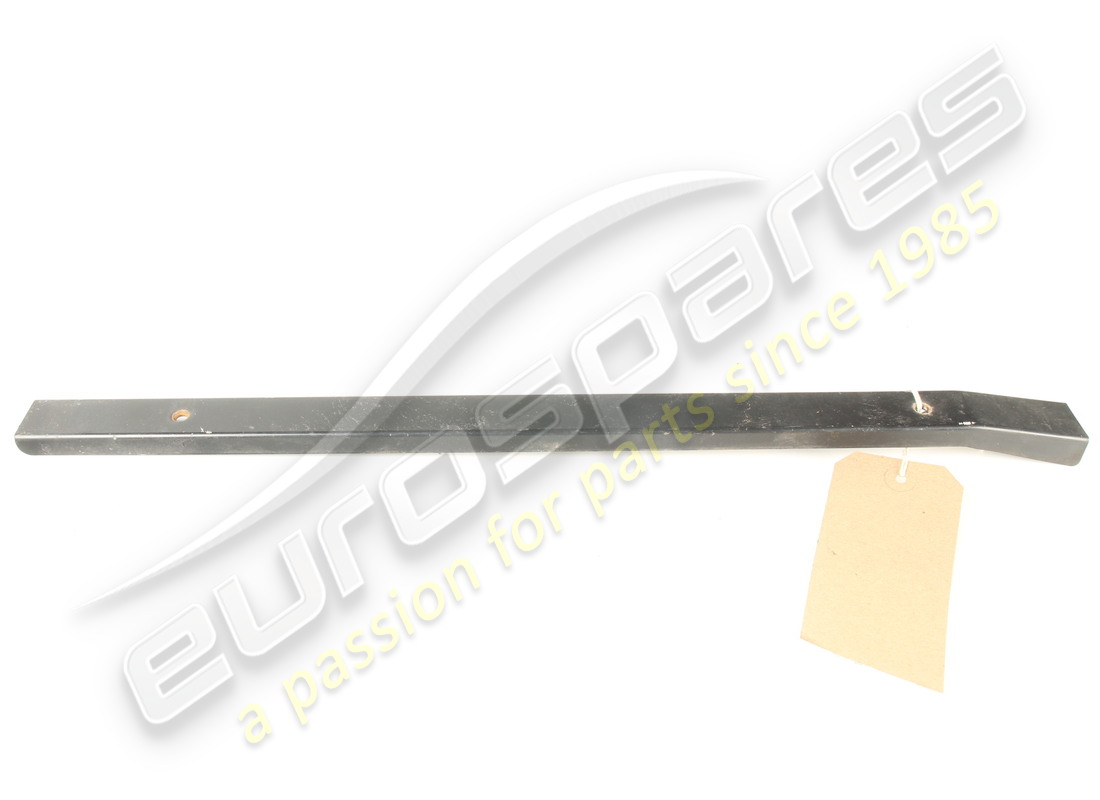

                                                                      MPN: 62616300
                                                                      BRACKET
                                                                      Vale per GD
                                                                      from £1.87
                                                                      from £1.87
                                                                      # 020
                                                                      MPN: 62616400
                                                                      BRACKET
                                                                      Valid for GD
                                                                      from £1.49
                                                                      from £1.49
                                                                      # 021
                                                                      MPN: 62828900
                                                                      REGISTER FOR LOCK CABLES
                                                                      from £31.30
                                                                      from £31.30
                                                                      This part replaces part number 67502400 - and 1 more. Click to view details
                                                                      # 022
                                                                      MPN: 60276805
                                                                      DOWEL
                                                                      from £0.71
                                                                      from £0.71
                                                                      # 023
                                                                      MPN: 60276607
                                                                      CONNECTION
                                                                      from £11.72
                                                                      from £11.72
                                                                      This part replaces part number 60276707 - and 4 more. Click to view details
                                                                      # 024
                                                                      MPN: 62829800
                                                                      SAFETY LOCK CABLE FOR ENGINE HOOD
                                                                      Not for GD
                                                                      from £4.90
                                                                      from £4.90
                                                                      # 024
                                                                      MPN: 62991500
                                                                      SAFETY LOCK CABLE FOR ENGINE HOOD
                                                                      Valid for GD
                                                                      from £18.01
                                                                      from £18.01
                                                                      # 025
                                                                      MPN: 60868600
                                                                      ELECTRO-MAGNET
                                                                      Supersession
                                                                      Supersession
                                                                      This part replaces part number 60662100 - and 1 more. Click to view details
                                                                      # 026
                                                                      MPN: 62829500
                                                                      CABLE FOR ENGINE HOOD OPENING
                                                                      Not for USA till M.Y. 91
                                                                      from £11.75
                                                                      from £11.75
                                                                      # 026
                                                                      MPN: 63309500
                                                                      CABLE FOR MOTOR BONNET OPENING
                                                                      Valid for USA from M.Y. 91
                                                                      from £23.35
                                                                      from £23.35
                                                                      # 027
                                                                      MPN: 12605270
                                                                      WASHER
                                                                      Supersession
                                                                      Supersession
                                                                      # 028
                                                                      MPN: 62854300
                                                                      CLIP
                                                                      from £0.50
                                                                      from £0.50
                                                                      # 029
                                                                      MPN: 62828900
                                                                      REGISTER FOR LOCK CABLES
                                                                      from £31.30
                                                                      from £31.30
                                                                      This part replaces part number 67502400 - and 1 more. Click to view details
                                                                      # 030
                                                                      MPN: 62950700
                                                                      CABLES PROTECTION
                                                                      from £12.25
                                                                      from £12.25
                                                                      # 031
                                                                      MPN: 15917177
                                                                      SCREW
                                                                      from £0.76
                                                                      from £0.76
                                                                      # 032
                                                                      MPN: 14115885
                                                                      BLOCK
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 14202686 - and 1 more. Click to view details
                                                                      # 033
                                                                      MPN: 62950900
                                                                      PROTECTION SHEATH
                                                                      from £0.57
                                                                      from £0.57
                                                                      # 034
                                                                      MPN: 16101711
                                                                      NUT
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 16101715
                                                                      # 035
                                                                      MPN: 11087676
                                                                      FLEXIBLE RING
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 11087675
                                                                      # 036
                                                                      MPN: 10396380
                                                                      CABLE GROMMET
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 037
                                                                      MPN: 15896470
                                                                      NUT
                                                                      (minimum order quantity = 20)
                                                                      from £0.77
                                                                      from £0.77
                                                                      This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                      # 038
                                                                      MPN: 14496324
                                                                      WASHER
                                                                      from £1.39
                                                                      from £1.39
                                                                      This part replaces part number 14496301 which we have in stock
