116 - Doors - Opening Control and Hinges

Ferrari 348 (1993) TB / TS Doors - Opening Control and Hinges Parts Diagram

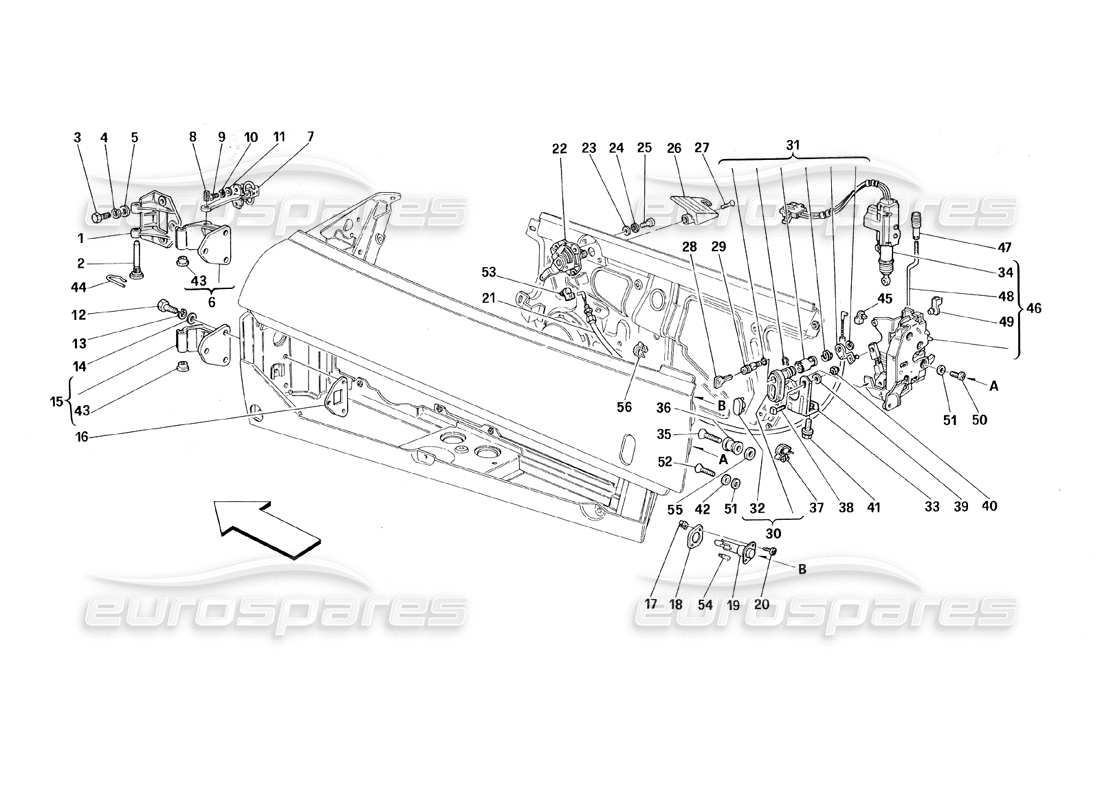

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Price
                                                                                                            # 001
                                                                                                            MPN: 62063600
                                                                                                            FIXED HINGE
                                                                                                            from £33.60
                                                                                                            from £33.60
                                                                                                            # 002
                                                                                                            MPN: 62054100
                                                                                                            PIN
                                                                                                            from £19.20
                                                                                                            from £19.20
                                                                                                            # 003
                                                                                                            MPN: 16135921
                                                                                                            SCREW
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 95563
                                                                                                            # 004
                                                                                                            MPN: 127496
                                                                                                            WASHER
                                                                                                            from £0.52
                                                                                                            from £0.52
                                                                                                            This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                            # 005
                                                                                                            MPN: 10519624
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                            # 006
                                                                                                            MPN: 62063500
                                                                                                            UPPER MOBILE HINGE
                                                                                                            from £98.82
                                                                                                            from £98.82
                                                                                                            # 007
                                                                                                            MPN: 62055400
                                                                                                            TIE ROD FOR DOOR STOP
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 008
                                                                                                            MPN: 65859300
                                                                                                            PIN
                                                                                                            from £9.42
                                                                                                            from £9.42
                                                                                                            This part replaces part number 60730200
                                                                                                            # 009
                                                                                                            MPN: 16134321
                                                                                                            SCREW
                                                                                                            from £16.56
                                                                                                            from £16.56
                                                                                                            This part replaces part number 16130321
                                                                                                            # 010
                                                                                                            MPN: 127493
                                                                                                            WASHER
                                                                                                            from £0.51
                                                                                                            from £0.51
                                                                                                            This part replaces part number 106849 - and 1 more. Click to view details
                                                                                                            # 011
                                                                                                            MPN: 12638101
                                                                                                            WASHER
                                                                                                            from £0.71
                                                                                                            from £0.71
                                                                                                            # 012
                                                                                                            MPN: 16135921
                                                                                                            SCREW
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 95563
                                                                                                            # 013
                                                                                                            MPN: 127496
                                                                                                            WASHER
                                                                                                            from £0.52
                                                                                                            from £0.52
                                                                                                            This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                            # 014
                                                                                                            MPN: 10519624
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                            # 015
                                                                                                            MPN: 62172600
                                                                                                            LOWER MOBILE HINGE
                                                                                                            from £26.37
                                                                                                            from £26.37
                                                                                                            # 016
                                                                                                            MPN: 62101100
                                                                                                            PLATE FOR MOVABLE HINGE
                                                                                                            from £20.84
                                                                                                            from £20.84
                                                                                                            # 017
                                                                                                            MPN: 14115580
                                                                                                            CLOCK
                                                                                                            from £0.53
                                                                                                            from £0.53
                                                                                                            # 018
                                                                                                            MPN: 140576
                                                                                                            GASKET
                                                                                                            from £8.02
                                                                                                            from £8.02
                                                                                                            This part replaces part number 61647000
                                                                                                            # 019
                                                                                                            MPN: 60788100
                                                                                                            OPENING DOOR LAMP
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 020
                                                                                                            MPN: 15901470
                                                                                                            SCREW
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 15901401
                                                                                                            # 021
                                                                                                            MPN: 64314100
                                                                                                            DOOR OPENING CABLE
                                                                                                            from £141.12
                                                                                                            from £141.12
                                                                                                            This part replaces part number 62110500 - and 3 more. Click to view details
                                                                                                            # 022
                                                                                                            MPN: 62171600
                                                                                                            RH INNER DEVICE FOR DOOR OPENING
                                                                                                            from £74.38
                                                                                                            from £74.38
                                                                                                            # 022
                                                                                                            MPN: 62584400
                                                                                                            LH INNER DEVICE FOR DOOR OPENING
                                                                                                            from £59.24
                                                                                                            from £59.24
                                                                                                            # 023
                                                                                                            MPN: 60711900
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 024
                                                                                                            MPN: 149951
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 10615301 - and 4 more. Click to view details
                                                                                                            # 025
                                                                                                            MPN: 14071911
                                                                                                            SCREW
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 026
                                                                                                            MPN: 62158400
                                                                                                            RH INNER HANDLE FOR DOOR OPENING
                                                                                                            from £214.06
                                                                                                            from £214.06
                                                                                                            # 026
                                                                                                            MPN: 62158500
                                                                                                            LH INNER HANDLE FOR DOOR OPENING
                                                                                                            from £73.50
                                                                                                            from £73.50
                                                                                                            # 027
                                                                                                            MPN: 13309211
                                                                                                            SCREW
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 028
                                                                                                            MPN: 95401152
                                                                                                            BLANK KEY
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 61507100
                                                                                                            # 029
                                                                                                            -
                                                                                                            BLOCK FOR DOORS LOCK
                                                                                                            # 030
                                                                                                            MPN: 62108710
                                                                                                            BODY COMPLETE WITH RH DOOR OPENING PUSH BUTTON
                                                                                                            from £205.06
                                                                                                            from £205.06
                                                                                                            This part replaces part number 62108700 - and 2 more. Click to view details
                                                                                                            # 030
                                                                                                            MPN: 62108810
                                                                                                            BODY COMPLETE WITH LH DOOR OPENING PUSH BUTTON
                                                                                                            from £102.06
                                                                                                            from £102.06
                                                                                                            This part replaces part number 62108800 - and 3 more. Click to view details
                                                                                                            # 031
                                                                                                            MPN: 70000654
                                                                                                            KIT FOR RH PUSH BUTTON
                                                                                                            from £706.29
                                                                                                            from £706.29
                                                                                                            # 031
                                                                                                            MPN: 70000655
                                                                                                            KIT FOR LH PUSHBUTTON
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 032
                                                                                                            MPN: 62584200
                                                                                                            DOOR OPENING PUSH BUTTON
                                                                                                            from £29.29
                                                                                                            from £29.29
                                                                                                            # 033
                                                                                                            MPN: 62171000
                                                                                                            BRACKET FOR PUSH BUTTON FASTENING
                                                                                                            Not for USA, CDN, AUS and SA
                                                                                                            from £9.11
                                                                                                            from £9.11
                                                                                                            # 033
                                                                                                            MPN: 62194500
                                                                                                            BRACKET FOR PUSH BUTTON FASTENING
                                                                                                            Valid for USA, CDN, AUS and SA
                                                                                                            from £14.01
                                                                                                            from £14.01
                                                                                                            # 034
                                                                                                            MPN: 62832300
                                                                                                            DOORS LOCKING/RELEASING ACTUATOR
                                                                                                            from £29.80
                                                                                                            from £29.80
                                                                                                            # 035
                                                                                                            MPN: 62858700
                                                                                                            SCREW
                                                                                                            from £1.04
                                                                                                            from £1.04
                                                                                                            # 036
                                                                                                            MPN: 62109500
                                                                                                            STRIKER
                                                                                                            from £18.19
                                                                                                            from £18.19
                                                                                                            # 037
                                                                                                            MPN: 61130600
                                                                                                            CLIP
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 038
                                                                                                            MPN: 62171200
                                                                                                            SCREW
                                                                                                            from £0.88
                                                                                                            from £0.88
                                                                                                            # 039
                                                                                                            MPN: 12646601
                                                                                                            WASHER
                                                                                                            from £0.71
                                                                                                            from £0.71
                                                                                                            # 040
                                                                                                            MPN: 12574211
                                                                                                            NUT
                                                                                                            from £0.71
                                                                                                            from £0.71
                                                                                                            # 041
                                                                                                            MPN: 13836371
                                                                                                            SCREW
                                                                                                            from £1.49
                                                                                                            from £1.49
                                                                                                            # 042
                                                                                                            MPN: 12647778
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 12647777
                                                                                                            # 043
                                                                                                            MPN: 62825300
                                                                                                            BUSHING
                                                                                                            from £18.25
                                                                                                            from £18.25
                                                                                                            # 044
                                                                                                            MPN: 62116700
                                                                                                            CLIP
                                                                                                            from £5.24
                                                                                                            from £5.24
                                                                                                            # 045
                                                                                                            MPN: 40063208
                                                                                                            CABLE RETAIN CLIP
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 046
                                                                                                            MPN: 62109400
                                                                                                            LH DOOR LOCK
                                                                                                            from £264.43
                                                                                                            from £264.43
                                                                                                            # 046
                                                                                                            MPN: 64312700
                                                                                                            RH DOOR LOCK
                                                                                                            - Not for Spider
                                                                                                            from £265.94
                                                                                                            from £265.94
                                                                                                            This part replaces part number 62109300 - and 3 more. Click to view details
                                                                                                            # 047
                                                                                                            MPN: 62800900
                                                                                                            KNOB FOR SAFETY ROD
                                                                                                            from £1.27
                                                                                                            from £1.27
                                                                                                            # 048
                                                                                                            MPN: 62109100
                                                                                                            SAFETY LOCK ROD FOR RH DOOR
                                                                                                            from £29.03
                                                                                                            from £29.03
                                                                                                            # 048
                                                                                                            MPN: 62109200
                                                                                                            SAFETY LOCK ROD FOR LH DOOR
                                                                                                            from £46.40
                                                                                                            from £46.40
                                                                                                            # 049
                                                                                                            MPN: 63280600
                                                                                                            ROD CLIP
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 050
                                                                                                            MPN: 62941000
                                                                                                            SCREW
                                                                                                            from £2.11
                                                                                                            from £2.11
                                                                                                            # 051
                                                                                                            MPN: 63314400
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 052
                                                                                                            MPN: 62940900
                                                                                                            SCREW
                                                                                                            from £0.73
                                                                                                            from £0.73
                                                                                                            This part replaces part number 67352400
                                                                                                            # 053
                                                                                                            MPN: 63291200
                                                                                                            CABLE RETAIN CLIP
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 054
                                                                                                            MPN: 101525
                                                                                                            BULB
                                                                                                            from £2.11
                                                                                                            from £2.11
                                                                                                            This part replaces part number 101528
                                                                                                            # 055
                                                                                                            MPN: 63285300
                                                                                                            WASHER
                                                                                                            from £0.70
                                                                                                            from £0.70
                                                                                                            # 056
                                                                                                            MPN: 14569480
                                                                                                            CLIP
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 81580800
