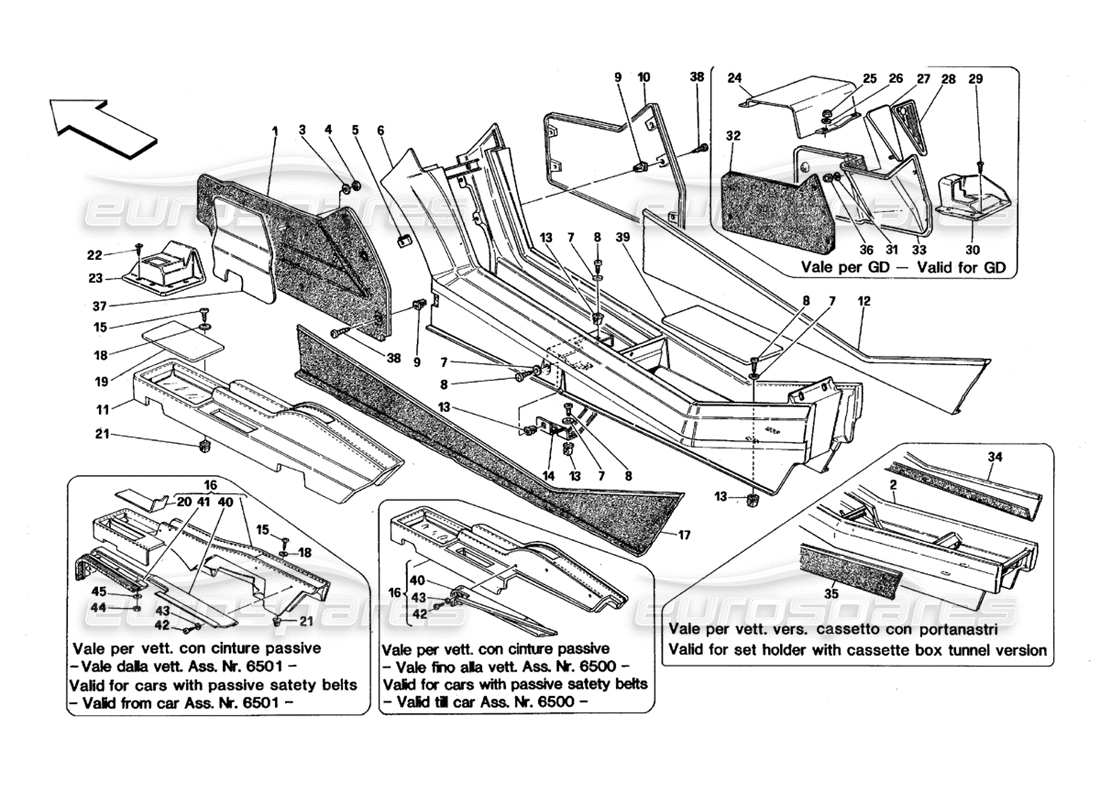

Ferrari 348 (1993) TB / TS Tunnel - Framework and Trims Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 000
                    MPN: 63376800
                    COVERED RH FRONT FACING
                    Red Not for GD Valid from car Ass. Nr. 7575
                    # 000
                    MPN: 63377000
                    COVERED RH FRONT FACING
                    Dark brown Not for GD Valid from car Ass. Nr. 7575
                    # 001
                    MPN: 62148500
                    LH FRONT FACING FRAMEWORK
                    Without trim Not for GD valid till car Ass. Nr. 7574
                    from £130.28
                    from £130.28
                    # 001
                    MPN: 621486..
                    CARPETTRIM
                    Not for GD Valid till car Ass. Nr. 7574
                    Supersession
                    Supersession
                    # 001
                    MPN: 63376100
                    COVERED LH FRONT FACING
                    Not for GD--Valid from car Ass. Nr. 7575
                    # 001
                    MPN: 63376200
                    COVERED LH FRONT FACING
                    Beaver Not for GD Valid from car Ass. Nr. 7575
                    # 001
                    MPN: 63376300
                    COVERED LH FRONT FACING
                    Red Not for GD Valid from car Ass. Nr. 7575
                    # 001
                    MPN: 63376400
                    COVERED LH FRONT FACING
                    Blue Not for GD Valid from car Ass. Nr. 7575
                    # 001
                    MPN: 63376500
                    COVERED LH FRONT FACING
                    Dark brown Not for GD Valid from car Ass. Nr. 7575
                    # 002
                    MPN: 632839..
                    COVERED TUNNEL
                    Not for GD Valid for set holder with cassette box car version
                    Supersession
                    Supersession
                    # 002
                    MPN: 632869..
                    COVERED TUNNEL
                    Valid for GD Valid for set holder with cassette box car version
                    Supersession
                    Supersession
                    # 002
                    MPN: 633384..
                    RH SIDE TRIM
                    Valid for set holder with cassette box car version
                    Supersession
                    Supersession
                    # 002
                    MPN: 633385..
                    LH SIDE TRIM
                    Valid for set holder with cassette boxcar version
                    Supersession
                    Supersession
                    # 002
                    MPN: 63376900
                    COVERED RH FRONT FACING
                    Blue Not for GD Valid from car Ass. Nr. 7575
                    # 003
                    MPN: 12637801
                    WASHER
                    Not for GD
                    from £0.47
                    from £0.47
                    # 004
                    MPN: 10794011
                    NUT
                    Not for GD
                    from £0.26
                    from £0.26
                    # 005
                    MPN: 14189876
                    BRACKET
                    from £1.33
                    from £1.33
                    This part replaces part number 14189874
                    # 006
                    MPN: 628774..
                    UPHOLSTERED TUNNEL
                    Not for GD Valid for set holder with key car version
                    Supersession
                    Supersession
                    # 006
                    MPN: 628775..
                    UPHOLSTERED TUNNEL
                    Valid for GD Valid for set holder with key car version
                    Supersession
                    Supersession
                    # 006
                    MPN: 629963..
                    FRONT TRIM FOR GLOVE BOX
                    Valid for set holder with key car version
                    Supersession
                    Supersession
                    # 006
                    MPN: 629964..
                    REAR TRIM FOR GLOVE BOX
                    Valid for set holder with key car version
                    Supersession
                    Supersession
                    # 006
                    MPN: 632956..
                    RH SIDE TRIM
                    Valid for set holder with key car version
                    Supersession
                    Supersession
                    # 006
                    MPN: 632957..
                    LH SIDE TRIM
                    Valid for set holder with key car version
                    Supersession
                    Supersession
                    # 007
                    MPN: 12638178
                    WASHER
                    from £0.47
                    from £0.47
                    This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
                    # 008
                    MPN: 15688375
                    SCREW
                    (minimum order quantity = 30)
                    from £0.47
                    from £0.47
                    This part replaces part number 15688306 which we have in stock
                    # 009
                    MPN: 14202782
                    BLOCK
                    from £0.47
                    from £0.47
                    # 010
                    MPN: 62148200
                    RH FRONT FACING FRAMEWORK
                    Without trim Not for GD valid till car Ass. Nr. 7574
                    from £130.28
                    from £130.28
                    # 010
                    MPN: 621483..
                    CARPETTRIM
                    Not for GD Valid till car Ass. Nr. 7574
                    Supersession
                    Supersession
                    # 010
                    MPN: 63376600
                    COVERED RH FRONT FACING
                    Black Not for GD Valid from car Ass. Nr. 7575
                    from £115.62
                    from £115.62
                    # 010
                    MPN: 63376700
                    COVERED RH FRONT FACING
                    Beaver Not for GD Valid from car Ass. Nr. 7575
                    from £156.40
                    from £156.40
                    # 011
                    MPN: 626849..
                    COVERED HAND BRAKE CONSOLE
                    Not for GD Valid for cars without passive safety belts
                    Supersession
                    Supersession
                    # 012
                    -
                    RH TRIM FOR CARPET
                    Valid for set holder with key tunnel version Not as spare part With the carpet trim series
                    # 012
                    MPN: 626850..
                    LINING
                    Not for GD Valid for cars without passive safety belts
                    Supersession
                    Supersession
                    # 012
                    MPN: 628490..
                    COVERED HAND BRAKE CONSOLE
                    Valid for GD
                    from £309.75
                    from £309.75
                    # 012
                    MPN: 628492..
                    LINING
                    Valid for GD
                    Supersession
                    Supersession
                    # 013
                    MPN: 14202782
                    BLOCK
                    from £0.47
                    from £0.47
                    # 014
                    MPN: 62146900
                    TUNNEL FIXING BRACKET
                    from £2.92
                    from £2.92
                    # 015
                    MPN: 15688178
                    SCREW
                    from £1.13
                    from £1.13
                    # 016
                    MPN: 626845..
                    COVERED PARKING BRAKE CONSOLE WITH COVERED PROTECTION
                    Valid for cars with passive safety belts Valid till car Ass. Nr. 6500
                    Supersession
                    Supersession
                    # 016
                    MPN: 626850..
                    CONSOLETRIM
                    Valid for cars with passive safety belts Valid till car Ass. Nr. 6500
                    Supersession
                    Supersession
                    # 016
                    MPN: 633081..
                    COVERED PARKING BRAKE CONSOLE WITH COVERED PROTECTION
                    Valid for cars with passive safely belts Valid from car Ass. Nr. 6501
                    Supersession
                    Supersession
                    # 016
                    MPN: 633083..
                    CONSOLETRIM
                    Valid for cars with passive safety belts Valid from car Ass. Nr. 6501
                    Supersession
                    Supersession
                    # 017
                    -
                    LH TRIM FOR CARPET
                    Valid for set holder with key tunnel version Not as spare part With the carpet trim series
                    # 018
                    MPN: 12638178
                    WASHER
                    from £0.47
                    from £0.47
                    This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
                    # 019
                    MPN: 626842..
                    HAND BRAKE CONSOLE CASING MOULDING
                    Valid for cars with pasive safety belts till car Ass. Nr. 6500
                    Supersession
                    Supersession
                    # 020
                    MPN: 633091..
                    HAND BRAKE CONSOLE CASING MOULDING
                    Valid for cars with passive safety belts Valid from car Ass. Nr. 6501
                    Supersession
                    Supersession
                    # 021
                    MPN: 14115980
                    BLOCK
                    from £0.47
                    from £0.47
                    This part replaces part number 14202380
                    # 022
                    MPN: 15914707
                    SCREW
                    Not for GD
                    from £0.47
                    from £0.47
                    # 023
                    MPN: 62844600
                    IACCELERATOR PEDAL COVER
                    Not for GD
                    from £99.17
                    from £99.17
                    # 024
                    MPN: 63002600
                    ACCELERATOR PEDAL TRANSMISSION PROTECTION
                    Valid for GD
                    from £41.44
                    from £41.44
                    # 025
                    MPN: 12575411
                    NUT
                    Valid for GD
                    Supersession
                    Supersession
                    # 026
                    MPN: 10519401
                    WASHER
                    Valid for GD
                    from £0.71
                    from £0.71
                    # 027
                    MPN: 63222500
                    FEASE HOLDER
                    Valid for GD
                    from £23.24
                    from £23.24
                    # 028
                    MPN: 62986300
                    PILOT FOOT REST SUPPORT BASE
                    Valid for GD
                    from £44.85
                    from £44.85
                    # 029
                    MPN: 15914707
                    SCREW
                    Valid for GD
                    from £0.47
                    from £0.47
                    # 030
                    MPN: 63006900
                    ACCELERATOR PEDAL COVER
                    Valid for GD
                    from £6.74
                    from £6.74
                    # 031
                    MPN: 12642801
                    WASHER
                    Valid for GD
                    from £0.47
                    from £0.47
                    This part replaces part number 12642824
                    # 032
                    MPN: 621779..
                    CARPETTRIM
                    Valid for GD Valid till car Ass. Nr. 9472
                    Supersession
                    Supersession
                    # 032
                    MPN: 62178000
                    LH FRONT FACING FRAMEWORK
                    Without trim Valid for GD Valid till car Ass. Nr. 9472
                    from £48.61
                    from £48.61
                    # 032
                    MPN: 63558000
                    COVERED LH FRONT FACING
                    Black Valid for GD Valid from car Ass. Nr. 9473
                    from £126.00
                    from £126.00
                    # 032
                    MPN: 63558100
                    COVERED LH FRONT FACING
                    Beaver Valid for GD Valid from car Ass. Nr. 9473
                    # 032
                    MPN: 63558200
                    COVERED LH FRONT FACING
                    Red Valid for GD Valid from car Ass. Nr. 9473
                    # 032
                    MPN: 63558300
                    COVERED LH FRONT FACING
                    Blue Valid for GD Valid from car Ass. Nr. 9473
                    # 032
                    MPN: 63558400
                    COVERED LH FRONT FACING
                    Dark brown Valid for GD Valid from car Ass. Nr. 9473
                    # 033
                    MPN: 621776..
                    CARPETTRIM
                    Valid for GD Valid till car Ass. Nr. 9472
                    Supersession
                    Supersession
                    # 033
                    MPN: 62177700
                    RH FRONT FACING FRAMEWORK
                    Without trim Valid for GD Valid till car Ass. Nr. 9472
                    from £109.88
                    from £109.88
                    # 033
                    MPN: 63557200
                    COVERED RH FRONT FACING
                    Black Valid for GD Valid from car Ass. Nr. 9473
                    from £189.00
                    from £189.00
                    # 033
                    MPN: 63557300
                    COVERED RH FRONT FACING
                    Beaver Valid for GD Valid from car Ass. Nr. 9473
                    # 033
                    MPN: 63557400
                    COVERED RH FRONT FACING
                    Valid for GD Valid from car Ass. Nr. 9473
                    # 033
                    MPN: 63557500
                    COVERED RH FRONT FACING
                    Blue Valid for GD Valid from car Ass. Nr. 9473
                    # 033
                    MPN: 63557600
                    COVERED RH FRONT FACING
                    Dark brown Valid for GD Valid from car Ass. Nr. 9473
                    # 034
                    -
                    RH CARPET UPHOLSTERY
                    Valid for set holder with cassette box tunnel version Not as spare part With the carpet trim series
                    # 035
                    -
                    LH CARPET UPHOLSTERY
                    Valid for set holder with cassette box tunnel version Not as spare part With the carpet trim series
                    # 036
                    MPN: 12574011
                    NUT
                    Valid for GD
                    from £0.47
                    from £0.47
                    # 037
                    MPN: 62148700
                    PROTECTION FOR LH FRONT FACING FRAMEWORK
                    Not for GD
                    from £20.73
                    from £20.73
                    # 038
                    MPN: 15687708
                    SCREW
                    Supersession
                    Supersession
                    # 039
                    MPN: 621445..
                    COVERED BOX BOTTOM
                    Valid for set holder with key tunnel version
                    Supersession
                    Supersession
                    # 040
                    MPN: 628959..
                    TRIM PROTECTION
                    Valid for cars with passive safety belts Valid till car Ass. Nr. 6500
                    Supersession
                    Supersession
                    # 040
                    MPN: 628963..
                    PROTECTION TRIM
                    valid for cars with passive safety belts valid till car Ass.Nr. 6500
                    Supersession
                    Supersession
                    # 040
                    MPN: 633087..
                    TRIM PROTECTION
                    valid for cars with passive safety belts valid from car Ass.Nr. 6501
                    Supersession
                    Supersession
                    # 040
                    MPN: 633089..
                    PROTECTION TRIM
                    valid for cars with passive safety belts valid from car Ass.Nr. 6501
                    Supersession
                    Supersession
                    # 041
                    MPN: 63309000
                    BRUSH
                    valid for cars with passive safety belts valid from car Ass.Nr. 6501
                    from £60.39
                    from £60.39
                    # 042
                    MPN: 15957201
                    SCREW
                    valid for cars with passive safety belts valid till car Ass.Nr. 6500
                    from £0.47
                    from £0.47
                    # 043
                    MPN: 14497701
                    WASHER
                    valid for cars with passive safety belts till car Ass.Nr. 6500
                    from £0.47
                    from £0.47
                    # 044
                    MPN: 16101711
                    NUT
                    valid for cars with passive safety belts valid from car Ass.Nr. 6501
                    from £0.47
                    from £0.47
                    This part replaces part number 16101715
                    # 045
                    MPN: 13577411
                    WASHER
                    valid for cars with passive safety belts valid from car Ass.Nr. 6501
                    from £0.47
                    from £0.47
