ferrari 348 (1993) tb / ts tunnel - framework and trims parts diagram

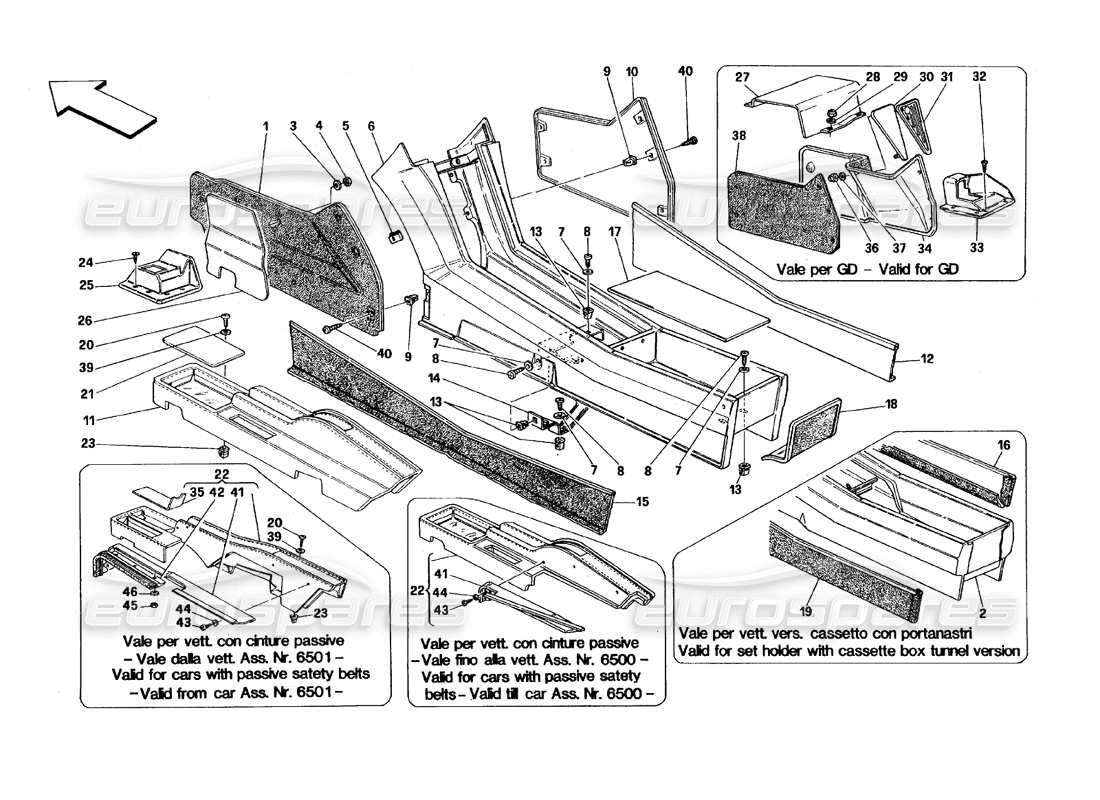

123A - tunnel - framework and trims

Ferrari 348 (1993) TB / TS Tunnel - Framework and Trims Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 62148500
                      LH FRONT FACING FRAMEWORK
                      Without trim Not for GD valid till car Ass. Nr. 7574
                      from £171.04
                      from £171.04
                      # 001
                      MPN: 621486..
                      CARPETTRIM
                      Not for GD--Valid till car Ass. Nr. 7574
                      Supersession
                      Supersession
                      # 001
                      MPN: 63376100
                      COVERED LH FRONT FACING
                      Not for GD Valid from car Ass. Nr. 7575
                      # 001
                      MPN: 63376200
                      COVERED LH FRONT FACING
                      Beaver Not for GD Valid from car Ass. Nr. 7575
                      # 001
                      MPN: 63376300
                      COVERED LH FRONT FACING
                      Red Not for GD Valid from car Ass. Nr. 7575
                      # 001
                      MPN: 63376400
                      COVERED LH FRONT FACING
                      Blue Not for GD Valid from car Ass. Nr. 7575
                      # 001
                      MPN: 63376500
                      COVERED LH FRONT FACING
                      Dark brown Not for GD Valid from car Ass. Nr. 7575
                      # 002
                      MPN: 632850..
                      COVERED TUNNEL
                      Not for GD Valid for set holder without door car version
                      Supersession
                      Supersession
                      # 002
                      MPN: 632866..
                      COVERED TUNNEL
                      Valid for GD Valid for set holder without door carversion
                      Supersession
                      Supersession
                      # 002
                      MPN: 632962..
                      RH SIDE TRIM
                      Supersession
                      Supersession
                      # 003
                      MPN: 12637801
                      WASHER
                      Not for GD
                      from £0.52
                      from £0.52
                      # 003
                      MPN: 632963..
                      LH SIDE TRIM
                      Supersession
                      Supersession
                      # 004
                      MPN: 10794011
                      NUT
                      Not for GD
                      from £0.29
                      from £0.29
                      # 005
                      MPN: 14189876
                      BRACKET
                      from £1.33
                      from £1.33
                      This part replaces part number 14189874
                      # 006
                      MPN: 628776..
                      COVERED TUNNEL
                      Not for GD Valid for set holder with key car version
                      Supersession
                      Supersession
                      # 006
                      MPN: 628835..

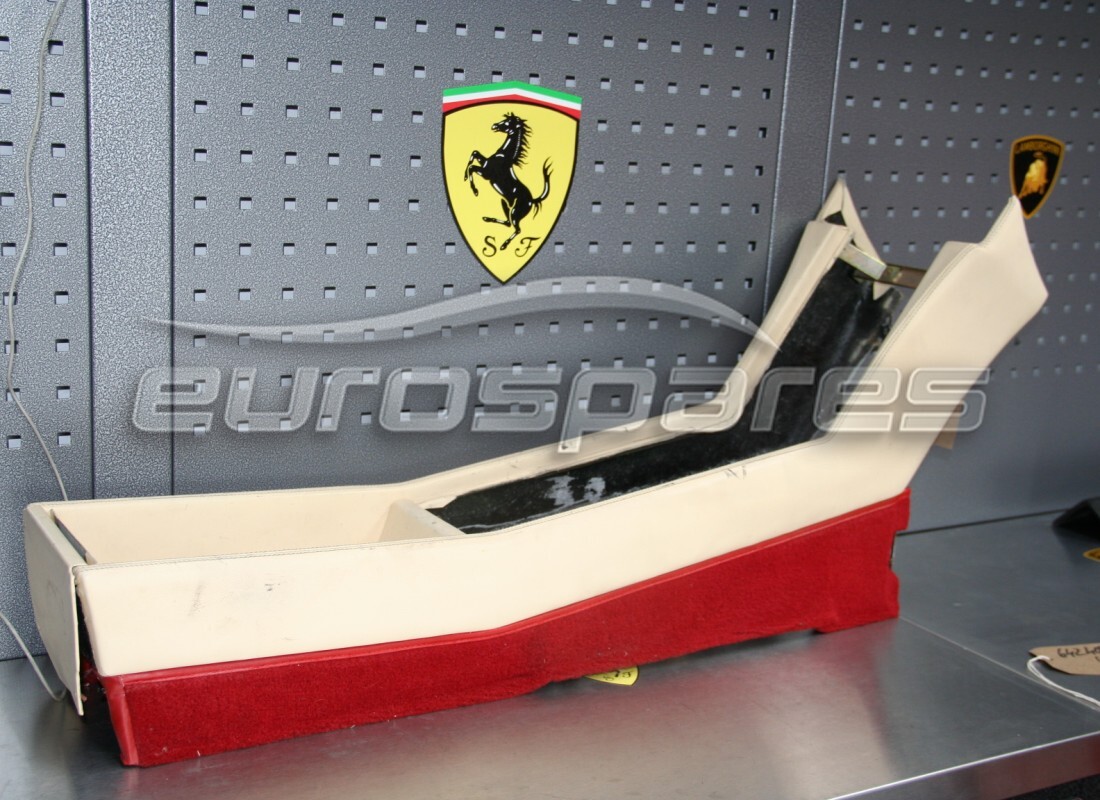

                      COVERED TUNNEL
                      Valid for GD Valid for set holder with key car version
                      from £519.75
                      from £519.75
                      # 006
                      MPN: 629976..
                      FRONT TRIM FOR GLOVE BOX
                      Valid for set holder with key car version
                      Supersession
                      Supersession
                      # 006
                      MPN: 629977..
                      REAR TRIM FOR GLOVE BOX
                      Valid for set holder with key car version
                      Supersession
                      Supersession
                      # 006
                      MPN: 632962..
                      RH SIDE TRIM
                      Supersession
                      Supersession
                      # 006
                      MPN: 632963..
                      LH SIDE TRIM
                      Supersession
                      Supersession
                      # 007
                      MPN: 12638178
                      WASHER
                      from £0.47
                      from £0.47
                      This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
                      # 008
                      MPN: 15688375
                      SCREW
                      (minimum order quantity = 30)
                      from £0.53
                      from £0.53
                      This part replaces part number 15688306 which we have in stock
                      # 009
                      MPN: 14202782
                      BLOCK
                      from £0.71
                      from £0.71
                      # 010
                      MPN: 62148200
                      RH FRONT FACING FRAMEWORK
                      Without trim Not for GD valid till car Ass. Nr. 7574
                      from £171.04
                      from £171.04
                      # 010
                      MPN: 621483..
                      CARPETTRIM
                      Not for GD Valid till car Ass. Nr. 7574
                      Supersession
                      Supersession
                      # 010
                      MPN: 63376600

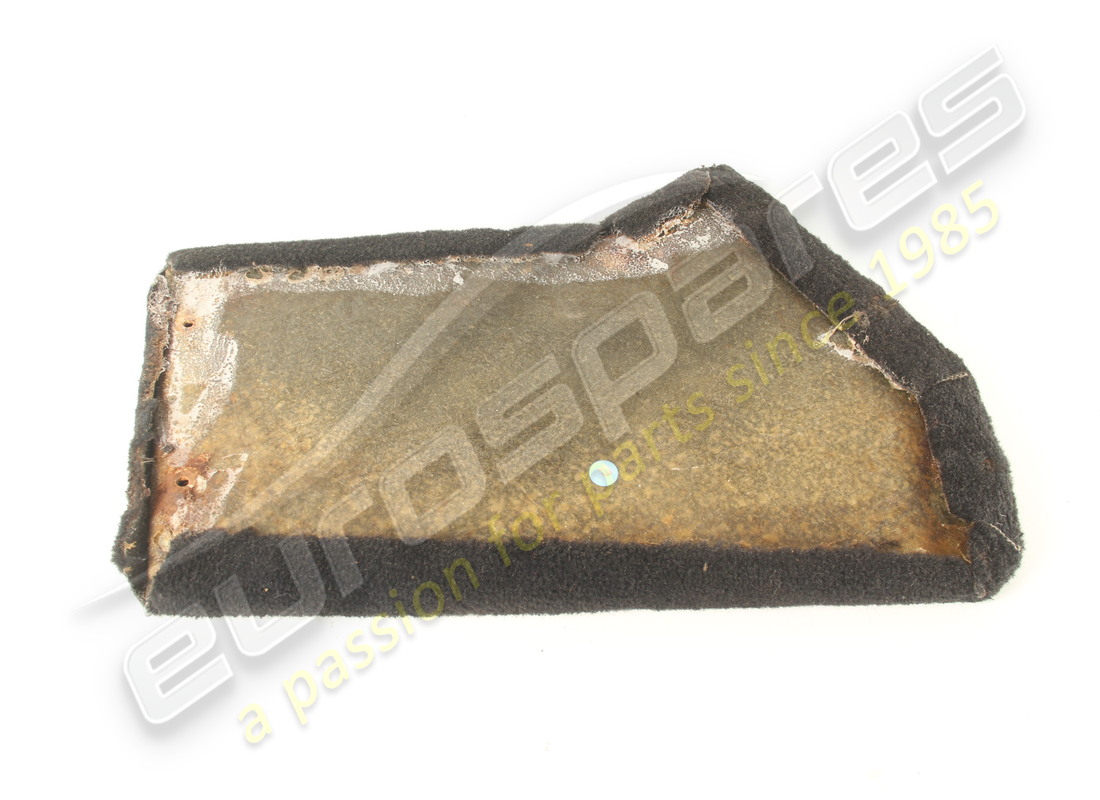

                      COVERED RH FRONT FACING
                      Black Not for GD Valid from car Ass. Nr. 7575
                      from £115.62
                      from £115.62
                      # 010
                      MPN: 63376700
                      COVERED RH FRONT FACING
                      Beaver Not for GD
                      from £156.40
                      from £156.40
                      # 010
                      MPN: 63376800
                      COVERED RH FRONT FACING
                      Red Not for GD Valid from car Ass. Nr. 7575
                      # 010
                      MPN: 63376900
                      COVEREDRH FRONTPAGING
                      Blue Not for GD Valid from car Ass. Nr. 7575
                      # 010
                      MPN: 63377000
                      COVEREDRH FRONT FACING
                      Dark brown Not for GD Valid from car Ass. Nr. 7575
                      # 011
                      MPN: 626849..

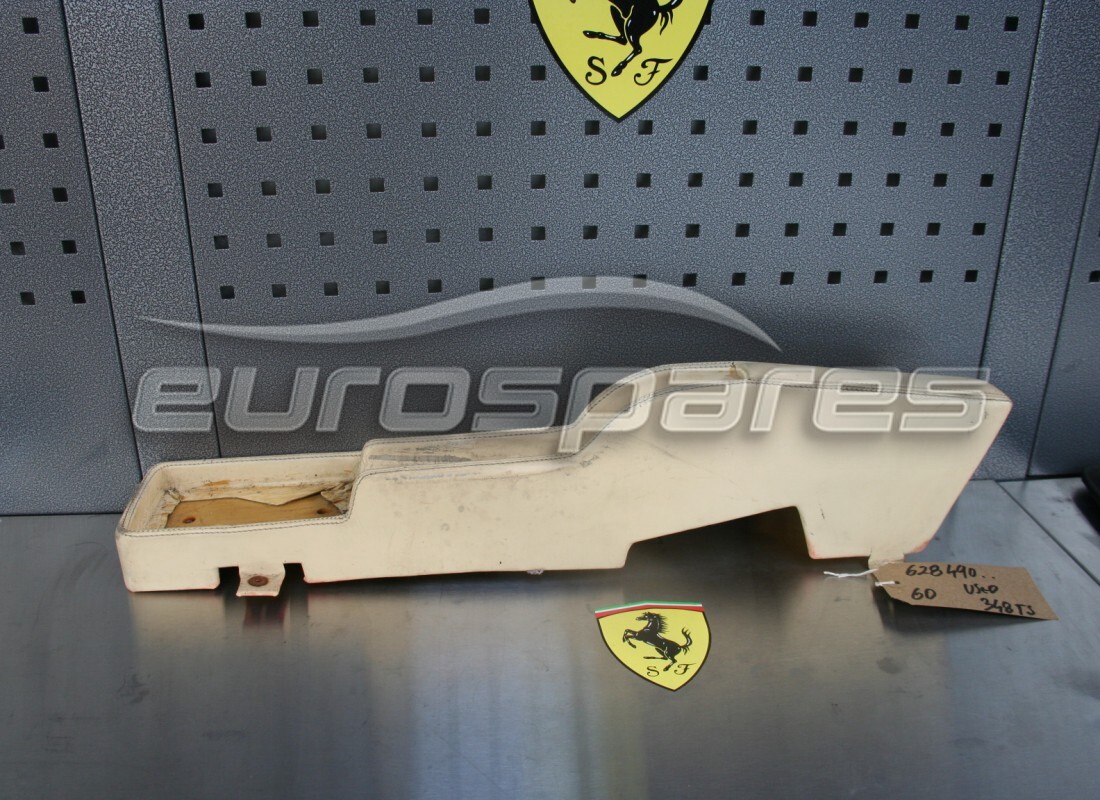

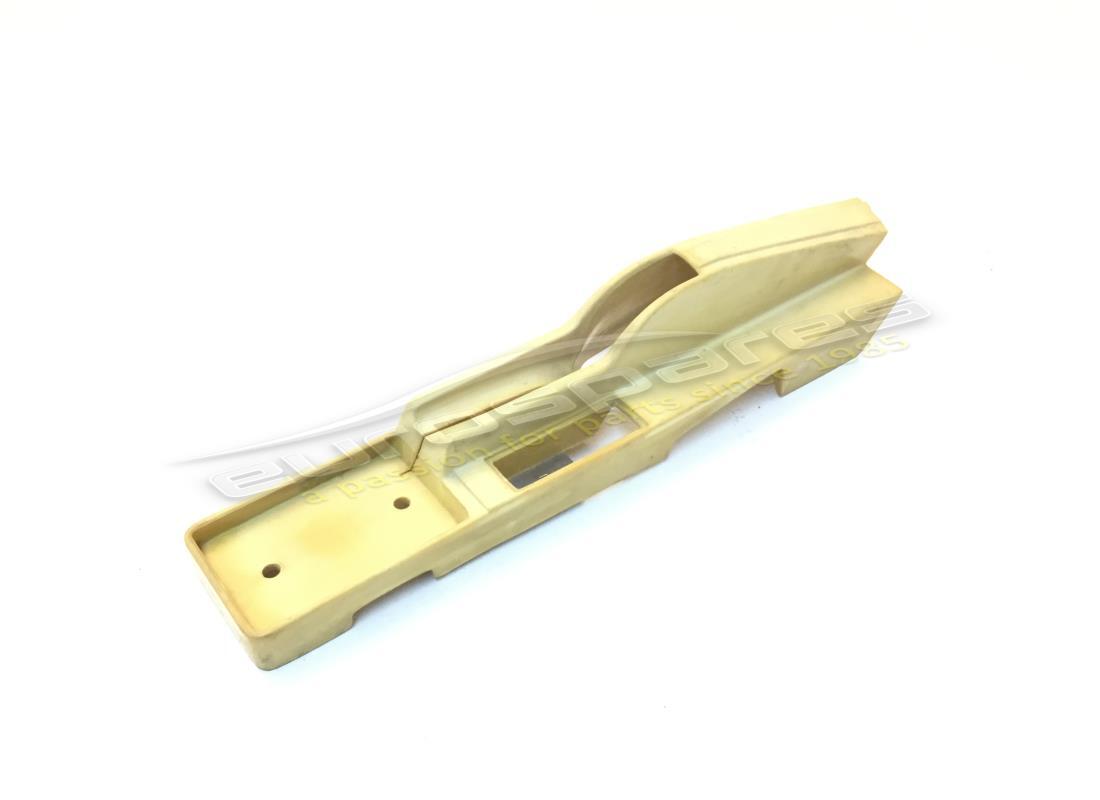

                      COVERED HAND BRAKE CONSOLE
                      Valid for cars without passive safety belts Not for GD Valid till car Nr. 94909
                      Supersession
                      Supersession
                      # 011
                      MPN: 626850..
                      LINING
                      Not for GD Valid for cars without passive safety belts Valid till car Nr. 94909
                      Supersession
                      Supersession
                      # 011
                      MPN: 628490..
                      COVERED HAND BRAKE CONSOLE
                      Valid for GD Valid till car Nr. 94909
                      from £309.75
                      from £309.75
                      # 011
                      MPN: 628492..
                      LINING
                      Valid for GD Valid till car Nr. 94909
                      Supersession
                      Supersession
                      # 011
                      MPN: 63581100
                      LHD HAND BRAKE CONSOLE
                      Not for GD - To be trimmed -
                      from £375.96
                      from £375.96
                      # 011
                      MPN: 63581300
                      UPHOLSTERY
                      -Not for GD - in black
                      from £246.84
                      from £246.84
                      # 011
                      MPN: 635827..

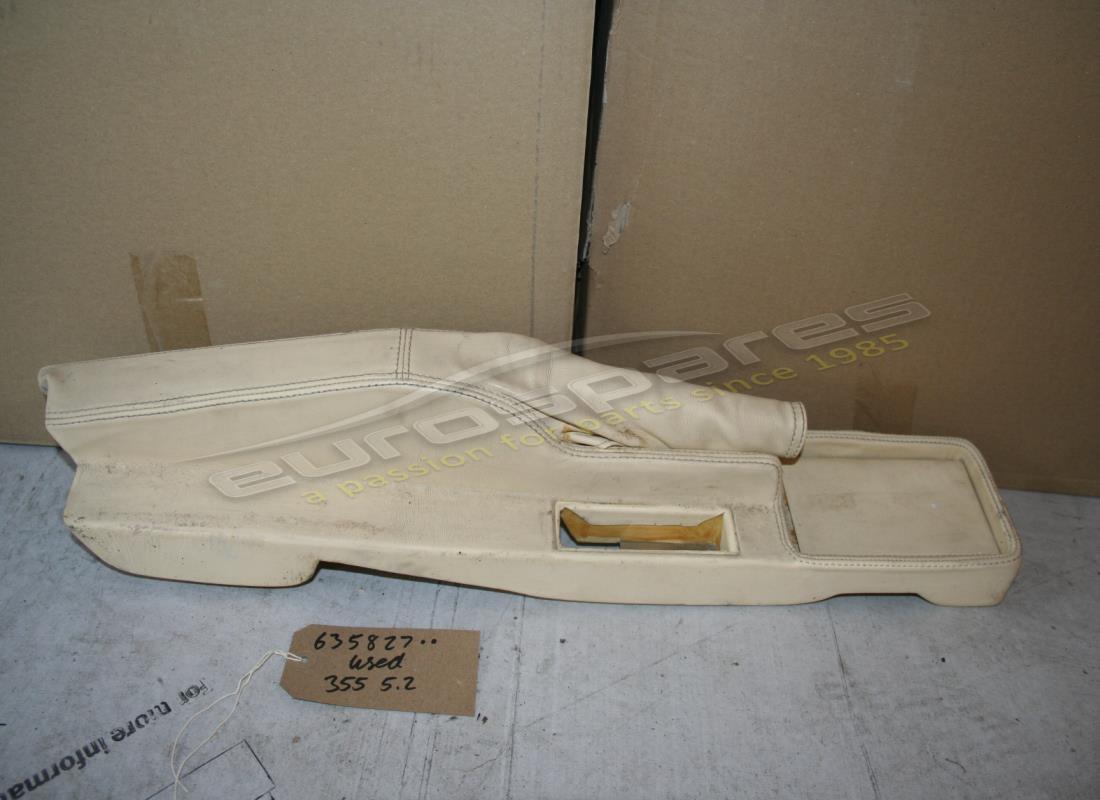

                      COVERED HAND BRAKE CONSOLE
                      Valid for GD Valid from car Nr. 94910
                      from £472.50
                      from £472.50
                      # 011
                      MPN: 635829..
                      LINING
                      Valid for GD Valid from car Nr. 94910
                      from £231.00
                      from £231.00
                      # 012
                      -
                      RH TRIM FOR CARPET
                      Valid for set holder with key tunnel version Not as spare part With the carpet trim series
                      # 013
                      MPN: 14202782
                      BLOCK
                      from £0.71
                      from £0.71
                      # 014
                      MPN: 62146900
                      TUNNEL FIXING BRACKET
                      from £3.60
                      from £3.60
                      # 015
                      -
                      LH TRIM FOR CARPET
                      Valid for set holder with key tunnel version Not as spare part With the carpet trim series
                      # 016
                      -
                      RH CARPET UPHOLSTERY
                      Valid for set holder without door tunnel version Not as spare part With the carpet trim series
                      # 017
                      MPN: 622076..
                      COVERED GLOVE BOX BOTTOM
                      Valid for set holder with key tunnel version
                      from £63.00
                      from £63.00
                      # 018
                      -
                      CARPETTRIM
                      Not as spare part With the carpet trims series
                      # 019
                      -
                      LH CARPET UPHOLSTERY
                      Valid for set holder without door tunnel version Not as spare part With the carpet trim series
                      # 020
                      MPN: 15688178
                      SCREW
                      from £1.28
                      from £1.28
                      # 021
                      MPN: 626842..
                      HAND BRAKE CONSOLE CASING MOULDING
                      Valid for cars with passive safety belts till car Ass. Nr. 6500
                      Supersession
                      Supersession
                      # 022
                      MPN: 626845..
                      COVERED PARKING BRAKE CONSOLE WITH COVERED PROTECTION
                      Valid for cars with passive safety belts Valid till car Ass. Nr. 6500
                      Supersession
                      Supersession
                      # 022
                      MPN: 626850..
                      CONSOLETRIM
                      Valid for cars with passive safety belts Valid till car Ass. Nr. 6500 Valid from car Nr. 94269
                      Supersession
                      Supersession
                      # 022
                      MPN: 633081..
                      COVERED PARKING BRAKE CONSOLE WITH COVERED PROTECTION
                      Valid for cars with passive safety belts Valid from car Ass. llr. 6501 and valid till car Nr. 94268
                      Supersession
                      Supersession
                      # 022
                      MPN: 633083..
                      CONSOLETRIM
                      Valid for cars with passive safety belts Valid from car Ass. Nr. 6501 and valid till car Nr. 94268
                      Supersession
                      Supersession
                      # 022
                      MPN: 635832..
                      COVERED PARKING BRAKE CONSOLE WITH COVERED PROTECTION
                      Valid for cars with passive safety belts
                      Supersession
                      Supersession
                      # 022
                      MPN: 635835..
                      CONSOLETRIM
                      Valid for cars with passive safety belts Valid from car Nr. 94269
                      Supersession
                      Supersession
                      # 023
                      MPN: 14115980
                      BLOCK
                      from £0.69
                      from £0.69
                      This part replaces part number 14202380
                      # 024
                      MPN: 15914707
                      SCREW
                      Not for GD
                      from £0.53
                      from £0.53
                      # 025
                      MPN: 62844600
                      ACCELERATOR PEDAL COVER
                      Not for GD
                      from £120.56
                      from £120.56
                      # 026
                      MPN: 62148700

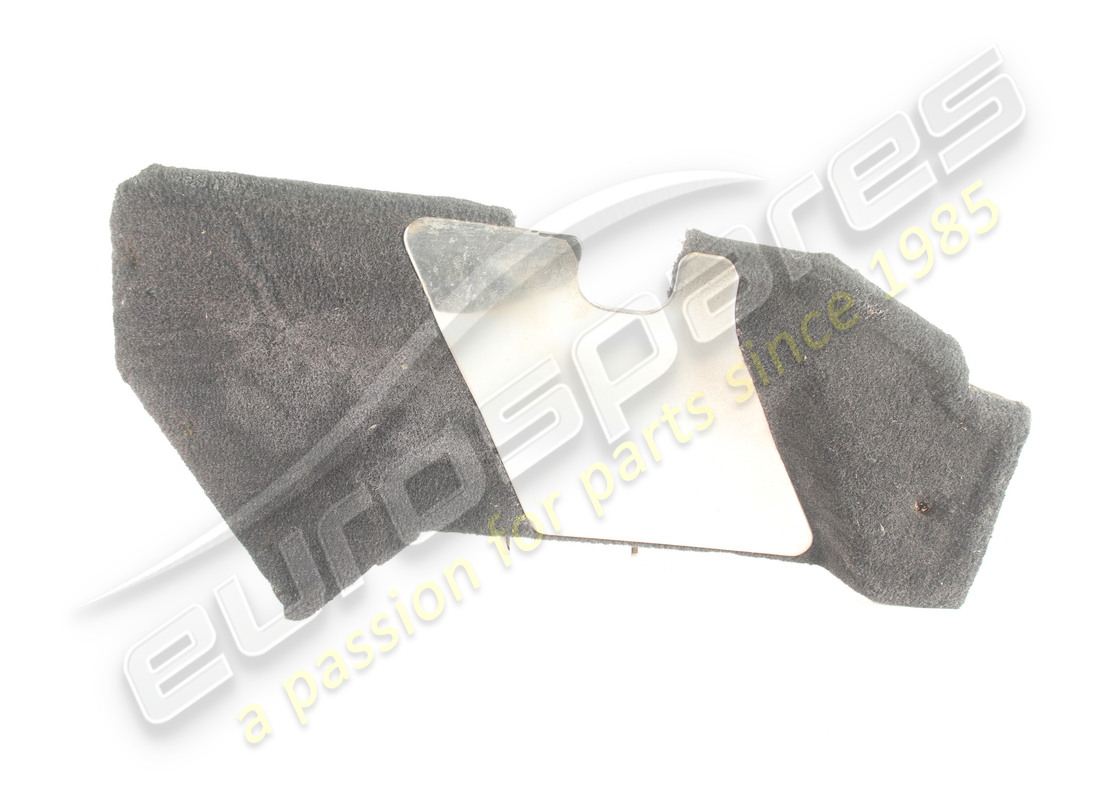

                      PROTECTION FOR LH FRONT FACING FRAMEWORK
                      Not for GD
                      from £27.31
                      from £27.31
                      # 027
                      MPN: 63002600
                      ACCELERATOR PEDAL TRANSMISSION PROTECTION
                      Valid for GD
                      from £41.44
                      from £41.44
                      # 028
                      MPN: 12575411
                      NUT
                      Valid for GD
                      Supersession
                      Supersession
                      # 029
                      MPN: 10519401
                      WASHER
                      Valid for GD
                      from £0.71
                      from £0.71
                      # 030
                      MPN: 63222500
                      BASE HOLDER
                      Valid for GD
                      from £23.24
                      from £23.24
                      # 031
                      MPN: 62986300
                      PL LOT FOOT REST SUPPORT BASE
                      Valid for GD
                      from £63.42
                      from £63.42
                      # 032
                      MPN: 15914707
                      SCREW
                      Valid for GD
                      from £0.53
                      from £0.53
                      # 033
                      MPN: 63006900
                      ACCELERATOR PEDAL COVER
                      Valid for GD
                      from £8.48
                      from £8.48
                      # 034
                      MPN: 621776..
                      CARPETTRIM
                      Valid for GD Valid till car Ass. Nr. 9472
                      Supersession
                      Supersession
                      # 034
                      MPN: 62177700
                      RH FRONT FACING FRAMEWORK
                      Without trim Valid for GD Valid till car Ass. Nr. 9472
                      from £109.88
                      from £109.88
                      # 034
                      MPN: 63557200
                      COVERED RH FRONT FACING
                      Valid for GD Valid from car Ass. Nr. 9473
                      from £189.00
                      from £189.00
                      # 034
                      MPN: 63557300
                      COVERED RH FRONT FACING
                      Beaver Valid for GD Valid from car Ass. Nr. 9473
                      # 034
                      MPN: 63557400
                      COVERED RH FRONT FACING
                      Red Valid for GD Valid from car Ass. Nr. 9473
                      # 034
                      MPN: 63557500
                      COVERED RH FRONT FACING
                      Blue Valid for GD Valid from car Ass. Nr. 9473
                      # 034
                      MPN: 63557600
                      COVERED RH FRONT FACING
                      Dark brown Valid for GD Valid from car Ass. Nr. 9473
                      # 035
                      MPN: 633091..
                      HAND BRAKE CONSOLE CASING MOULDING
                      Supersession
                      Supersession
                      # 036
                      MPN: 12574011
                      NUT
                      Valid for GD
                      from £0.53
                      from £0.53
                      # 037
                      MPN: 12642801
                      WASHER
                      Valid for GD
                      from £0.54
                      from £0.54
                      This part replaces part number 12642824
                      # 038
                      MPN: 621779..
                      CARPETTRIM
                      Valid for GD Valid till car Ass. Nr. 9472
                      Supersession
                      Supersession
                      # 038
                      MPN: 62178000
                      LH FRONT FACING FRAMEWORK
                      Without trim Valid for GD Valid till car Ass. Nr. 9472
                      from £63.88
                      from £63.88
                      # 038
                      MPN: 63558000
                      COVERED LH FRONT FACING
                      Black Valid for GD Valid from car Ass. Nr. 9473
                      from £126.00
                      from £126.00
                      # 038
                      MPN: 63558100
                      COVERED LH FRONT FACING
                      Beaver Valid for GD Valid from car Ass. Nr. 9473
                      # 038
                      MPN: 63558200
                      COVERED LH FRONT FACING
                      Red Valid for GD Valid from car Ass. Nr. 9473
                      # 038
                      MPN: 63558300
                      COVERED LH FRONT FACING
                      Blue Valid for GD Valid from car Ass. Nr. 9473
                      # 038
                      MPN: 63558400
                      COVERED LH FRONT FACING
                      Dark brown Valid for GD Valid from car Ass. Nr. 9473
                      # 039
                      MPN: 12638178
                      WASHER
                      from £0.47
                      from £0.47
                      This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
                      # 040
                      MPN: 15687708
                      SCREW
                      Supersession
                      Supersession
                      # 041
                      MPN: 628959..
                      TRIM PROTECTION
                      Valid for cars with passive safety belts Valid till car Ass. Nr. 6500
                      Supersession
                      Supersession
                      # 041
                      MPN: 628963..
                      PROTECTION TRIM
                      Valid till car Ass. Nr. 6500
                      Supersession
                      Supersession
                      # 041
                      MPN: 633087..
                      TRIM PROTECTION
                      Valid for cars with passive safety belts Valid from car Ass. Nr. 6501 and valid till car Nr. 94268
                      Supersession
                      Supersession
                      # 041
                      MPN: 633089..
                      PROTECTION TRIM
                      Valid for cars with passive safety belts Valid from car Ass. Nr. 6501 and valid till car Nr. 94268
                      Supersession
                      Supersession
                      # 041
                      MPN: 635838..
                      TRIM PROTECTION
                      Valid for cars with passive safety belts Valid from car Nr. 94269
                      Supersession
                      Supersession
                      # 041
                      MPN: 635839..
                      PROTECTIONTRIM
                      Valid for cars with passive safety belts Valid from car Nr. 94269
                      Supersession
                      Supersession
                      # 042
                      MPN: 63309000
                      BRUSH
                      Valid for cars with passive safety belts Valid from car Ass. Nr. 6501
                      from £79.30
                      from £79.30
                      # 043
                      MPN: 15957201
                      SCREW
                      Valid for cars with passive safety belts- Till car Ass. Nr. 6500 q.ty3
                      from £0.47
                      from £0.47
                      # 044
                      MPN: 14497701
                      WASHER
                      Valid for cars with passive safety belts Till car Ass. Nr. 6500 q.ty 3
                      from £0.52
                      from £0.52
                      # 045
                      MPN: 16101711
                      NUT
                      Valid for cars with passive safety belts Valid from car Ass. Nr. 6501
                      from £0.53
                      from £0.53
                      This part replaces part number 16101715
                      # 046
                      MPN: 13577411
                      WASHER
                      Valid for cars with passive safety belts Valid from car Ass. Nr. 6501
                      from £0.47
                      from £0.47
                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
