ferrari 348 (1993) tb / ts dashboard - structure and supports parts diagram

126 - dashboard - structure and supports

Ferrari 348 (1993) TB / TS Dashboard - Structure and Supports Parts Diagram

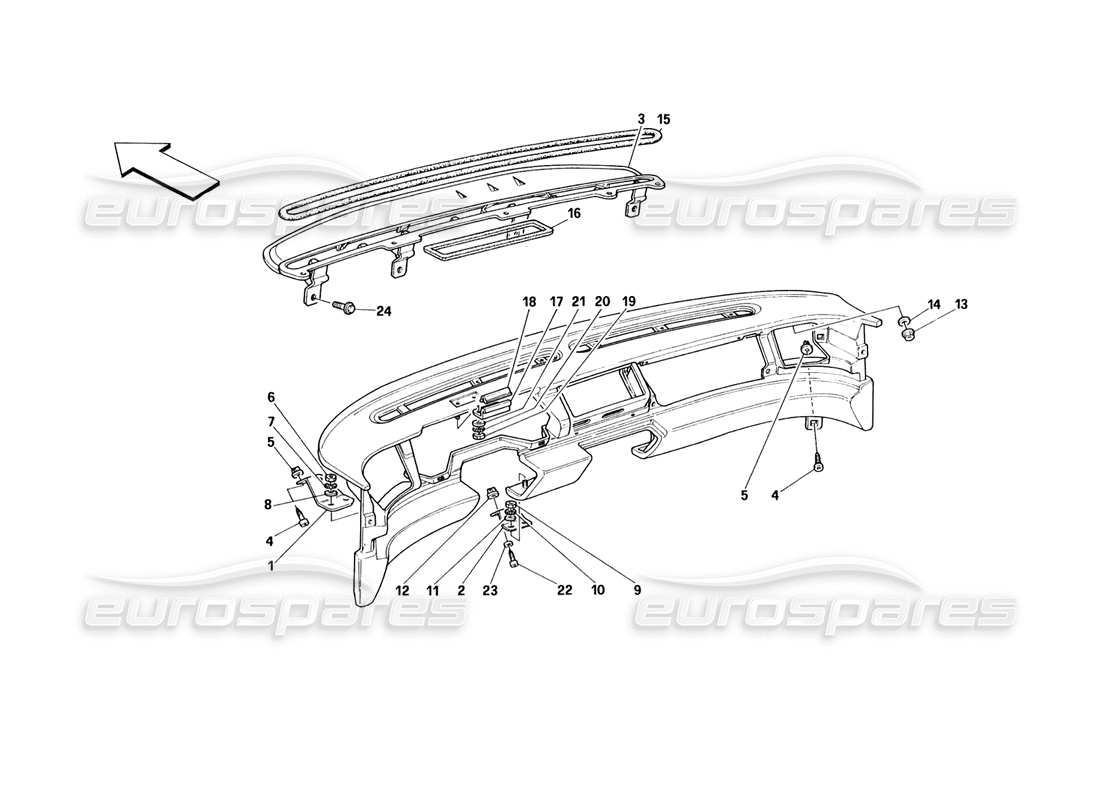

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 000
                                        MPN: 62136500
                                        UPPER LINING
                                        Not for GD
                                        from £16.12
                                        from £16.12
                                        # 000
                                        MPN: 62190000
                                        UPPER LINING
                                        Valid for GD
                                        from £30.59
                                        from £30.59
                                        # 000
                                        MPN: 629948..
                                        RH LOWER UPHOLSTERY
                                        Not for GD
                                        Supersession
                                        Supersession
                                        # 000
                                        MPN: 629949..
                                        LH LOWER UPHOLSTERY
                                        Not for GD
                                        Supersession
                                        Supersession
                                        # 000
                                        MPN: 629968..
                                        RH LOWER UPHOLSTERY
                                        Valid for GD
                                        Supersession
                                        Supersession
                                        # 000
                                        MPN: 629969..
                                        LH LOWER UPHOLSTERY
                                        Valid for GD
                                        Supersession
                                        Supersession
                                        # 000
                                        MPN: 633039..

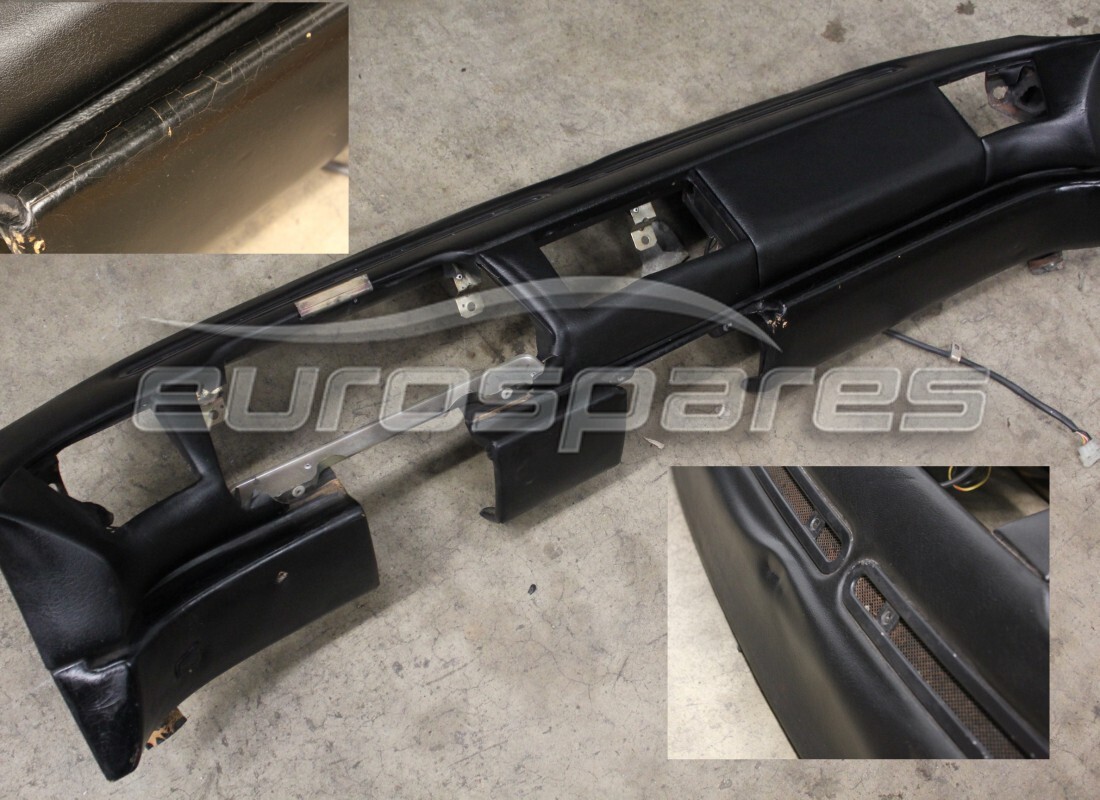

                                        UPHOLSTERED DASHBOARD
                                        Not for GD Valid till car Ass. Nr. 5766
                                        from £840.00
                                        from £840.00
                                        # 000
                                        MPN: 633040..
                                        UPHOLSTERED DASHBOARD
                                        Valid for GD
                                        from £1,260.00
                                        from £1,260.00
                                        # 000
                                        MPN: 636200..
                                        UPHOLSTERED DASHBOARD
                                        Not for GD Valid from car Ass. Nr. 5767
                                        from £1,260.00
                                        from £1,260.00
                                        # 001
                                        MPN: 63513000
                                        DASHBOARD TO BODY FIXING BRACKET
                                        from £3.85
                                        from £3.85
                                        # 002
                                        MPN: 62139200
                                        DASHBOARD LOWER FIXING BRACKET
                                        from £8.78
                                        from £8.78
                                        # 003
                                        MPN: 62185800
                                        UNDER-DASHBOARD AIR DUCTING
                                        Not for GD
                                        from £48.06
                                        from £48.06
                                        # 003
                                        MPN: 62193200
                                        UNDER-DASHBOARD AIR DUCTING
                                        Valid for GD
                                        from £79.80
                                        from £79.80
                                        # 004
                                        MPN: 15785101
                                        SCREW
                                        from £0.71
                                        from £0.71
                                        # 005
                                        MPN: 14115980
                                        BLOCK
                                        from £0.71
                                        from £0.71
                                        This part replaces part number 14202380
                                        # 006
                                        MPN: 15896470
                                        NUT
                                        (minimum order quantity = 20)
                                        from £0.79
                                        from £0.79
                                        This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                        # 007
                                        MPN: 12605270
                                        WASHER
                                        Supersession
                                        Supersession
                                        # 008
                                        MPN: 14496324
                                        WASHER
                                        from £1.43
                                        from £1.43
                                        This part replaces part number 14496301
                                        # 009
                                        MPN: 15896470
                                        NUT
                                        (minimum order quantity = 20)
                                        from £0.79
                                        from £0.79
                                        This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                        # 010
                                        MPN: 12605270
                                        WASHER
                                        Supersession
                                        Supersession
                                        # 011
                                        MPN: 14496324
                                        WASHER
                                        from £1.43
                                        from £1.43
                                        This part replaces part number 14496301
                                        # 012
                                        MPN: 14115980
                                        BLOCK
                                        from £0.71
                                        from £0.71
                                        This part replaces part number 14202380
                                        # 013
                                        MPN: 13832101
                                        NUT
                                        from £0.47
                                        from £0.47
                                        # 014
                                        MPN: 12640624
                                        WASHER
                                        from £0.47
                                        from £0.47
                                        This part replaces part number 12640601 - and 1 more. Click to view details
                                        # 015
                                        MPN: 62200500
                                        GASKET
                                        from £4.31
                                        from £4.31
                                        # 016
                                        MPN: 62188000
                                        AIR CONVEYOR GASKET
                                        from £3.58
                                        from £3.58
                                        # 017
                                        MPN: 62139700
                                        INSTRUMENTS PANEL FIXING PLATE
                                        from £1.37
                                        from £1.37
                                        # 018
                                        MPN: 62139800
                                        ANTI-VIBRATIONS
                                        from £0.71
                                        from £0.71
                                        # 019
                                        MPN: 15896470
                                        NUT
                                        (minimum order quantity = 20)
                                        from £0.79
                                        from £0.79
                                        This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                        # 020
                                        MPN: 12605270
                                        WASHER
                                        Supersession
                                        Supersession
                                        # 021
                                        MPN: 14496324
                                        WASHER
                                        from £1.43
                                        from £1.43
                                        This part replaces part number 14496301
                                        # 022
                                        MPN: 15688375
                                        SCREW
                                        (minimum order quantity = 30)
                                        from £0.47
                                        from £0.47
                                        This part replaces part number 15688306 which we have in stock
                                        # 023
                                        MPN: 12638101
                                        WASHER
                                        from £0.71
                                        from £0.71
                                        # 024
                                        MPN: 13836371
                                        SCREW
                                        from £1.49
                                        from £1.49
