ferrari 348 (1993) tb / ts lights lifting device and headlights parts diagram

129 - Lights Lifting Device and Headlights

Ferrari 348 (1993) TB / TS Lights Lifting Device and HeadLights Parts Diagram

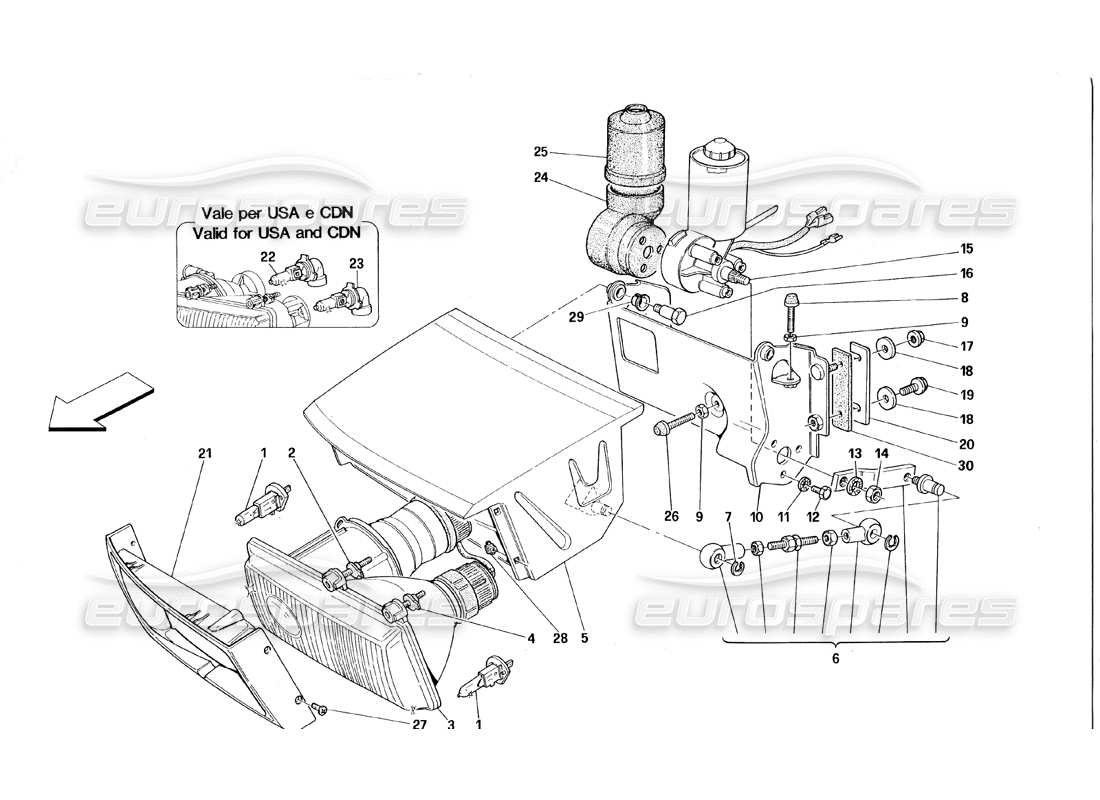

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 14151095
                                                    H1 12V-55WBULB
                                                    Not for USA and CON
                                                    from £9.77
                                                    from £9.77
                                                    # 002
                                                    MPN: 148086
                                                    FIXED POINT PIN
                                                    from £12.40
                                                    from £12.40
                                                    # 003
                                                    MPN: 133080
                                                    RH HEADLIGHT LOW/HIGH BEAM
                                                    Not for USA, CDN, GD, F and J
                                                    from £368.00
                                                    from £368.00
                                                    This part replaces part number 63187800
                                                    # 003
                                                    MPN: 133081
                                                    LH HEADLIGHT LOW/HIGH BEAM
                                                    Not for USA, CDN.GD, FandJ
                                                    from £526.31
                                                    from £526.31
                                                    This part replaces part number 63187700
                                                    # 003
                                                    MPN: 133082
                                                    RH HEADLIGHT LOW/HIGH BEAM
                                                    Valid for USA and CDN
                                                    from £484.93
                                                    from £484.93
                                                    # 003
                                                    MPN: 133083
                                                    LH HEADLIGHT LOW/HIGH BEAM
                                                    Valid for USA and CDN
                                                    from £484.93
                                                    from £484.93
                                                    # 003
                                                    MPN: 133084
                                                    RH HEADLIGHT LOW/HIGH BEAM
                                                    Valid for GD
                                                    from £253.21
                                                    from £253.21
                                                    # 003
                                                    MPN: 133085
                                                    LH HEADLIGHT LOW/HIGH BEAM
                                                    Valid for GD
                                                    from £460.38
                                                    from £460.38
                                                    # 003
                                                    MPN: 133086
                                                    RH HEADLIGHT LOW/HIGH BEAM
                                                    Valid for F
                                                    Supersession
                                                    Supersession
                                                    # 003
                                                    MPN: 133087
                                                    LH HEADLIGHT LOW/HIGH BEAM
                                                    Valid for F
                                                    from £371.74
                                                    from £371.74
                                                    # 003
                                                    MPN: 146157
                                                    RH HEADLIGHT LOW/HIGH BEAM
                                                    Valid for J
                                                    from £452.90
                                                    from £452.90
                                                    # 003
                                                    MPN: 146158
                                                    LH HEADLIGHT LOW/HIGH BEAM
                                                    Valid for J
                                                    from £452.90
                                                    from £452.90
                                                    # 004
                                                    MPN: 148088
                                                    HEADLIGHT ADJUSTING SCREW
                                                    from £12.39
                                                    from £12.39
                                                    # 005
                                                    MPN: 63501700
                                                    RH LIGHT CONTAINER
                                                    from £622.58
                                                    from £622.58
                                                    This part replaces part number 62077000
                                                    # 005
                                                    MPN: 63501800
                                                    LH LIGHT CONTAINER
                                                    from £622.58
                                                    from £622.58
                                                    This part replaces part number 62077100
                                                    # 006
                                                    MPN: 62608300
                                                    COMPLETE CONNECTING ROD AND HANDLE
                                                    from £38.71
                                                    from £38.71
                                                    # 007
                                                    MPN: 16160976
                                                    FLEXIBLE RING
                                                    from £0.51
                                                    from £0.51
                                                    # 008
                                                    MPN: 63346700
                                                    UPPER LIGHT ADJUSTMENT
                                                    Supersession
                                                    Supersession
                                                    This part replaces part number 63238900
                                                    # 009
                                                    MPN: 15896211
                                                    NUT
                                                    Supersession
                                                    Supersession
                                                    This part replaces part number 15896210 which we have in stock
                                                    # 010
                                                    MPN: 62131300
                                                    RH BRACKET FOR LIGHTS SUPPORT
                                                    from £104.95
                                                    from £104.95
                                                    # 010
                                                    MPN: 62131400
                                                    LH BRACKET FOR LIGHTS SUPPORT
                                                    from £104.95
                                                    from £104.95
                                                    # 011
                                                    MPN: 10615479
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    # 012
                                                    MPN: 10902111
                                                    SCREW
                                                    from £1.08
                                                    from £1.08
                                                    # 014
                                                    MPN: 15896211
                                                    NUT
                                                    Supersession
                                                    Supersession
                                                    This part replaces part number 15896210 which we have in stock
                                                    # 015
                                                    MPN: 172534
                                                    RH LIGHT LIFTING MOTOR
                                                    from £215.31
                                                    from £215.31
                                                    This part replaces part number 149134 which we have in stock - and 4 more. Click to view details
                                                    HEADLIGHT LIFTING MOTOR Genuine Ferrari Part - New (to order)
                                                    PLEASE CHECK PHOTOS AGAINST YOUR PART BEFORE ORDERING
                                                    HEADLIGHT LIFTING MOTOR Original Equipment - New (to order)
                                                    PLEASE CHECK PHOTOS AGAINST YOUR PART BEFORE ORDERING
                                                    # 015
                                                    MPN: 172535
                                                    LH LIGHT LIFTING MOTOR - CHECK THE PLATE N. (111.9026.20.IO)
                                                    from £215.31
                                                    from £215.31
                                                    This part replaces part number 149133 - and 2 more. Click to view details
                                                    HEADLIGHT LIFTING MOTOR Genuine Ferrari Part - New (to order)
                                                    PLEASE CHECK PHOTOS AGAINST YOUR PART BEFORE ORDERING.
                                                    HEADLIGHT LIFTING MOTOR Original Equipment - New In stock
                                                    PLEASE CHECK PHOTOS AGAINST YOUR PART BEFORE ORDERING.
                                                    # 015
                                                    MPN: 172535
                                                    LH LIGHT LIFTING MOTOR - CHECK THE PLATE N. (111.9026.20.IO)
                                                    from £215.31
                                                    from £215.31
                                                    This part replaces part number 149133 - and 2 more. Click to view details
                                                    HEADLIGHT LIFTING MOTOR Genuine Ferrari Part - New (to order)
                                                    PLEASE CHECK PHOTOS AGAINST YOUR PART BEFORE ORDERING.
                                                    HEADLIGHT LIFTING MOTOR Original Equipment - New In stock
                                                    PLEASE CHECK PHOTOS AGAINST YOUR PART BEFORE ORDERING.
                                                    # 016
                                                    MPN: 63346400
                                                    LIGHT CONTAINER ARM SUPPORT PIN
                                                    from £24.84
                                                    from £24.84
                                                    # 017
                                                    MPN: 13832201
                                                    NUT
                                                    from £0.53
                                                    from £0.53
                                                    # 018
                                                    MPN: 12625201
                                                    WASHER
                                                    Possible fitting
                                                    from £1.08
                                                    from £1.08
                                                    # 019
                                                    MPN: 13838911
                                                    SCREW
                                                    from £2.01
                                                    from £2.01
                                                    This part replaces part number 13838971
                                                    # 020
                                                    MPN: 62227500
                                                    OUTER SPACER FOR LIGHT ADJUSTMENT
                                                    from £4.80
                                                    from £4.80
                                                    # 020
                                                    MPN: 62227600
                                                    INNER SPACER FOR LIGHT ADJUSTMENT
                                                    from £0.57
                                                    from £0.57
                                                    # 021
                                                    MPN: 62071210
                                                    RH LIGHT RIM
                                                    from £30.68
                                                    from £30.68
                                                    # 021
                                                    MPN: 62071310
                                                    LH LIGHT RIM
                                                    from £30.68
                                                    from £30.68
                                                    # 022
                                                    MPN: 143165
                                                    HB412V-55WBULB
                                                    Valid for USA and CDN
                                                    from £44.09
                                                    from £44.09
                                                    # 023
                                                    MPN: 143166
                                                    HB312V-65WBULB
                                                    Valid for USA and CDN
                                                    from £33.66
                                                    from £33.66
                                                    # 024
                                                    MPN: 60331204
                                                    LOWER GUARD FOR RH LIGHT LIFING MOTOR
                                                    from £63.21
                                                    from £63.21
                                                    # 024
                                                    MPN: 60331303
                                                    LOWER GUARD FOR LH LIGHT
                                                    from £63.21
                                                    from £63.21
                                                    # 025
                                                    MPN: 60331402
                                                    UPPER GUARD FOR LIGHT
                                                    from £94.80
                                                    from £94.80
                                                    # 026
                                                    MPN: 63346800
                                                    LOWER LIGHT ADJUSTMENT
                                                    from £4.06
                                                    from £4.06
                                                    This part replaces part number 62054900 - and 1 more. Click to view details
                                                    # 027
                                                    MPN: 13297377
                                                    SCREW
                                                    from £0.48
                                                    from £0.48
                                                    # 028
                                                    MPN: 63595100
                                                    NUT
                                                    from £0.69
                                                    from £0.69
                                                    # 029
                                                    MPN: 62998000
                                                    BUSHING
                                                    from £1.84
                                                    from £1.84
                                                    # 030
                                                    MPN: 63344800
                                                    OUTER GASKET
                                                    from £1.70
                                                    from £1.70
                                                    # 030
                                                    MPN: 63344900
                                                    INNER GASKET
                                                    from £31.12
                                                    from £31.12
