ferrari 348 (1993) tb / ts air conditioning system parts diagram

135 - air conditioning system

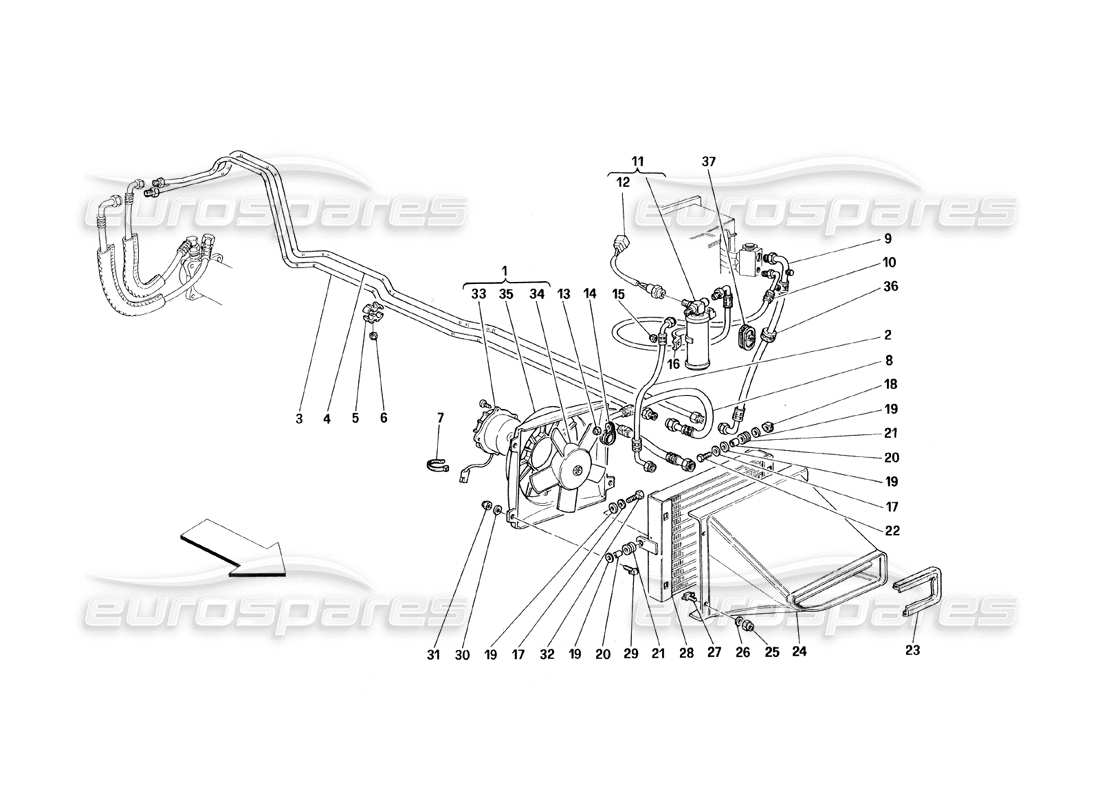

Ferrari 348 (1993) TB / TS Air Conditioning System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price

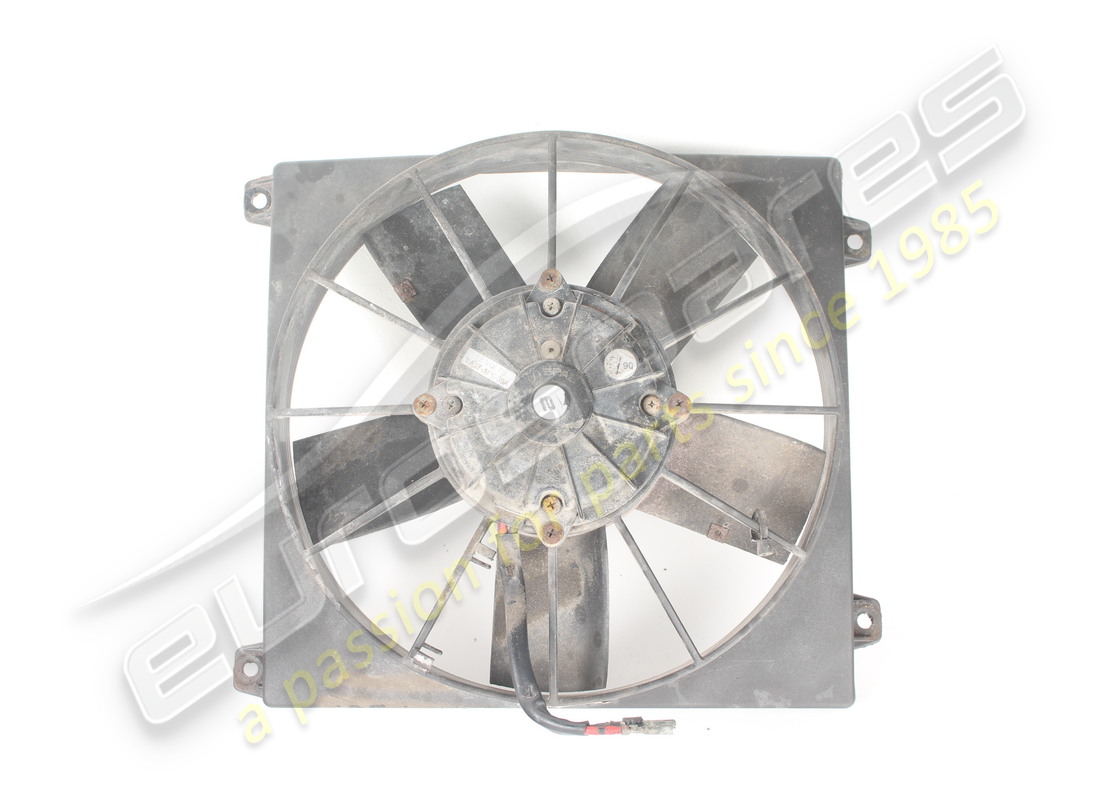

                                                                  # 001
                                                                  MPN: 62992500
                                                                  COMPLETE ELECTROFAN
                                                                  from £308.21
                                                                  from £308.21

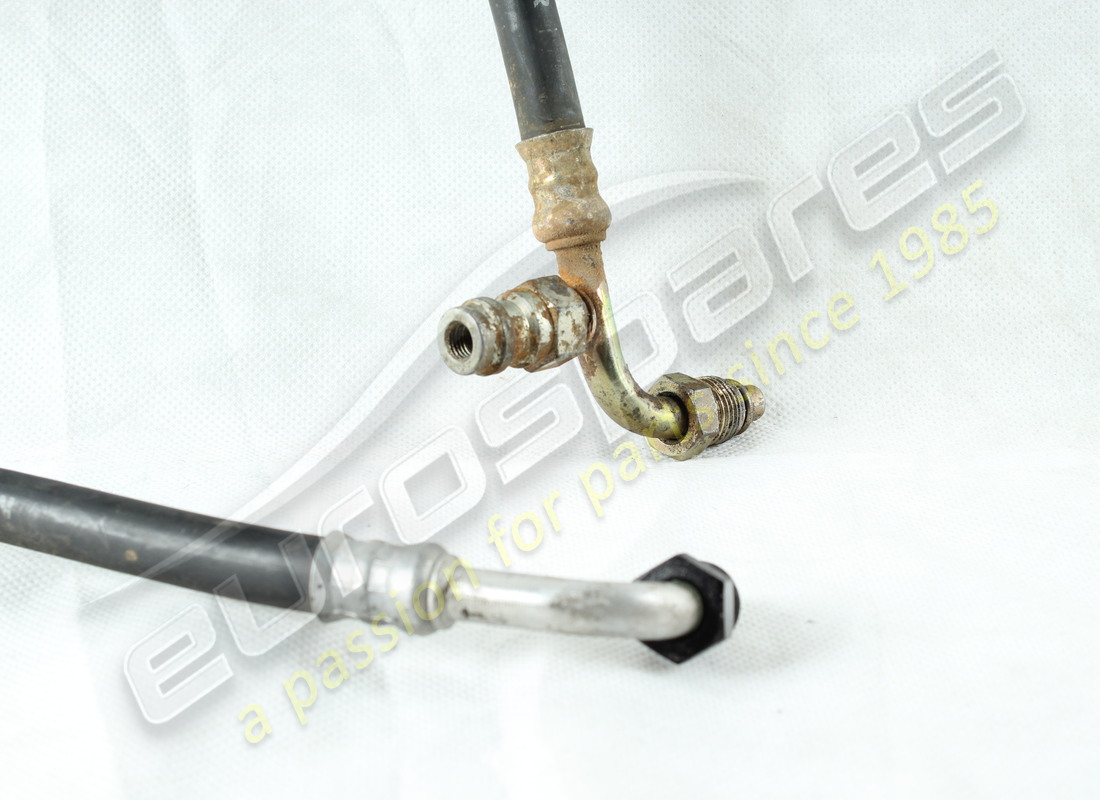

                                                                  # 002
                                                                  MPN: 62642500
                                                                  PIPE FROM CONDENSER TO CLEANER
                                                                  from £63.17
                                                                  from £63.17
                                                                  # 003
                                                                  MPN: 62658900
                                                                  FREON DELIVERY PIPE UNDER THE FLOOR
                                                                  from £436.88
                                                                  from £436.88
                                                                  # 004
                                                                  MPN: 62659000
                                                                  FREON RETURN PIPE UNDER THE FLOOR
                                                                  from £128.36
                                                                  from £128.36
                                                                  # 005
                                                                  MPN: 62658700
                                                                  CLIP
                                                                  from £23.02
                                                                  from £23.02
                                                                  # 006
                                                                  MPN: 12574211
                                                                  NUT
                                                                  from £0.71
                                                                  from £0.71
                                                                  # 007
                                                                  MPN: 145855
                                                                  CLAMP
                                                                  from £0.54
                                                                  from £0.54
                                                                  This part replaces part number 14560287 - and 1 more. Click to view details

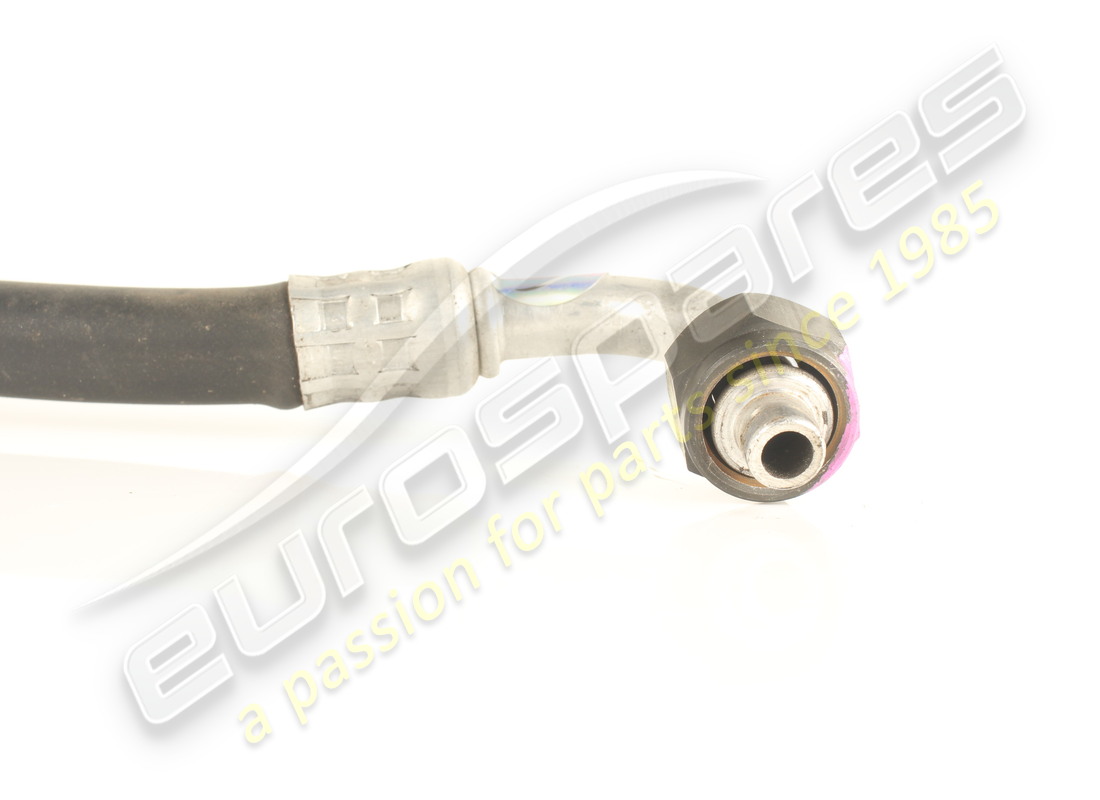

                                                                  # 008
                                                                  MPN: 62642400
                                                                  PIPE FROM DELIVERY TO CONDENSER
                                                                  from £86.12
                                                                  from £86.12
                                                                  # 009
                                                                  MPN: 62642700
                                                                  PIPE FROM EVAPORATOR TO RETURN PIPE
                                                                  Not for GD
                                                                  from £35.32
                                                                  from £35.32
                                                                  # 009
                                                                  MPN: 62850600
                                                                  PIPE FROM EVAPORATOR TO RETURN PIPE
                                                                  Valid for GD
                                                                  from £85.72
                                                                  from £85.72
                                                                  # 010
                                                                  MPN: 62642600
                                                                  PIPE FROM CLEANER TO EVAPORATOR
                                                                  Not for GD
                                                                  from £60.42
                                                                  from £60.42
                                                                  # 010
                                                                  MPN: 62850900
                                                                  PIPE FROM CLEANER TO EVAPORATOR
                                                                  Valid for GD
                                                                  from £221.53
                                                                  from £221.53
                                                                  # 011
                                                                  MPN: 62655500
                                                                  DEHYDRATOR FILTER WITH PRESSURE SWITCH
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 62655600
                                                                  # 012
                                                                  MPN: 62433300
                                                                  PRESSOSTAT
                                                                  from £111.62
                                                                  from £111.62
                                                                  This part replaces part number 64278900 which we have in stock
                                                                  # 013
                                                                  MPN: 12574211
                                                                  NUT
                                                                  from £0.71
                                                                  from £0.71
                                                                  # 013
                                                                  MPN: 12643724
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 109684 - and 4 more. Click to view details
                                                                  # 014
                                                                  MPN: 10441990
                                                                  BRACKET
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 015
                                                                  MPN: 12574211
                                                                  NUT
                                                                  from £0.71
                                                                  from £0.71
                                                                  # 016
                                                                  MPN: 62165800
                                                                  BRACKET
                                                                  from £1.36
                                                                  from £1.36
                                                                  # 017
                                                                  MPN: 10515471
                                                                  WASHER
                                                                  # 018
                                                                  MPN: 60659100
                                                                  NUT
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
                                                                  # 020
                                                                  MPN: 103550
                                                                  SPACER
                                                                  from £1.91
                                                                  from £1.91
                                                                  This part replaces part number 4130913
                                                                  # 021
                                                                  MPN: 103549
                                                                  CABLE GROMMET
                                                                  from £0.70
                                                                  from £0.70
                                                                  # 022
                                                                  MPN: 10902511
                                                                  SCREW
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 023
                                                                  MPN: 62591100
                                                                  AIR CONVEYOR GASKET
                                                                  from £5.29
                                                                  from £5.29
                                                                  # 024
                                                                  MPN: 63250600
                                                                  AIR CONVEYOR
                                                                  from £223.04
                                                                  from £223.04
                                                                  This part replaces part number 62590700
                                                                  # 025
                                                                  MPN: 12574211
                                                                  NUT
                                                                  from £0.71
                                                                  from £0.71
                                                                  # 026
                                                                  MPN: 14496401
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  # 027
                                                                  MPN: 14664790
                                                                  SCREW
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 028
                                                                  MPN: 62590600
                                                                  A.C. CONDENSER
                                                                  from £1,732.97
                                                                  from £1,732.97
                                                                  # 029
                                                                  MPN: 14664790
                                                                  SCREW
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 030
                                                                  MPN: 14496401
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  # 031
                                                                  MPN: 12574211
                                                                  NUT
                                                                  from £0.71
                                                                  from £0.71
                                                                  # 033
                                                                  MPN: 143543
                                                                  MOTOR
                                                                  from £55.40
                                                                  from £55.40
                                                                  # 034
                                                                  MPN: 148246
                                                                  BLOWER
                                                                  from £26.34
                                                                  from £26.34
                                                                  # 035
                                                                  MPN: 63004700
                                                                  HOOD FOR ELECTROFAN
                                                                  from £38.65
                                                                  from £38.65
                                                                  This part replaces part number 62590800
                                                                  # 036
                                                                  MPN: 10398780
                                                                  CABLE GROMMET
                                                                  Not for GD
                                                                  from £1.84
                                                                  from £1.84
                                                                  # 037
                                                                  MPN: 60679700
                                                                  CABLE GROMMET
                                                                  Valid for GD
                                                                  from £5.91
                                                                  from £5.91
