ferrari 348 (2.7 motronic) lh cylinder head parts diagram

004 - LH cylinder head

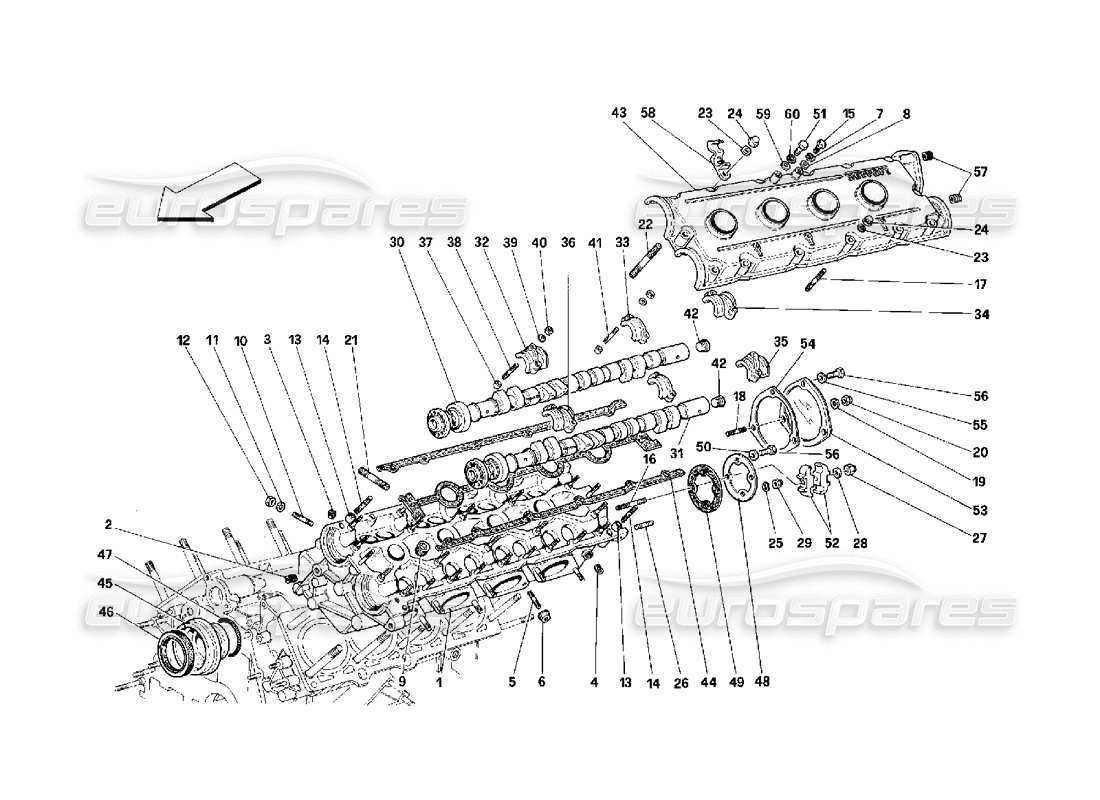

Ferrari 348 (2.7 Motronic) L.H. Cylinder Head Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                      #
                                                                                                      Part number
                                                                                                      Description
                                                                                                      Price
                                                                                                      # 001
                                                                                                      -
                                                                                                      LH HEAD
                                                                                                      # 001
                                                                                                      MPN: 149502
                                                                                                      COMPLETE LH CYLINDERS HEAD
                                                                                                      - Valid for USA and CDN - Not as spare part - With complete cylinders head
                                                                                                      from £5,126.71
                                                                                                      from £5,126.71
                                                                                                      This part replaces part number 133994 which we have in stock - and 1 more. Click to view details
                                                                                                      # 001
                                                                                                      MPN: 159867
                                                                                                      COMPLETE LH CYLINDERS HEAD
                                                                                                      - Not for USA and CDN
                                                                                                      from £5,001.20
                                                                                                      from £5,001.20
                                                                                                      # 002
                                                                                                      MPN: 13525870
                                                                                                      THREADED INSERT
                                                                                                      from £1.40
                                                                                                      from £1.40
                                                                                                      This part replaces part number 105510
                                                                                                      # 003
                                                                                                      MPN: 13525870
                                                                                                      THREADED INSERT
                                                                                                      from £1.40
                                                                                                      from £1.40
                                                                                                      This part replaces part number 105510
                                                                                                      # 004
                                                                                                      MPN: 14326150
                                                                                                      THREADED PLUG
                                                                                                      from £0.50
                                                                                                      from £0.50
                                                                                                      This part replaces part number 12326150
                                                                                                      # 005
                                                                                                      MPN: 12354524
                                                                                                      STUD SECURING EXHAUST MANIFOLDS
                                                                                                      from £15.48
                                                                                                      from £15.48
                                                                                                      This part replaces part number 12354521
                                                                                                      # 006
                                                                                                      MPN: 138392
                                                                                                      NUT
                                                                                                      (minimum order quantity = 25)
                                                                                                      from £0.58
                                                                                                      from £0.58
                                                                                                      # 007
                                                                                                      MPN: 149951
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
                                                                                                      # 008
                                                                                                      MPN: 10519377
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 10519305 which we have in stock - and 1 more. Click to view details
                                                                                                      # 009
                                                                                                      MPN: 127635
                                                                                                      PLUG
                                                                                                      from £1.47
                                                                                                      from £1.47
                                                                                                      This part replaces part number 183447
                                                                                                      # 010
                                                                                                      MPN: 13541621
                                                                                                      STUD SECURING WATER MANIFOLDS (CYL. 5,8)
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 011
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                      # 012
                                                                                                      MPN: 15896211
                                                                                                      NUT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 15896210
                                                                                                      # 013
                                                                                                      MPN: 102725
                                                                                                      DOWEL
                                                                                                      from £0.65
                                                                                                      from £0.65
                                                                                                      # 014
                                                                                                      MPN: 13541721
                                                                                                      STUD
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 015
                                                                                                      MPN: 10977624
                                                                                                      SCREW
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 10977611 - and 1 more. Click to view details
                                                                                                      # 016
                                                                                                      MPN: 11501421
                                                                                                      STUD
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 017
                                                                                                      MPN: 13541621
                                                                                                      STUD
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 018
                                                                                                      MPN: 11500521
                                                                                                      STUD
                                                                                                      from £1.85
                                                                                                      from £1.85
                                                                                                      # 019
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                      # 020
                                                                                                      MPN: 102741
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                      # 021
                                                                                                      MPN: 13541721
                                                                                                      STUD SECURING WATER MANIFOLDS (CYL. 6,7)
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 022
                                                                                                      MPN: 13541721
                                                                                                      STUD
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 023
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.52
                                                                                                      from £0.52
                                                                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                      # 024
                                                                                                      MPN: 100044
                                                                                                      NUT
                                                                                                      from £0.26
                                                                                                      from £0.26
                                                                                                      This part replaces part number 151230 - and 1 more. Click to view details
                                                                                                      # 025
                                                                                                      MPN: 12601274
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                      # 026
                                                                                                      MPN: 11500321
                                                                                                      STUD
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 027
                                                                                                      MPN: 12574211
                                                                                                      NUT
                                                                                                      from £0.71
                                                                                                      from £0.71
                                                                                                      # 028
                                                                                                      MPN: 10519401
                                                                                                      WASHER
                                                                                                      from £0.71
                                                                                                      from £0.71
                                                                                                      # 030
                                                                                                      MPN: 139336
                                                                                                      COMPLETE LH INDUCTION DISTRIBUTION SHAFT
                                                                                                      from £563.34
                                                                                                      from £563.34
                                                                                                      # 031
                                                                                                      MPN: 139338
                                                                                                      COMPLETE LH EXHAUST CAM SHAFT
                                                                                                      from £1,241.11
                                                                                                      from £1,241.11
                                                                                                      # 032
                                                                                                      -
                                                                                                      INLET SIDE FRONT CAP
                                                                                                      # 033
                                                                                                      -
                                                                                                      INTERMEDIATE CAP
                                                                                                      # 034
                                                                                                      -
                                                                                                      INLET SIDE REAR CAP
                                                                                                      # 035
                                                                                                      -
                                                                                                      EXHAUST SIDE REAR CAP
                                                                                                      # 036
                                                                                                      -
                                                                                                      EXHAUST SIDE FRONT CAP
                                                                                                      # 037
                                                                                                      MPN: 102725
                                                                                                      DOWEL
                                                                                                      from £0.57
                                                                                                      from £0.57
                                                                                                      # 038
                                                                                                      MPN: 102754
                                                                                                      STUD (OUTER CAPS)
                                                                                                      from £5.00
                                                                                                      from £5.00
                                                                                                      # 039
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.51
                                                                                                      from £0.51
                                                                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                      # 040
                                                                                                      MPN: 15896211
                                                                                                      NUT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 15896210
                                                                                                      # 041
                                                                                                      MPN: 102735
                                                                                                      STUD (INNER CAPS)
                                                                                                      - Ø 18 mm - Ø 14 mm
                                                                                                      from £11.07
                                                                                                      from £11.07
                                                                                                      This part replaces part number 4146561
                                                                                                      # 042
                                                                                                      MPN: 10269550
                                                                                                      THREADED PLUG
                                                                                                      from £1.55
                                                                                                      from £1.55
                                                                                                      # 042
                                                                                                      MPN: 10269750
                                                                                                      THREADED PLUG
                                                                                                      from £0.91
                                                                                                      from £0.91
                                                                                                      This part replaces part number 95184
                                                                                                      # 043
                                                                                                      -
                                                                                                      LH CYLINDER HEAD COVER
                                                                                                      # 044
                                                                                                      MPN: 150084
                                                                                                      LH GASKET
                                                                                                      Alternative use - FCCG001 Cam cover set
                                                                                                      from £27.89
                                                                                                      from £27.89
                                                                                                      This part replaces part number 117264 - and 1 more. Click to view details
                                                                                                      # 044
                                                                                                      MPN: FCCG001/B
                                                                                                      Cam Cover Gasket Set & Seal kit
                                                                                                      Includes FCCG001 & seals - x4 134714 / x4 117275.
                                                                                                      # 045
                                                                                                      MPN: 144973
                                                                                                      SMALL COVER
                                                                                                      from £370.72
                                                                                                      from £370.72
                                                                                                      This part replaces part number 117257 - and 2 more. Click to view details
                                                                                                      # 046
                                                                                                      MPN: 134714
                                                                                                      OIL SEAL
                                                                                                      from £10.35
                                                                                                      from £10.35
                                                                                                      This part replaces part number 110314
                                                                                                      # 047
                                                                                                      MPN: 117275
                                                                                                      O.R. GASKET
                                                                                                      from £2.93
                                                                                                      from £2.93
                                                                                                      # 048
                                                                                                      MPN: 103796
                                                                                                      REAR SMALL COVER
                                                                                                      from £167.71
                                                                                                      from £167.71
                                                                                                      # 049
                                                                                                      MPN: 150075
                                                                                                      GASKET
                                                                                                      from £16.19
                                                                                                      from £16.19
                                                                                                      This part replaces part number 104694 - and 3 more. Click to view details
                                                                                                      # 050
                                                                                                      MPN: 12601274
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                      # 051
                                                                                                      MPN: 10977524
                                                                                                      SCREW
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      # 052
                                                                                                      MPN: 62658700
                                                                                                      CLIP
                                                                                                      from £23.02
                                                                                                      from £23.02
                                                                                                      # 053
                                                                                                      MPN: 140102
                                                                                                      REAR SMALL COVER
                                                                                                      from £28.52
                                                                                                      from £28.52
                                                                                                      # 054
                                                                                                      MPN: 150074
                                                                                                      GASKET
                                                                                                      from £5.30
                                                                                                      from £5.30
                                                                                                      This part replaces part number 133744
                                                                                                      # 055
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                      # 056
                                                                                                      MPN: 10902324
                                                                                                      SCREW
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                                                      # 057
                                                                                                      MPN: 13525470
                                                                                                      THREADED INSERT
                                                                                                      from £0.50
                                                                                                      from £0.50
                                                                                                      This part replaces part number 107333
                                                                                                      # 058
                                                                                                      MPN: 129544
                                                                                                      CLIP
                                                                                                      from £0.96
                                                                                                      from £0.96
                                                                                                      # 059
                                                                                                      MPN: 12648201
                                                                                                      WASHER
                                                                                                      from £1.39
                                                                                                      from £1.39
